Air vane motors, also known as pneumatic vane motors, are devices that convert the energy of compressed air into mechanical rotary motion. They are widely used in various industrial applications where precise control and variable speed are required. This article will delve into the design, working principle, and applications of air vane motors, providing a comprehensive overview of these versatile devices.
Air vane motors are part of a broader category of air motors, which include piston and turbine types. However, vane motors are particularly noted for their simplicity, reliability, and ability to deliver consistent torque across a range of speeds. They are ideal for environments requiring clean and reliable power sources, such as manufacturing, automation, and aerospace.

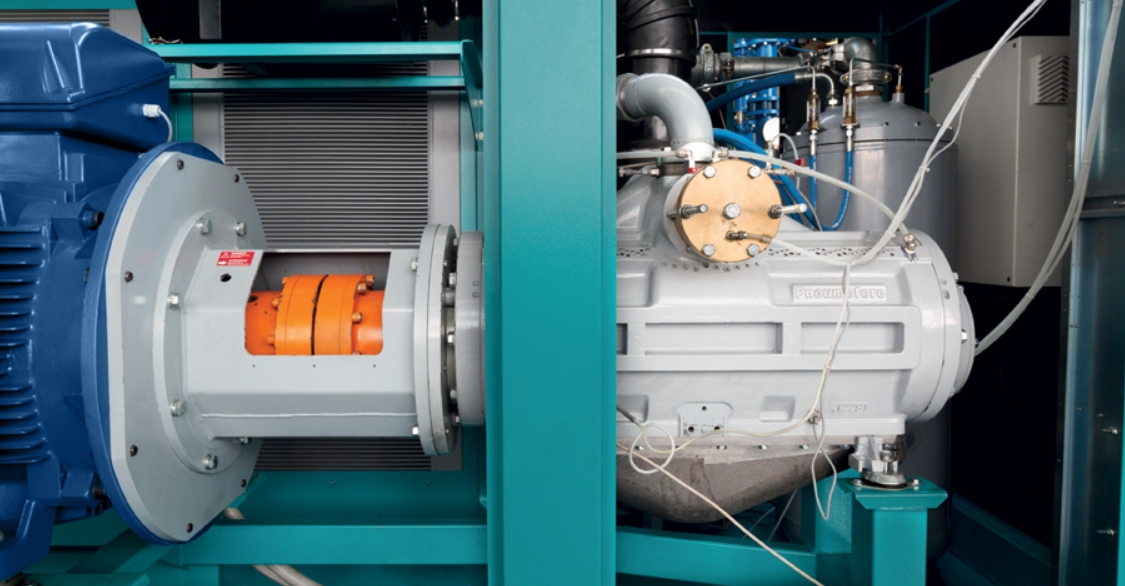

A typical air vane motor consists of a few key components:
- Housing (Casing): This is the external housing that contains all other components.
- Rotor: The rotor is equipped with slots that hold vanes and rotates eccentrically within the housing.
- Vanes: These are flat or slightly curved blades that slide in and out of the rotor slots.
- Inlet and Outlet Ports: Compressed air enters through the inlet port and exits through the outlet port.

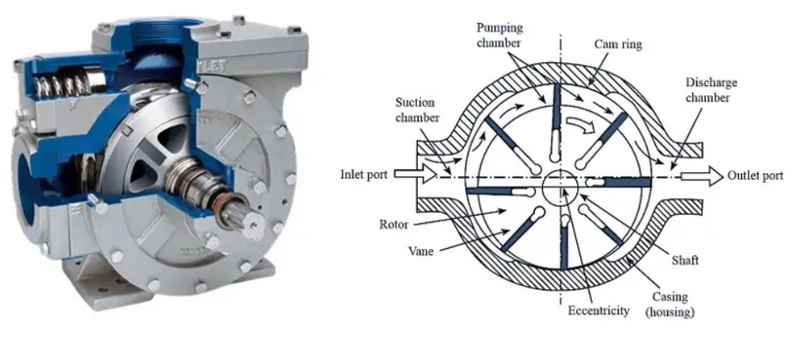

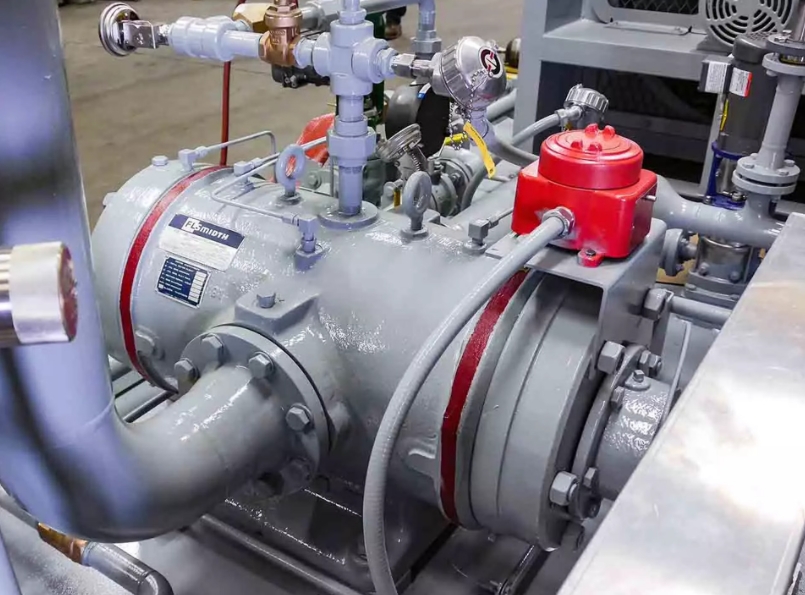

The design of an air vane motor is straightforward yet effective. The rotor, positioned off-center within the housing, creates crescent-shaped chambers as it rotates. Vanes, mounted radially on the rotor, move in and out of their slots due to centrifugal force and the pressure of compressed air. This movement divides the chamber into separate working areas of different sizes, allowing for the conversion of compressed air energy into rotational motion.
1. Air Entry: Compressed air enters the motor through the inlet port.
2. Vane Movement: The air pushes against the vanes, forcing them against the cylinder wall and creating a pressure differential that drives the rotor to turn.
3. Chamber Creation: As the rotor rotates, new chambers are formed and old ones are sealed off by the vanes.
4. Expansion and Exhaust: The compressed air expands in the chambers, pushing against the vanes to generate torque. Once the vanes reach the exhaust port, the air is released, completing the cycle.
Air vane motors find applications in various industries due to their reliability, ease of maintenance, and adjustable speed control. Some common uses include:
- Conveyor Systems: They are used to drive conveyor belts in manufacturing and logistics.
- Pump Drives: Air vane motors can power pumps in water treatment and chemical processing.
- Material Handling Equipment: They are used in machinery for lifting and moving materials.
- Packaging Machinery: Air vane motors are employed in packaging lines for their consistent torque output.
- Reliability: They offer reliable operation with minimal maintenance.
- Adjustable Speed: Speed can be adjusted by varying air pressure or volume.
- Overload Protection: Unlike electric motors, air vane motors cannot burn out and automatically adjust speed based on load.
- Efficiency: They generally require lubricated air, which can add maintenance costs.
- Noise: Air vane motors can be noisy due to the airflow and mechanical movement.
- Limited Power: Compared to other types of motors, they have relatively lower power ratings.
Air vane motors can be categorized based on their design and functionality:
- Lubricated vs. Lubrication-Free: Traditional motors use lubricated air, while newer designs are lubrication-free, using special materials for reduced friction.
- Clockwise, Counterclockwise, and Reversible: Motors can be designed to rotate in different directions or be reversible, depending on the application.
When selecting an air vane motor, consider factors such as power requirements, speed range, and duty cycle. For continuous operation, gear motors or turbines might be more suitable.
Regular maintenance is crucial for extending the lifespan of air vane motors. This includes ensuring proper air filtration, checking for worn-out vanes, and maintaining adequate lubrication in lubricated models. Common issues include reduced performance due to clogged air filters or worn vanes, which can be resolved by cleaning or replacing these components.
When working with air vane motors, safety is paramount. Ensure that the compressed air supply is properly regulated and that all safety valves are functioning correctly. Additionally, protective gear should be worn when handling high-pressure air systems.
Air vane motors are generally more environmentally friendly than traditional electric motors, as they produce no electrical noise or heat, and they do not require cooling systems. However, the energy efficiency of the compressed air system itself can impact overall environmental performance.
Advancements in materials and design are expected to improve the efficiency and power output of air vane motors. Newer models are being developed with advanced materials that reduce friction and improve durability, making them more competitive in the market.
Air vane motors are often compared to electric motors and hydraulic motors. While electric motors offer higher efficiency and precision control, air vane motors provide the advantage of explosion-proof operation and resistance to overload. Hydraulic motors, on the other hand, offer higher power density but require complex hydraulic systems.
Several industries have successfully integrated air vane motors into their operations. For example, in the food processing industry, air vane motors are used to drive machinery that requires clean and reliable power sources. Similarly, in aerospace, they are used for precision control in various mechanical systems.
The use of air vane motors is evolving with technological advancements. Innovations in materials science and manufacturing techniques are leading to more efficient and durable motors. Additionally, there is a growing interest in integrating air vane motors with automation systems to enhance precision and efficiency in industrial processes.
While air vane motors may have higher upfront costs compared to some electric motors, their long-term benefits include reduced maintenance costs and improved reliability. This makes them a cost-effective option for many applications.
Proper training is essential for the safe and efficient operation of air vane motors. Operators should be educated on maintenance procedures, safety protocols, and troubleshooting techniques to ensure optimal performance.
The integration of air vane motors with automation systems is becoming increasingly popular. This integration allows for precise control over motor speed and direction, enhancing the efficiency and productivity of industrial processes. Advanced sensors and control systems enable real-time monitoring and adjustments, ensuring optimal performance under varying conditions.
Air vane motors must comply with various regulatory standards, including those related to safety, environmental impact, and performance. Ensuring compliance with these regulations is crucial for manufacturers and users alike.
Air vane motors are versatile devices that offer reliable and efficient operation in various industrial settings. Their ability to convert compressed air into mechanical motion makes them ideal for applications requiring precise control and variable speed. With advancements in design, such as lubrication-free models, air vane motors continue to be a preferred choice for many industries.
Air vane motors consist of a housing, rotor with vanes, and inlet and outlet ports for compressed air. The rotor rotates eccentrically within the housing, creating chambers that fill and empty with air to produce torque.
Speed in air vane motors can be adjusted by varying the air pressure or volume supplied to the motor. This flexibility allows the motor to adapt to different load conditions without burning out.
Lubrication-free motors use special low-friction materials and permanently lubricated bearings, reducing maintenance needs and extending service life. However, they may experience a slight power loss compared to lubricated models.
Air vane motors are used in manufacturing, automation, aerospace, and other sectors where clean and reliable power sources are essential. They are particularly useful in applications requiring consistent torque output.
Unlike electric motors, air vane motors cannot burn out. They automatically adjust their speed based on the load, ensuring safe operation even under high torque conditions.
