Views: 222 Author: Ella Publish Time: 2025-03-27 Origin: Site
Content Menu
● Introduction to Planetary Gearboxes
● Advantages of Planetary Gearboxes
● Applications of Planetary Gearboxes
● How Planetary Gearboxes Work
● When to Use a Planetary Gearbox
● Innovations in Planetary Gearboxes
>> Automation and Digital Integration
● Industry-Specific Applications
● Robotics and Planetary Gearboxes
● FAQ
>> 1. What are the main components of a planetary gearbox?
>> 2. What are the advantages of using a planetary gearbox?
>> 3. In which industries are planetary gearboxes commonly used?
>> 4. How do planetary gearboxes achieve different gear ratios?
>> 5. What are some common applications of planetary gearboxes in consumer electronics?
Planetary gearboxes are versatile and efficient mechanical components used in a wide range of applications, from robotics and automation to aerospace and automotive industries. Their unique design allows for high torque density, compact size, and high efficiency, making them ideal for systems requiring precise control and high power transmission. This article will explore the advantages, applications, and scenarios where planetary gearboxes are most beneficial.

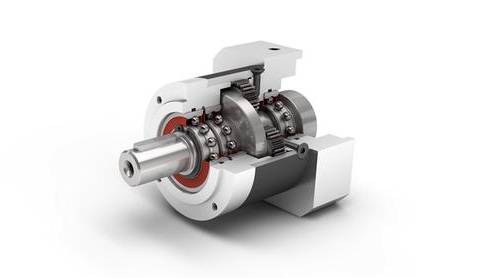

A planetary gearbox, also known as an epicyclic gearbox, consists of three main components: the sun gear, planet gears, and a ring gear. The planet gears orbit around the sun gear while meshing with the internal teeth of the ring gear. This arrangement allows for multiple gear ratios and efficient power transmission.
1. High Power Density and Compact Design: Planetary gearboxes are designed to distribute load across multiple planet gears, allowing for high torque transmission in a compact space. This makes them ideal for applications where space is limited but high power is required.
2. High Efficiency: The efficiency of planetary gearboxes can reach up to 98% for the first stage, making them suitable for applications where energy loss needs to be minimized.
3. High Precision and Low Noise: Planetary gearboxes offer high precision with low backlash, which is crucial in applications requiring precise movement. They also operate at low noise levels, typically around 55 decibels.
4. High Reduction Ratios: Planetary gearboxes can achieve high gear reduction ratios through multiple stages, making them suitable for applications requiring significant speed reduction.
5. Durability and Reliability: The even distribution of load among the gears extends the lifespan of the gearbox by reducing wear and tear.
Planetary gearboxes are used in various industries due to their versatility and efficiency:
- Industrial Automation: They are used in servo motor-driven automation devices, panel handling, and robotic arms. In robotics, planetary gearboxes provide the precision and reliability needed for accurate movements, making them a preferred choice in robotic arms and CNC machines.
- Aerospace and Defense: Applications include satellite positioning systems and precision control mechanisms. The lightweight and compact nature of these gearboxes make them well-suited for aerospace applications where minimizing weight is critical for fuel efficiency and overall performance.
- Automotive: Used in automatic transmissions and electric vehicle systems. In the automotive industry, planetary gearboxes revolutionize how power is transmitted in vehicles, facilitating smooth gear shifting and efficient power distribution.
- Consumer Electronics: Found in mobile phone camera actuators and other small devices requiring precise movement.
- Renewable Energy: Planetary gearboxes play a crucial role in wind turbines and solar tracking systems. In wind turbines, they help optimize the rotational speed of the generator to produce electricity efficiently. Solar tracking systems use planetary gearboxes to adjust the position of solar panels, maximizing their exposure to sunlight throughout the day.
The operation of a planetary gearbox involves the rotation of planet gears around a central sun gear while meshing with an internally toothed ring gear. The carrier holds the planet gears in place and provides the output torque. Different gear ratios can be achieved by locking different components (sun gear, ring gear, or carrier) and using them as input or output.
Planetary gearboxes are ideal in scenarios where:
- High Torque in Compact Spaces: Applications requiring high torque density without sacrificing space.
- High Precision and Efficiency: Systems needing precise control and minimal energy loss.
- Variable Speed Requirements: Situations where multiple gear ratios are necessary.
- Reliability and Durability: Environments demanding long-lasting performance under heavy loads.
When designing with planetary gearboxes, consider the following:
- Load Distribution: Ensure even load distribution across the planet gears for optimal performance.
- Material Selection: Choose materials that can withstand the operational stresses and environmental conditions. Recent advancements in material science have led to the use of high-strength alloys and composite materials, improving durability and reducing weight.
- Lubrication: Proper lubrication is crucial to prevent wear and maintain efficiency.
Recent innovations include advancements in materials, automation, and digital integration. The integration of smart technologies allows for real-time monitoring of gearbox performance, facilitating predictive maintenance and reducing downtime.
The use of lightweight materials such as carbon fiber-reinforced composites is becoming more prevalent, enhancing the strength and durability of planetary gearboxes while reducing their weight. This is particularly beneficial in applications where weight reduction is critical, such as in aerospace and electric vehicles.
The integration of IoT and smart technologies into planetary gearboxes has revolutionized industrial applications. Sensors and IoT connectivity allow for real-time monitoring of parameters like lubrication levels, vibration, and temperature. This data can be used for predictive maintenance, reducing maintenance costs and extending the lifespan of the gearboxes.
The future of planetary gearboxes is marked by ongoing innovations in design, materials, and technology integration. As industries continue to evolve, the demand for more efficient, compact, and reliable gear systems will drive further advancements in planetary gearbox technology.
In the renewable energy sector, planetary gearboxes are crucial for efficient operation. They are used in wind turbines to convert low-speed rotational energy into high-speed energy for electricity generation. Solar tracking systems rely on planetary gearboxes to adjust the angle of solar panels for maximum energy absorption throughout the day.
In the automotive industry, planetary gearboxes are used in electric vehicles to enhance efficiency and performance. In aerospace, their lightweight and compact design makes them ideal for applications where minimizing weight is essential.
Planetary gearboxes are also transforming industrial machinery by providing high efficiency and reliability. They are used in manufacturing lines, conveyor systems, and robotics, enhancing productivity and reducing energy consumption.
A notable example of planetary gearbox application is in wind turbines. By optimizing the gear ratio, wind turbines can efficiently convert the rotational energy of the blades into electrical energy. This not only increases the efficiency of power generation but also reduces the strain on other components, leading to longer operational lifetimes.
In electric vehicles, planetary gearboxes are used to optimize power transmission from the electric motor to the wheels. This results in smoother acceleration, improved efficiency, and enhanced overall driving experience.
In robotics, planetary gearboxes are gaining popularity due to their ability to provide high torque density in compact designs. This is particularly beneficial in collaborative robots (cobots) and robotic actuators, where precision and power are crucial. The integration of planetary gearboxes with harmonic or strain wave gearing offers even higher torque efficiency and precision, making them ideal for advanced robotic applications.
By 2025, planetary gearboxes are expected to play a significant role in agricultural machinery and medical devices. In agriculture, they will enhance the efficiency of equipment like tractors and harvesters, enabling better performance in smaller, more efficient designs. In medical devices, their precision and compact size will support innovations in surgical robots and diagnostic equipment. These advancements will open new possibilities for both industries.
Planetary gearboxes are transforming agricultural machinery by providing precise control and high torque. They are used in tractors for efficient power distribution, in combine harvesters for precise cutting and threshing, and in seeders for uniform seed distribution. Additionally, they play a crucial role in irrigation systems, ensuring consistent water flow and optimal crop growth[2].
In medical devices, planetary gearboxes will be used in surgical robots to enhance precision and reduce recovery times. Their compact size and high precision make them suitable for delicate procedures, offering better outcomes and improved patient care.
The global industrial planetary gearbox market is projected to grow significantly, driven by increasing automation and the expansion of renewable energy sectors[3]. The high-precision planetary gearbox market is also experiencing robust growth, driven by advancements in materials science and manufacturing technologies[6].
Planetary gearboxes offer a unique combination of high power density, compact design, and high efficiency, making them a preferred choice in various industrial applications. Their versatility and reliability ensure they can handle high torque and precision requirements, making them indispensable in modern mechanical systems.
The main components of a planetary gearbox include the sun gear, planet gears, ring gear, and the carrier that holds the planet gears in place.
Advantages include high power density, compact design, high efficiency, high precision, and durability.
Planetary gearboxes are used in industries such as industrial automation, aerospace, automotive, and renewable energy systems.
Different gear ratios are achieved by locking different components (sun gear, ring gear, or carrier) and using them as input or output.
Applications include mobile phone camera actuators and other small devices requiring precise movement.
