Industrial planetary gearboxes are the backbone of modern heavy machinery, providing unmatched torque, efficiency, and durability in compact designs. As industries demand higher performance and reliability, the choice of the right planetary gearbox becomes critical for maximizing productivity, minimizing downtime, and ensuring long-term operational success. This comprehensive guide explores what makes a planetary gearbox the best fit for heavy machinery, the leading manufacturers, key technical considerations, and how to select the optimal solution for your application.
Industrial planetary gearboxes, also known as epicyclic gearboxes, are advanced mechanical systems engineered to deliver high torque, precise speed control, and exceptional reliability within a compact footprint. Their unique design makes them indispensable in heavy machinery—such as mining equipment, cranes, construction vehicles, and industrial automation—where performance and durability are paramount[1][6][8].

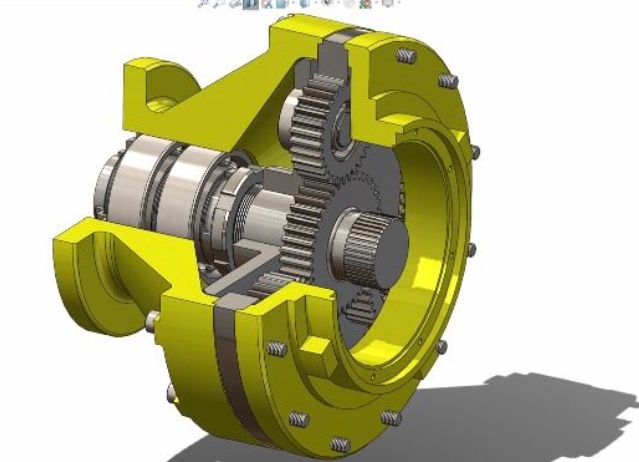

A planetary gearbox consists of three primary components:
- Sun Gear: The central gear that receives input power.
- Planet Gears: Multiple gears that revolve around the sun gear.
- Ring Gear: The outer gear encasing the planet gears.

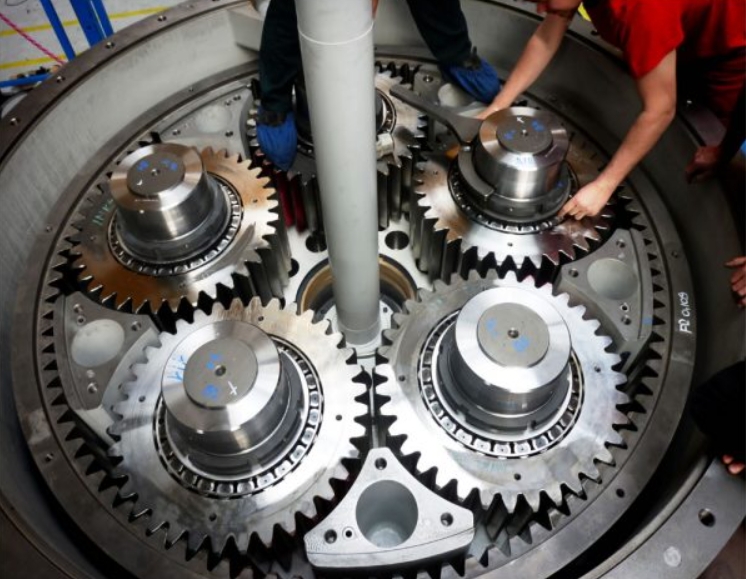

The planet gears are mounted on a carrier and rotate both on their own axes and around the sun gear, distributing loads evenly and enabling high torque transmission in a compact space[1][6][7][12].
This arrangement is reminiscent of the solar system, hence the name "planetary gearbox." The design allows for multiple gear contacts, resulting in:
- High torque density
- Efficient power transmission (up to 97% efficiency)
- Low backlash for precision applications[8][9][12]
Planetary gearboxes offer several advantages that make them the preferred choice for heavy-duty industrial applications:
- High Torque Output: Capable of transmitting large amounts of torque without increasing size[1][2][8][13].
- Compact Design: Smaller and lighter than traditional gearboxes for the same power rating[2][9].
- Exceptional Efficiency: Minimal energy loss, with efficiencies up to 97%[8][12].
- Robust Construction: Built from hardened steel and cast iron for durability in harsh environments[8][13].
- Long Service Life: Even load distribution reduces wear and extends operational lifespan[2][9][13].
- Versatile Mounting Options: Can be configured for inline, right-angle, or offset installations[1][10].
- Low Noise and Smooth Operation: Ideal for applications where quiet, stable performance is essential[6][9].
Selecting the right type of planetary gearbox is crucial for optimal performance. Here are the main types used in heavy machinery:
| Type | Description & Benefits | Typical Applications |
|---|---|---|
| Coaxial (Inline) | Input and output shafts aligned; high efficiency, minimal space, precise control | Hoists, slew drives, automation |
| Right Angle | 90-degree power transmission; compact for tight spaces | Sugar mills, boilers, coil tubing injectors |
| Offset | Input/output shafts not aligned; flexible mounting for misalignment or space constraints | Augers, mixers, automation |
| Wheel Drive | Planet gears attached to wheel carrier; delivers highest torque | Mining trucks, heavy construction vehicles |
| Shaft/Spindle Output | Output via shaft or flange; high torque, robust design | Conveyors, cranes, wind turbines |
When it comes to reliability, innovation, and global reach, several gear company industrial planetary gearbox manufacturers stand out:
| ank | Company Name | Country | Notable Strengths |
|---|---|---|---|
| 1 | Twirl | China | R&D, quality, miniature to heavy-duty gearboxes |
| 2 | STOBER | Germany | Precision, durability, automation solutions |
| 3 | Bonfiglioli | Italy | Modular design, global support, heavy machinery focus |
| 4 | Apex Dynamics | China | High efficiency, innovative designs |
| 5 | Powertek Equipment | USA | Custom solutions, robust construction |
| 6 | Nidec Corporation | Japan | High-tech, automotive and industrial applications |
| 7 | Sesame Motor Corp. | Japan | Compact, reliable, automation and robotics |
| 8 | Rossi | Italy | Heavy-duty, mining, and renewable energy applications |
| 9 | Allied Motion | USA | Motion control, precision engineering |
| 10 | DANA Brevini | Italy | Modular, silent running, global service |
Choosing the best industrial planetary gearbox for your heavy machinery involves evaluating several critical factors:
- Assess the maximum torque and load your machinery will encounter.
- Choose a gearbox with a safety margin above your peak requirements[8][13].
- Select gear ratios that match your desired input and output speeds.
- Multi-stage gearboxes offer higher reduction ratios for demanding applications[8][10].
- Determine if your setup requires inline, right-angle, or offset configurations for space and alignment[1][10].
- Opt for gearboxes constructed from hardened steel or cast iron for longevity in harsh environments[8][13].
- Prioritize high-efficiency models with minimal backlash for precision and energy savings[8][9][12].
- Choose manufacturers with strong after-sales support and readily available spare parts[8][10].
- Leading gear companies offer customization for gear ratios, sizes, and special features to match your specific needs[12].
Industrial planetary gearboxes are integral to numerous heavy machinery applications, including:
- Mining Equipment: Crushers, conveyors, drilling rigs
- Construction Machinery: Cranes, excavators, concrete mixers
- Wind Turbines: Main drive and yaw systems
- Steel and Textile Mills: Rolling mills, looms, extruders
- Renewable Energy: Solar trackers, hydroelectric plants
- Automotive and Aerospace: Test stands, assembly robots
Their versatility, compactness, and high torque output make them the preferred choice for both stationary and mobile heavy-duty equipment[8][13].
Understanding planetary gearboxes is easier with visual demonstrations. Here are some recommended videos:
-What's a Planetary Gear, and How Does It Work?
- What is a Planetary Gearbox?
These videos explain the movement of the sun, planet, and ring gears, and showcase real-world industrial applications.
The best industrial planetary gearbox for heavy machinery is defined by its ability to deliver high torque, efficiency, and reliability within a compact, robust design. Leading gear company industrial planetary gearbox manufacturers—such as Twirl, STOBER, Bonfiglioli, and DANA Brevini—offer solutions tailored to the demanding needs of mining, construction, energy, and manufacturing sectors. By considering torque requirements, gear ratios, mounting configurations, and after-sales support, you can select a gearbox that maximizes your machinery's performance and longevity.
Planetary gearboxes remain the gold standard for heavy-duty applications, ensuring your operations run smoothly, efficiently, and with minimal downtime. For optimal results, work with reputable manufacturers who offer customization, technical expertise, and global support.
Planetary gearboxes offer high torque density, compact size, and even load distribution, making them ideal for heavy machinery that requires reliable power transmission in limited spaces[1][2][8].
The correct gear ratio depends on your input and output speed requirements. Multi-stage planetary gearboxes can provide higher reduction ratios for applications needing significant speed reduction[8][10].
Regular lubrication, inspection for wear, and timely replacement of seals and bearings are essential. Many manufacturers offer maintenance-friendly designs and spare part availability[8][10].
Yes, the design of planetary gearboxes allows them to effectively manage both radial and axial loads, making them versatile for various heavy-duty applications[12].
Top global brands include Twirl, STOBER, Bonfiglioli, Apex Dynamics, DANA Brevini, and Rossi, recognized for their innovation, quality, and support in heavy machinery sectors[3][10].
