Vane pneumatic motors have become a cornerstone in industrial automation due to their versatility, reliability, and efficiency. These motors convert compressed air into mechanical motion, making them suitable for a wide range of applications, from handheld tools to large machinery. In this article, we will delve into the design, advantages, and applications of vane pneumatic motors, highlighting what makes them ideal for industrial automation.

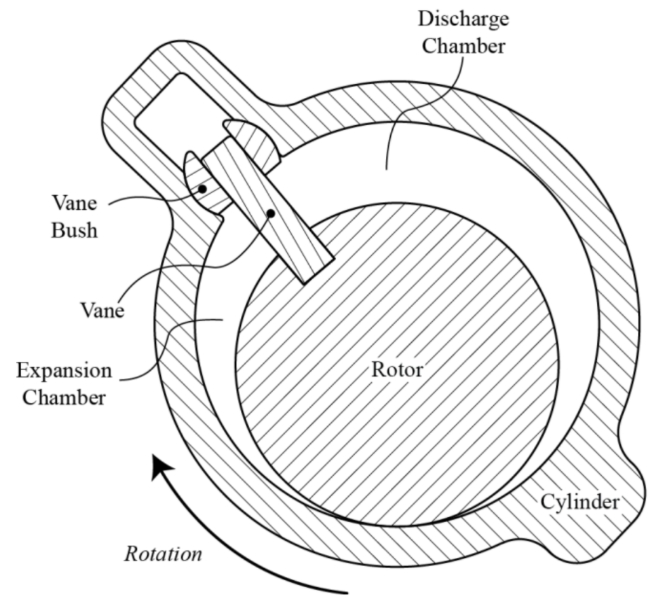

Vane pneumatic motors, also known as rotary vane motors, consist of a rotor with vanes that slide in and out of slots. Compressed air enters the motor, forcing the vanes against the cylinder wall, creating a pressure differential that causes the rotor to turn. This process continues as the vanes move in and out, creating new chambers and sealing off old ones.
The working principle of a vane pneumatic motor involves the use of compressed air to generate rotational motion. Here is a step-by-step explanation:
1. Air Entry: Compressed air enters the inlet chamber, pushing the vanes against the cylinder wall.
2. Rotation Initiation: The pressure differential between the two sides of the vane causes the rotor to start rotating.
3. Vane Movement: As the rotor turns, the vanes slide in and out of their slots, creating new working chambers and sealing off old ones.
4. Continuous Motion: This process continues until the compressed air is exhausted, maintaining the motor's rotation.
Vane pneumatic motors offer several advantages that make them ideal for industrial automation:
- High Starting Torque: They can start under load due to the spring-loaded vanes, which provide a high initial torque.
- Compact and Lightweight: Suitable for installation in tight spaces and use with handheld tools.
- Explosion-Proof: Designed to operate safely in potentially explosive environments without generating sparks.
- Versatile: Can be used in dusty and humid environments.
- Low Maintenance: Simple design makes maintenance easy, with parts like vanes and filters being inexpensive to replace.
Vane pneumatic motors are widely used in various industries due to their reliability and efficiency:
- Automotive: Used for tasks like tightening bolts or screws.
- Construction: Powers handheld tools like drills and jackhammers.
- Food and Beverage: Used in mixing and blending equipment.
- Industrial Cleaning: Powers heavy-duty cleaning equipment.
- Manufacturing: Used in mixers, pumps, and conveyor belts.
In addition to the general applications, vane pneumatic motors are also used in more specialized tasks:
- Aerospace: For precision drilling and assembly.
- Medical Devices: Used in medical equipment requiring precise control.
- Marine: Powers winches and other deck equipment.
There are several types of vane pneumatic motors, each designed for specific applications:
- Balanced Vane Motors: These motors have the rotor mounted concentrically in the casing, reducing noise and vibration and increasing efficiency.
- Variable Displacement Vane Motors: Allow for adjustment of output speed and torque by varying the size of the working chambers.
Maintaining vane pneumatic motors is relatively straightforward:
- Lubrication: Adding a few drops of pneumatic oil to the motor's feed aperture can improve performance.
- Air Quality: Ensuring clean, dry, and lubricated air is crucial for motor longevity.
- Common Issues: Problems often arise from feed source issues or incorrect motor sizing.
1. Regular Cleaning: Ensure the motor and its surroundings are free from dust and debris.
2. Air Filter Maintenance: Regularly check and replace air filters to maintain air quality.
3. Lubrication Schedule: Establish a routine for lubricating the motor to prevent wear.
Real-world case studies demonstrate the effectiveness of vane pneumatic motors in various industries:
- Automotive Manufacturing: A leading car manufacturer used vane pneumatic motors to improve efficiency in their assembly line, reducing production time by 20%.
- Food Processing: A food processing plant implemented vane pneumatic motors in their mixing equipment, resulting in a 15% increase in production capacity.
In the automotive manufacturing case, the use of vane pneumatic motors allowed for faster assembly and reduced the need for manual labor, leading to significant cost savings. Similarly, in food processing, the motors enabled more efficient mixing operations, improving product quality and consistency.
The industry is witnessing several trends that are shaping the future of vane pneumatic motors:
- Energy Efficiency: There is a growing focus on developing motors that consume less compressed air while maintaining performance.
- Digital Integration: Incorporating sensors and IoT technology to monitor and optimize motor performance in real-time.
- Sustainability: Efforts to reduce environmental impact through more efficient designs and materials.
Future developments are expected to include advancements in materials and design, allowing for even more efficient and durable motors. Additionally, the integration of smart technologies will enable real-time monitoring and predictive maintenance, further enhancing the reliability and efficiency of vane pneumatic motors.
When selecting a vane pneumatic motor for industrial automation, several factors should be considered:
- Power Requirements: Ensure the motor meets the power needs of your application.
- Environmental Conditions: Consider the operating environment to choose the appropriate motor type.
- Maintenance Accessibility: Select motors with easy access for maintenance to minimize downtime.
Conducting a cost-benefit analysis is crucial when deciding to implement vane pneumatic motors. While they may have a higher upfront cost compared to some alternatives, their long-term benefits include reduced maintenance costs and increased efficiency, which can lead to significant savings over time.
The environmental impact of vane pneumatic motors is also an important consideration. They are generally more environmentally friendly than electric motors in certain applications due to their ability to operate without generating heat or sparks, reducing the risk of fires and explosions.
Vane pneumatic motors are ideal for industrial automation due to their reliability, efficiency, and versatility. Their ability to operate in hazardous environments without generating sparks, combined with their high starting torque and low maintenance requirements, makes them a preferred choice across various industries.
Vane pneumatic motors are ideal for hazardous environments because they do not generate sparks, reducing the risk of explosions or fires.
Vane pneumatic motors achieve high starting torque due to their spring-loaded vanes, which provide a strong initial force when the motor starts.
Maintenance involves ensuring clean, dry, and lubricated air, and occasionally replacing inexpensive parts like vanes and filters.
Yes, they can operate in dusty and humid environments, making them versatile for various industrial applications.
Variable displacement vane motors adjust their output speed and torque by changing the size of the working chambers within the motor.
