Views: 222 Author: Ella Publish Time: 2025-04-15 Origin: Site
Content Menu
● What is a Compressed Air Vane Motor?
● Comparison Between Vane Motors and Other Air Motors
>> 1. Vane Motors vs. Piston Motors
>> 2. Vane Motors vs. Gear Motors
● Advantages of Compressed Air Vane Motors
● Disadvantages of Compressed Air Vane Motors
● Applications of Compressed Air Vane Motors
● Installation and Maintenance Tips
● Enhancing Performance of Compressed Air Vane Motors
● Environmental and Safety Considerations
● FAQ
>> 1. What is the main advantage of a compressed air vane motor over a piston motor?
>> 2. Can vane motors operate without lubrication?
>> 3. What maintenance is required for compressed air vane motors?
>> 4. Why do vane motors have lower starting torque compared to piston motors?
>> 5. In which industries are compressed air vane motors commonly used?

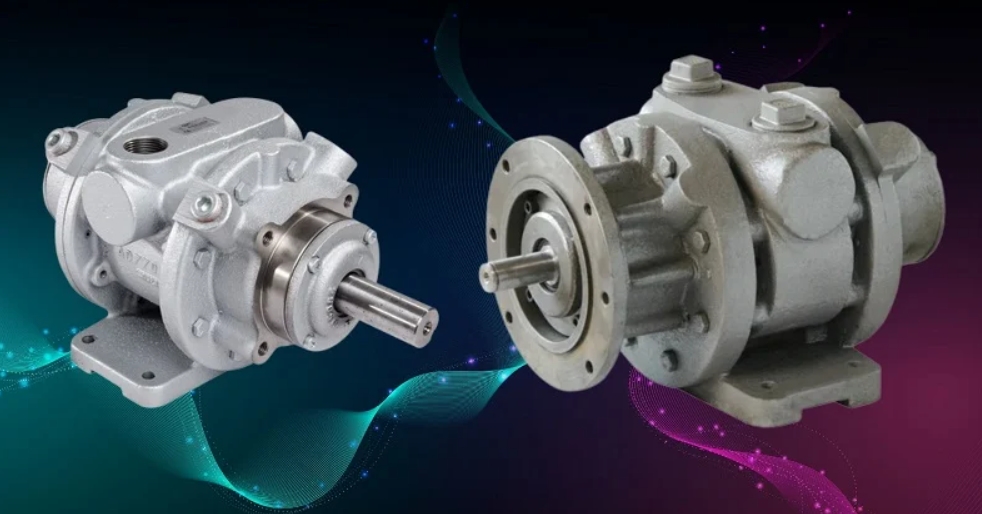

Compressed air vane motors are a vital category of pneumatic motors widely used in industrial applications for converting compressed air energy into mechanical rotational motion. Understanding the differences between vane motors and other types of air motors, such as piston and gear motors, is essential for selecting the right motor for specific tasks. This comprehensive article explores the design, working principles, advantages, disadvantages, and applications of compressed air vane motors compared to other air motors, enriched with illustrative diagrams, animations, and videos to enhance understanding.
Air motors are devices that convert compressed air energy into mechanical work. They are commonly used in industries where electric motors are unsuitable due to explosion risks, moisture, or other environmental factors. The main types of air motors include:
- Vane Motors
- Piston Motors
- Gear Motors
Among these, vane motors are the most common due to their simplicity, compactness, and efficiency at high speeds.
A compressed air vane motor consists of a rotor with several vanes that slide in and out of slots. The rotor is eccentrically mounted inside a cylindrical housing (stator), creating crescent-shaped chambers. Compressed air enters the motor, pushing the vanes against the cylinder wall, creating pressure differentials that cause the rotor to turn and produce torque.
- Casing (Stator): The external housing that contains the rotor and vanes.
- Rotor: Eccentrically mounted with slots for vanes.
- Vaness: Sliding blades that maintain contact with the cylinder wall.
- Inlet and Outlet Ports: For compressed air entry and exhaust.
1. Compressed air enters through the inlet port.
2. Air pressure forces the vanes outward against the cylinder wall.
3. The pressure difference across the vanes causes the rotor to rotate.
4. As the rotor turns, the vanes slide in and out, maintaining a seal.
5. Exhaust air exits through the outlet port.
6. The cycle repeats, converting compressed air energy into rotational motion.
This process allows vane motors to operate at speeds ranging from 100 to over 25,000 rpm, delivering more power per pound than piston air motors.
| Feature | Vane Motors | Piston Motors |
|---|---|---|
| Design Complexity | Simple, fewer moving parts | More complex, multiple pistons and crankshaft |
| Speed Range | High speed (up to 25,000 rpm) | Lower speed |
| Torque Output | Lower starting torque | Higher starting torque |
| Power-to-Weight Ratio | Higher power relative to weight | Lower power-to-weight ratio |
| Maintenance | Easy, inexpensive vane replacement | More maintenance due to piston wear |
| Efficiency | Efficient at high speeds, less at low speeds | Efficient at low speeds and high torque |
| Applications | Portable tools, mixers, pumps | Heavy load, low-speed applications |
Vane motors provide higher speeds and are lighter and less expensive than piston motors but have lower starting torque.
Gear motors use meshing gears to convert compressed air into rotary motion. They are typically used where constant speed and torque are required but are less common than vane motors.
| Feature | Vane Motors | Gear Motors |
|---|---|---|
| Design | Rotor with sliding vanes | Meshing gears |
| Speed | High speed | Moderate speed |
| Torque | Moderate torque | High torque |
| Maintenance | Low maintenance | Higher maintenance due to gear wear |
| Applications | General industrial tools | Precision applications requiring constant torque |
- Compact and Lightweight: Occupy less space and weigh less than equivalent electric motors.
- High-Speed Operation: Can operate efficiently at very high speeds.
- Simple Design: Easy to maintain and repair; vanes are inexpensive to replace.
- Lubrication Options: Available in lubricated and lubrication-free designs for various applications.
- Safe in Hazardous Environments: No electrical components, ideal for explosive atmospheres.
- Good Power-to-Weight Ratio: Deliver more power per pound than piston motors.
- Smooth Operation: The continuous rotary motion of vane motors results in less vibration and noise compared to piston motors.
- Quick Response: Vane motors can accelerate and decelerate rapidly, making them suitable for applications requiring precise speed control.
- Lower Starting Torque: Not ideal for heavy load starts compared to piston motors.
- Wear on Vanes: Vanes experience wear due to friction against the cylinder wall, especially at high speeds.
- Air Quality Sensitivity: Require clean, filtered air to prevent damage and maintain efficiency.
- Efficiency Drops at Low Speeds: Internal leakage and friction reduce efficiency at low speeds.
- Limited Torque Range: Vane motors generally provide moderate torque, which may not be sufficient for very high torque applications.
- Temperature Sensitivity: High operating temperatures can accelerate vane wear and reduce motor life.
Compressed air vane motors are versatile and used in many industries:
- Handheld Power Tools: Drills, grinders, sanders.
- Mixers and Agitators: For liquids and viscous materials in food and chemical industries.
- Pumps: For fluid and gas transfer.
- Valve Actuators: Automation and control in industrial processes.
- Food Processing Equipment: Mixers, blenders, slicers.
- Hazardous Environments: Petrochemical, nuclear, and explosive atmospheres.
- Textile Industry: For driving looms and other machinery requiring variable speed.
- Printing Industry: For rotary presses and other equipment.
- Robotics: Compact vane motors are used in robotic arms for precise motion control.
- Automotive Assembly: Pneumatic tools powered by vane motors are common in assembly lines.
Proper installation and maintenance extend the life and performance of vane motors:
Installation:
- Inspect and clean shafts before installation.
- Deburr motor connection surfaces to avoid damage.
- Align shafts carefully to prevent vibration.
- Tighten bolts diagonally for even force distribution.
- Use flexible couplings to accommodate minor misalignments.
- Ensure proper air supply pressure and flow rate as per manufacturer specifications.
Maintenance:
- Regularly replace worn vanes and filters.
- Use clean, dry, and filtered compressed air to prevent contamination.
- Lubricate bearings and moving parts if the motor design requires it.
- Monitor motor temperature and vibration levels.
- Periodically check for air leaks in the system.
- Store motors in a clean, dry environment when not in use.
To maximize the efficiency and lifespan of compressed air vane motors, consider the following:
- Air Treatment: Use air dryers, filters, and lubricators to ensure clean and properly conditioned air.
- Speed Control: Employ flow control valves or variable speed controllers to optimize motor speed for the application.
- Material Selection: Use vanes made from advanced composite materials or carbon fiber to reduce wear and friction.
- Sealing Technology: Improved seals reduce internal leakage and improve efficiency.
- Balanced Design: Balanced rotors reduce vibration and noise, enhancing motor life.
- Temperature Management: Incorporate cooling systems or heat-resistant materials to manage operating temperatures.
Compressed air vane motors are inherently safe for use in hazardous environments because they do not produce sparks or heat like electric motors. They are also environmentally friendly since they do not emit pollutants during operation. However, proper disposal of worn vanes and lubricants is necessary to minimize environmental impact.
- Diagram: Basic construction of a compressed air vane motor.
- Animation: Balance type vane motor working animation.
- Video: Installation guide for vane motors.
- Photo Gallery: Various industrial applications of vane motors.
Compressed air vane motors stand out among air motors for their simplicity, high-speed capability, and excellent power-to-weight ratio. While piston motors offer higher starting torque and are better suited for heavy loads at low speeds, vane motors excel in applications requiring compactness, high speed, and ease of maintenance. Gear motors, though less common, provide steady torque for precision tasks. Understanding these differences helps in selecting the right motor for specific industrial needs, ensuring efficiency, reliability, and cost-effectiveness.
By choosing the appropriate air motor type and maintaining it properly, industries can achieve optimal performance, reduce downtime, and extend equipment life. Compressed air vane motors remain a popular choice for many applications due to their versatility, safety, and efficiency.
The main advantage is the higher speed capability and lighter weight of vane motors, making them ideal for applications requiring compact and high-speed operation.
Yes, some vane motors are designed to run without lubrication using special low-friction vanes and permanently lubricated bearings, suitable for clean environments or where oil contamination is a concern.
Regular inspection and replacement of vanes and filters, ensuring clean and filtered air supply, and proper installation alignment are key maintenance tasks.
Because vane motors rely on sliding vanes and pressure differentials, they generate less torque at startup than piston motors, which have larger pressure-bearing piston areas.
They are widely used in food processing, chemical, petrochemical, pharmaceutical, automotive, and hazardous environments due to their safety and efficiency.
