Vane motors, particularly pneumatic vane motors, are widely used in various industries due to their lightweight, compact design, and ability to operate in hazardous environments. This article will delve into the definition, working principle, and applications of vane motors, highlighting their versatility and efficiency.

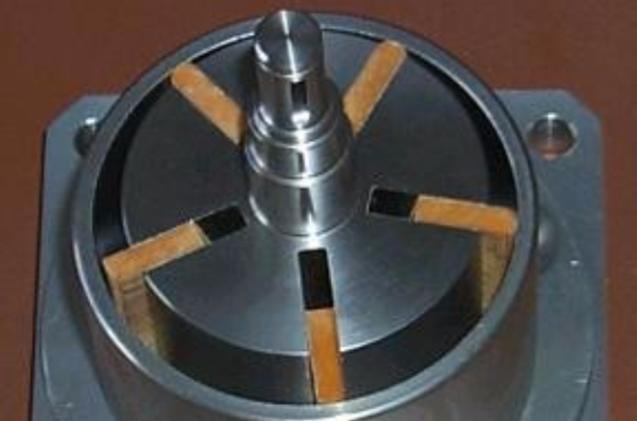

A vane motor is a type of motor that converts the energy of compressed air or hydraulic fluid into mechanical motion. The most common type is the pneumatic vane motor, which uses compressed air to generate rotary motion. It consists of a rotor with vanes that move in slots, dividing the motor chamber into sections where compressed air expands to produce torque.
The working principle of a pneumatic vane motor involves compressed air entering the motor housing and pushing against the vanes, which are typically made of metal or composite materials. These vanes move into slots within the rotor, creating chambers that expand and contract as the air flows through them. This expansion and contraction create a rotational force on the rotor, resulting in mechanical motion.
Vane motors are used in a wide range of applications across various industries due to their reliability, efficiency, and safety features.
1. Handheld Tools: Vane motors are commonly used in handheld tools like drills, sanders, and jackhammers due to their lightweight and compact design. These tools are essential in construction and manufacturing for tasks requiring precision and portability.
2. Mixing and Blending Equipment: In the food and beverage industry, vane motors are used for mixing and blending tasks where speed control is crucial. They provide consistent power output, ensuring uniform mixing and blending of materials.
3. Ventilators and Hoists: They are also used in ventilators and hoists for their ability to provide consistent power output. This reliability is critical in applications where continuous operation is necessary.
1. Tightening Bolts and Screws: In the automotive sector, vane motors are used for tasks requiring precise force application, such as tightening bolts and screws. Their ability to provide controlled torque ensures that parts are securely fastened without over-tightening.
2. Powers Handheld Tools: In construction, they power handheld tools like drills and jackhammers, providing portability and power. This is particularly useful in environments where electricity may not be readily available or safe to use.
Vane motors are intrinsically safe for use in explosive environments due to their air-driven mechanism, which eliminates the risk of spark generation. This makes them ideal for use in chemical plants, oil rigs, and other hazardous locations.
- Variable Speed Control: Vane motors offer simple and efficient variable speed control using flow control valves or pressure regulators. This allows for precise adjustments in speed to match the requirements of different tasks.
- Instant Reversibility: They can be instantly reversed with a simple control valve, making them versatile for various applications where direction changes are necessary.
- Explosion-Proof: Suitable for use in potentially explosive environments due to their design and air-driven operation. This safety feature is critical in industries where safety is paramount.
- High Reliability: They have a simple structure with fewer moving parts, reducing wear and tear and enhancing reliability. This simplicity also contributes to easier maintenance and longer lifespan.
- Dusty and Humid Environments: Vane motors can operate effectively in dusty and extremely humid conditions without compromising performance. This adaptability makes them suitable for use in harsh industrial environments.
These motors allow for the adjustment of output speed and torque by varying the size of the working chambers. They are more complex but offer precise control over speed and torque without changing air pressure or flow. This feature is particularly useful in applications requiring dynamic adjustments.
Hydraulic vane motors use hydraulic fluid instead of compressed air and are known for their high efficiency and torque at low speeds. They are suitable for heavy-load starting and low-speed operations, such as in heavy machinery and construction equipment.
Vane motors require minimal maintenance due to their simple design. Regular checks include ensuring proper air pressure and flow rates for pneumatic models and hydraulic fluid levels for hydraulic models. Additionally, inspecting the vanes for wear and ensuring that the motor housing is free from debris can help maintain optimal performance.
1. Low Air Pressure: If the motor is not producing enough torque, check the air supply lines for leaks and ensure that the compressor is providing adequate pressure.
2. Vane Wear: Regularly inspect the vanes for signs of wear. Replacing worn vanes can improve motor efficiency and prevent further damage.
3. Motor Stalling: If the motor stalls frequently, check for blockages in the air intake or exhaust ports and ensure that the motor is properly lubricated.
As technology advances, vane motors are expected to see improvements in efficiency and design. Innovations in materials science could lead to lighter and more durable vanes, enhancing the overall performance of vane motors. Additionally, advancements in control systems could provide more precise speed control and better integration with automation systems.
The integration of vane motors with modern automation systems can enhance their functionality by allowing for remote monitoring and control. This integration can also enable real-time adjustments to speed and torque, optimizing performance in dynamic environments.
The use of vane motors aligns with sustainable practices by reducing the reliance on electricity and minimizing the risk of electrical hazards. This makes them an attractive option for industries focusing on environmental responsibility and safety.
In chemical plants, vane motors are used extensively due to their safety features. For instance, they are used in mixing tanks where the risk of explosion is high. Their ability to operate without generating sparks ensures a safe working environment.
In construction, vane motors power tools that are essential for building and demolition projects. Their portability and reliability make them indispensable for tasks requiring precision and power.
In the food processing industry, vane motors are used for tasks such as mixing and blending ingredients. Their ability to provide consistent power output ensures that products are mixed uniformly, maintaining quality and consistency.
Vane motors offer several advantages over other types of motors, including electric motors and hydraulic motors. Their compact size and lightweight design make them ideal for use in handheld tools and applications where space is limited. Additionally, their ability to operate in hazardous environments without generating sparks makes them safer than electric motors.
1. Safety in Hazardous Environments: Unlike electric motors, vane motors do not generate sparks, making them safer in explosive environments.
2. Portability and Compactness: They are generally lighter and more compact than electric motors, enhancing portability in handheld tools.
3. Low Maintenance: With fewer moving parts, vane motors require less maintenance compared to electric motors.
1. Operating Medium: Hydraulic motors use hydraulic fluid, which can be more efficient for high-torque applications but requires more complex systems.
2. Environmental Impact: Vane motors are generally cleaner and produce less environmental impact compared to hydraulic motors, which can leak hydraulic fluid.
The demand for vane motors is expected to grow as industries continue to seek efficient and safe solutions for power generation. Advances in technology will likely lead to more efficient designs and broader applications across various sectors.
1. Advanced Materials: The use of advanced materials in vane construction could lead to improved durability and efficiency.
2. Smart Control Systems: Integration with smart control systems can enhance performance by providing real-time monitoring and adjustments.
Vane motors are often more cost-effective than other types of motors, especially in applications where safety and reliability are paramount. Their low maintenance requirements also contribute to reduced operational costs over time.
In industries where safety is critical, such as chemical processing and oil extraction, vane motors meet stringent safety standards due to their explosion-proof design. Compliance with these regulations is essential for ensuring safe operations.
Vane motors, particularly pneumatic vane motors, are widely used across various industries due to their efficiency, reliability, and adaptability to different environments. Their applications range from handheld tools to mixing equipment and hazardous environments. The simplicity of their design makes them easy to maintain and install, contributing to their popularity in industrial settings.
Vane motors are intrinsically safe for use in explosive environments because they operate using compressed air, eliminating the risk of spark generation.
Vane motors can achieve variable speed control through the use of flow control valves or pressure regulators, allowing for simple and efficient speed adjustments.
Hydraulic vane motors are typically used in applications requiring high torque at low speeds, such as heavy-load starting and low-speed operations.
Vane motors are generally more compact and lighter than electric motors of equivalent power, making them ideal for use in small spaces and handheld tools.
Vane motors require minimal maintenance, primarily involving checks on air pressure and flow rates for pneumatic models and hydraulic fluid levels for hydraulic models.
