Introduction

In the world of motion control and automation, the choice of gearbox can dramatically affect the performance, efficiency, and longevity of your equipment. Among the many options available, the NEMA 34 planetary gearbox stands out as a superior solution compared to standard gearboxes, especially in demanding applications requiring high torque, precision, and reliability.

This article will explore the engineering behind the NEMA 34 planetary gearbox, compare it to standard gearbox designs, and explain why it is often the preferred choice for professionals in robotics, CNC machinery, packaging, and more. We'll also include diagrams and videos to help visualize the concepts, and finish with a comprehensive FAQ.

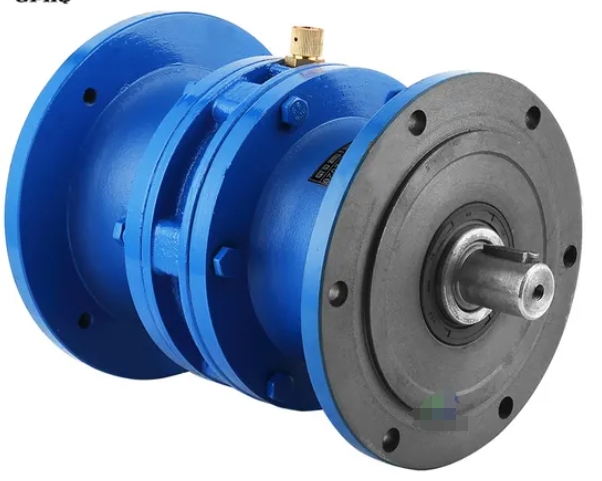

What Is a NEMA 34 Planetary Gearbox?

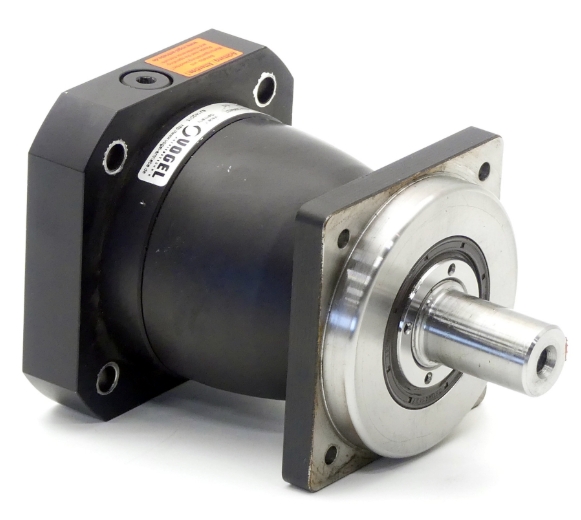

A NEMA 34 planetary gearbox is a precision gear reducer designed to fit NEMA 34 frame size motors, such as stepper, servo, or brushless DC motors. The "planetary" designation refers to the internal arrangement of gears: a central sun gear surrounded by multiple planet gears, all enclosed within a ring gear. This configuration enables the gearbox to deliver high torque in a compact, robust package[1][2][3].

Typical Specifications:

- Frame Size: 90 x 90 mm

- Gear Ratios: Commonly 3:1 to 100:1

- Torque: Up to 100 Nm or more

- Backlash: As low as 5 arc-min

- Efficiency: Up to 94%

- Service Life: 20,000 hours or more[1][2][3][12]

How Does a Planetary Gearbox Work?

A planetary gearbox consists of three main components:

- Sun Gear: The central gear, usually attached to the input shaft.

- Planet Gears: Multiple gears that orbit the sun gear, mounted on a carrier.

- Ring Gear: The outer gear with internal teeth, enclosing the planet gears.

When the sun gear rotates, it drives the planet gears, which in turn roll inside the ring gear. The carrier, to which the planet gears are attached, provides the output. This arrangement allows for:

- High torque transmission (load shared across multiple planet gears)

- Compact design (coaxial input and output)

- Multiple gear ratios (by varying which component is held stationary)[6][7][14]

Key Features of NEMA 34 Planetary Gearboxes

1. High Torque Density

The planetary arrangement allows torque to be distributed across several gears, enabling the gearbox to handle higher loads relative to its size[7][15].

2. Low Backlash

Precision manufacturing and the load-sharing nature of planetary gearboxes result in minimal backlash, often less than 5–20 arc-min, making them ideal for applications demanding high positional accuracy[1][2][12].

3. High Efficiency

Efficiencies can reach up to 94%, thanks to the continuous meshing of gears and optimized lubrication systems[1][3][12].

4. Compact and Robust Design

The coaxial layout (input and output shafts aligned) and the use of high-strength materials allow for a compact footprint and excellent durability[7][8][12].

5. Versatile Mounting

NEMA 34 planetary gearboxes are designed to mount directly to standard NEMA 34 motors, simplifying integration into new or existing systems[2][8][9].

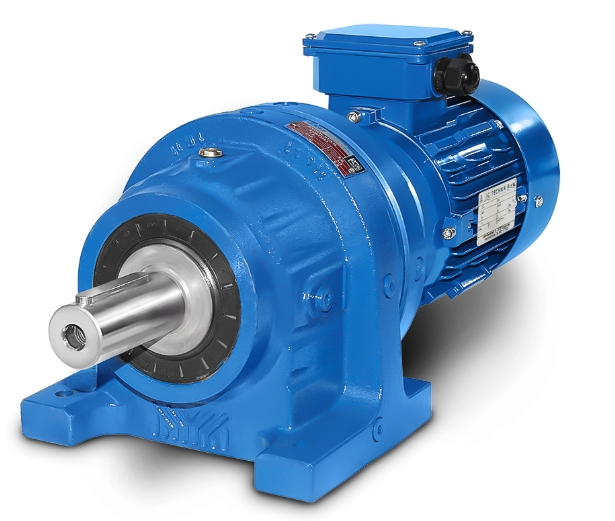

Comparison: NEMA 34 Planetary Gearbox vs. Standard Gearbox

Feature	NEMA 34 Planetary Gearbox	Standard Gearbox (e.g., Spur/Helical)
Torque Density	High (multiple planet gears share load)	Lower (torque on single gear mesh)
Backlash	Very low (as low as 5 arc-min)	Higher (often 20–50 arc-min or more)
Efficiency	Up to 94%	80–90%
Size	Compact, coaxial	Larger for same torque
Weight	Lighter for same output	Heavier for same output
Noise	Lower (well-distributed forces)	Higher (single gear mesh, more vibration)
Service Life	20,000+ hours	Often less, depends on load
Customization	Wide range of ratios, easy mounting	Fewer ratios, more complex mounting
Cost	Higher initial, lower total cost	Lower initial, higher maintenance

Advantages of NEMA 34 Planetary Gearboxes

1. Superior Torque Transmission

The planetary design shares the load among multiple gears, allowing for much higher torque output compared to standard gearboxes of similar size. For instance, a NEMA 34 planetary gearbox can deliver up to 100 Nm of torque, making it suitable for heavy-duty applications[1][2][3][12].

2. Exceptional Precision

Low backlash is critical for applications such as robotics, CNC machines, and pick-and-place systems. Planetary gearboxes routinely achieve backlash values as low as 5 arc-min, far surpassing standard gearboxes[1][2][12].

3. Compactness and Space Efficiency

Because the input and output shafts are coaxial and the load is shared, planetary gearboxes deliver more power in less space. This is crucial in modern automation where space is at a premium[7][8][15].

4. High Efficiency and Longevity

With efficiencies up to 94% and service lives exceeding 20,000 hours, NEMA 34 planetary gearboxes require less maintenance and reduce downtime, lowering total cost of ownership[1][2][3][12].

5. Versatility and Easy Integration

Designed to NEMA standards, these gearboxes can be quickly mounted to a wide range of motors, including stepper, servo, and brushless DC motors, making them highly versatile[2][8][9].

Applications: Where NEMA 34 Planetary Gearboxes Excel

- Robotics: For precise motion control and high torque in robotic arms and joints.

- CNC Machinery: Ensures accurate tool positioning and repeatability.

- Material Handling: Drives conveyors, pick-and-place systems, and automated guided vehicles.

- Packaging Equipment: Delivers reliable, high-speed operation with minimal maintenance.

- Automotive and Aerospace: Used in actuators, transmission systems, and control surfaces[2][7][12][15].

Conclusion

The NEMA 34 planetary gearbox is a clear winner when compared to standard gearboxes for applications requiring high torque, precision, and reliability. Its unique gear arrangement distributes load efficiently, minimizes backlash, and delivers outstanding performance in a compact package. Whether you are designing a new robotic system, upgrading CNC machinery, or seeking to improve automation reliability, the NEMA 34 planetary gearbox offers unmatched advantages in today's demanding industrial environments.

FAQ: NEMA 34 Planetary Gearboxes

1. What is the main difference between a NEMA 34 planetary gearbox and a standard spur gearbox?

A NEMA 34 planetary gearbox uses multiple planet gears orbiting a central sun gear within a ring gear, distributing torque and reducing backlash. In contrast, a standard spur gearbox uses a single gear mesh, resulting in lower torque capacity and higher backlash[7][15].

2. How do I choose the right gear ratio for my NEMA 34 planetary gearbox?

Select a gear ratio based on your application's torque and speed requirements. Common ratios range from 3:1 to 100:1. Higher ratios provide more torque but reduce output speed[1][2][3].

3. What kind of motors can be paired with a NEMA 34 planetary gearbox?

These gearboxes are designed for NEMA 34 frame size motors, including stepper motors, servo motors, and brushless DC motors. The mounting interface is standardized for easy integration[1][2][8][9].

4. How does backlash affect performance, and why is low backlash important?

Backlash is the amount of play between gear teeth. Low backlash ensures precise positioning, which is vital in robotics, CNC, and automation. Planetary gearboxes typically have much lower backlash than standard gearboxes, improving accuracy[1][2][12].

5. Are NEMA 34 planetary gearboxes maintenance-free?

Most modern NEMA 34 planetary gearboxes are sealed and lubricated for life, requiring no routine maintenance. This reduces downtime and lowers overall operating costs[2][8][12].
