Selecting the right hydraulic motor is crucial for the efficiency and performance of hydraulic systems. This comprehensive guide will walk you through the key considerations, selection criteria, and best practices for choosing a hydraulic motor that meets your application needs.
Hydraulic motors convert hydraulic energy into mechanical energy, providing motion and force to various applications. They are classified into different types based on their design and application, including gear motors, vane motors, and piston motors. Each type has distinct characteristics that suit specific operational requirements.
- Gear Motors: Known for their simplicity and durability, gear motors are often used in applications requiring high torque at low speeds.
Gear motors operate by using meshing gears to convert hydraulic pressure into rotational force. The hydraulic fluid enters the motor and applies pressure to the gears, causing them to rotate. This rotational motion is then transferred to the output shaft, providing mechanical power.
- Vane Motors: These motors provide smooth operation and are typically used in applications needing variable speed control.
Vane motors use a rotor with radial vanes that slide in and out. As hydraulic fluid enters the motor, it pushes against the vanes, causing the rotor to spin. The design allows for precise speed control and relatively quiet operation, making them suitable for applications like machine tools and conveyors.

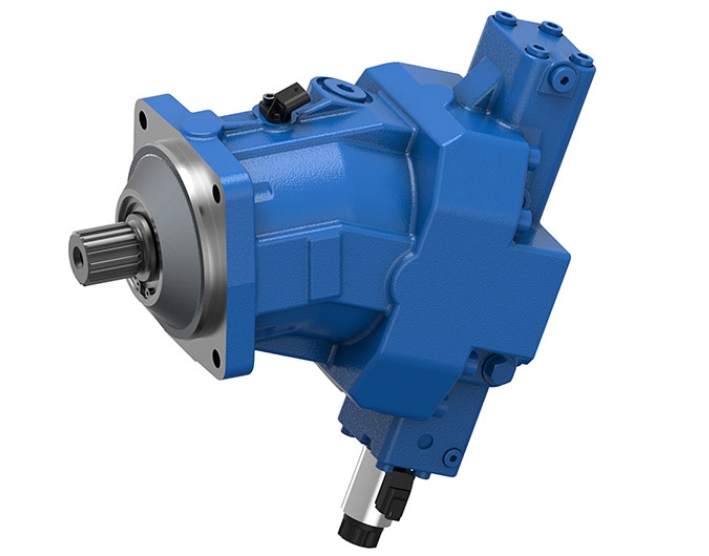

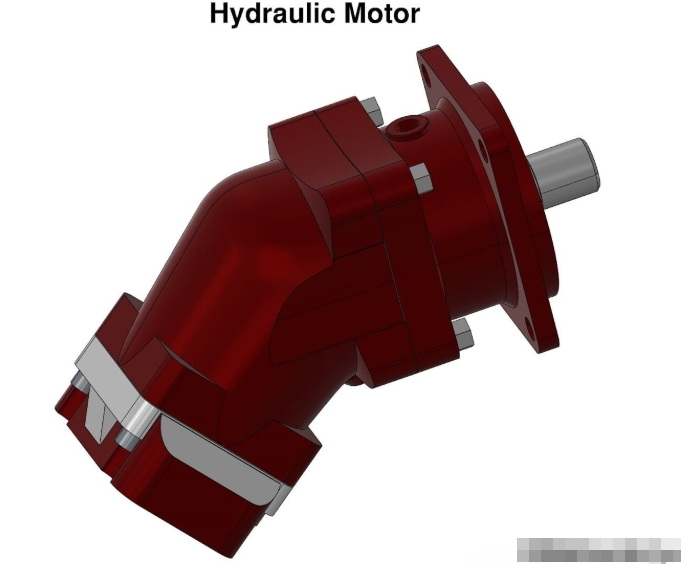

- Piston Motors: Piston motors are suitable for high-pressure applications and can deliver high torque at various speeds.
Piston motors utilize reciprocating pistons to convert hydraulic energy into mechanical energy. These pistons can be arranged in either an axial or radial configuration. Axial piston motors are commonly used in applications requiring high speeds and high torque, such as construction equipment and heavy machinery. Radial piston motors are known for their high starting torque capabilities.
Understanding the torque requirements of your application is fundamental. You need to determine both the starting torque (the torque required to initiate movement) and running torque (the torque needed during operation). This will help you select a motor that can handle the load effectively.
To accurately assess torque requirements, consider the following:
- Inertial Load: The force needed to overcome inertia and start movement.
- Frictional Load: The force needed to overcome friction during operation.
- External Load: The force imposed by the application itself (e.g., lifting a weight).
Use the following formula to estimate torque:
Torque Nm =(N ×Distance m)/Efficiency Force
The speed at which the motor operates is another critical factor. Different applications may require different speeds, so it's essential to know the desired output speed to select an appropriate motor.
Consider the following:
- Minimum and Maximum Speed: The range within which the motor must operate efficiently.
- Constant or Variable Speed: Whether the application requires a consistent speed or variable speed control.
Speed can be calculated using the formula:
Speed RPM =(Flow Rate LPM ×Motor Displacement cc rev)/1000
The flow rate of hydraulic fluid entering the motor directly affects its performance. Ensure that the selected motor can accommodate the available flow rate from your hydraulic system.
Factors affecting flow rate:
- Pump Capacity: The maximum flow rate that your hydraulic pump can deliver.
- System Restrictions: Any bottlenecks or restrictions in the hydraulic lines that could reduce flow.
Evaluate the maximum operating pressure required for your application. The hydraulic motor must be capable of operating efficiently under these pressure conditions.
Key pressure considerations:
- Maximum Continuous Pressure: The pressure the motor can handle continuously without damage.
- Peak Pressure: The maximum pressure the motor can withstand for short periods.
- Case Drain Pressure: Some motors require a case drain to handle internal leakage; ensure the motor can handle this backpressure.
Efficiency is vital for minimizing energy consumption and operational costs. Look for motors designed with high power-to-size ratios and low internal losses.
Types of efficiency:
- Volumetric Efficiency: The ratio of actual flow rate to theoretical flow rate.
- Mechanical Efficiency: The ratio of actual torque output to theoretical torque output.
- Overall Efficiency: The product of volumetric and mechanical efficiencies.
Overall Efficiency=Volumetric Efficiency×Mechanical Efficiency
Consideration of noise levels is essential, especially in environments where sound pollution regulations are strict. Some designs may offer quieter operation than others.
Factors affecting noise levels:
- Motor Design: Some motor types (e.g., vane motors) are inherently quieter than others (e.g., gear motors).
- Operating Conditions: High speeds and pressures can increase noise levels.
- Mounting: Proper mounting can reduce vibration and noise.
Assess the environmental conditions where the motor will operate, including temperature extremes, humidity levels, and potential exposure to contaminants.
Environmental factors to consider:
- Temperature: Extreme temperatures can affect fluid viscosity and motor performance.
- Humidity: High humidity can cause corrosion and damage to motor components.
- Contaminants: Exposure to dust, dirt, or chemicals can lead to premature wear and failure.
The physical dimensions and mounting options are essential for integrating the hydraulic motor into your system. Common mounting options include flange, foot, and face mounting. Ensure the motor fits within the available space and can be securely mounted.
Consider how the motor will be controlled. Options include manual control, electronic control, and proportional control. Electronic and proportional controls offer more precise speed and torque adjustments.
Ensure that the hydraulic fluid used is compatible with the motor's seals and internal components. Incompatible fluids can cause premature wear and failure.
Start by gathering all necessary information regarding your application:
- Maximum operating pressure
- Required torque and speed
- Available flow rate
- Environmental conditions
- Duty cycle (intermittent or continuous)
- Mounting requirements
- Control requirements
Based on your application needs, evaluate which type of hydraulic motor would be most suitable (gear, vane, or piston).
- Gear Motors: Ideal for simple, low-speed, high-torque applications.
- Vane Motors: Best for applications requiring variable speed control and smooth operation.
- Piston Motors: Suitable for high-pressure, high-torque applications.
Refer to manufacturer specifications for various models to compare their performance metrics against your requirements.
- Torque and Speed Curves: Review these curves to ensure the motor meets your application's needs across the entire operating range.
- Efficiency Ratings: Compare efficiency ratings to minimize energy consumption.
- Dimensional Drawings: Ensure the motor fits your installation space.
Look for features that may enhance performance or ease of use, such as:
- Ease of installation
- Maintenance requirements
- Control options (mechanical vs electronic)
- Integrated valves (e.g., relief valves, check valves)
- Sensor options (e.g., speed sensors, pressure sensors)
Compare the costs of different motor options, considering not only the initial purchase price but also long-term operating costs.
- Initial Cost: The upfront cost of the motor.
- Operating Costs: Energy consumption and fluid costs.
- Maintenance Costs: Costs for routine maintenance and repairs.
If you are unsure which motor is best for your application, consult with hydraulic motor manufacturers or experienced engineers. They can provide valuable insights and recommendations based on your specific needs.
Understanding how different types of hydraulic motors function in real-world scenarios can help solidify your knowledge when selecting one for your needs.
In construction equipment like excavators and loaders, hydraulic motors are used for driving wheels, tracks, and various attachments. These applications typically require high torque combined with reliability under harsh conditions. Piston motors are often preferred due to their robustness in handling high pressures while providing excellent starting torque necessary for heavy lifting tasks.
An excavator using a radial piston motor demonstrates enhanced efficiency when digging through tough soil compared to gear motors due to its ability to maintain higher torque at lower speeds without overheating or excessive wear.
In manufacturing environments such as assembly lines or CNC machines where precision is key, hydraulic motors play a vital role in driving conveyor belts or robotic arms. Vane motors are commonly used due to their smooth operation which minimizes vibrations—crucial when precision is required during assembly processes.
A CNC machine equipped with a vane motor allows operators to achieve fine tolerances while reducing noise levels significantly compared to traditional gear-driven systems—leading not only to better product quality but also improved workplace comfort.
Agricultural equipment like tractors utilize hydraulic systems extensively—from steering mechanisms to implements like plows or harvesters driven by hydraulic motors providing necessary power without compromising efficiency or fuel consumption rates during field operations.
A tractor fitted with a high-efficiency gear motor demonstrates improved fuel economy when powering implements during tillage compared with older models using less efficient designs—showcasing how modern advancements lead directly toward sustainability goals within agriculture sectors worldwide.
Choosing the right hydraulic motor involves a thorough understanding of your application's specific needs and constraints. By considering factors such as torque requirements, speed capabilities along with flow rates available from pumps used within systems; evaluating pressure ratings; assessing overall efficiencies; monitoring potential noise levels; accounting environmental conditions; understanding mounting options; selecting appropriate control methods; ensuring fluid compatibility—all contribute toward making informed decisions that enhance system performance while maintaining reliability over time!
Equipped with this comprehensive guide on how best approach selecting suitable hydraulics solutions tailored specifically towards unique operational demands across diverse industries—from construction sites through manufacturing facilities onto agricultural fields—ensures optimal outcomes achieved consistently throughout lifespan operations!
Starting torque is defined as how much force is needed initially when beginning movement within a system whereas running torque refers specifically towards maintaining motion throughout operational phases thereafter—both critical metrics influencing overall performance characteristics observed across various applications utilizing hydraulics technology!
To determine ideal sizing parameters consider maximum load requirements alongside desired speeds achievable given specific flow rates available from existing pumps utilized within respective systems while factoring in operating pressures encountered throughout processes involved!
The main types include gear motors designed primarily around simplicity/durability; vane designs focused on smoothness/variable control; piston configurations optimized towards handling higher pressures/torsional forces—each suited uniquely based upon operational needs dictated by respective environments encountered!
Improving overall efficiencies achievable involves selecting appropriately sized components relative towards intended uses while ensuring optimal maintenance practices adhered too regularly alongside utilizing higher quality materials/components throughout entire setups ensuring longevity achieved across all facets involved!
Regular maintenance practices should include checking fluid levels consistently along inspecting seals/leakages present while ensuring proper alignments maintained between drive components utilized throughout processes engaged along cleaning filters regularly preventing contamination issues arising over time!
