Hydraulic systems form the backbone of many industrial, construction, and manufacturing applications, providing the power and precision needed for heavy-duty operations. At the heart of these systems lie two essential components: the hydraulic pump and the hydraulic motor. Understanding how a hydraulic pump connects to a motor is crucial for ensuring efficient, reliable operation of hydraulic machinery. This comprehensive article delves into the connection between hydraulic pumps and motors, covering the fundamentals, types of couplings, installation best practices, operational principles, and practical insights to optimize performance.
A hydraulic pump is a mechanical device that transforms mechanical energy-usually sourced from an electric motor or an internal combustion engine-into hydraulic energy by moving hydraulic fluid through the system. This fluid movement generates flow and pressure, which can be harnessed to perform various types of work, such as lifting heavy loads, pressing materials, or driving machinery. Hydraulic pumps are ubiquitous, found in everything from massive construction equipment like excavators and bulldozers to compact hydraulic tools such as cutting and crimping devices.
In contrast, a hydraulic motor takes the hydraulic energy-fluid flow and pressure-produced by the pump and converts it back into mechanical energy, producing rotational motion to drive machinery components. Hydraulic motors come in various designs, including gear motors, vane motors, and piston motors, each tailored for specific torque, speed, and efficiency requirements. The motor's ability to convert fluid power into mechanical power is fundamental to the operation of many hydraulic systems.
The connection between a hydraulic pump and a motor is a critical mechanical and functional link that enables the motor to drive the pump shaft, allowing the pump to generate hydraulic flow. This connection is typically established through a coupling that joins the motor shaft to the pump shaft, ensuring torque transmission and alignment.
Couplings are mechanical devices designed to connect two shafts, transmitting torque and rotational motion from the motor to the pump. Besides power transmission, couplings also accommodate slight misalignments, absorb vibrations, and reduce shock loads, thereby protecting both the hydraulic pump and motor from premature wear or damage.
- Rigid Couplings: These are solid, inflexible connections that directly couple the motor and pump shafts. They offer high efficiency in power transmission but cannot tolerate shaft misalignment. Misalignment with rigid couplings can lead to bearing wear, seal failure, and increased vibration. Rigid couplings are commonly used in applications with precise shaft alignment and high torque loads, such as centrifugal and gear pumps.
- Flexible Couplings: Designed to absorb and compensate for misalignment, flexible couplings use elastic materials like rubber or fabric inserts to flex under stress. This flexibility reduces stress on the shafts and bearings, extending component life. Although more costly than rigid couplings, flexible couplings are preferred in systems where slight misalignment or shaft movement is unavoidable.
- Jaw Couplings: A subtype of flexible coupling, jaw couplings use interlocking jaws made of elastomeric material to transmit torque while damping vibrations and accommodating minor misalignments. They are suitable for high torque applications and are widely used in hydraulic pump-motor assemblies.
- Synchronizing Couplings: These couplings employ timing belts or chains to synchronize the rotation speeds of the pump and motor shafts, often used in centrifugal pump applications where precise speed matching is critical.
- Hydraulic and Magnetic Couplings: Specialized couplings that transmit torque without direct mechanical contact. Hydraulic couplings use fluid to transfer torque, while magnetic couplings use magnetic fields. Both types can accommodate misalignment and provide smooth power transmission but are less common in standard hydraulic pump-motor connections.
Typically, the coupling is positioned at the interface where the motor shaft meets the pump shaft, often located at the base of the pump. In some designs, especially for compact or integrated units, the pump is mounted directly to the motor flange, eliminating the need for a separate coupling. This direct mounting reduces the overall size and weight of the assembly and minimizes alignment issues.
Proper installation of the hydraulic pump to motor connection is vital for optimal system performance and longevity. Errors such as misalignment, incorrect coupling selection, or poor mounting can cause vibration, energy loss, and premature failure of components.
- Correct Alignment: Use precision alignment tools, such as laser shaft alignment devices or dial indicators, to ensure the pump and motor shafts are perfectly aligned both axially and radially. Even minor misalignments can cause increased bearing wear, seal leakage, and vibration.
- Coupling Selection: Select the coupling type based on the system's torque requirements, shaft alignment tolerance, operating speed, and environmental conditions. For example, flexible couplings are preferred in systems subject to vibration or thermal expansion.
- Secure Mounting: Both the pump and motor should be firmly mounted on a common, rigid base or frame to minimize vibration and movement. Vibration dampening mounts or pads can be used to further reduce transmitted vibrations.
- Lubrication and Cooling: Ensure the motor has adequate cooling, either air or water-cooled, especially under high load or continuous operation. Proper lubrication of bearings and coupling components is essential to prevent overheating and wear.
- Connection Ports and Fittings: The hydraulic pump's inlet and outlet ports must be connected using compatible fittings that match the system's pressure and flow requirements. Common port standards include European standard ports, threaded ports, and German ports, each with different mechanical strengths and fatigue resistance. Proper sealing and torque on fittings prevent leaks and maintain system integrity.

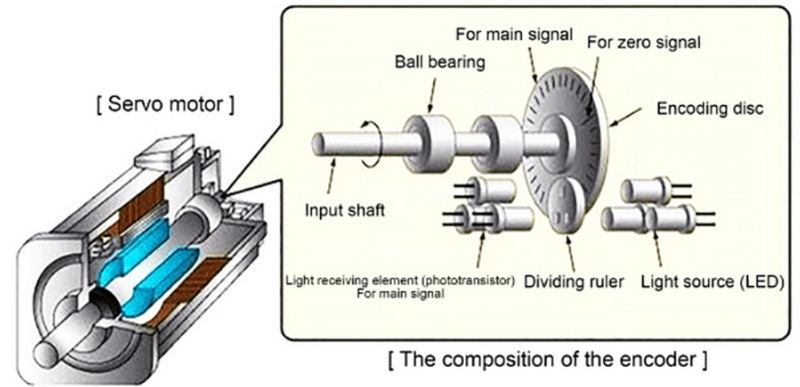

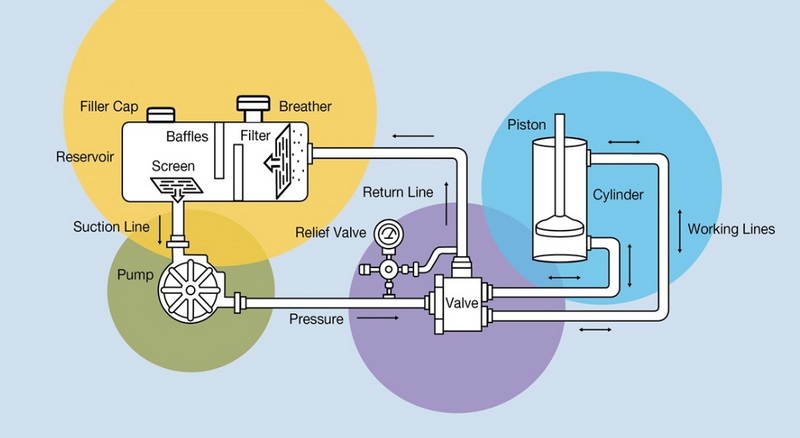

Hydraulic pumps and motors often operate within a closed-loop system, where:
1. The motor converts electrical or mechanical energy into rotational motion.
2. This rotation drives the hydraulic pump, which pressurizes and moves hydraulic fluid through the system.
3. The pressurized fluid flows through hydraulic lines to actuators or hydraulic motors.
4. The hydraulic motor converts the fluid energy back into mechanical energy to drive machinery components, such as wheels, conveyor belts, or robotic arms.
This cycle enables powerful, precise motion control in equipment ranging from excavators and cranes to elevators and industrial presses. The efficiency of the hydraulic pump to motor connection directly affects the system's responsiveness, power output, and energy consumption.
- Soft Foot Correction: Before aligning shafts, check for "soft foot," where one foot of the motor or pump frame doesn't sit flat on the base. Correcting soft foot ensures proper alignment and prevents frame distortion.
- Thermal Growth Considerations: Account for thermal expansion of shafts during operation. Alignment performed at ambient temperature may shift when the system heats up, so some offset may be necessary.
- Regularly inspect couplings for wear, cracks, or damage.
- Replace elastomeric elements in flexible couplings as per manufacturer recommendations.
- Ensure coupling bolts and fasteners are properly torqued.
- Use flexible couplings to dampen vibration.
- Install vibration isolators on the mounting base.
- Balance rotating components to reduce noise.
Connecting a hydraulic pump to a motor is a fundamental aspect of hydraulic system design and operation. This connection, typically established through a coupling, transmits torque from the motor shaft to the pump shaft while accommodating alignment and operational stresses. Selecting the appropriate coupling, ensuring precise shaft alignment, and following best installation practices are critical to maximizing system efficiency, reducing maintenance costs, and extending equipment lifespan. A thorough understanding of the hydraulic pump to motor connection enables operators and engineers to maintain reliable, efficient hydraulic systems that power a vast array of machinery across industries.
The main purpose is to transmit mechanical energy from the motor to the pump shaft, enabling the pump to pressurize hydraulic fluid and power the hydraulic system.
Common types include rigid couplings, flexible couplings, jaw couplings, synchronizing couplings, and specialized hydraulic or magnetic couplings, each suited for different torque and alignment requirements.
Proper alignment prevents premature wear on bearings and seals, reduces vibration, and ensures efficient power transmission, thereby extending the life of both pump and motor.
Yes, some pumps are designed to mount directly to the motor flange, eliminating the need for a coupling and reducing size and weight, typically for smaller pumps or compact units.
The most common are European standard ports, threaded ports, and German ports, each with different mechanical strengths and fatigue resistance characteristics.
