When considering the conversion or comparison between a hydraulic motor and an electric motor, understanding the fundamental principles of both systems is crucial. Hydraulic motors are typically used in applications requiring high torque at low speeds, while electric motors offer versatility in various applications. In this article, we will explore how to determine the equivalent electric motor size for a 2.5 cubic inch hydraulic motor, discussing the key factors involved in this process.

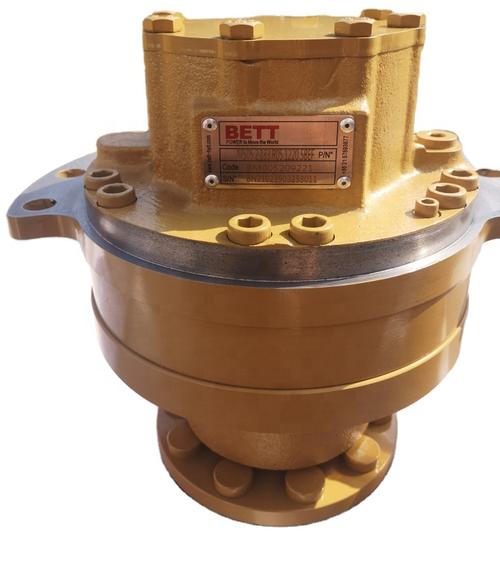

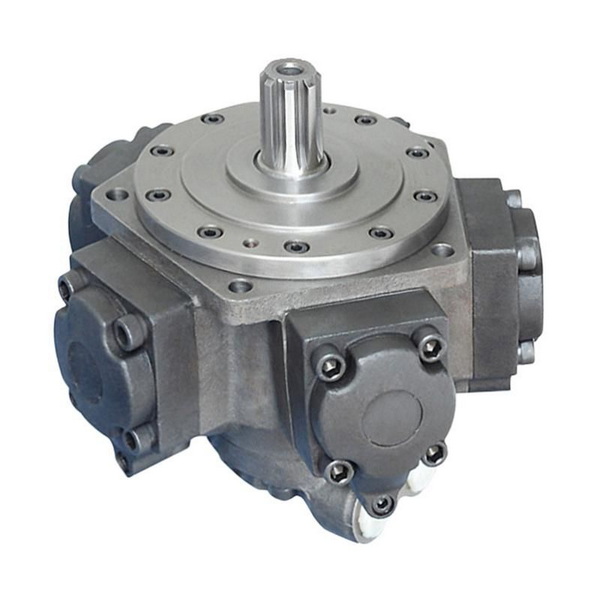

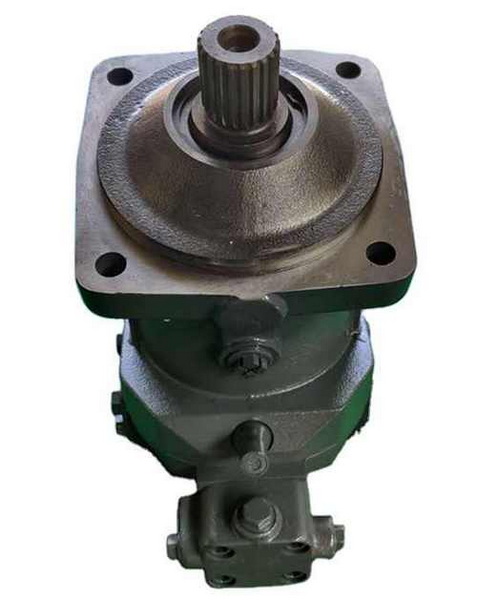

Hydraulic motors convert hydraulic energy into mechanical energy. They are commonly used in heavy machinery, such as excavators and cranes, due to their ability to provide high torque at low speeds. The displacement of a hydraulic motor, measured in cubic inches or cubic centimeters, indicates the volume of fluid it can process per rotation.
- Displacement: This is the volume of fluid that the motor can move per rotation. For a 2.5 cubic inch motor, it means that every rotation displaces 2.5 cubic inches of fluid.
- Pressure: The pressure at which the hydraulic system operates affects the motor's performance. Higher pressures generally result in higher torque outputs.
- Flow Rate: The flow rate of the hydraulic fluid determines how fast the motor rotates. A higher flow rate results in a faster rotation speed.
Electric motors convert electrical energy into mechanical energy. They are widely used due to their efficiency, reliability, and ease of control. When sizing an electric motor for a hydraulic pump, factors such as the pump's displacement, the motor's RPM, and the system's maximum pressure are crucial.
- Horsepower (HP): This measures the motor's power output. It is essential for determining if the motor can handle the load required by the hydraulic system.
- RPM: The revolutions per minute at which the motor operates affect the flow rate of the hydraulic pump it drives.
- Efficiency: The motor's efficiency impacts how much of the electrical energy is converted into useful mechanical energy.
To size an electric motor for a hydraulic pump, you need to know the pump's displacement, the motor's RPM, and the system's maximum pressure. Here's a step-by-step guide:
1. Calculate Flow Rate: Multiply the pump's displacement by the motor's RPM to get the flow rate in cubic inches per minute (or liters per minute if using SI units).
2. Calculate Power Requirement: Use the formula hp=QP/1714EM, where Q is the flow rate in gallons per minute (gpm), P is the pressure in pounds per square inch (psi), and EM is the pump's mechanical efficiency.
Assume you have a hydraulic pump with a displacement of 2.5 cubic inches and you want to operate it at 1800 RPM. The system pressure is 2000 psi, and the pump's mechanical efficiency is 90%.
1. Flow Rate Calculation:
Flow Rate=2.5cubic inches/rotation×1800RPM=4500cubic inches/minute
Convert cubic inches to gallons per minute (1 gallon = 231 cubic inches):
Flow Rate=4500/231≈19.48gpm
2. Power Requirement Calculation:
hp=(19.48×2000)/(1714×0.9)≈24.5hp
This calculation indicates that you would need an electric motor with a power output of approximately 24.5 horsepower to drive the hydraulic pump under these conditions.
When selecting an electric motor to replace or drive a hydraulic system, consider the following:
- Power Output: Ensure the motor's horsepower matches the calculated requirement.
- RPM: Match the motor's RPM to the desired operating speed of the hydraulic pump.
- Efficiency: Higher efficiency motors reduce energy losses and improve overall system performance.
When working with hydraulic systems, several common mistakes can lead to inefficiencies or failures:
1. Confusing Flow and Pressure Valves: Flow control valves regulate the flow rate, while pressure valves control the pressure. Mixing these functions can lead to inefficiency and increased heat generation.
2. Not Realizing More Flow Requires More Power: Increasing the flow rate without increasing the power input can lead to insufficient performance and potential system damage.
3. Ignoring Rod Effects in Double-Acting Cylinders: The rod in a double-acting cylinder affects its performance by reducing the effective area for pressure application during retraction.
4. Believing Bigger Pumps Mean More Force: Pump size affects flow rate, not force. Force is determined by pressure, not pump size.
5. Assuming Standard Stroke Lengths for Cylinders: There are no standard stroke lengths; each application requires specific dimensions.
Recent advancements have focused on integrating electric motors and hydraulic pumps into compact units. This integration offers several benefits, including reduced size, noise, and leakage, as well as improved efficiency and control. However, these designs are still evolving and face challenges such as maintaining tight clearances to minimize leakage while managing increased friction losses.
- Compactness: Integrated units are significantly smaller than traditional setups, making them ideal for space-constrained applications.
- Reduced Noise: By eliminating the mechanical shaft and dynamic seals, these systems operate more quietly.
- Improved Efficiency: The integration allows for better cooling and reduced energy losses.
- Design Complexity: Ensuring proper alignment and support for both the electric and hydraulic components within a compact space is challenging.
- Cooling Systems:Effective cooling is crucial to prevent overheating, especially in high-performance applications.
As technology advances, we can expect further innovations in both hydraulic and electric systems. These developments will likely focus on improving efficiency, reducing environmental impact, and enhancing control systems.
1. Electric-Hydraulic Hybrids: These systems combine the benefits of both technologies, offering improved efficiency and reduced emissions.
2. Advanced Materials: New materials are being developed to improve the durability and performance of hydraulic components, such as seals and cylinders.
3. Digital Control Systems: Modern control systems allow for precise monitoring and control of hydraulic systems, optimizing performance and reducing maintenance needs.
Electro-hydraulic integration is transforming industrial applications by combining the strengths of both hydraulic and electric systems. This integration enhances efficiency, precision, and safety, making it ideal for applications requiring high power density and precise control.
- Energy Efficiency: By using electronic controls and sensors, hydraulic systems can be optimized to reduce energy consumption and improve performance.
- Precision Control: Electro-hydraulic systems allow for precise control over hydraulic functions, enhancing overall system accuracy and reliability.
- Reduced Complexity: These systems simplify hydraulic circuits by eliminating the need for directional and proportional valves, making troubleshooting easier.
Both hydraulic and electric motors have unique advantages and disadvantages:
Advantages:
- High Torque: Hydraulic motors provide high torque at low speeds, making them suitable for heavy machinery.
- Durability: They are more resistant to harsh environments and can withstand high pressures and temperatures.
- Efficiency: Hydraulic systems can be efficient, especially when optimized with variable-speed controls.
Disadvantages:
- Complexity: Hydraulic systems require multiple components, such as pumps, valves, and fluid, which can increase complexity and maintenance needs.
- Environmental Impact: Leaks can pose environmental hazards and safety risks.
Advantages:
- Efficiency: Electric motors are generally more efficient than hydraulic motors, with efficiencies up to 95%.
- Precision: They offer precise control and positioning, making them ideal for applications requiring accuracy.
- Cost: Lower initial cost compared to hydraulic systems.
Disadvantages:
- Environmental Sensitivity: Electric motors are sensitive to environmental conditions like dust and moisture.
- Size and Installation: Large motors can be difficult to install in confined spaces.
Modern hydraulic systems are evolving to incorporate advanced technologies, such as electrohydrostatic actuation, which combines the benefits of hydraulic and electromechanical systems. This technology provides high forces with energy efficiency, making it suitable for applications requiring both power and precision[5].
Electrohydrostatic actuation is a modern approach that integrates hydraulic and electric technologies to achieve high efficiency and performance. It allows for decentralized control, enabling electrification at the vehicle level without compromising the benefits of hydraulic systems[5].
Determining the equivalent electric motor size for a 2.5 cubic inch hydraulic motor involves understanding both hydraulic and electric motor principles. By calculating the flow rate and power requirements based on the hydraulic system's specifications, you can select an appropriate electric motor. This process ensures efficient operation and minimizes energy waste. Additionally, integrating electric motors with hydraulic pumps offers potential benefits in terms of compactness and efficiency, though it requires careful design and engineering.
Answer: The displacement of a hydraulic motor is the volume of fluid it can move per rotation, typically measured in cubic inches or cubic centimeters.
Answer: Multiply the pump's displacement by the motor's RPM to get the flow rate in cubic inches per minute (or liters per minute).
Answer: The power requirement is determined by the flow rate, pressure, and mechanical efficiency of the pump, using the formula hp=QP/1714EM.
Answer: Efficiency is crucial because it affects how much electrical energy is converted into useful mechanical energy, impacting overall system performance and energy costs.
Answer: Ensure the motor's horsepower matches the calculated requirement, its RPM matches the desired operating speed, and it has high efficiency to reduce energy losses.
