In industrial and commercial environments, the choice between an air vane motor running at 155 PSI and an electric motor is a critical decision that impacts performance, safety, maintenance, and operational costs. This comprehensive guide explores the technical, operational, and economic aspects of both solutions, helping you determine if a 155 PSI air vane motor can truly replace an electric motor in your application.

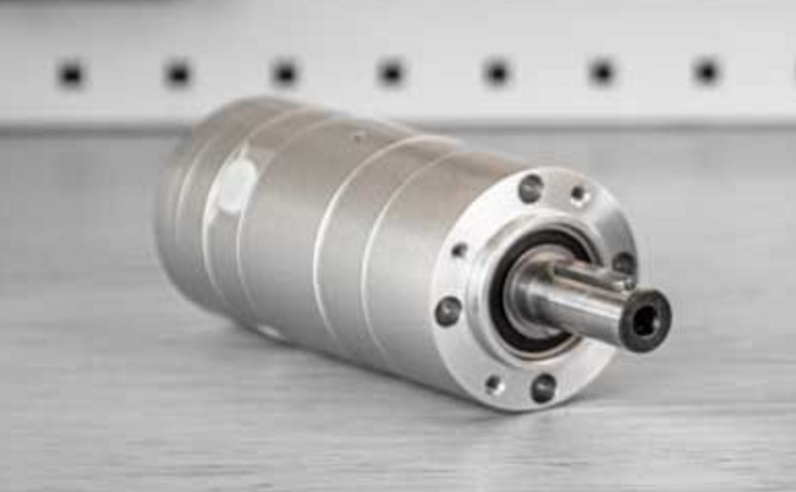

An air vane motor is a pneumatic device that converts compressed air into rotary motion using a rotor with sliding vanes. As compressed air enters the motor, it pushes the vanes outward against the stator, causing the rotor to spin. The pressure of 155 PSI is a common industrial standard, delivering robust performance for demanding applications.
Key Features:
- Simple, rugged construction
- High starting torque and variable speed
- Resistant to dust, moisture, and extreme temperatures
- Operates safely in explosive or hazardous environments
An electric motor uses electromagnetic induction to convert electrical energy into mechanical motion. It is widely used due to its high efficiency, precise speed control, and broad range of available sizes and configurations.
Key Features:
- High energy efficiency
- Precise speed and torque control
- Requires electrical infrastructure
- Sensitive to environmental contaminants and moisture
| Aspect | Air Vane Motor | Electric Motor |
|---|---|---|
| Vane Replacement Interval (hours) | 1000-2000 | N/A |
| Lubrication Frequency | Regular | N/A |
| Filter Replacement Frequency | Periodic | N/A |
| Electrical Inspection Frequency | N/A | Annual |
| Bearing Lubrication Frequency | N/A | Regular |
Air vane motors require regular vane replacement and lubrication, but they do not need electrical inspections or bearing maintenance, making them easier to service in some environments. Electric motors, while requiring less frequent mechanical maintenance, need regular electrical and bearing inspections.
- Hazardous Environments: Air vane motors are ideal for ATEX-rated or explosion-prone areas where electric motors pose a risk.
- Wet or Dusty Locations: Their sealed, simple design resists ingress of contaminants.
- Variable Load Operations: Speed and torque can be instantly adjusted by regulating air supply.
- Stall-Resistant Tasks: Air vane motors can stall without damage, unlike many electric motors.
- Installation: Air vane motors are quick to install, requiring only a compressed air line and basic mounting. Electric motors need electrical wiring, control panels, and sometimes cooling systems.
- Control: Air vane motors offer simple speed and torque control by adjusting air pressure and flow. Electric motors require variable frequency drives or controllers for similar flexibility.
- Noise: Air vane motors can be noisier due to exhaust air, but mufflers can mitigate this issue.
The power output of an air vane motor increases almost linearly with pressure. For example, at 80 PSI, output is about 0.6 HP, rising to 1.4 HP at 155 PSI. This scalability is valuable for applications with fluctuating power needs.
Electric motors maintain high efficiency across their operating range, while air vane motors' efficiency increases slightly with pressure but remains lower overall. This means higher energy costs for air-driven systems, especially where compressed air is generated solely for motor use.
| Maintenance Task | Air Vane Motor (155 PSI) | Electric Motor |
|---|---|---|
| Vane Replacement | Every 1000-2000 hours | Not required |
| Lubrication | Regular | Bearings only |
| Filter Replacement | Periodic | Not required |
| Electrical Inspection | Not required | Annual |
| Bearing Lubrication | Not required | Regular |
- Food Processing: Air vane motors are preferred for their oil-free, contamination-resistant operation.
- Chemical Plants: Their spark-free design is crucial for safety.
- Textile and Printing: Variable speed and torque accommodate changing production needs.
- Agriculture: Lightweight and tolerant of dust, moisture, and temperature swings.
| Feature | Air Vane Motor (155 PSI) | Electric Motor |
|---|---|---|
| Power Output | Up to 1.4 HP (scalable) | Wide range, higher max output |
| Torque | High starting, adjustable | Consistent, precise control |
| Efficiency | Up to 80% | Up to 94% |
| Environmental Tolerance | Excellent | Sensitive, needs protection |
| Maintenance | Simple, regular vane service | Electrical, bearing care |
| Installation | Quick, simple | Requires wiring, controls |
| Cost of Operation | Higher (compressed air cost) | Lower (electricity) |
| Overload Protection | Can stall safely | Risk of overheating |
| Hazardous Areas | Safe, spark-free | Needs special certification |
- Use high-quality air filtration (64 micron or better) to prevent vane wear.
- Employ lubricators to ensure smooth operation and long vane life.
- Schedule vane replacement every 1,000 to 2,000 hours, depending on usage and air quality.
- Inspect and replace air filters regularly to avoid contamination.
- Run the motor periodically if idle to keep internal components lubricated.
- Monitor for corrosion, especially in humid or underwater environments.
A 155 PSI air vane motor offers a compelling alternative to electric motors in environments where safety, durability, and flexibility are paramount. While it cannot match the energy efficiency or precise control of electric motors, its advantages in hazardous, wet, or dusty environments, as well as its simple maintenance and robust performance, make it an excellent choice for many industrial applications. The decision to replace an electric motor with an air vane motor at 155 PSI should be based on a careful assessment of operational needs, existing infrastructure, and total cost of ownership. With proper maintenance and application, the air vane motor at 155 PSI is a reliable and versatile solution for challenging conditions.
Air vane motors at 155 PSI provide ruggedness, explosion-proof operation, easy speed and torque control, and simplified maintenance, making them ideal for harsh or hazardous environments.
Air vane motors are typically less energy efficient, with about 80% efficiency at 155 PSI compared to up to 94% for electric motors, resulting in higher operational costs when compressed air is generated solely for motor use.
Yes, air vane motors are inherently safe for ATEX and similar hazardous environments because they do not produce electrical sparks.
Regular vane replacement (every 1,000–2,000 hours), consistent lubrication, and periodic filter changes are necessary to ensure optimal performance and longevity.
Yes, speed and torque are easily adjusted by regulating the air pressure and flow, providing flexible and responsive control for various industrial tasks.
