Vane motors are widely used in various industrial applications due to their compact design, smooth operation, and reliable performance. Understanding the vane motor working principle is essential for effective troubleshooting and maintenance. This comprehensive guide will walk you through common problems, their causes, and practical solutions, enriched with visuals and video references to enhance your understanding.

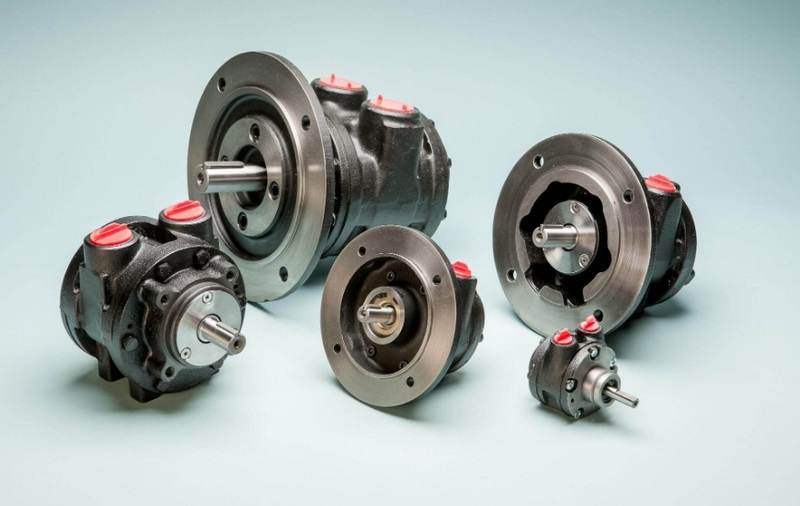

A vane motor operates by converting compressed air or hydraulic fluid energy into rotary mechanical motion. The motor consists of a rotor with several vanes that slide in and out of slots, pressed against the stator wall by centrifugal force and air pressure. As compressed air enters the inlet port, it pushes the vanes, creating a pressure differential that causes the rotor to turn. The vanes slide along the stator wall, maintaining the seal and enabling continuous rotation until the air is exhausted through the outlet port.
The vane motor working involves these key components:
- Rotor: Eccentrically positioned inside the stator, holding the vanes.
- Vanes: Rectangular blades that slide in and out of the rotor slots.
- Stator: The stationary outer cylinder housing the rotor.
- Inlet and Outlet Ports: Allow compressed air to enter and exit, driving the rotor.

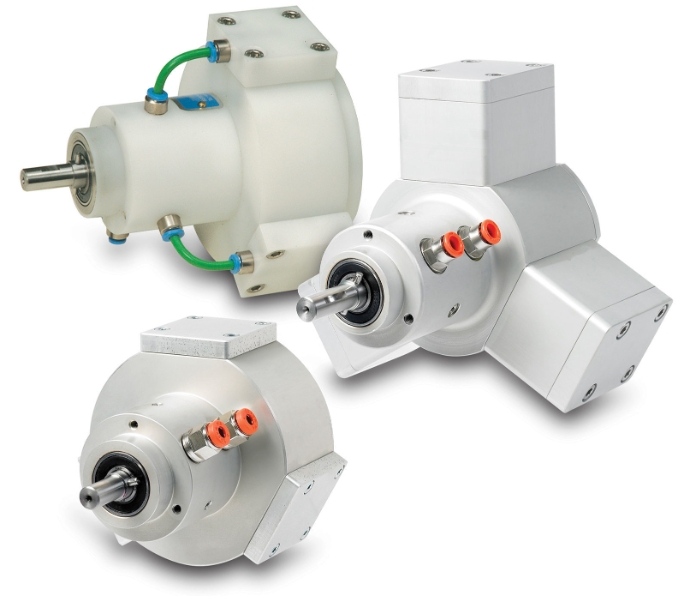

The rotor speed can reach up to 20,000 rpm, but gears are often used to reduce speed and increase torque for practical applications. Lubrication is typically provided by oil in the compressed air, but lubrication-free motors with special materials also exist for longer life.
Causes:
- Insufficient system pressure or air supply.
- Faulty relief valve or blocked inlet.
- Vanes stuck or damaged.
- Incorrect direction of rotation.
Solutions:
- Check air supply pressure and flow to ensure it meets specifications.
- Inspect and clean inlet filters and valves.
- Verify the relief valve operation and adjust if necessary.
- Inspect vanes for damage; replace if worn or stuck.
- Confirm motor rotation direction matches the installation requirements.
Causes:
- Excessive internal leakage due to worn vanes, rotor, or stator.
- Low inlet pressure or flow.
- Excessive back pressure in the system.
Solutions:
- Inspect and replace worn vanes, rotor, or stator surfaces.
- Check and restore proper inlet pressure and flow.
- Reduce back pressure by adjusting system valves or piping.
Causes:
- Worn or damaged bearings.
- Vanes not sliding freely due to dirt or rust.
- Misalignment of motor components.
- Loose mounting or screws.
Solutions:
- Inspect and replace bearings as needed.
- Clean vane slots and ensure free movement of vanes.
- Realign motor and baseplate properly.
- Tighten all mounting bolts and screws to manufacturer torque specifications.
Causes:
- Worn or damaged seals and O-rings.
- Cracks or damage in housing or components.
- Contaminated or degraded hydraulic fluid.
Solutions:
- Replace seals, O-rings, and gaskets.
- Inspect housing for cracks and repair or replace damaged parts.
- Maintain fluid cleanliness and replace fluid regularly.
Causes:
- Insufficient lubrication or dry running.
- Excessive speed causing high centrifugal force on vanes.
- Contaminants causing abrasion.
Solutions:
- Ensure proper lubrication according to manufacturer guidelines.
- Operate motor within recommended speed limits.
- Use filtration to keep air or hydraulic fluid clean.
- Daily: Visual inspection for leaks, unusual noises, and vibrations; check fluid or air supply levels.
- Weekly: Clean or replace filters; check all connections.
- Monthly: Inspect vane tips and rotor surfaces; analyze fluid quality; verify operating pressures.
- Scheduled Servicing: Replace worn parts such as vanes, seals, and bearings; flush system periodically.
For persistent problems, consider these advanced checks:
- Pressure Testing: Use pressure gauges to check inlet and outlet pressures, verifying the motor receives adequate air or fluid.
- Leak Detection: Apply soapy water or ultrasonic leak detectors around seals and joints.
- Thermal Imaging: Detect overheating components or friction points.
- Vibration Analysis: Use sensors to identify bearing wear or imbalance issues.
- Endoscopic Inspection: Use a borescope to inspect internal surfaces without full disassembly.
Load conditions affect vane motor performance significantly. Under light loads, the motor runs smoothly with minimal wear. Heavy or fluctuating loads can cause:
- Increased vane friction and wear.
- Higher operating temperatures.
- Potential stalling or speed drops.
Properly sizing the motor for the application and using torque limiters or speed controllers can mitigate these effects.
Lubrication is critical to maintain the sliding action of vanes and reduce wear. Key points include:
- Use manufacturer-recommended lubricants.
- Maintain oil concentration in compressed air systems.
- Monitor fluid contamination and replace filters regularly.
- Avoid mixing incompatible fluids.
Understanding airflow patterns helps diagnose performance issues:
- Air enters the inlet port, pushing vanes.
- Pressure builds in the expanding chamber, causing rotation.
- Exhaust air exits through the outlet port.
Blockages or leaks disrupt this flow, reducing efficiency.
Noise and vibration often indicate mechanical problems:
- Bearings may be worn or dry.
- Vanes may be damaged or stuck.
- Misalignment or loose mounts amplify vibrations.
Systematic inspection and balancing restore quiet operation.
Effective troubleshooting of vane motor problems relies on a clear understanding of the vane motor working principle and systematic inspection of components. Common issues like failure to start, reduced speed, noise, leakage, and overheating can be diagnosed by checking air or fluid supply, inspecting vanes, seals, bearings, and ensuring proper maintenance practices. Regular inspections and timely repairs extend the motor's life and maintain optimal performance.
Worn vanes often cause reduced speed, loss of torque, increased noise, and internal leakage. Inspect the vanes for cracks, chips, or uneven wear. If vanes do not slide freely in their slots, they likely need replacement.
Some vane motors are lubrication-free, made with special low-friction materials and permanently lubricated bearings. However, traditional vane motors require oil-lubricated compressed air to prevent excessive wear.
Common causes include insufficient air pressure, blocked inlet filters, stuck or damaged vanes, or incorrect motor rotation direction. Checking these systematically helps restore operation.
Daily visual checks, weekly filter cleaning, and monthly inspection of vanes and fluid quality are recommended. Scheduled part replacements and system flushes depend on usage and manufacturer guidelines.
Vaned must be installed with the tapered leading edge facing the direction of rotation to prevent them from being pulled out during operation. Ensuring free sliding movement in the slots is critical for proper performance.
