Excavator auger drives have revolutionized modern excavation by combining hydraulic power with precision drilling capabilities. These attachments transform standard excavators into versatile drilling machines capable of tackling projects from backyard landscaping to large-scale civil engineering. But their true effectiveness hinges on one critical factor: soil compatibility. Let's examine how these powerful tools perform across diverse geological conditions.

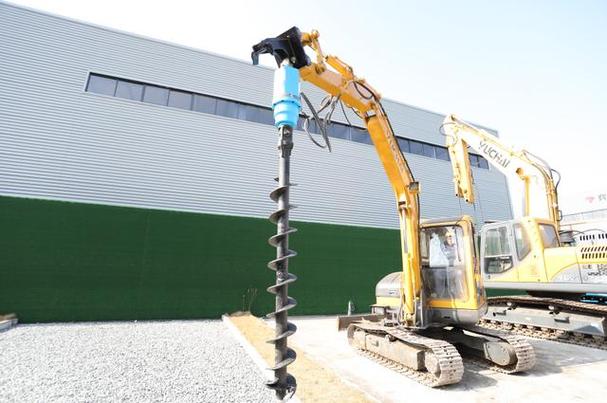

An excavator auger drive is a sophisticated hydraulic attachment that converts an excavator's boom movement into controlled rotational force. Unlike standalone augers, these drives leverage the host machine's hydraulic system to deliver exceptional torque and drilling precision. Modern units feature advanced engineering like:
- Planetary gear systems for torque multiplication
- Variable speed controls for soil-specific operation
- Quick-change adapters for bit versatility
- Dust suppression ports for cleaner drilling
- Reverse rotation modes for stuck bit recovery
The operational mechanics combine hydraulic engineering with mechanical advantage:
1. Hydraulic Connection: The drive unit taps into the excavator's hydraulic flow through dedicated lines
2. Torque Generation: Hydraulic motors convert fluid pressure into rotational force
3. Force Transmission: Planetary gears amplify torque while maintaining manageable speed
4. Material Displacement: Helical flights on the auger bit lift soil vertically from the hole
5. Depth Control: The excavator arm provides precise vertical pressure adjustment
Characteristics: Low cohesion, high drainage, poor stability
Auger Performance:
- Achieves fastest drilling speeds (3-5 feet/minute)
- Requires wide-flight bits to prevent hole collapse
- Benefits from continuous rotation without pause
Characteristics: High plasticity, slow drainage, sticky texture
Auger Challenges:
- Creates suction that can stall rotation
- Requires frequent bit cleaning
- Needs high-torque planetary drives (minimum 5,000 lb-ft)
Characteristics: Layered sand/clay/gravel combinations
Drilling Strategy:
- Use carbide-tipped hybrid bits
- Implement variable speed control
- Employ pilot hole techniques for deep holes
Winter Challenges:
- Requires 30-50% more torque than summer operations
- Specialized cryogenic-grade steel bits recommended
- Pre-drilling with smaller pilot bits improves efficiency
Characteristics: Cement-like calcium carbonate deposits
Solution Approach:
- Diamond-tipped auger bits
- Hydraulic impact attachments
- Chemical soil softeners (pre-drilling application)
- Bit Selection: Open-flight designs with 45° helix angles
- Technique: Continuous rotation at 25-35 RPM
- Stabilization: Bentonite slurry injection for critical holes
- Bit Modifications: Teflon-coated flights reduce sticking
- RPM Adjustment: 15-25 RPM with intermittent reversal
- Lubrication: Water injection through hollow stem augers
- Bit Technology: Tungsten carbide insert (TCI) teeth
- Drilling Protocol: Pecking method (drill-lift-clear-repeat)
- Ancillary Tools: Downhole cameras for obstruction detection
| Soil Type | Drive Configuration | Torque Requirement | Bit Design |
|---|---|---|---|
| Sandy | Direct Drive | 2,000-3,500 lb-ft | Open flight |
| Clay | Planetary Drive | 5,000-8,000 lb-ft | Closed flight |
| Rocky | Extreme Duty Planetary | 8,000-12,000 lb-ft | TCI Teeth |
| Frozen | Cryogenic Drive | 10,000-15,000 lb-ft | Carbide Edge |
| Composite | Variable Speed Drive | 4,000-6,000 lb-ft | Hybrid Design |
1. Smart Torque Management:
Automatic RPM adjustment based on load sensors prevents stalling
2. Auger Telemetry Systems:
Real-time monitoring of:
- Torque output
- Bit temperature
- Soil resistance
- Hydraulic pressure
3. Laser Guidance:
Projects bore alignment directly onto the worksite
4. Automated Cleanout:
Reverse pulse systems clear bit clogging without operator intervention
5. Modular Bit Systems:
Interchangeable flight sections for rapid configuration changes
Post Hole Digging Methods Compared:
| Method | Speed | Depth Capacity | Soil Versatility | Cost Efficiency |
|---|---|---|---|---|
| Manual Digger | Slow | 4' | Low | High |
| Hydraulic Auger | Fast | 15' | High | Medium |
| Rotary Drill | Medium | 100' | Very High | Low |
| Excavator Bucket | Fast | 8' | Medium | High |
1. Netherlands Delta Works:
Marine clay drilling with anti-corrosion augers
2. Australian Outback:
Hardpan penetration using diamond-coated bits
3. Canadian Permafrost:
Cryogenic drilling systems for -40°C operations
4. Middle Eastern Deserts:
Sand stabilization techniques during oil rig installations
- Dust Control: Water misting systems integrated into auger drives
- Soil Preservation: Low-impact drilling techniques for sensitive ecosystems
- Noise Reduction: Hydraulic mufflers for urban operations
- Contaminant Management: Sealed systems for polluted soil drilling
Can an excavator auger drive be used for all types of soil? The comprehensive answer reveals that modern auger drives, when properly configured, can handle an extraordinary range of soil conditions - from shifting desert sands to concrete-like permafrost. The key lies in:
1. Precise equipment selection based on soil analysis
2. Implementation of advanced drilling techniques
3. Utilization of cutting-edge auger technologies
4. Rigorous maintenance protocols
5. Operator training for specific soil challenges
While extreme conditions like solid bedrock or fluid-rich soils may require specialized equipment, today's excavator auger drives represent the most versatile earth drilling solution available, capable of adapting to nearly any geotechnical challenge through proper configuration and operation.
Modern units incorporate pressure relief valves, temperature sensors, and automatic shutdown systems that protect against hydraulic overload and mechanical failure.
Specialized submersible models with sealed hydraulic connections can drill in flooded conditions up to 10' water depth.
Highly acidic (pH 9) soils require stainless steel bits with specialized coatings to prevent rapid corrosion.
Mini-excavators as small as 1.5 tons can operate compact auger drives, though 5-8 ton models provide optimal versatility.
Use the formula:
Torque (lb-ft) = (Soil Resistance psi × Hole Area in² × Bit Radius ft) × Safety Factor 1.5
