Drive over unloading augers are the backbone of efficient grain handling, enabling farmers to transfer crops from trucks to storage with minimal effort. However, their constant exposure to abrasive materials, heavy loads, and harsh weather demands a proactive maintenance strategy. This guide provides an in-depth roadmap to extend your auger's lifespan while ensuring safety and peak performance.

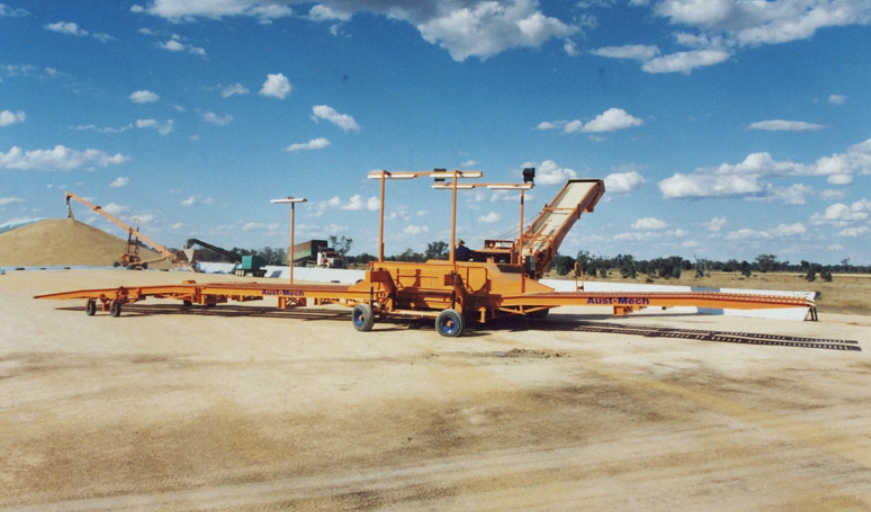

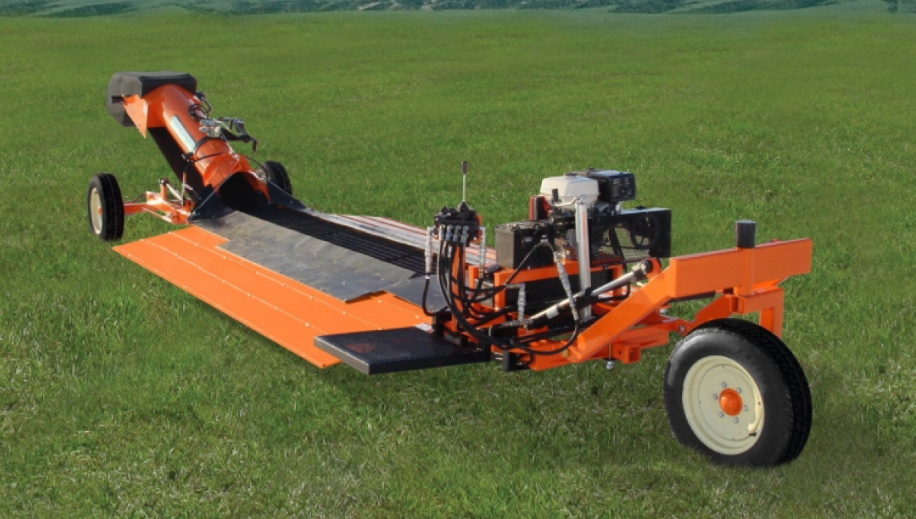

A drive over unloading auger combines a low-profile hopper with a high-capacity auger, allowing vehicles to drive directly over the intake. Grain flows into the hopper, where the rotating flighting moves it through the tube to the discharge point. Key stress points include the flighting edges, drive components, and bearings, which endure constant friction and torque.
Critical Design Features:
- Tapered flighting: Optimizes grain flow and reduces plugging.
- Heavy-duty bearings: Support high rotational speeds under load.
- Adjustable discharge spout: Allows precise grain placement.
Neglecting maintenance leads to cascading failures: a single worn bearing can misalign the auger, strain the motor, and damage flighting. Regular upkeep prevents:
- Costly downtime during critical harvest periods.
- Safety hazards from sudden mechanical failures.
- Reduced efficiency due to worn components.
Daily Tasks:
- Visual inspection: Check for cracks, loose bolts, or oil leaks.
- Operational test: Run the auger briefly to detect unusual noises or vibrations.
- Debris removal: Clear the hopper of foreign objects like rocks or twigs.
Weekly Tasks:
- Belt/chain tension check: Use a tension gauge for precision.
- Bearing temperature check: Infrared thermometers can detect overheating.
- Electrical system review: Test emergency stop buttons and safety switches.
Pre-Season Preparation:
- Alignment verification: Use a laser alignment tool to ensure the auger tube is straight.
- Motor calibration: Check amp draw under load to identify potential issues.
- Structural integrity test: Inspect welds and supports for stress fractures.
Post-Season Shutdown:
- Corrosion prevention: Apply a rust-inhibiting spray to exposed metal.
- Battery maintenance: For electric models, store batteries at 50% charge in a climate-controlled area.
- Documentation update: Record wear patterns and repairs for future reference.
Deep Cleaning Method:
1. Dry brushing: Remove caked-on material with stiff bristle brushes.
2. Enzyme cleaners: Break down organic residues without damaging metal.
3. Compressed air: Blow out dust from electrical components and tight spaces.
Advanced Lubrication Tips:
- Cross-contamination prevention: Use separate grease guns for different lubricant types.
- Bearing purge technique: Pump grease until old, contaminated grease exits the relief port.
- Synthetic lubricants: Ideal for extreme temperatures and high-load conditions.
Belt Drive Optimization:
- Pulley inspection: Measure groove depth with a depth gauge; replace if worn beyond specifications.
- Sheave alignment: Use straightedges to ensure pulleys are parallel.
Chain Drive Maintenance:
- Stretch measurement: Replace chains if elongation exceeds 3% of original length.
- Sprocket inspection: Look for "shark fin" tooth wear patterns.
Wear Analysis:
- Flighting thickness gauge: Measure remaining material with ultrasonic testers.
- Tube ovality check: Use calipers to detect deformation from impacts.
Repair Techniques:
- Hardfacing: Apply weld overlay to high-wear flighting areas.
- Patch welding: Reinforce cracked tubes with stainless steel patches.
Long-Term Preservation:
- Desiccant packs: Place moisture absorbers inside enclosed components.
- Tire maintenance: Inflate to 110% recommended pressure to prevent flat spots.
- Rodent deterrents: Install ultrasonic repellents or steel wool in openings.
Advanced Diagnostic Table:
| Symptom | Root Cause Analysis | Advanced Solutions |
|---|---|---|
| Intermittent stalling | Phase imbalance (3-phase motors) | Check voltage across all legs with multimeter |
| Uneven discharge | Flighting pitch variation | Measure flighting spacing every 3 feet |
| Oil contamination | Failed shaft seals | Use dual-lipped seals with grease purge |
Enhanced Safety Protocols:
- Lockout-tagout (LOTO): Implement OSHA-compliant energy isolation procedures.
- Arc flash protection: Use Category 4 PPE when working on high-voltage systems.
- Fire prevention: Keep Class D fire extinguishers rated for metal fires nearby.
Performance Enhancements:
- Variable frequency drives (VFDs): Enable soft starts and speed adjustments.
- Load cells: Integrate weighing systems for precise batch measurements.
- Automated lubrication systems: Programmable greasers for remote operations.
Mastering drive over unloading auger maintenance requires attention to detail and regular care. By implementing these comprehensive strategies-from daily inspections to advanced lubrication techniques-you'll ensure your equipment operates safely and efficiently for decades. Remember, proactive maintenance costs far less than emergency repairs and lost productivity.
Install vibratory actuators or angled flow plates to promote material movement.
Configure RPMs based on material density:
- Corn: 900-1,100 RPM
- Soybeans: 750-950 RPM
- Wheat: 1,000-1,200 RPM
Yes, add emergency stop cords, proximity sensors, and guarded access points.
Annually or every 500 operating hours, using ISO 320 synthetic gear oil.
Look for U-joint play >0.125 inches or visible wear on splines.
