Vane air motors are widely used in various industrial applications due to their efficiency, reliability, and ease of control. One of the key benefits of these motors is their ability to adjust speed and torque according to specific requirements. In this article, we will delve into the methods of adjusting the speed of a vane air motor, exploring both throttling and pressure regulation techniques.

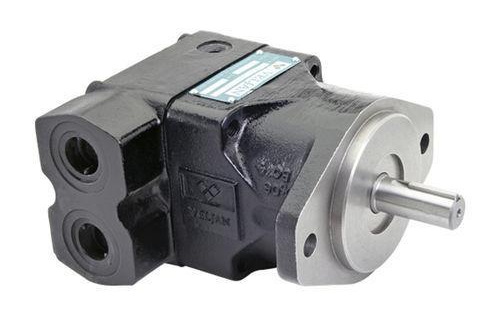

Vane air motors operate by using compressed air to rotate a rotor with vanes, which move in and out of slots within the rotor. This motion creates a rotational force that drives the motor's output shaft. The design allows for variable speed control, making vane air motors suitable for applications requiring flexible operation conditions.

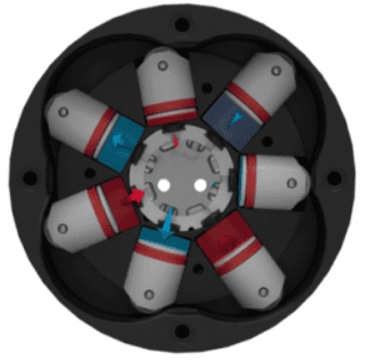

- Rotor and Vanes: The rotor is eccentrically positioned within the motor housing, and vanes slide in and out of slots in the rotor, dividing the housing into chambers of varying sizes.
- Compressed Air Supply: Air enters the chambers, pushing the vanes and causing the rotor to rotate.
- Exhaust System: Used air is expelled from the motor through an exhaust port.
Throttling involves controlling the air flow to the motor by using a flow control valve. This method can be applied at either the inlet or outlet of the motor.
- Effect: Reduces the maximum speed of the motor while maintaining starting torque.
- Application: Suitable when high starting torque is required but running speed needs to be reduced.
- Mechanism: A flow control valve is placed at the inlet port to restrict air flow, thereby reducing the motor's speed.
- Effect: Also reduces speed but maintains stability and starting torque.
- Application: Often used in applications where maintaining stability is crucial.
- Mechanism: The flow control valve is placed at the exhaust port, restricting air flow out of the motor.
Pressure regulation involves using a pressure regulator to adjust the air pressure supplied to the motor. This method affects both speed and torque.
- Pressure Regulator: Installed at the inlet port, it reduces the air pressure entering the motor.
- Effect: Changes the torque and speed of the motor. Ideal for applications where starting torque needs adjustment.
- Torque Control: Best method for controlling starting torque.
- Speed Control: Can be combined with throttling for precise speed and torque adjustment.
For precise control over both speed and torque, it is often beneficial to use both throttling and pressure regulation techniques. This setup allows for a wide range of operational adjustments.
- Pressure Regulator: Installed at the inlet to adjust air pressure.
- Flow Control Valve: Placed at the outlet to fine-tune speed.
- Precise Control: Enables setting any point on the torque-speed graph.
- Flexibility: Suitable for applications requiring variable speed and torque.
Vane air motors offer several advantages over other types of motors:
- Cool Operation: They run cool due to the expanding air, reducing overheating risks.
- High Reliability: Few moving parts reduce wear and tear.
- Instant Reversibility: Can change direction quickly using control valves.
- Compact Design: Often lighter and more compact than electric motors.
Vane air motors are used in various industries:
- Industrial Automation: For tasks requiring precise speed and torque control.
- Handheld Tools: In applications where compact size and high torque are necessary.
- Hazardous Environments: Suitable for use in explosive or high-temperature environments due to their non-electrical nature.
The quality of compressed air is crucial for optimal motor performance. Air filtration systems should be used to ensure that the air entering the motor is clean and dry, reducing the risk of corrosion and wear on moving parts.
Regular maintenance is essential for maintaining the efficiency and longevity of vane air motors. This includes checking for worn-out vanes, ensuring proper lubrication, and cleaning the motor regularly.
Vane air motors are generally efficient due to their ability to use compressed air directly. However, optimizing air supply systems and using energy-efficient compressors can further reduce energy consumption.
In some applications, noise reduction is important. Using noise-reducing mufflers or silencers on the exhaust can minimize the operational noise of the motor.
Vane air motors can be integrated with other pneumatic systems for more complex operations. This includes using them in conjunction with pneumatic cylinders, valves, and other actuators.
In a manufacturing plant, vane air motors are used to drive conveyor belts. By adjusting the speed using throttling and pressure regulation, the plant can optimize production flow according to different product sizes and weights.
In construction, handheld tools like pneumatic drills use vane air motors for their compact size and high torque. The ability to adjust speed allows users to adapt to different drilling conditions, improving efficiency and safety.
In chemical processing plants, vane air motors are preferred due to their non-electrical operation, reducing the risk of sparks and explosions. Adjusting speed and torque helps in handling different types of materials safely.
As technology advances, there is a growing interest in integrating vane air motors with smart control systems. These systems can automatically adjust speed and torque based on real-time feedback from sensors, optimizing performance and efficiency.
Adjusting the speed of a vane air motor is straightforward and can be achieved through throttling or pressure regulation. These methods provide flexibility in controlling both speed and torque, making vane air motors highly versatile for various industrial applications. Additionally, considering factors like air quality, maintenance, energy efficiency, noise reduction, and integration with other systems can further enhance their performance and lifespan.
The primary methods for adjusting the speed of a vane air motor are throttling and pressure regulation. Throttling involves controlling air flow using a flow control valve, while pressure regulation uses a pressure regulator to adjust the air pressure entering the motor.
Throttling reduces the maximum speed of the motor but maintains starting torque. It can be applied at either the inlet or outlet of the motor, depending on whether stability or reduced air consumption is prioritized.
Pressure regulation affects both the speed and torque of the motor. It is ideal for controlling starting torque and can be combined with throttling for precise adjustments.
Vane air motors offer several advantages, including cool operation, high reliability, instant reversibility, and a compact design. They are also suitable for use in hazardous environments due to their non-electrical nature.
Vane air motors are commonly used in industrial automation, handheld tools, and hazardous environments. They are preferred for tasks requiring variable speed and torque control.
