Views: 222 Author: Ella Publish Time: 2025-03-26 Origin: Site
Content Menu
● Introduction to Skid Steer Auger Drives
>> Key Components of a Skid Steer Auger Drive
● Factors Influencing Drilling Depth
>> 1. Auger Length and Diameter
>> 3. Skid Steer Loader Capacity
● Achievable Depths with Skid Steer Auger Drives
>> Example: Virnig Auger Drive
● Applications of Skid Steer Auger Drives
● Choosing the Right Auger Drive
● Environmental Considerations
>> 1. What is the maximum depth a skid steer auger can drill?
>> 2. How does soil type affect drilling depth?
>> 3. What factors should be considered when choosing an auger bit diameter?
>> 4. Can skid steer auger drives be used for rocky terrain?
>> 5. How important is hydraulic flow rate for the auger drive?
Skid steer auger drives are versatile attachments used for drilling holes in various soil conditions. They are commonly employed in landscaping, construction, and agricultural projects for tasks such as planting trees, installing fence posts, and laying foundations. The depth that a skid steer auger drive can drill depends on several factors, including the auger bit's length and diameter, soil conditions, and the skid steer loader's power and hydraulic capabilities.
Skid steer auger drives are designed to efficiently dig precise holes with minimal effort. These attachments are typically mounted on skid steer loaders, which provide the necessary hydraulic power for operation. The auger drive itself consists of a motor, gearbox, and output shaft that connects to the auger bit. The motor is usually hydraulic, requiring a specific flow rate to operate effectively.
1. Auger Bit: The auger bit is the part that actually digs into the soil. It comes in various diameters and lengths, each suited for different applications. Larger diameter bits are used for bigger holes, while longer bits allow for deeper drilling. Auger bits are typically made of spiral steel flights with heat-treated steel teeth and a wear-resistant drill head, enabling them to penetrate through tough soil conditions like clay and rock.
2. Hydraulic Motor: This powers the auger drive. The motor's performance is crucial for efficient drilling and is typically rated by its flow rate in gallons per minute (GPM). Standard flow auger drives usually require between 10-20 GPM, while high-flow models need up to 40 GPM for heavy-duty tasks.
3. Planetary Gearbox: This component provides the necessary torque for drilling through tough soil conditions. It ensures that the auger bit can handle heavy loads without stalling. Modern auger drives often feature a single forged shaft tapered to prevent spindle pull-out when lifting heavy, dirt-filled augers.
The length and diameter of the auger bit significantly affect the achievable drilling depth. Longer augers can drill deeper, while larger diameter augers remove more soil per revolution, which can be beneficial for certain applications but may limit depth in harder soils.
Soil type plays a crucial role in determining how deep an auger can drill. Soft soils like clay or loam are easier to penetrate, allowing for deeper holes. In contrast, dense or rocky soils pose significant resistance, reducing the achievable depth. For instance, drilling through frozen soil or solid rock requires specialized bits designed to handle such conditions.
The power and hydraulic capabilities of the skid steer loader itself are vital. More powerful machines can handle larger auger bits and drill deeper into the ground. Ensuring the skid steer can provide the required hydraulic flow rate is essential for optimal performance.

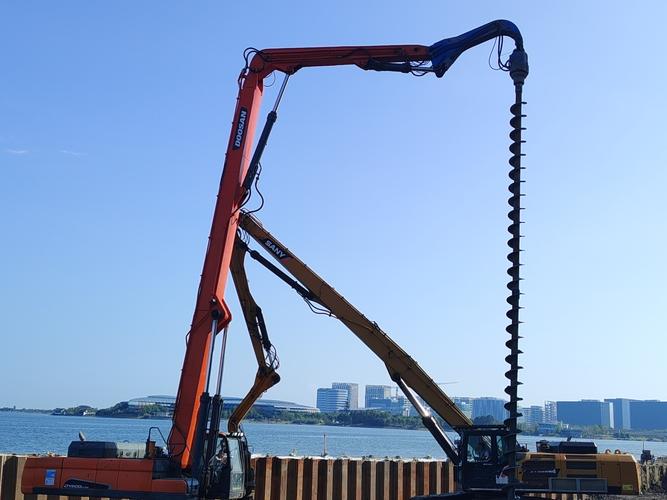

Most standard auger bits have a maximum drilling depth of around 6 feet (1.8 meters). However, with ideal conditions and proper equipment, depths of up to 30 feet (9 meters) or more can be achieved. Some specialized setups, like those using extensions or high-torque auger drives, can reach even greater depths.
The Virnig Auger Drive (AD36) is designed to use bits up to 36 inches in diameter and 48 inches long. This setup is suitable for deep drilling tasks but requires careful consideration of soil conditions and machine capabilities to avoid damage.
A video showcasing a Digga auger drive demonstrates drilling a 36-inch diameter hole to a depth of 11.5 feet (3.5 meters) using a skid steer loader with a 2-meter extension. The Digga Skid Steer Auger Drive is engineered to handle tough soils, including hard clay and rocky terrain, making it perfect for installing fence posts, planting trees, and setting utility poles.
When using a skid steer auger drive, safety is paramount. It's essential to ensure that the auger is operated perpendicular to the ground to avoid uneven holes and potential accidents. Additionally, knowing the soil conditions and the machine's limits can prevent damage to the equipment or injury to operators. Always wear proper personal protective equipment (PPE) and follow safety protocols to minimize risks.
Skid steer auger drives are versatile tools with a wide range of applications:
- Tree Planting: Augers are used to dig precise holes for tree planting, ensuring the roots have enough space to grow. This enhances the quality of work by providing consistent, clean holes.
- Fence Post Installation: For installing fence posts, smaller diameter augers are typically used to create holes that fit the post snugly. This application is common among farmers and contractors, who use augers to install straight and stable fence posts efficiently.
- Foundation Work: Larger diameter augers can be used for laying foundations or installing industrial columns. They provide precise control over the digging process, making them ideal for foundational work in construction.
When selecting a skid steer auger drive, consider the following factors:
1. Auger Diameter: Choose an auger diameter based on the application. Smaller diameters are suitable for fence posts, while larger diameters are better for foundation work.
2. Hydraulic Flow Requirements: Ensure the skid steer loader can provide the required hydraulic flow rate for the auger drive.
3. Soil Conditions: Consider the type of soil you will be drilling into. Harder soils may require more powerful machines or specialized bits.
Regular maintenance is essential for extending the lifespan of your skid steer auger drive. Here are some key tips:
- Daily Checks: Inspect the skid steer for visible damage, check hydraulic hoses for leaks, and ensure the auger attachment is securely connected. Verify that all safety guards and shields are in place and functioning properly.
- Cleaning: After each use, clean the auger attachment to prevent dirt and debris buildup. Use a brush or scraper to remove soil and wash with water if necessary. For heavy-duty cleaning, consider using a pressure washer, but avoid direct pressure on sensitive areas like hydraulic connections.
- Lubrication: Apply high-quality grease to moving parts as recommended by the manufacturer. Regular lubrication reduces friction and ensures smooth operation.
- Storage: Store the auger attachment in a clean, dry location when not in use. Remove it from the skid steer and cover it with a protective tarp to shield it from dust and moisture.
In addition to daily checks, periodic maintenance is essential for keeping your equipment in top condition:
- Hydraulic Fluid Checks: Regularly inspect hydraulic hoses and connections for leaks. Replace hydraulic fluid and filters every 250 hours to maintain optimal performance.
- Gearbox Maintenance: For auger drives with planetary gearboxes, check the gearbox oil level annually or more frequently if used extensively. Replace the oil with the recommended type to prevent damage.
- Auger Bit Maintenance: Regularly inspect and replace worn or damaged auger teeth. Using worn-out teeth can lead to increased wear on the auger drive and reduce efficiency.
Skid steer auger drives are not only limited to construction and landscaping but also have applications in agriculture and environmental projects:
- Agricultural Use: Augers can be used for planting trees or installing irrigation systems in agricultural settings.
- Environmental Projects: They are useful for installing monitoring wells or sampling soil in environmental studies.
When using skid steer auger drives for environmental projects, it's crucial to consider the impact on the ecosystem. Ensure that drilling operations do not disrupt natural habitats or contaminate water sources. Always follow local regulations and guidelines for environmental protection.
Skid steer auger drives are powerful tools for drilling holes in various soil conditions. The depth achievable with these drives depends on factors like auger bit size, soil type, and machine capacity. Proper selection and operation of the auger drive can ensure efficient and safe drilling for a variety of applications.
The maximum depth a skid steer auger can drill varies based on conditions but can reach up to 30 feet or more with ideal setup and equipment.
Soil type significantly affects drilling depth. Soft soils allow for deeper drilling, while dense or rocky soils limit depth due to increased resistance.
When choosing an auger bit diameter, consider the application. Smaller diameters are suitable for tasks like fence post installation, while larger diameters are better for foundation work.
Yes, skid steer auger drives can be used for rocky terrain, but they may require specialized bits or more powerful machines to handle the increased resistance.
The hydraulic flow rate is crucial for the auger drive's performance. Ensure the skid steer loader can provide the required flow rate for efficient operation.
