Hydraulic pressure reducer valves are crucial components in hydraulic systems, designed to regulate and reduce high inlet pressures to lower outlet pressures. These valves ensure that downstream components operate safely and efficiently, preventing damage from excessive pressure. In this article, we will delve into the working principles, types, applications, and configurations of hydraulic pressure reducer valves, along with visual aids and videos to enhance understanding.
Hydraulic pressure reducer valves are used in various applications, including industrial machinery, hydraulic systems, and even in municipal water supply systems. Their primary function is to maintain a constant reduced pressure downstream, regardless of fluctuations in the upstream pressure. This is achieved through a combination of mechanical and hydraulic components that adjust the valve's opening to control the flow of fluid. The precision they offer is essential for maintaining system integrity and preventing costly damages.

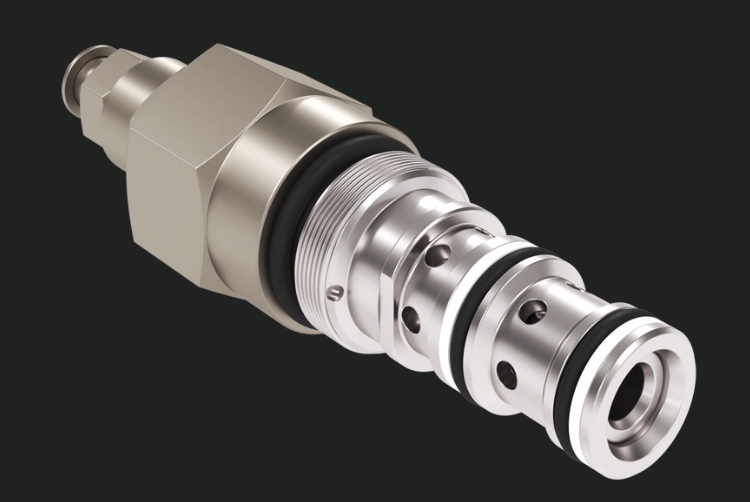

A typical hydraulic pressure reducer valve consists of the following components:
- Spring-loaded Spool: This is the heart of the valve, responsible for controlling the flow based on pressure differences.
- Diaphragm or Piston: These elements respond to changes in downstream pressure, moving the spool accordingly.
- Adjusting Screw: Allows users to set the desired downstream pressure.
- Drain Line: Ensures that excess pressure is safely released to the tank. This line is vital for maintaining stability and preventing pressure buildup.
The working principle of hydraulic pressure reducer valves involves balancing the force exerted by the downstream pressure against the force of an adjustable spring. Here's how it works:
1. Initial State: The valve is normally open, allowing fluid to flow freely from the inlet to the outlet when the downstream pressure is below the valve setting.
2. Pressure Increase: As the downstream pressure rises to the valve setting, the spool begins to move, partially blocking the outlet port. This reduces the flow rate, maintaining the preset pressure.
3. Pressure Regulation: If the downstream pressure exceeds the valve setting, the spool closes further, limiting flow until the pressure drops back to the set point.
4. Drain Line: Excess pressure is continuously bled off through a drain line to the tank, preventing overpressure.
There are two main types of hydraulic pressure reducer valves: direct-acting and pilot-operated. The choice between these types depends on the specific requirements of the hydraulic system, including the level of precision needed and the operating conditions.
- Operation: These valves respond directly to changes in downstream pressure. They are simpler in design and less expensive but may not be as precise in maintaining pressure. Direct-acting valves are best suited for applications where minor pressure fluctuations are acceptable.
- Application: Suitable for systems where precise pressure control is not critical. Examples include basic hydraulic circuits in agricultural machinery or simple industrial applications.
- Operation: These valves use a small pilot valve to sense downstream pressure and control the main valve. They offer more precise pressure control and are used in applications requiring high accuracy. The pilot valve allows for a more sensitive and responsive control mechanism.
- Application: Ideal for systems that demand precise pressure regulation, such as in high-performance machinery, aerospace systems, and complex industrial processes.
Hydraulic pressure reducer valves are used in a variety of applications:
- Industrial Machinery: To protect components from overpressure and ensure efficient operation. They are used in hydraulic presses, injection molding machines, and other heavy-duty equipment.
- Municipal Water Supply: To regulate water pressure in residential areas, preventing damage to household plumbing. Consistent water pressure improves the lifespan of pipes and appliances.
- Irrigation Systems: To manage water pressure in irrigation networks, ensuring optimal water distribution. This is particularly important in large agricultural operations.
- Construction and Manufacturing: These valves are essential in hydraulic systems used in construction equipment and manufacturing machinery, controlling the speed and force of hydraulic cylinders. They are found in excavators, cranes, and assembly line machinery.
- Aerospace: They are used in aircraft hydraulic systems to control the pressure in landing gear, flight control surfaces, and braking systems.
Hydraulic pressure reducer valves can be configured in different ways depending on the application:
- 2-Way Valves: Commonly used for simple pressure reduction tasks.
- 3-Way Valves: Used in more complex systems where additional control is needed.
The valve setting is typically adjusted using an adjusting screw that compresses or decompresses the spring, allowing the user to set the desired downstream pressure. Accurate adjustment is critical for optimal system performance.
Regular maintenance is crucial to ensure the optimal performance of hydraulic pressure reducer valves. This includes checking for leaks, cleaning the valve, and ensuring proper alignment of components. Neglecting maintenance can lead to system inefficiencies and potential failures.
Common issues include:
- Inconsistent Pressure: Often due to incorrect valve setting or blockages.
- Leaks: Can lead to reduced system efficiency and safety risks.
- Spool Sticking: Can cause the valve to fail to regulate pressure properly.
1. Check for Blockages: Ensure that the pilot drain line is clear and not blocked, as this can prevent the valve from maintaining the reduced pressure setting. Blockages can result from contaminants in the hydraulic fluid.
2. Inspect Moving Parts: Look for wear or damage on the spool or bore, which can affect the valve's ability to regulate pressure accurately. Replace worn parts to maintain optimal performance.
3. Adjustment Issues: If the valve cannot be adjusted to the desired low-pressure setting, check for wear on the spool or a broken pilot head spring.
4. Pressure Gauges: Install pressure gauges at both the inlet and outlet to monitor pressure discrepancies and identify potential problems. This allows for real-time monitoring and early detection of issues.
- Regular Inspection: Regularly inspect the valve and surrounding pipes for signs of leaks, corrosion, or physical damage.
- Cleaning and Lubrication: Use a non-abrasive cleaner and lubricate moving parts such as the diaphragm or piston mechanism to ensure smooth operation.
- Adjusting Setpoint: Verify that the valve is set to the appropriate pressure level for your system.
- Fluid Quality: Ensure that the hydraulic fluid is clean and free from contaminants. Regular fluid changes can extend the lifespan of the valve.
In a recent case study, pilot-operated pressure reducing valves were installed at Bangalore International Airport to address issues of erratic and irregular pressures in the water supply system. The solution involved using diaphragm-type PRVs, which were properly sized and commissioned to maintain constant pressure despite varying upstream conditions. This resulted in more stable and reliable water pressure throughout the airport.
Pressure reducing valves offer several benefits, including:
- High Flow Capacity: Some valves can handle flow rates up to 200 l/min, making them suitable for demanding applications.
- Stability and Accuracy: They provide stable and accurate pressure regulation, ensuring that components operate within their designed parameters.
- Durability: Designed for long operational life, these valves are crucial for maintaining system reliability.
- Energy Efficiency: By reducing pressure, these valves can also contribute to energy savings in hydraulic systems.
- Component Protection: They protect downstream components from pressure spikes and surges, prolonging their lifespan.
In addition to hydraulic systems, pressure reducing valves are also critical in water management systems. They help reduce water leakage by optimizing pressure in distribution networks. A study using EPANET software demonstrated that installing PRVs can significantly minimize water leakage by optimizing pressure levels in water distribution systems. Reducing water leakage leads to significant cost savings and conserves water resources.
Pressure reducing valves can also be used to convert any type of 2-way valve into a pressure-compensated flow control. This is achieved by placing the reducing valve upstream of the 2-way valve, ensuring that the pressure difference across the valve remains constant, thus maintaining a consistent flow rate regardless of load variations. This ensures precise control of fluid flow in the system.
The future of hydraulic pressure reducer valves involves the integration of smart technologies. Self-adjusting valves that use sensors and microprocessors to optimize pressure in real-time are being developed. These smart valves can adapt to changing system conditions and provide even greater energy efficiency and component protection.
Hydraulic pressure reducer valves are essential components in hydraulic systems, providing a reliable means to regulate and reduce pressure. Understanding their working principles, types, and applications is crucial for effective system design and maintenance. By ensuring that these valves are properly configured and maintained, users can enhance system efficiency, safety, and longevity. As technology advances, these valves will continue to play a vital role in hydraulic and water management systems worldwide.
Here are some frequently asked questions about hydraulic pressure reducer valves:
- The primary function is to reduce high inlet pressure to a lower, constant outlet pressure, protecting downstream components from overpressure.
- They use a spring-loaded spool that moves in response to changes in downstream pressure, adjusting the flow rate to maintain a preset pressure.
- The main types are direct-acting and pilot-operated valves, each suited to different applications based on precision and complexity.
- They are crucial for protecting machinery components from excessive pressure, ensuring efficient operation and prolonging equipment lifespan.
- Regular maintenance is recommended, including checks for leaks and proper valve settings, to ensure optimal performance and safety.
