Views: 222 Author: Ella Publish Time: 2025-03-12 Origin: Site
Content Menu
● Introduction to Hydraulic Pressure Reducers
>> Components of a Hydraulic Pressure Reducer
● Working Principle of Hydraulic Pressure Reducers
● Types of Hydraulic Pressure Reducers
>> Direct-Acting Pressure Reducers
>> Pilot-Operated Pressure Reducers
● Applications of Hydraulic Pressure Reducers
● Benefits of Hydraulic Pressure Reducers
● Case Studies and Real-World Applications
>> Bangalore International Airport Case Study
● Troubleshooting Hydraulic Pressure Reducers
>> Advanced Maintenance Techniques
● Market Trends and Innovations
>> 1. What is the primary function of a hydraulic pressure reducer?
>> 2. How does a hydraulic pressure reducer maintain a stable downstream pressure?
>> 3. What are the main components of a hydraulic pressure reducer?
>> 4. What are the types of hydraulic pressure reducers?
>> 5. What are the benefits of using hydraulic pressure reducers in systems?
Hydraulic pressure reducers, also known as pressure-reducing valves, are crucial components in hydraulic systems. They play a vital role in maintaining a stable and controlled pressure in specific parts of the system, ensuring efficient operation and preventing damage from excessive pressure. In this article, we will delve into the working principle, components, and applications of hydraulic pressure reducers, along with visual aids and videos to enhance understanding.

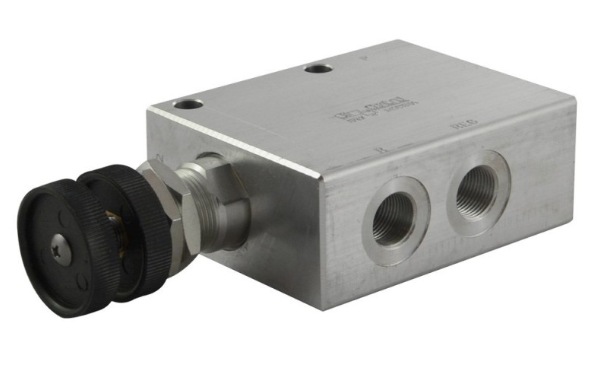

Hydraulic pressure reducers are designed to adjust high inlet pressures to a lower, predetermined outlet pressure. This is essential in systems where different components require different pressure levels to function optimally. For instance, in a hydraulic system powering machinery, some parts might need high pressure for heavy lifting, while others require lower pressure for precise movements.
A hydraulic pressure reducer typically consists of three main components:
- Valve Housing: This encloses all the working parts of the valve.
- Pressure Spring: Maintains the position of the sliding valve by returning it to its normal operating position.
- Piston Slide Valve: Its motion either closes or opens the valve ports to regulate fluid flow.
The working principle of a hydraulic pressure reducer involves adjusting the inlet pressure to a specific required outlet pressure. This is achieved through throttling and adjusting the opening and closing parts of the valve. The process is as follows:
1. Fluid Flow: When the downstream pressure is below the valve setting, fluid flows freely from the inlet to the outlet.
2. Pressure Adjustment: As the downstream pressure reaches the valve setting, the spool shifts to partially obstruct the outlet port, allowing just enough fluid to maintain the preset pressure.
3. Drain Line: If the valve closes completely due to downstream pressure exceeding the setting, built-up pressure is relieved through a drain line to the tank.
There are two primary types of hydraulic pressure reducers: direct-acting and pilot-operated.

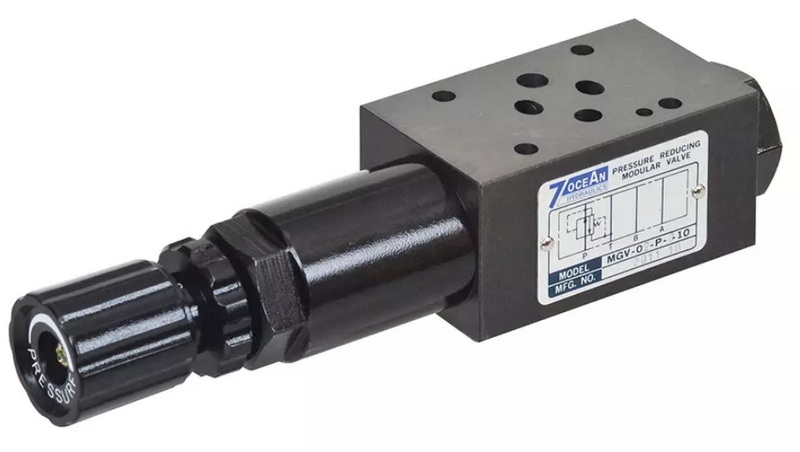

These valves are held open by spring force. Increasing pressure at the outlet port moves the spool to the right, closing the valve partly. The spring force opposes the hydraulic force, allowing only enough oil to flow past the valve to supply the secondary circuit at the desired pressure.

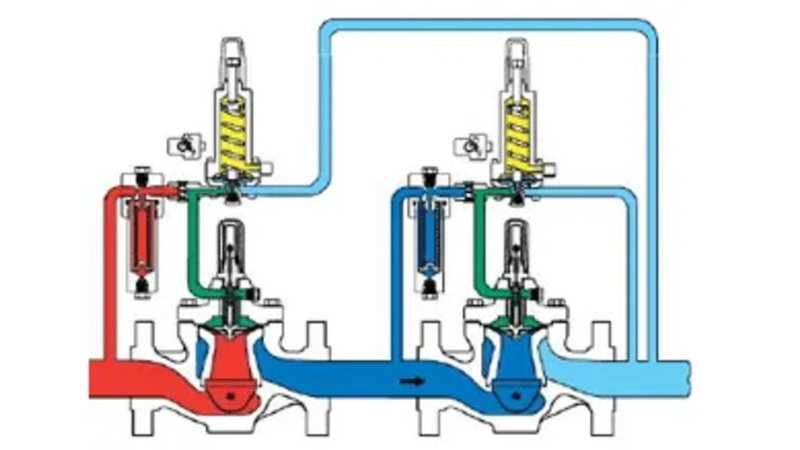

In pilot-operated valves, the spool is balanced hydraulically by downstream pressure at both ends. A light spring holds the valve open. A small pilot relief valve relieves fluid to the tank when the reduced pressure reaches the pilot valve's spring setting, causing a pressure drop across the spool and shifting it toward its closed position.
Hydraulic pressure reducers are used in various applications where maintaining a controlled pressure is critical:
- Industrial Machinery: They ensure that different parts of machinery operate at optimal pressures, enhancing efficiency and safety.
- Agricultural Equipment: Used in hydraulic systems of tractors and other agricultural machinery to manage pressure for different tasks.
- Construction Equipment: Essential for maintaining precise control over hydraulic systems in cranes, excavators, and loaders.
The use of hydraulic pressure reducers offers several benefits:
- Enhanced Safety: By limiting pressure in areas where excessive force could damage components or equipment.
- Improved Efficiency: Maintaining optimal pressure levels ensures smooth operation and prevents energy waste.
- Extended Lifespan: Consistent pressure reduces wear on critical parts, prolonging the system's life.
| Benefits | Explanation |
|---|---|
| Energy Efficiency | Minimizes energy loss by controlling pressure. |
| System Protection | Prevents overpressure damage to equipment. |
| Precise Control | Ensures accurate pressure regulation for operations. |
| Low Maintenance | Simple design allows for easy inspection and repair. |
In a recent case study, pilot-operated pressure reducing valves were installed at Bangalore International Airport to address issues of erratic and irregular pressures in their hydraulic systems. The solution involved using diaphragm-type PRVs, which provided constant pressure supplies unaffected by varying upstream conditions. The installation was successful, overcoming challenges such as security protocols and ensuring smooth operation of the hydraulic systems.
Pressure reducing valves are also used in water distribution systems to manage pressure and reduce leakage. A study using EPANET software demonstrated that installing PRVs can optimize pressure in distribution networks, significantly reducing water leakage. This highlights the versatility of pressure reducers in managing fluid pressure across different industries.
Troubleshooting hydraulic pressure reducers involves checking for common issues such as incorrect pressure settings, contamination in the fluid, or mechanical failures. Here are some steps to troubleshoot:
1. Check Pressure Settings: Ensure that the pressure setting is appropriate for the system requirements.
2. Fluid Quality: Verify that the hydraulic fluid is clean and has the correct viscosity.
3. Mechanical Inspection: Inspect for any mechanical damage or misalignment.
Regular maintenance is crucial for extending the lifespan of hydraulic pressure reducers. This includes:
- Cleaning Filters: Regularly clean or replace filters to prevent contamination.
- Inspecting Valves: Check for signs of wear or leakage.
- Adjusting Settings: Periodically adjust pressure settings as needed.
1. Use Non-Abrasive Cleaners: Clean valve surfaces with non-abrasive cleaners and soft brushes to remove dirt and sediment without damaging components[3].
2. Lubricate Moving Parts: Lubricate moving parts like diaphragms or pistons to ensure smooth operation[3].
3. Monitor Pressure Variations: Install pressure gauges to monitor upstream and downstream pressures regularly, ensuring that the valve operates within optimal ranges[4].
4. Protect Against Corrosion: Use corrosion-resistant materials for valves, especially in harsh environments[3].
The global pressure reducing valve market is growing rapidly, driven by advancements in flow-modulated PRVs and increasing investments in industrial infrastructure. Pilot-operated valves hold a significant market share due to their precision and durability in high-flow applications[5]. The integration of smart technologies, such as IoT, enhances real-time monitoring and efficiency, further propelling market growth[5].
Hydraulic pressure reducers are indispensable in hydraulic systems, providing a means to control and regulate pressure effectively. Their ability to maintain a stable downstream pressure ensures the efficient operation of machinery and extends the lifespan of system components. Understanding the working principle and types of hydraulic pressure reducers is crucial for selecting the appropriate valve for specific applications.
A hydraulic pressure reducer's primary function is to adjust high inlet pressures to a lower, predetermined outlet pressure, ensuring that different parts of a hydraulic system operate at optimal pressure levels.
A hydraulic pressure reducer maintains a stable downstream pressure by using a spring-loaded spool that adjusts to allow just enough fluid flow to maintain the preset pressure. When the downstream pressure reaches the valve setting, the spool shifts to partially obstruct the outlet port.
The main components include the valve housing, pressure spring, and piston slide valve. The valve housing encloses all working parts, the pressure spring maintains the valve's position, and the piston slide valve regulates fluid flow.
There are two primary types: direct-acting and pilot-operated. Direct-acting valves are held open by spring force and close partly as outlet pressure increases. Pilot-operated valves use a small pilot relief valve to balance the spool hydraulically.
The benefits include enhanced safety by limiting excessive pressure, improved efficiency through optimal pressure levels, extended lifespan of components due to consistent pressure, and low maintenance due to simple design.
[1] https://www.smithshydraulic.com/what-is-a-pressure-reducing-valve-and-how-is-it-used-in-hydraulics/
[2] https://www.linkedin.com/pulse/pressure-reducing-valves-case-study-lehryvalves
[3] https://heapeflo.com/extending-the-lifespan-of-pressure-reducing-valves-maintenance-tips-and-best-practices/
[4] https://www.powermotiontech.com/sensors-software/maintenance/article/21885575/think-first-then-troubleshoot-chapter-11-pressure-reducing-valves
[5] https://www.imarcgroup.com/pressure-reducing-valve-market
[6] https://www.ocgf-shop.fr/en/hydraulic-pressure-reducing-valves-1974
[7] https://iwrmactionhub.org/resource/pressure-management-leakage-reduction-using-pressure-reducing-valves-case-study-andean
[8] https://www.rstvvalves.com/blog/hydraulic-pressure-reducing-valve.html
[9] https://advancedfluidsystems.com/files/resources/Hydraulic%20System%20Troubleshooting%20Guide.pdf
[10] https://www.verifiedmarketreports.com/blog/top-7-trends-in-pressure-reducing-valves/
[11] https://www.evolutionmotion.com/data-sheet/applications-for-pressure-reducing-valves/
[12] https://www.jsol-cae.com/en/product/manufacturing/jstamp/cases/caseA11/index.html
[13] https://www.savery.co.uk/news/expert-maintenance-tips-to-keep-your-hydraulic-power-pack-running-smoothly
[14] https://www.hydparts.com/blog/50/setting-and-troubleshooting-relief-valves-in-hydraulic-systems
[15] https://www.globalgrowthinsights.com/market-reports/hydraulic-pressure-reducing-valve-market-106096
[16] https://www.danfoss.com/en/products/dps/hydraulic-valves/cartridge-valves/cartridge-valves/pressure-reducing-valves/
[17] https://www.mdpi.com/2673-4931/21/1/61
[18] https://www.allphasehydraulics.com/hydraulic-pressure-maintenance-tips-for-system-efficiency/
[19] https://www.harsle.com/docs/hydraulic-valve-troubleshooting-guide/
[20] https://www.linkedin.com/pulse/hydraulic-pressure-reducing-valve-market-size-51o5f/
