Hydraulic rotary pumps are the backbone of countless industrial, automotive, and manufacturing systems. Their ability to efficiently move fluids under pressure makes them indispensable in applications ranging from heavy machinery to food processing. But how exactly do these pumps work? What makes them so reliable for handling everything from thin oils to viscous resins? This comprehensive guide will explore the inner workings, types, applications, and maintenance of hydraulic rotary pumps, complete with diagrams, photos, and video demonstrations to bring the concepts to life.

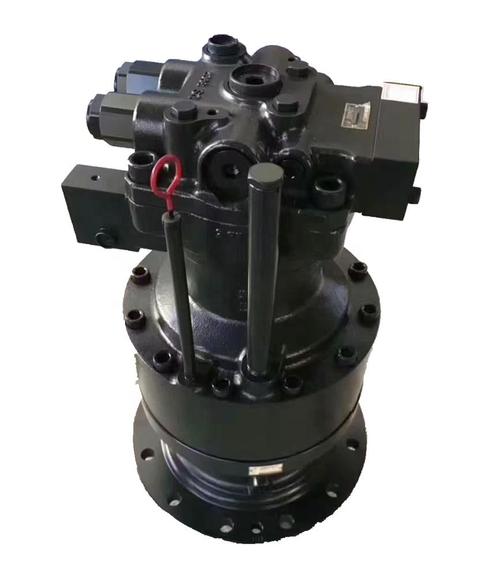

Hydraulic rotary pumps are a class of positive displacement pumps that use rotating elements to move fluid. Unlike reciprocating pumps, which use back-and-forth motion, rotary pumps rely on continuous rotary motion to create flow. This design offers smooth, consistent delivery of fluid, making them ideal for hydraulic systems where precise control and reliability are paramount.
These pumps are widely used in industries requiring high-pressure fluid transfer, such as construction equipment (e.g., excavators), agricultural machinery (e.g., tractors), and aerospace systems. Their ability to handle viscosities ranging from 1 cP (water-like) to over 1,000,000 cP (thick resins) makes them extraordinarily versatile.
At their core, hydraulic rotary pumps operate on the principle of positive displacement. This means they move a fixed amount of fluid with each rotation of their internal components. The pump's mechanical action creates a vacuum at the inlet, drawing fluid from a reservoir. As the rotating elements (gears, vanes, lobes, or screws) turn, they trap the fluid and carry it to the outlet, where it is expelled into the hydraulic system under pressure.
- Key Point:
- A hydraulic pump does not generate pressure directly; it creates flow. Pressure is developed as the fluid encounters resistance in the system (e.g., a hydraulic cylinder or motor).
Rotary pumps rely on tight internal clearances (typically 5–50 microns) between rotating parts and the casing to prevent backflow. These clearances are engineered to account for thermal expansion and fluid viscosity, ensuring optimal efficiency.
Hydraulic rotary pumps come in four primary designs, each suited to specific applications:

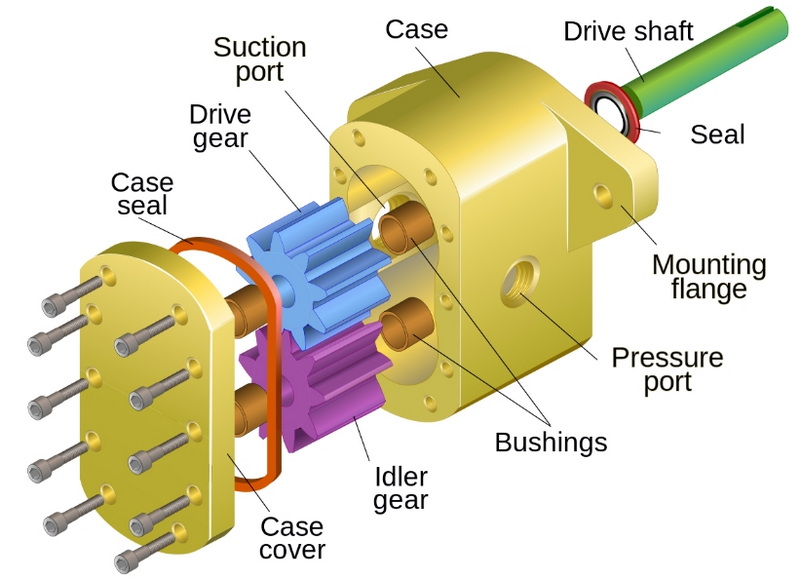

External Gear Pumps
- Design: Two identical gears mesh externally within a housing.
- Operation: Fluid enters the inlet, fills the spaces between gear teeth, and is carried to the outlet as the gears rotate.
- Best For: Medium-pressure applications (up to 3,000 PSI) like lubrication systems.
Internal Gear Pumps
- Design: Features a larger outer rotor and a smaller inner idler gear separated by a crescent-shaped seal.
- Operation: Fluid is trapped in the crescent cavity and transported to the outlet.
- Best For: High-viscosity fluids like adhesives or asphalt.
Balanced Vane Pumps
- Design: A rotor with sliding vanes rotates eccentrically within a cam ring.
- Operation: Centrifugal force pushes vanes outward, creating chambers that expand (suction) and contract (discharge).
- Best For: Mid-pressure systems (1,000–2,500 PSI) such as power steering units.
Unbalanced Vane Pumps
- Design: Simpler, single-pressure chamber design.
- Operation: Limited to lower pressures but offers cost-effective performance.
Design:
- Two or more lobed rotors (often with 2–4 lobes) rotate in sync via timing gears.
- Operation: Lobes create expanding cavities at the inlet, trapping fluid and moving it to the outlet.
- Best For: Sanitary applications (food, pharmaceuticals) due to easy cleaning.
Example: In dairy processing, lobe pumps handle milk and cream without damaging product integrity.
Single-Screw Pumps (Progressive Cavity)
- Design: A single helical rotor rotates within a stator.
- Operation: Fluid moves axially through progressive cavities.
- Best For: Slurries or fluids with suspended solids.
Twin-Screw Pumps
- Design: Two intermeshing screws rotate to move fluid.
- Operation: Provides pulsation-free flow ideal for fuel transfer.
Component | Function | Material Example |
Housing/Casing | Encloses rotating elements; withstands pressure | Cast iron, stainless steel |
Rotors/Gears/Vanes | Trap and move fluid | Carburized steel, PEEK |
Shaft | Transmits torque from motor | Hardened steel |
Seals | Prevent leakage; handle high pressure | Nitrile, Viton® |
Bearings | Reduce friction; support shaft | Ceramic, roller bearings |
Inlet/Outlet Ports | Optimized for laminar flow | Machined aluminum |
- Rotating elements create a low-pressure zone, drawing fluid into the pump.
- -Critical Factor:- Inlet port design ensures minimal turbulence.
- Fluid is encapsulated between rotating elements and casing.
- -Example:- In gear pumps, fluid is trapped between gear teeth.
- Rotating elements carry fluid toward the outlet.
- -Efficiency Tip:- Smooth internal surfaces reduce energy loss.
- Fluid is expelled under pressure as chamber volume decreases.
- -Pressure Range:- Varies from 100 PSI (low-end vane pumps) to 5,000 PSI (high-pressure gear pumps).
Advantages | Limitations |
Smooth, pulse-free flow | Limited to ~5,000 PSI maximum pressure |
Self-priming capability | Sensitive to abrasive particles |
Handles viscosity up to 1M cP | Higher initial cost vs. centrifugal pumps |
Compact design saves space | Requires precise alignment during installation |
85–95% volumetric efficiency | Not ideal for low-viscosity, high-flow systems |
- Excavators use gear pumps for hydraulic arm control.
- -Flow Rate:- 20–100 GPM at 3,000 PSI.
- Lobe pumps transfer chocolate or peanut butter without shear damage.
- Vane pumps provide hydraulic power for landing gear systems.
- Screw pumps handle bilge pumping and fuel transfer.
- Daily: Check for leaks, unusual noise, or temperature spikes.
- Monthly: Inspect filters and replace if contamination exceeds ISO 18/16/13.
- Annually: Overhaul seals and bearings; recalibrate alignment.
Symptom | Likely Cause | Solution |
Reduced flow | Worn gears/vanes | Replace rotating elements |
Overheating | Fluid viscosity mismatch | Use ISO-recommended oil |
Leakage at seals | Chemical degradation | Upgrade to Viton® seals |
Cavitation noise | Clogged inlet filter | Clean/replace filter |
- Labels: Drive gear, idler gear, inlet/outlet ports, pressure relief valve.
- Labels: Rotor, vanes, cam ring, pressure chambers.
- Shows CIP (Clean-in-Place) compatible design.
Hydraulic rotary pumps are marvels of mechanical engineering, offering unmatched reliability in fluid transfer applications. From the precise meshing of gear teeth to the elegant simplicity of vanes sliding within a rotor, these pumps convert rotational energy into controlled hydraulic power with remarkable efficiency. By selecting the right pump type—whether gear, vane, lobe, or screw—and adhering to proper maintenance protocols, industries can ensure decades of trouble-free operation. As hydraulic systems evolve toward higher pressures and smarter controls, rotary pumps will remain a cornerstone of fluid power technology.
With proper maintenance, rotary pumps last 10,000–20,000 operating hours. Gear pumps often outlast vane pumps due to fewer moving parts.
No. Water lacks the lubricity of hydraulic oil, causing accelerated wear. Use pumps specifically designed for water-based fluids.
Use the formula:
Displacement (in³/rev) = (Flow Rate (GPM) × 231) / RPM
Example: For 10 GPM at 1,200 RPM, displacement = (10×231)/1200 ≈ 1.925 in³/rev.
Relief valves protect against overpressure if the system becomes blocked. They divert excess flow back to the reservoir.
Most rotary pumps can operate in either direction, but check manufacturer specs. Reversing may require reconfiguring porting.
