Planetary gearboxes are complex mechanical systems used to transmit power and torque from an input shaft to an output shaft, often with a significant reduction in speed and increase in torque. This article will delve into the components, operation principles, applications, and advantages of planetary gearboxes, providing a comprehensive understanding of these versatile devices.
A planetary gearbox is named for its resemblance to the solar system, where multiple "planets" (gears) orbit around a central "sun" (gear). The main components include:
- Sun Gear: Located at the center, it is typically the input gear.
- Planet Gears: These orbit around the sun gear and are mounted on a carrier.
- Ring Gear: An internally toothed gear that encloses the planet gears.
- Carrier: Holds the planet gears and often serves as the output shaft.
The sun gear is the central component of the planetary gearbox, receiving the input power and driving the planet gears. It is usually smaller than the other gears to ensure efficient power transmission.
These gears rotate around the sun gear and are connected to the carrier. They mesh with both the sun gear and the ring gear, allowing for the distribution of power and torque.
The ring gear is an internally toothed gear that surrounds the planet gears, providing a stable orbit for them to rotate within.
The carrier connects the planet gears together and converts their orbital motion into a single output shaft. It is often the output component of the gearbox.

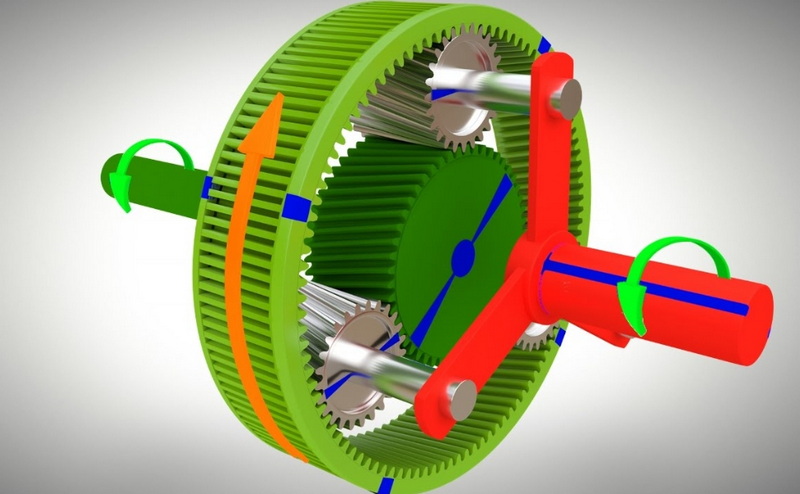

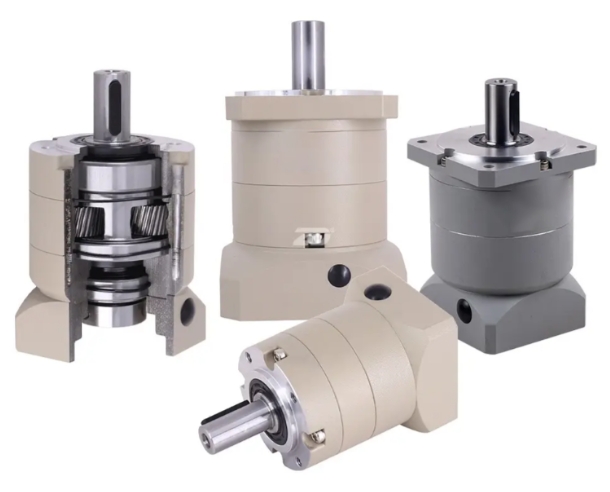

The operation of a planetary gearbox involves the rotation of the sun gear, which drives the planet gears. Depending on which component is fixed (sun gear, ring gear, or carrier), different transmission ratios can be achieved. For example, if the ring gear is fixed, the carrier will rotate at a reduced speed compared to the sun gear, resulting in a speed reduction and torque increase.
Planetary gearboxes can be categorized based on their output configurations:
In a wheel drive planetary gearbox, the sun gear drives the planet gears, which are fixed to a carrier. The planet gears then rotate the outer ring gear. This setup is often used in applications where space is limited, such as in wheel drives for vehicles.

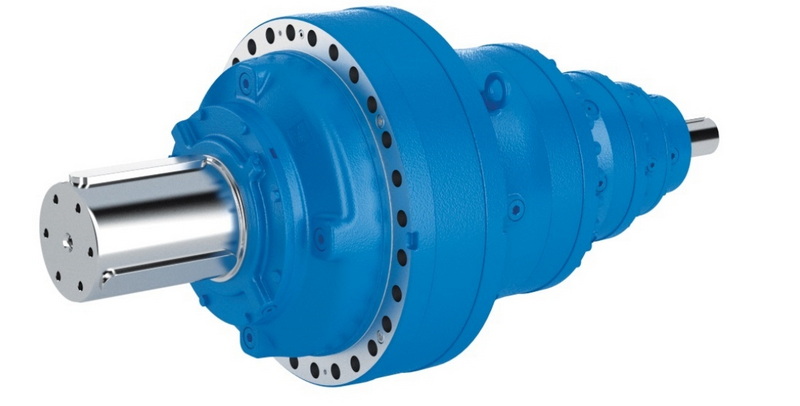

In shaft output gearboxes, the sun gear drives the planet gears housed in a rotating carrier. The ring gear is stationary, and the rotating carrier delivers drive to a shaft. This configuration is commonly used in industrial machinery.
Spindle output gearboxes are similar to shaft output types but provide the output as a flange. They are used in applications requiring a more robust output connection.
Planetary gearboxes are versatile and are used in a wide range of applications:
- Industrial Machinery: Conveyors, hoists, and pumps. They are particularly useful in applications requiring precise control of speed and torque, such as mixers and agitators.
- Mobile Equipment: Wheel drives, track drives, and slew drives. These are essential in heavy-duty machinery where high torque and compact design are crucial.
- Automotive: Automatic transmissions and differential gears. Planetary gearboxes are key components in automotive transmissions, providing multiple gear ratios for efficient power transmission.
- Aerospace: Used in aircraft engines for power transmission and in mechanisms like landing gear systems.
- Renewable Energy: Wind turbines and solar tracking systems. Planetary gearboxes optimize the rotational speed of wind turbines and adjust solar panels for maximum sunlight exposure.
- Robotics and Automation: Robotic arms, CNC machines, and automated manufacturing systems. The precision and reliability of planetary gearboxes make them ideal for robotics.
- Medical Devices: Diagnostic equipment, imaging devices, and robotic surgical systems. Their compact design and precision are critical in medical applications.
1. High Torque in Compact Design: Planetary gearboxes can achieve high torque outputs within a small footprint, making them ideal for applications where space is limited.
2. Efficient Power Transmission: They offer high efficiency, typically around 97%, due to the distribution of power across multiple gears.
3. Flexibility in Design: Various transmission ratios can be achieved by fixing different components, making them suitable for a wide range of applications.
When designing a planetary gearbox, several factors must be considered:
- Transmission Ratio: The ratio of input speed to output speed, which determines the torque multiplication.
- Component Materials: The choice of materials affects durability and efficiency. Lightweight materials are increasingly used to reduce weight while maintaining performance.
- Lubrication: Proper lubrication is crucial for reducing wear and maintaining efficiency. Advanced lubrication systems help minimize friction and improve gearbox lifespan.
Recent innovations in planetary gearboxes include the use of advanced materials, such as technopolymers, which offer benefits like reduced noise and the absence of lubrication requirements. Additionally, digital twin technology and integrated mechatronic solutions are being explored to enhance performance and efficiency.
Technopolymer gears provide flexibility in design and can be optimized for specific applications, offering advantages like reduced noise and no need for lubrication.
Digital twins allow for real-time monitoring and simulation-based optimization, facilitating efficient design iterations and predictive maintenance strategies.
Combining mechanical systems with electronics and control systems enhances functionality and system-level performance, enabling seamless integration and improved overall efficiency.
In the extractives industry, designing gearboxes that can handle high loads and continuous operations is crucial. Planetary gearboxes are favored for their compactness and ability to distribute loads effectively, reducing the need for bulky gearboxes.
The rubber industry is shifting towards planetary gearboxes due to their compact design and high power-to-weight ratio, which enhances equipment efficiency and reduces space requirements.
In aerospace, planetary gearboxes must meet stringent reliability and safety standards. They are used in critical systems where failure is not an option, requiring precise engineering and testing.
In renewable energy, planetary gearboxes play a key role in optimizing energy output from wind turbines and solar panels. Their ability to adjust speed and torque ensures maximum energy capture under varying conditions.
Regular maintenance is essential for extending the lifespan of planetary gearboxes. Common issues include wear on gears and bearings, which can be addressed through timely lubrication and inspection. Advanced diagnostic tools help identify potential problems before they become critical.
- Gear Wear: Caused by improper lubrication or excessive load.
- Bearing Failure: Often due to misalignment or overloading.
- Noise and Vibration: Indicative of imbalance or worn components.
- Regular Lubrication: Ensures smooth operation and reduces wear.
- Periodic Inspections: Helps detect issues before they escalate.
- Balancing and Alignment: Critical for maintaining efficiency and reducing vibration.
Planetary gearboxes are sophisticated mechanical systems that offer high efficiency and versatility in power transmission. Their ability to provide significant speed reduction and torque increase makes them indispensable in various industries. Understanding the components and operation principles of planetary gearboxes is essential for designing and implementing these systems effectively.
A planetary gearbox consists of a sun gear, planet gears, a ring gear, and a carrier. The sun gear is the central input gear, the planet gears orbit around it and are connected to the carrier, and the ring gear encloses the planet gears.
Different transmission ratios are achieved by fixing different components of the gearbox. For example, fixing the ring gear while rotating the sun gear results in a speed reduction, while fixing the sun gear and rotating the ring gear can achieve a speed increase.
Planetary gearboxes offer high torque in a compact design, efficient power transmission, and flexibility in achieving various transmission ratios. They are also highly efficient, typically maintaining about 97% of the input energy.
Planetary gearboxes are used in industrial machinery, mobile equipment, automotive systems, aerospace applications, renewable energy, robotics, and medical devices. They are particularly common in automatic transmissions and differential gears in vehicles.
Power is distributed through multiple planet gears, which share the load and allow for high torque transmission without excessive stress on individual gears. This distribution also contributes to the compact design and efficiency of planetary gearboxes.
