Pneumatic vane motors are versatile devices that convert compressed air energy into rotary mechanical motion, making them ideal for various industrial applications. These motors are known for their simplicity, reliability, and ability to deliver consistent torque across a range of speeds. In this article, we will delve into the working principle of pneumatic vane motors, their design, applications, and benefits.

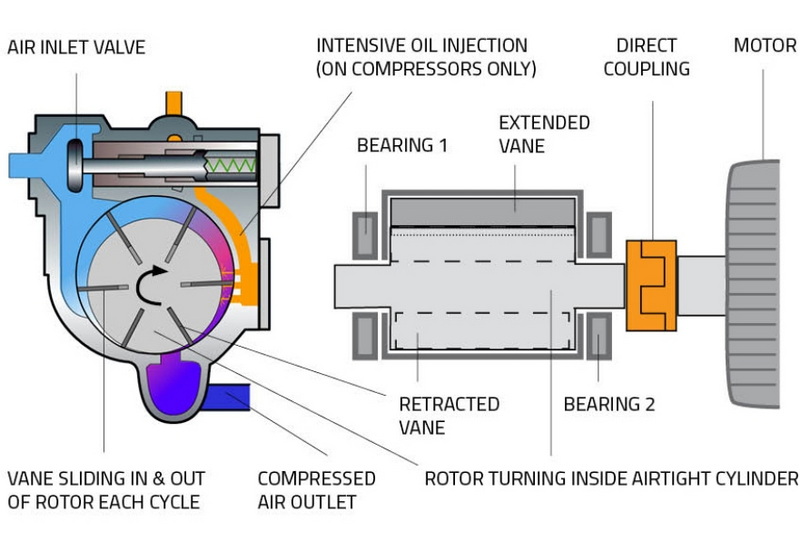

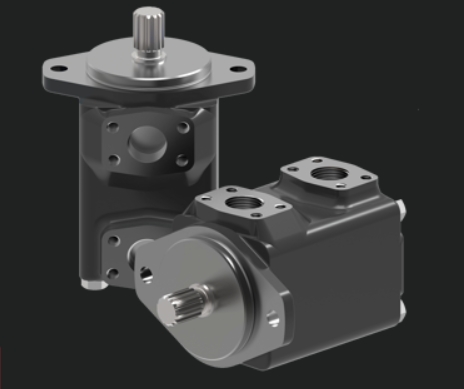

Pneumatic vane motors consist of a rotor with vanes that slide in and out of slots, converting the energy from compressed air into rotational motion. The motor's design includes a stator (cylinder) and a rotor, which is typically off-center, creating a crescent-shaped chamber. This chamber is divided into separate working chambers by the vanes, which move freely in the rotor slots.
- Stator (Cylinder): The outer casing of the motor that houses the rotor and vanes.
- Rotor: An eccentrically mounted shaft with slots for the vanes.
- Vanes: Flat, rectangular blades that slide in and out of the rotor slots, sealing the chambers.
- Compressed Air Supply: Provides the energy source for the motor.
The working principle of a pneumatic vane motor involves the conversion of compressed air energy into rotational motion. Here's a step-by-step explanation:
1. Air Inlet: Compressed air enters the motor through an inlet port.
2. Vane Movement: The compressed air forces the vanes against the cylinder wall, creating a pressure differential that drives the rotor.
3. Rotation: As the rotor turns, the vanes slide along the inner wall of the cylinder, maintaining the seal and creating new chambers.
4. Exhaust: The compressed air is exhausted from the motor, and the cycle repeats.
Pneumatic vane motors come in various designs to suit different applications:
- Standard Vane Motors: Suitable for general industrial use.

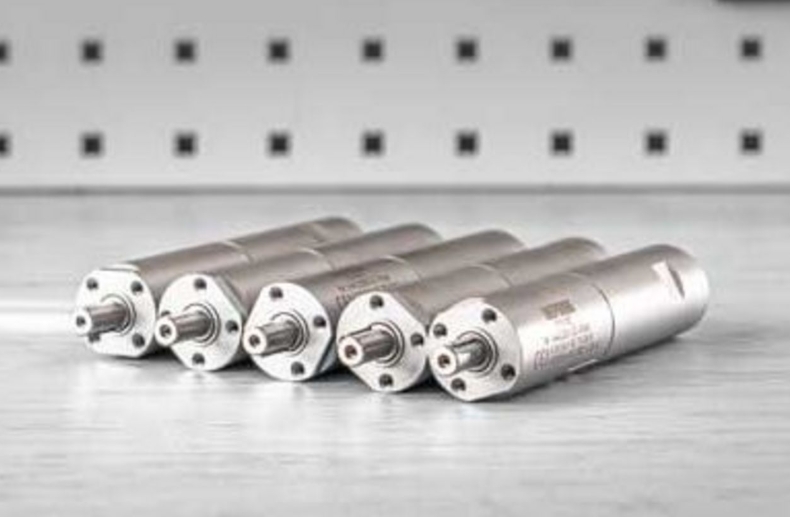

- Stainless Steel Vane Motors: Ideal for food-grade and corrosive environments.
- Lubrication-Free Motors: Designed for applications where oil contamination is a concern.
Variable displacement vane motors allow for the adjustment of their output speed and torque by varying the size of the working chambers within the motor. This is typically achieved by changing the position of the vanes. They are more complex and expensive to manufacture than unbalanced or balanced vane motors but offer several advantages:
- Speed and Torque Control: Controls the motor's speed and torque without changing the compressed air's pressure or flow.
- Constant Performance: Operates at a constant speed or torque even if the load/speed on the motor changes.
- Applications: Typically used in applications requiring precise speed and torque control, such as industrial automation equipment and robotics.
Pneumatic vane motors are used in a wide range of industries due to their reliability and versatility:
- Manufacturing: For machinery and assembly lines.
- Food Processing: In environments requiring cleanliness and resistance to corrosion.
- Material Handling: For conveyor systems and pumps.
- Automotive: Used for tasks like tightening bolts or screws, ensuring the correct force is applied.
- Construction: Powers handheld tools like drills and jackhammers, providing portability and power.
- Compact and Lightweight: Smaller and lighter than electric motors with similar output.
- Low Maintenance: Easy to service due to fewer moving parts.
- Adaptable: Can be stalled without damage and operate in harsh environments.
- Explosion-Proof: Safe for use in potentially explosive environments due to the absence of sparks.
Proper installation and maintenance are crucial for optimal performance:
- Alignment: Ensure the motor shaft aligns with the load.
- Lubrication: Use filtered and lubricated air to prevent wear.
- Regular Checks: Monitor for leaks and ensure proper connections.
Recent innovations in pneumatic vane motor design focus on minimizing torque ripples and improving efficiency. One approach involves using a noncircular stator profile to balance vane torques more effectively. This design can achieve a nearly constant torque curve, reducing speed ripples and vibrations without compromising performance.
The noncircular stator design allows for better distribution of forces across the vanes, resulting in smoother operation. This is particularly beneficial in applications where consistent torque output is critical.
Pneumatic vane motors offer distinct advantages over electric and hydraulic motors:
- Safety: No risk of sparks or electrical shock, making them suitable for hazardous environments.
- Versatility: Can operate in dusty, humid, and extreme temperature conditions.
- Compactness: Smaller and lighter than comparable electric motors.
Hydraulic motors are ideal for heavy-duty applications requiring high torque, while pneumatic motors are better suited for lighter applications with less torque demand.
Electric motors are more efficient and precise but may not be suitable for environments where sparks are a concern. Pneumatic motors, on the other hand, offer safety and reliability in hazardous conditions.
Piston air motors, like the PZB series, offer higher efficiency and longer lifespan compared to vane motors. They consume 20-40% less energy and have four to six times more operation hours before service, making them a cost-effective option for long-term use[1]. However, vane motors are simpler and more cost-effective for initial setup.
Pneumatic vane motors are generally less energy-efficient than electric motors since compressed air generation requires significant energy. However, they provide unique benefits in terms of safety and adaptability. To minimize environmental impact, it's crucial to optimize compressed air systems by reducing leaks and using energy-efficient compressors.
- Regular Maintenance: Check for air leaks and ensure proper connections.
- Efficient Compressors: Use variable speed compressors to match air supply with demand.
- Air Recycling: Consider recycling compressed air for non-critical applications.
To modify the performance of pneumatic vane motors, two main techniques are used:
- Throttling: Reduces air supply to decrease speed and air consumption while maintaining starting torque.
- Pressure Regulation: Adjusts the inlet pressure to change stall torque, suitable when high starting torque is less critical[7].
Pneumatic vane motors offer a reliable and efficient solution for converting compressed air into mechanical motion. Their versatility, compact design, and ability to operate in harsh environments make them ideal for various industrial applications. Understanding the working principle and design variations can help in selecting the right motor for specific needs.
Pneumatic vane motors consist of a stator (cylinder), a rotor with slots for vanes, and a compressed air supply system.
Rotation is achieved through the pressure differential created by compressed air forcing the vanes against the cylinder wall, which drives the rotor.
Stainless steel vane motors are ideal for environments requiring resistance to corrosion, such as food processing, due to their durable and clean design.
Yes, pneumatic vane motors can be stalled indefinitely without overheating or causing damage, making them suitable for applications with frequent start-stop operations.
Planetary and helical gears are commonly used to adjust the speed and torque output of pneumatic vane motors.
