Rotary vane motors are a type of air-powered device that converts compressed air energy into rotary mechanical motion. They are widely used in various industries due to their simplicity, efficiency, and reliability. In this article, we will delve into the working principle of rotary vane motors, their design, applications, and troubleshooting tips.

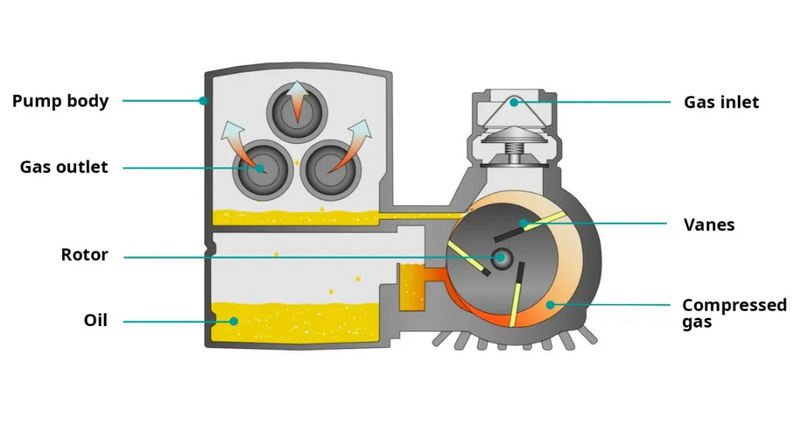

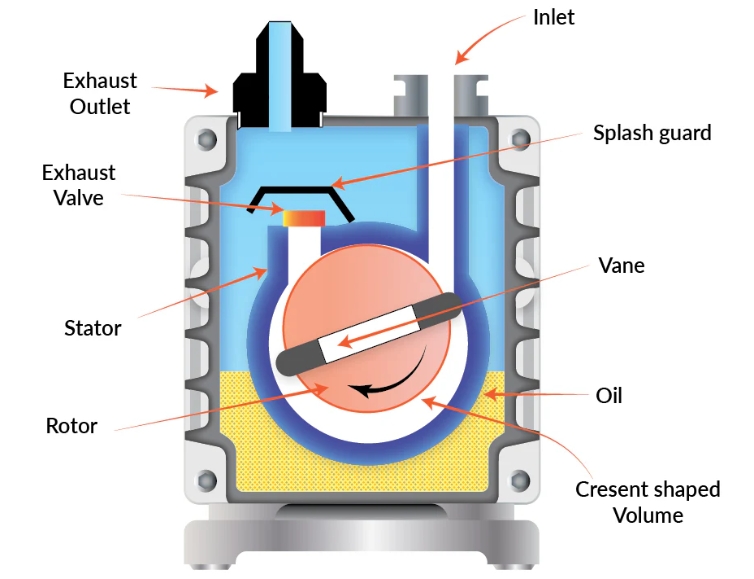

A rotary vane motor consists of a rotor with vanes that slide in and out of slots. The rotor rotates eccentrically inside a cylindrical housing, creating crescent-shaped chambers filled and emptied with compressed air to produce torque. The motor's operation is based on the principle of positive displacement, where the compressed air enters the chamber, forcing the vanes against the cylinder wall, and the pressure differential between the two sides of the vane causes the rotor to turn.
The basic components of a rotary vane motor include:
- Casing: The external housing that encompasses all other components.
- Inlet Port: Where compressed air enters the motor.
- Outlet Port: Where compressed air exits the motor.
- Rotor: Equipped with evenly spaced slots around its circumference.
- Vanes: Slide in and out of the rotor slots.
The working principle of a rotary vane motor can be explained in the following steps:
1. Air Intake: Compressed air enters the motor through the inlet port.
2. Vane Movement: The compressed air flows into the chamber and forces the spring-loaded vanes against the cylinder wall.
3. Rotation Initiation: The pressure differential between the two sides of the vane causes the rotor to turn.
4. Chamber Formation: As the rotor turns, the vanes slide along the inner wall of the chamber, maintaining the seal.
5. Air Exhaustion: When the vanes reach the output port, they are forced back in by the spring force, and the compressed air is exhausted from the motor.
Rotary vane motors are used in various applications due to their compact design and high efficiency. They are commonly found in:
- Industrial Automation: For powering machinery and tools.
- Aerospace: In systems requiring lightweight and reliable motors.
- Medical Devices: For precise control and low noise operation.
Rotary vane motors can be designed to operate in different modes:
- Non-Reversible Motors: These motors rotate in one direction only and achieve higher power output and speeds due to a larger rotational angle for air expansion.
- Reversible Motors: These motors can rotate in both directions by employing a valve mechanism that switches the roles of the inlet and outlet ports.
The advantages of rotary vane motors include:
- High Power-to-Weight Ratio: They are compact and lightweight, making them suitable for hand-held tools.
- Low Maintenance: With fewer moving parts, they require less maintenance compared to other types of motors.
- Flexibility: They can operate with different gases, such as nitrogen or argon, in addition to compressed air.
Common issues with rotary vane motors include:
- Low Performance: Check for air leaks or blockages in the inlet/outlet ports.
- Overheating: Ensure proper cooling and check for excessive load.

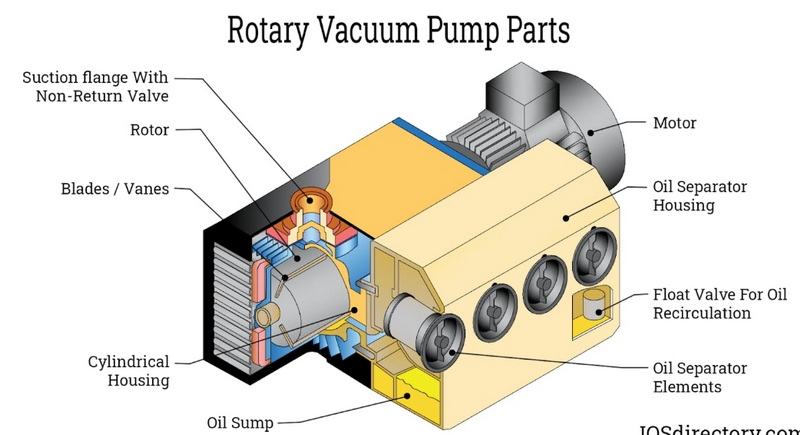

Rotary vane technology is not limited to motors; it is also used in compressors and vacuum pumps. For instance, Pneumofore's rotary vane air-end is renowned for its reliability and durability in compressor and vacuum pump applications. These devices offer benefits such as high compression ratios, low maintenance needs, and efficient operation at low rotation speeds.
Rotary vane motors are compared favorably with other technologies due to their simplicity and efficiency:
- Screw Compressors: Rotary vane compressors offer higher compression ratios and lower maintenance compared to screw compressors.
- Liquid Ring Pumps: They provide better energy efficiency and reliability compared to liquid ring pumps.
Innovative designs, such as the rotary vane internal combustion engine, aim to increase efficiency and compactness. This engine uses vanes to achieve multiple work cycles per revolution, potentially increasing efficiency by up to 70%. Such advancements highlight the versatility and potential of rotary vane technology in various fields.
In the automotive sector, rotary vane vacuum pumps are used for tasks such as brake bleeding and fuel system maintenance. Their ability to create a reliable vacuum makes them essential for precise fluid control systems like power steering and automatic transmissions.
In medical settings, rotary vane vacuum pumps are crucial for processes like freeze-drying and vacuum concentration. They provide the precise vacuum control needed for operating analytical instruments and other medical equipment.
Rotary vane vacuum pumps are also used in food processing for tasks such as packaging and drying. They help maintain a clean environment by removing moisture and preventing bacterial growth.
Proper maintenance is key to extending the lifespan of rotary vane motors and pumps. Here are some strategies:
For rotary vane vacuum pumps, changing the oil regularly is crucial. This should be done every four months or as recommended by the manufacturer to prevent damage from contaminants.
Maintaining a cool operating environment is vital. Heat can reduce the viscosity of the oil, leading to inefficient vacuum performance. Using fans or ensuring good airflow can help keep the equipment cool.
Changing filters according to the manufacturer's schedule helps prevent solids and liquids from entering the pump and causing failure.
Replacing vanes when they show signs of wear can prevent performance issues and extend the motor's lifespan.
Regular inspections can help identify potential issues early, such as worn seals or loose connections, which can be addressed before they cause significant problems.
In a manufacturing plant, rotary vane motors were used to power a series of automated assembly lines. The motors provided consistent and reliable operation, allowing the plant to increase production efficiency by 20%.
In the aerospace industry, rotary vane motors were integrated into a system for controlling aircraft flaps. Their lightweight design and high power-to-weight ratio made them ideal for this application, enhancing overall aircraft performance.
Rotary vane technology is being explored for use in sustainable energy systems, such as compressed air energy storage (CAES). This involves compressing air using renewable energy sources and storing it for later use, potentially reducing reliance on fossil fuels.
The use of advanced materials in rotary vane motors, such as lightweight composites and high-strength alloys, is expected to improve efficiency and durability. These materials can withstand higher pressures and temperatures, allowing for more efficient operation.
Rotary vane motors are versatile and efficient devices that convert compressed air into mechanical motion. Their simplicity and reliability make them ideal for various industrial applications. Understanding their working principle and troubleshooting common issues can help optimize their performance and extend their lifespan.
Here are some frequently asked questions about rotary vane motors:
Rotary vane motors operate on the principle of positive displacement, where compressed air forces vanes against the cylinder wall, creating a pressure differential that causes the rotor to turn.
The main components include the casing, inlet port, outlet port, rotor, and vanes.
They are used in industrial automation, aerospace, and medical devices due to their compact design and efficiency.
Check for air leaks or blockages in the inlet/outlet ports and ensure proper air pressure.
Yes, reversible motors can rotate in either direction by employing a valve mechanism that switches the roles of the inlet and outlet ports.
