Vane motors are widely used in both pneumatic and hydraulic systems due to their efficiency and reliability. They convert fluid pressure into rotational motion, making them essential components in various industrial applications. Understanding how a vane motor works requires a detailed look at its components and operational principles. This article will guide you through the step-by-step functioning of a vane motor using diagrams and illustrations.

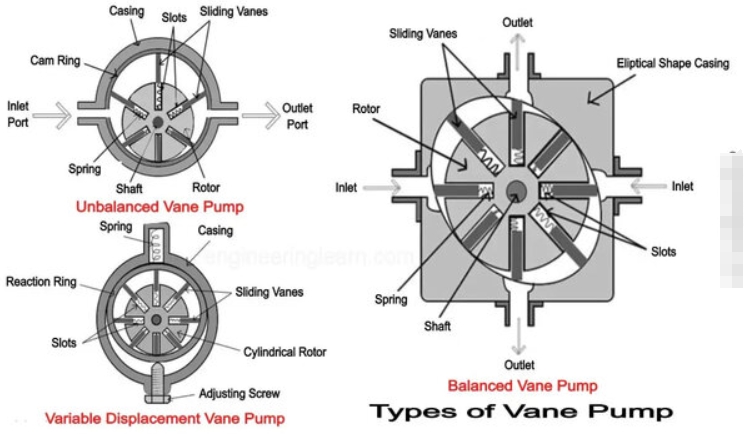

Vane motors are positive-displacement motors that operate by using vanes to divide a chamber into separate sections. These sections are filled and emptied with fluid (air or hydraulic fluid), creating pressure differences that drive the motor's rotation. The basic components of a vane motor include:
- Casing: The outer housing that contains all other components.
- Rotor: A slotted cylinder that rotates eccentrically inside the casing.
- Vanes: Rectangular pieces that slide in and out of the rotor slots.
- Stator: The stationary outer cylinder that houses the rotor and vanes.
A pneumatic vane motor diagram illustrates how compressed air enters and exits the motor. The process involves the following steps:
1. Air Inlet: Compressed air enters the motor through the inlet port.
2. Vane Movement: The air forces the vanes against the cylinder wall, creating a pressure differential.
3. Rotation: The pressure difference causes the rotor to turn.
4. Vane Sliding: As the rotor rotates, vanes slide in and out of the slots, maintaining the seal.
5. Air Exhaust: The compressed air is exhausted through the outlet port.

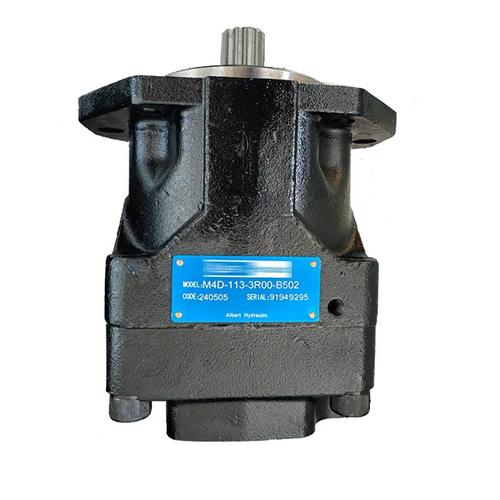

Hydraulic vane motors operate similarly but use hydraulic fluid instead of air. The key components and processes are:
1. Fluid Inlet: Hydraulic fluid enters the motor through the inlet port.
2. Vane Extension: The fluid pressure extends the vanes against the cam ring.
3. Rotation: The pressure difference drives the rotor's rotation.
4. Vane Retraction: As the rotor turns, vanes retract into the slots.
5. Fluid Exhaust: The fluid is exhausted through the outlet port.
The working principle of vane motors involves the conversion of fluid pressure into rotational energy. Here's a step-by-step explanation:
1. Fluid Entry: Fluid (air or hydraulic) enters the motor through the inlet port.
2. Vane Sealing: The fluid pressure forces the vanes against the cylinder wall, sealing the chambers.
3. Pressure Differential: The pressure difference between the chambers drives the rotor's rotation.
4. Chamber Expansion and Contraction: As the rotor turns, chambers expand and contract, allowing fluid to enter and exit.
5. Continuous Rotation: The process repeats, maintaining continuous rotation.
Understanding the components is crucial for grasping how a vane motor works:
- Rotor: The rotor is equipped with evenly spaced slots where the vanes slide in and out.
- Vanes: These are rectangular pieces connected to the rotor using springs.
- Stator: The stationary outer cylinder that houses the rotor and vanes.
- Casing: The outer housing that contains all other components.
Vane motors are used in various applications due to their high efficiency and reliability:
- Pneumatic Tools: They are commonly used in pneumatic tools like drills and grinders.
- Hydraulic Systems: In hydraulic systems, they provide precise control over fluid flow.
- Industrial Automation: They are integral in automated systems for their reliability and speed control.
Vane motors are not only used in traditional applications but also in advanced fields:
- Aerospace: They are used in aircraft systems for their lightweight and compact design.
- Medical Devices: In medical equipment, they provide precise control and reliability.
- Renewable Energy Systems: Vane motors can be used in wind turbines and solar tracking systems for their efficiency.
Troubleshooting is essential for maintaining vane motor efficiency. Common issues include:
- Low Pressure: Check for leaks or blockages in the fluid lines.
- Vane Wear: Inspect vanes for wear and replace them if necessary.
- Motor Overheating: Ensure proper cooling and check for excessive fluid pressure.
Regular maintenance is crucial for extending the lifespan of vane motors:
- Fluid Quality: Ensure the fluid is clean and free of contaminants.
- Vane Inspection: Regularly inspect vanes for wear and damage.
- Seal Replacement: Replace seals periodically to prevent leaks.
Vane motors are compared with other motor types based on efficiency, reliability, and application suitability:
- Vane vs. Gear Motors: Vane motors offer higher efficiency and smoother operation compared to gear motors.
- Vane vs. Piston Motors: Piston motors provide higher torque but are less compact than vane motors.
| Motor Type | Efficiency | Reliability | Application |
|---|---|---|---|
| Vane Motor | High | High | Pneumatic/Hydraulic Systems |
| Gear Motor | Medium | Medium | General Industrial Use |
| Piston Motor | High | High | Heavy-Duty Hydraulic Systems |
Future trends in vane motor technology focus on improving efficiency and reducing environmental impact:
- Energy Efficiency: Developing motors with higher efficiency to reduce energy consumption.
- Sustainable Materials: Using eco-friendly materials in motor construction.
- Digital Integration: Integrating digital controls for better performance monitoring and optimization.
Several case studies highlight the effectiveness of vane motors in various industries:
- Manufacturing: Vane motors are used in assembly lines for their reliability and precision.
- Agriculture: They are used in irrigation systems for efficient water management.
- Construction: Vane motors power tools like pneumatic drills and saws.
Understanding the advantages and disadvantages helps in selecting the right motor for an application:
- Advantages: High efficiency, compact design, and smooth operation.
- Disadvantages: Limited torque output and potential for vane wear.
| Feature | Description |
|---|---|
| Efficiency | High efficiency due to minimal fluid leakage. |
| Compact Design | Suitable for applications where space is limited. |
| Smooth Operation | Provides consistent rotational speed. |
| Limited Torque | May not be suitable for heavy-duty applications. |
| Vane Wear | Requires regular maintenance to prevent wear. |
When designing a vane motor system, several factors must be considered:
- Fluid Pressure: Ensure that the motor is designed to handle the maximum fluid pressure.
- Flow Rate: Calculate the required flow rate to achieve the desired rotational speed.
- Material Selection: Choose materials that are durable and resistant to corrosion.
In conclusion, vane motors are versatile and efficient devices used in both pneumatic and hydraulic systems. Their operation relies on the principle of converting fluid pressure into rotational motion through the movement of vanes within a rotor. Understanding the components and working principle of vane motors is essential for their effective use in various industrial applications. Additionally, exploring advanced applications, troubleshooting techniques, maintenance tips, comparisons with other motors, and future trends provides a comprehensive view of vane motor technology.
The main components of a vane motor include the casing, rotor, vanes, and stator. The rotor is slotted to accommodate the vanes, which move in and out to seal chambers filled with fluid.
A vane motor achieves rotation through the pressure differential created by fluid entering and exiting the chambers. This differential forces the rotor to turn, converting fluid pressure into mechanical energy.
Vanes in a vane motor are crucial for sealing the chambers as the rotor rotates. They move in and out of the rotor slots, ensuring that fluid enters and exits the chambers efficiently.
Yes, vane motors can operate at high speeds. Pneumatic vane motors, for example, can reach speeds of up to 20,000 rpm. However, to manage wear and maintain efficiency, gears are often used to reduce speed and increase torque.
Traditional vane motors are lubricated by the fluid they operate with, often requiring oil to be added to the compressed air or hydraulic fluid. However, there are also lubrication-free models designed for longer service life without additional lubrication.
