Vane motors are widely used in various industries due to their compact design, smooth operation, and efficient conversion of fluid or air pressure into mechanical rotary motion. Understanding the vane motor working principle is essential for engineers, technicians, and enthusiasts who want to optimize their applications or simply grasp how these motors operate. This comprehensive article will explain the vane motor working principle step by step, describe its components, illustrate the process with detailed explanations, and provide visual aids including diagrams and videos to enhance understanding.
A vane motor is a type of rotary positive displacement motor that converts the energy of a fluid (compressed air or hydraulic fluid) into mechanical rotational energy. It consists of a rotor with multiple vanes that slide radially within slots. These vanes create sealed chambers inside a cylindrical housing, allowing the motor to harness pressure differentials to generate torque and rotation.
Vane motors can be pneumatic (air-powered) or hydraulic (fluid-powered), but their working principles are fundamentally similar. They are favored for their smooth torque output, compact size, and ability to operate in hazardous environments where electric motors may be unsuitable.
Before diving into the step-by-step working principle, it's important to understand the main parts of a vane motor:
- Rotor: The central rotating component with radial slots for vanes.
- Vaness: Sliding blades that move in and out of the rotor slots, maintaining contact with the cylinder wall.
- Cylinder (Housing): The stationary outer casing that forms the motor chamber.
- End Plates: Close off the cylinder ends and support the rotor.
- Springs (in some designs): Push vanes outward to ensure contact with the cylinder wall.
- Inlet and Outlet Ports: Allow fluid or air to enter and exit the motor chambers.
Compressed air or hydraulic fluid enters the motor through the inlet port. This pressurized medium fills the chamber between two vanes inside the cylinder housing.
The vanes, which are free to slide in and out of the rotor slots, are pushed outward by centrifugal force and sometimes springs, pressing firmly against the inner surface of the cylindrical housing. This creates sealed chambers of varying volumes between adjacent vanes.
The pressurized fluid trapped in the chamber exerts force on the vane surfaces. Because the rotor is mounted eccentrically inside the cylinder, the volume of the chamber changes as the rotor turns. The pressure difference between the high-pressure inlet side and the low-pressure outlet side generates a net force on the vanes, causing the rotor to rotate.
As the rotor rotates, the vanes slide in and out of their slots to maintain contact with the cylinder wall and to accommodate the changing chamber volumes. This sliding action creates new chambers at the inlet side while expelling fluid from the outlet side.
The fluid or air in the expanding chambers is pushed out through the outlet port as the rotor continues to turn. This completes the cycle, and the process repeats continuously, converting fluid energy into rotational mechanical energy.
The vane motor working principle relies on the conversion of fluid pressure energy into mechanical energy through the expansion and contraction of chambers formed by the rotor and vanes inside the cylinder.
- The rotor is eccentrically positioned inside the cylinder, creating a crescent-shaped space.
- When fluid enters the inlet chamber, it pushes the vane outward, increasing the chamber volume on one side and decreasing it on the other.
- The pressure acts on the vanes, forcing the rotor to turn.
- As the rotor rotates, the vanes slide to maintain the seal and form new chambers, allowing continuous energy conversion.
- The fluid expands in the chambers, losing pressure as it moves toward the outlet port.
- The motor's output shaft is connected to the rotor, transmitting the rotational motion to drive machinery.
*Illustration showing rotor, vanes, cylinder, inlet and outlet ports, and chamber formation*
- A detailed animation showing how vanes slide and how chambers expand and contract can be found in technical videos such as the "Rotary Vane Operating Principles Technical Animation." This video demonstrates the centrifugal force pushing vanes against the cylinder wall and the resulting compression and expansion cycles that generate rotation.
- Explosion-proof: Since pneumatic vane motors use compressed air, they do not produce sparks, making them suitable for hazardous environments.
- High starting torque: Vane motors can start under load without additional mechanisms.
- Smooth operation: Minimal pulsation leads to less wear and quieter operation.
- Compact and lightweight: Ideal for applications with space constraints.
- Stepless speed regulation: Speed can be easily controlled by varying the fluid pressure or flow.
- Pneumatic tools and machinery
- Industrial automation
- Food and pharmaceutical industries (where explosion-proof motors are required)
- Hydraulic systems in heavy equipment
- Robotics and precision machinery
Proper installation and maintenance are crucial for vane motor longevity:
- Inspect the motor for damage before installation.
- Clean and deburr shafts and connection surfaces.
- Align shafts carefully to avoid vibration and wear.
- Tighten bolts diagonally for even pressure.
- Use lubrication as recommended or opt for lubrication-free models with special vanes.
- Regularly check for wear on vanes and seals.
Despite their robust design, vane motors can encounter issues during operation. Understanding common problems and their solutions can help maintain optimal performance.
- Vane Wear: Over time, vanes may wear down due to friction against the cylinder wall. Regular inspection and replacement are necessary to prevent loss of efficiency.
- Leakage: Seal failure or worn vanes can cause internal leakage, reducing motor torque and speed.
- Overheating: Excessive load or insufficient lubrication can cause the motor to overheat, potentially damaging components.
- Noise: Unusual noise may indicate vane damage, misalignment, or debris inside the motor.
- Check and replace worn vanes promptly.
- Ensure proper lubrication according to manufacturer guidelines.
- Inspect seals and replace if damaged.
- Clean the motor interior to remove debris.
- Verify alignment and mounting to reduce vibration.
The vane motor technology continues to evolve with advancements aimed at improving efficiency, durability, and environmental impact.
- Material Improvements: Development of advanced composite materials for vanes and housing to reduce wear and extend service life.
- Lubrication-Free Designs: Enhanced materials and coatings allow for maintenance-free operation in sensitive environments.
- Smart Monitoring: Integration of sensors for real-time monitoring of motor health, enabling predictive maintenance.
- Energy Efficiency: Design optimizations to reduce energy consumption and improve torque output.
These innovations promise to expand the applications and reliability of vane motors in the future.
Understanding how vane motors compare with other rotary motors can help in selecting the right motor for specific applications.

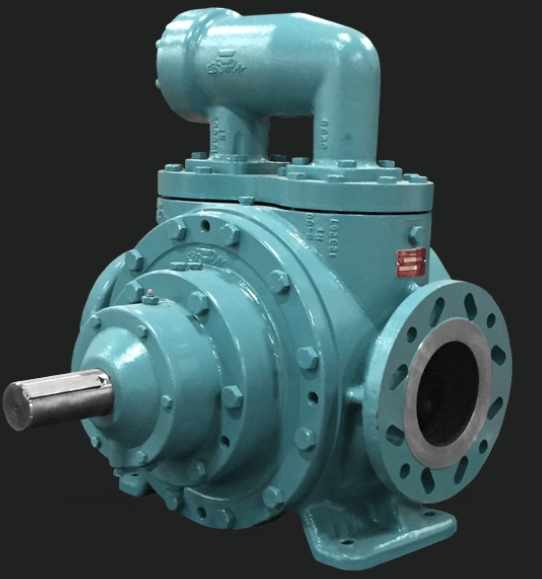

| Feature | Vane Motor | Gear Motor | Vane Pump |
|---|---|---|---|
| Operating Principle | Sliding vanes create chambers | Intermeshing gears transfer torque | Similar to vane motor but used for pumping fluid |
| Torque Output | Smooth and high starting torque | High torque but may have pulsation | N/A (pump function) |
| Speed Control | Stepless by pressure adjustment | Fixed or variable with gears | N/A |
| Maintenance | Moderate, vane wear and lubrication | Higher, gear wear and lubrication | Moderate |
| Applications | Pneumatic tools, automation | Heavy machinery, conveyors | Fluid transfer |
Safety is paramount when operating vane motors, especially in industrial settings.
- Always follow manufacturer installation and operation guidelines.
- Use appropriate protective equipment when handling pressurized fluids.
- Ensure proper ventilation when using pneumatic motors to avoid accumulation of exhaust air.
- Regularly inspect motors for signs of wear or damage.
- Disconnect power sources before performing maintenance.
- Vane motors convert fluid pressure into rotary motion using sliding vanes.
- They offer smooth operation, high starting torque, and compact design.
- Proper maintenance is essential for longevity and performance.
- Innovations continue to enhance vane motor technology.
- Safety precautions must be observed during use.
The vane motor working principle is a straightforward yet ingenious method of converting fluid or air pressure into rotary mechanical energy. By using sliding vanes in an eccentrically mounted rotor, these motors achieve smooth, reliable, and efficient operation suitable for a wide range of industrial applications. Understanding this step-by-step operation helps in selecting, using, and maintaining vane motors effectively, ensuring optimal performance and longevity.
The vane motor works by using vanes that slide radially in a rotor inside a cylindrical housing. Compressed air or fluid enters chambers formed by these vanes, creating pressure differentials that push the rotor to turn, converting fluid energy into mechanical rotary motion.
Vanes are pushed outward by centrifugal force during rotation and sometimes by springs, ensuring they maintain a tight seal against the cylinder wall to prevent leakage and maintain pressure in the chambers.
Yes, lubrication-free vane motors exist. They use special low-friction materials for vanes and permanently lubricated bearings to operate without added oil, which is beneficial in clean or sensitive environments.
The speed and torque depend on the fluid pressure, flow rate, number of vanes, rotor size, and gearing. Higher pressure and flow increase torque and speed, while gears can reduce speed and increase torque output.
Because vane motors powered by compressed air do not produce sparks and can operate safely in explosive or dusty environments, making them ideal for industries like mining, chemical processing, and food production.
