Vane motors are widely used in various industrial applications due to their efficiency, reliability, and versatility. These motors convert the energy of compressed air or hydraulic fluid into mechanical motion, making them ideal for tasks requiring precise control and variable speed. In this article, we will delve into the design, working principle, and applications of vane motors, along with their advantages and disadvantages.
Vane motors are classified into two main types: pneumatic (air-powered) and hydraulic (fluid-powered). Both types operate on similar principles but differ in the medium used to generate motion.

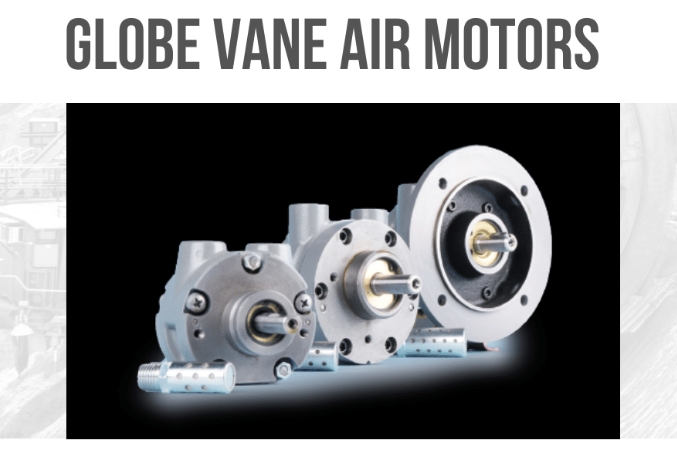

Pneumatic vane motors are air-powered devices that convert compressed air energy into rotary mechanical motion. They are commonly used in applications requiring precise control and variable speed.
A typical pneumatic vane motor consists of:
- Housing: A cylindrical chamber that houses the motor components.
- Rotor: An eccentrically positioned central spindle or driveshaft with slots for vanes.
- Vanes: Flat or curved blades made of metal or composite materials that slide in and out of the rotor slots.
- Inlet and Outlet Ports: Compressed air enters through the inlet port and exhausts through the outlet port.
1. Air Entry: Compressed air enters the motor through the inlet port.
2. Vane Movement: The air forces the vanes against the cylinder wall, creating a pressure differential that causes the rotor to turn.
3. Chamber Formation: As the rotor turns, the vanes slide in and out of their slots, creating expanding and contracting air chambers.
4. Exhaust: The compressed air is exhausted through the outlet port, allowing the motor to cycle.

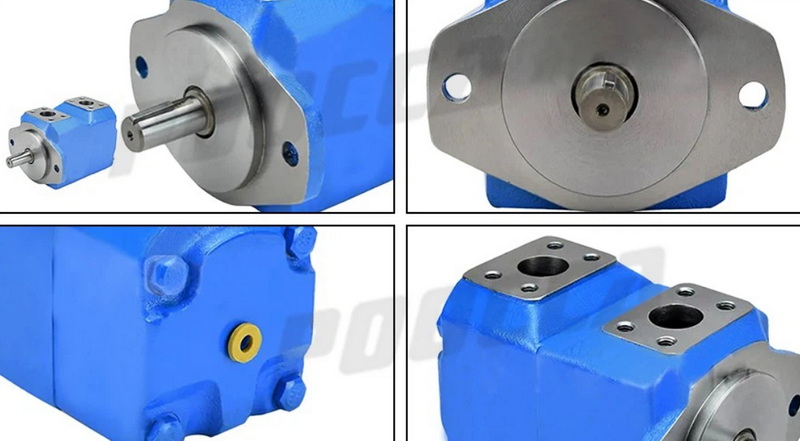

Hydraulic vane motors utilize hydraulic fluid to generate mechanical motion. They are often used in applications requiring high torque at low speeds.
Hydraulic vane motors consist of:
- Housing: A cylindrical chamber containing the motor components.
- Rotor: An eccentrically positioned driveshaft with vanes.
- Vanes: Blades that slide in and out of the rotor slots.
- End Cover and Seals: Protect the internal components.
1. Fluid Entry: Hydraulic fluid enters the motor through inlet holes.
2. Vane Movement: The fluid pushes against the vanes, causing them to extend and retract.
3. Chamber Formation: As the rotor rotates, the vanes create chambers of varying sizes.
4. Fluid Exhaust: The fluid is pushed out as the chambers contract.
Variable displacement vane motors offer advanced capabilities by adjusting the size of the working chambers within the motor. This allows for precise control over speed and torque without altering the input pressure or flow rate.
- Constant Speed/Torque: They maintain constant speed or torque even when the load changes.
- Precise Control: Ideal for applications requiring precise speed and torque control, such as industrial automation and robotics.
These motors are used in various industries:
- Automotive: For tasks like tightening bolts or screws, ensuring the correct force is applied.
- Construction: Powers handheld tools like drills and jackhammers.
- Food and Beverage: Used in mixing and blending equipment, allowing speed control for different requirements.
- High Efficiency: Vane motors have high mechanical efficiency, converting energy with minimal loss.
- Variable Speed: They offer a wide range of speed regulation, making them versatile for different applications.
- Compact Design: Pneumatic vane motors are lightweight and compact, suitable for use in tight spaces.
- Internal Leakage: Pneumatic vane motors may experience internal leakage, affecting efficiency.
- Vane Wear: High-speed operation can lead to excessive vane wear.
Vane motors are used in various industries, including manufacturing, construction, and medical technology. They are particularly suitable for applications requiring precise control and high reliability.
In the automotive sector, vane motors are used for tasks such as tightening bolts or screws, ensuring precise force application. Additionally, rotary vane pumps are crucial in systems like power steering and fuel injection, where precise fluid control is essential.
Vane motors power handheld tools like drills and jackhammers, providing portability and power. They are also used in heavy-duty cleaning equipment, such as industrial vacuum cleaners.
In food processing, vane motors are used in mixing and blending equipment, allowing for speed control to meet different requirements. Vane pumps are also employed to handle viscous fluids like syrups and sauces.
Rotary vane vacuum pumps are used in medical and laboratory settings for processes like freeze-drying and vacuum concentration, where precise vacuum control is necessary.
In aerospace, while vane motors themselves are not typically used in jet engines, turbine vanes play a critical role in guiding hot gases through the engine, optimizing efficiency and performance[1]. However, vane motors could be used in auxiliary systems requiring precise control.

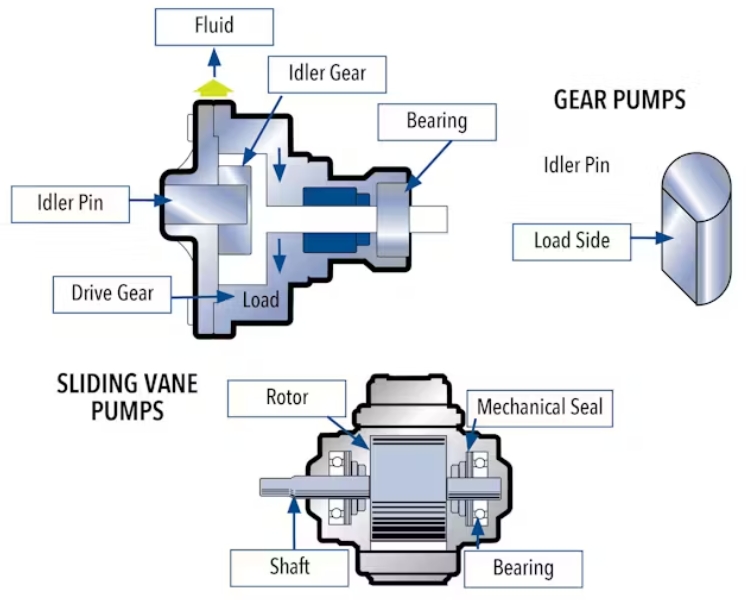

While vane motors and vane pumps share structural similarities, they serve different purposes. Vane motors are designed to transmit torque and have larger rotor diameters with more blades, whereas vane pumps are used for fluid transfer and have fewer blades at an angle.
Troubleshooting vane motors involves checking for issues such as worn vanes, incorrect vane installation, and restricted suction or discharge. Regular maintenance is crucial to prevent wear and ensure optimal performance. Common problems include:
- Pump Dry Running: Check fluid levels and suction lines for hydraulic motors[2].
- Valves Worn: Ensure inlet valves are fully opening[2].
- Internal Leaks: Inspect seals and gaskets for damage[8].
- Noise and Vibration: Check for internal damage to bearings or stator wear[8].
The future of vane motors looks promising, with ongoing research focused on increasing efficiency and reducing environmental impact. Advancements in hydraulic pump technology will continue to drive innovation across industries, making vane motors central to powering complex hydraulic systems[3].
In aerospace, while vane motors themselves are not typically used in jet engines, turbine vanes play a critical role in guiding hot gases through the engine, optimizing efficiency and performance[1]. However, vane motors could be used in auxiliary systems requiring precise control.
Rotary vane pumps are essential in electronics manufacturing for processes like vacuum deposition and evacuating process chambers. They provide the precise vacuum conditions necessary for producing semiconductors and electronic components.
Troubleshooting vane motors involves a systematic approach to identify and resolve issues. Common problems include:
- Pump Dry Running: Check fluid levels and suction lines for hydraulic motors[2].
- Valves Worn: Ensure inlet valves are fully opening[2].
- Internal Leaks: Inspect seals and gaskets for damage[8].
- Noise and Vibration: Check for internal damage to bearings or stator wear[8].
The future of vane motors is promising, with ongoing research focused on increasing efficiency, reducing environmental impact, and expanding application ranges. Advancements in materials and design will continue to improve the performance and functionality of vane motors, making them central to powering complex hydraulic systems across various industries[3].
Regular maintenance is crucial for extending the lifespan of vane motors. This includes inspecting vanes for wear, ensuring proper lubrication, and checking for internal leaks. Regular filter replacements and oil changes are also essential for maintaining optimal performance[8].
Advancements in materials science and engineering are leading to the development of more efficient and durable vane motors. New materials and designs aim to reduce wear, increase efficiency, and enhance reliability in harsh environments.
Effective maintenance strategies for vane motors include regular inspections, timely replacement of worn parts, and ensuring proper system conditions such as fluid viscosity and pressure. Implementing a routine maintenance schedule can significantly extend the lifespan of these motors.
Vane motors are reliable and efficient devices that convert compressed air or hydraulic fluid into mechanical motion. Their versatility and compact design make them ideal for a wide range of industrial applications. Understanding the working principle and design of vane motors is crucial for selecting the right motor for specific tasks.
Here are some frequently asked questions about vane motors:
- Pneumatic vane motors use compressed air, while hydraulic vane motors use hydraulic fluid to generate motion.
- Vane motors can adjust speed by regulating the pressure of the input fluid or air, allowing for a wide range of speed control.
- Balanced vane motors eliminate side loads on the rotor, reducing bearing stress and improving efficiency.
- Yes, but high-speed operation may lead to increased vane wear. Special designs, such as longer rotors with fewer vanes, are used to mitigate this issue.
- Reversible vane motors use a valve mechanism to switch the roles of the inlet and outlet ports, allowing the motor to rotate in both directions.
