Atlas Copco vane motors are renowned for their efficiency and versatility in various industrial applications. These motors utilize compressed air to generate rotational motion, making them ideal for environments where electrical motors may not be suitable. In this article, we will delve into the design, working principle, and performance enhancements of Atlas Copco vane motors, highlighting how they improve efficiency and performance.

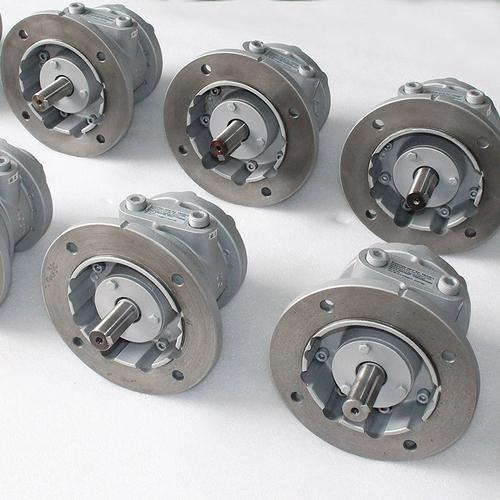

Vane air motors consist of a rotor that rotates eccentrically within a cylinder, creating a crescent-shaped chamber. The rotor slots contain vanes that move freely, dividing the chamber into separate working sections of varying sizes. The combination of centrifugal force and compressed air pressure pushes these vanes against the cylinder wall, sealing each chamber and converting the energy of compressed air into rotational motion.
Design Components:
1. Front End Plate
2. Rotor
3. Vanes
4. Cylinder
5. Rear End Plate
The working principle of a vane air motor involves the movement of compressed air through the chambers created by the vanes. As air enters one chamber, it expands, pushing the vanes against the cylinder wall and causing the rotor to rotate. This process continues as air moves from one chamber to another, generating continuous rotational motion.
One of the key methods to improve the performance of vane air motors is by adjusting the air pressure. Increased pressure allows the air inside the motor's chambers to expand more forcefully, resulting in higher rotational speeds and torque. However, it is crucial to determine the ideal pressure balance to avoid inefficiencies or safety hazards. Atlas Copco provides correction factors for different air pressures to help calculate performance data accurately[2].
Manufacturers like Atlas Copco continually innovate the design of vanes and rotors to enhance performance. Improvements in vane forms, materials, and rotor assembly methods help reduce friction, improve air sealing, and increase overall efficiency. These innovations lead to higher production and longer operating life[4].
Atlas Copco vane motors often come equipped with gear systems, such as planetary or helical gears, to convert high-speed, low-torque outputs into lower speeds with higher torque. This is essential for applications requiring more torque than the motor can provide at its free speed[1].
Some Atlas Copco vane motors are designed to operate without lubrication, using special low-friction materials for the vanes and permanently lubricated bearings. While these motors offer convenience, traditional lubricated motors may provide longer vane life.
The performance of vane air motors can be adjusted by varying the air flow or pressure. This allows for stepless control over speed and torque, making them highly adaptable to different applications.
Atlas Copco offers several models of vane air motors, each designed to meet specific needs:
- LZB Vane Motors: These motors use five vanes and are known for their excellent starting and low-speed performance. Most models come in standard and stainless-steel versions to match specific application needs. The long and slim design integrates seamlessly with several different mounting styles, while multi-step planetary gears provide precise torque and speed requirements, offering high efficiency with compact dimensions. LZB motors are characterized by high power output and small physical size, providing a high power-to-volume ratio, low air consumption, and long vane life[3].
- LZL Vane Motors: These motors utilize six vanes and are designed for rugged, compact applications. They offer strong starting torque and can be run non-reversible or reversible with lubrication-free vanes. Certain models are available in standard and stainless-steel versions, providing a long service life. The LZL range is ideal for applications requiring high power and low to medium speeds, such as mixing[1].
Atlas Copco vane motors are used in a variety of industries, including:
- Food Industry: Atlas Copco air motors, particularly those made of stainless steel, are well-suited for the food industry due to their resistance to corrosion and ability to operate in wet environments. They can be designed with internal components made of stainless steel, ensuring minimal maintenance and compliance with food safety standards.
- Pipe Cutting and Hydro Blasting: Vane air motors are used in applications requiring high torque and reliability, such as pipe cutting and hydro blasting. Their ability to operate in harsh environments makes them ideal for these tasks.
- Mixing and Transportation: In mixing and transportation applications, vane motors provide the necessary power and control, allowing for precise adjustments in speed and torque as needed.
Proper installation and maintenance are crucial for optimal performance and longevity of vane air motors. This includes ensuring that air lines are properly dimensioned to avoid pressure drops and incorporating air filters and lubricators as needed.
1. Regular Inspection: Regularly inspect the motor for signs of wear or damage, particularly in the vanes and seals.
2. Air Quality: Ensure that the compressed air supply is clean and dry to prevent corrosion and contamination.
3. Lubrication: For lubricated models, maintain the recommended lubrication schedule to extend vane life.

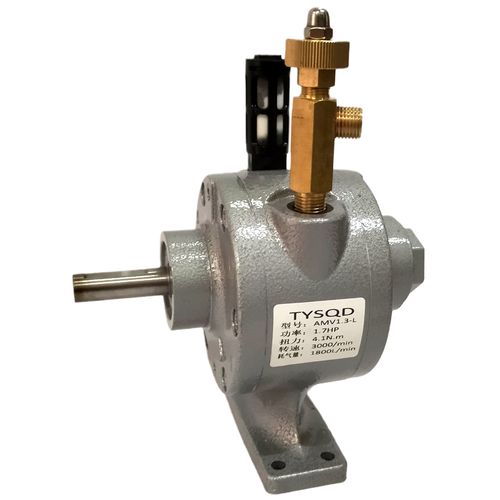

When selecting a vane air motor, it's essential to consider key performance metrics such as free speed, starting torque, and stall torque. The free speed is the speed at which the motor operates with no load, while the starting torque is the torque produced when the motor starts under full air pressure. The stall torque, which occurs when the motor is braked to a stop, can be approximated by doubling the maximum power torque.
Air consumption increases with motor speed and is highest at free speed. Even at standstill, the motor consumes air due to internal leakage, which depends on the motor's design and condition.
Atlas Copco also offers piston and turbine air motors, each with unique advantages:
- Piston Air Motors (PZB): These motors are quieter and more efficient than vane motors, consuming 20-40% less energy. They provide low-speed controllability and high starting torque, making them ideal for applications requiring precise speed control. The PZB piston motor is also noted for its extended lifespan, requiring service intervals four to six times longer than traditional vane motors[5].
- Turbine Air Motors (TZB): These motors offer a high power-to-weight ratio and are designed for high-torque applications. They maintain stable speeds even under heavy loads, making them suitable for demanding tasks[1].
In today's environmentally conscious world, the efficiency and sustainability of industrial equipment are crucial. Atlas Copco's vane motors, along with other air motor technologies, contribute to reducing energy consumption and extending operational life, thereby supporting sustainable practices.
The global sliding vane air motor market is experiencing significant growth, driven by increasing demand for efficient and reliable industrial tools. The market is expected to reach $4.1 billion by 2033, growing at a CAGR of 4.26% from 2025 to 2033. Favorable government policies and technological advancements are key factors propelling this growth. Major players like Atlas Copco are continuously innovating to meet the evolving needs of various industries.
Future innovations in vane air motors will likely focus on improving efficiency, reducing environmental impact, and enhancing durability. Advances in materials science and design optimization will play a crucial role in these developments. Additionally, integrating digital technologies to monitor performance and predict maintenance needs could further enhance the operational efficiency of these motors.
Atlas Copco vane motors are highly efficient and versatile power units, ideal for a wide range of industrial applications. Their performance can be significantly enhanced through innovations in design, air pressure adjustment, and control systems. By understanding the working principle and design of these motors, users can optimize their performance and efficiency.
A vane air motor works by using compressed air to push vanes against the cylinder wall, creating rotational motion as air moves through chambers formed by these vanes.
Performance can be improved by adjusting air pressure, innovating vane and rotor designs, and using gear systems to optimize torque and speed outputs.
Lubrication-free motors offer convenience and reduced maintenance but may have shorter vane life compared to traditional lubricated models.
LZB motors use five vanes and are known for high performance and reliability, while LZL motors use six vanes and are designed for rugged applications with strong starting torque.
Proper installation ensures that air lines are correctly dimensioned, reducing pressure drops and maintaining motor efficiency.
