Vane motors are critical components in many industrial and automation systems, prized for their compact size, high torque at low speeds, and robust energy conversion. Yet, one of the most influential operational variables-temperature-can dramatically impact vane motor efficiency. This comprehensive article delves deeply into the mechanisms by which temperature affects vane motor efficiency, explores practical implications, and presents strategies for optimizing performance across varying thermal environments.

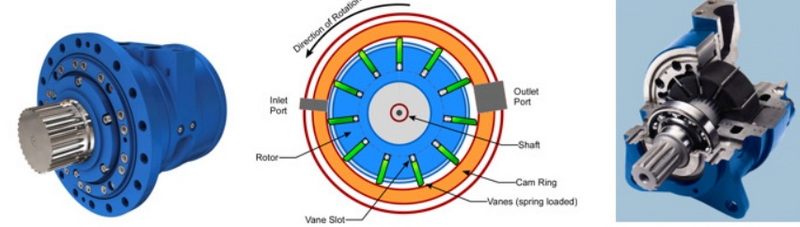

A vane motor is a rotary actuator that transforms fluid power-often compressed air or hydraulic oil-into mechanical rotation. Its core consists of a rotor with several sliding vanes, all enclosed within a cylindrical chamber. When pressurized fluid enters the chamber, it pushes the vanes outward, causing the rotor to spin and generate torque. This simple yet effective design makes vane motors ideal for applications requiring reliable, variable-speed rotary motion.
Vane motor efficiency measures how effectively the motor converts input energy (from compressed air or hydraulic fluid) into useful mechanical work. High efficiency means less energy is lost to heat, friction, and leakage, resulting in lower operating costs and longer equipment life. Several factors influence this efficiency, including:
- Internal friction between vanes and housing
- Fluid leakage past the vanes
- Fluid viscosity
- Mechanical clearances
- Operating pressure and speed
- Temperature
Temperature has a direct and profound effect on the viscosity of the working fluid. In hydraulic vane motors, rising temperatures decrease oil viscosity, reducing internal friction and allowing vanes to move more freely. This can initially boost efficiency. However, if the viscosity drops too low, sealing effectiveness diminishes, leading to increased internal leakage and a loss of torque output.
In pneumatic vane motors, temperature changes alter air density and flow characteristics. Hotter air is less dense, which can reduce the amount of energy transferred to the vanes and lower overall efficiency.
All materials expand when heated and contract when cooled. In a vane motor, temperature fluctuations change the dimensions of the rotor, vanes, and housing. High temperatures can cause excessive expansion, reducing the clearance between vanes and housing. This increases friction and wear, potentially leading to jamming or rapid component degradation. Conversely, low temperatures may cause excessive contraction, resulting in poor sealing, increased leakage, and reduced torque.
Lubrication is essential for minimizing friction and wear in vane motors. Temperature changes can alter the properties of lubricants. At optimal temperatures, lubricants maintain a stable film between moving parts, reducing friction and energy loss. High temperatures may degrade lubricants, leading to increased metal-to-metal contact, higher friction, and accelerated wear. Low temperatures can thicken lubricants, increasing resistance and reducing efficiency.
The pressure and volume of the working fluid inside the motor chambers are temperature-dependent. For example, in hot gas vane motors, the expansion of gas at higher temperatures increases chamber pressure and torque output. However, if the temperature is too high or too low, pressure imbalances may occur, reducing net torque and efficiency.
| Temperature Range | Effect on Vane Motor Efficiency |
|---|---|
| Low Temperatures (<0°C) | Increased fluid viscosity, poor sealing, reduced torque |
| Moderate Temperatures | Optimal fluid viscosity, good sealing, high efficiency |
| High Temperatures (>80°C) | Reduced viscosity, increased friction, lubricant degradation |
Fluid viscosity acts as both a friend and foe to vane motor efficiency. At low temperatures, high viscosity provides excellent sealing but increases frictional drag, making it harder for vanes to move. As temperature rises, viscosity drops, reducing friction and improving efficiency. However, too low a viscosity leads to poor sealing, increased leakage, and a sharp drop in efficiency.
Vane motors are engineered with precise clearances to balance sealing and friction. Temperature-induced expansion or contraction can upset this balance. For example, excessive expansion at high temperatures can cause vanes to rub tightly against the housing, increasing friction and wear. At low temperatures, contraction can create gaps, allowing fluid to leak past the vanes and reducing output torque.
Lubricants are formulated to perform within a specific temperature range. At optimal temperatures, they reduce friction and wear, supporting high vane motor efficiency. If the temperature exceeds the lubricant's stability range, it can break down, losing its protective qualities and allowing increased friction and wear. In cold conditions, lubricants may become too thick, impeding vane movement and reducing efficiency.
In pneumatic systems, temperature affects air density and pressure. Higher temperatures reduce air density, potentially lowering the energy available to drive the vanes. In hydraulic systems, temperature changes alter fluid compressibility and flow characteristics, impacting torque and efficiency.
Choosing materials with low coefficients of thermal expansion helps maintain critical clearances over a wide temperature range. Advanced alloys and composite materials are often used in high-performance vane motors for this reason.
Specialized lubricants are designed to maintain optimal viscosity and protective properties across broad temperature ranges. Synthetic oils and greases are commonly used in applications where temperature fluctuations are expected.
Some vane motors are equipped with heating elements or cooling jackets to maintain the motor within its optimal temperature range. These systems are especially valuable in environments with extreme or rapidly changing temperatures.
Modern vane motors may employ adaptive seals that compensate for temperature-induced expansion or contraction, helping to maintain efficiency across a wide range of operating conditions.
In automated manufacturing, vane motors are often exposed to fluctuating temperatures due to equipment cycles or environmental conditions. Proper temperature management-through insulation, ventilation, or active cooling-ensures consistent efficiency and minimizes downtime.
Vane motors in mobile hydraulic systems (such as construction machinery) must operate efficiently from cold starts in winter to high-load operation in summer. Pre-heating systems and multi-grade lubricants help maintain optimal efficiency.
Aerospace applications demand vane motors that can withstand extreme temperature variations while maintaining high efficiency. Advanced materials, coatings, and temperature management systems are critical in these environments.
Engineers use sophisticated simulation tools to predict how temperature will affect vane motor efficiency under various operating scenarios. These models account for:
- Thermal expansion of components
- Fluid viscosity changes
- Lubricant behavior
- Pressure and flow dynamics
By simulating real-world conditions, designers can optimize vane motor geometry, material selection, and lubrication strategies to maximize efficiency across the expected temperature range.
- Regular Lubricant Checks: Monitor lubricant condition and replace it if signs of thermal degradation appear.
- Seal Inspection: Check for leaks or wear, especially after exposure to temperature extremes.
- Temperature Monitoring: Use sensors to track motor temperature and trigger alarms if it moves outside the optimal range.
- Scheduled Maintenance: Increase maintenance frequency in environments with significant temperature fluctuations to catch issues early.
A hot gas vane motor model demonstrates that torque output is highly dependent on temperature-controlled gas expansion within the chambers. By optimizing the timing and placement of inlet and exhaust ports, engineers can maximize torque during the expansion phase. Friction losses, modeled using Stribeck friction curves, underscore the importance of maintaining optimal temperature to minimize mechanical losses and maximize vane motor efficiency.
Temperature is a critical factor influencing vane motor efficiency. It affects fluid viscosity, mechanical clearances, lubrication, and pressure dynamics. Maintaining vane motors within their optimal temperature range is essential for high efficiency, long service life, and reliable operation. Through careful material selection, advanced lubrication, integrated temperature control, and regular maintenance, vane motors can deliver consistent performance even in challenging thermal environments.
Low temperatures increase fluid viscosity and cause contraction of motor components, leading to higher friction, poor sealing, and reduced torque output, which lowers efficiency.
Yes, but efficiency can decline if temperatures cause lubricant degradation or excessive thermal expansion. Cooling systems and temperature-resistant materials help maintain efficiency.
Fluid viscosity affects internal friction and sealing effectiveness. Optimal viscosity ensures smooth vane movement and minimal energy loss.
Temperature changes affect air density and flow in pneumatic motors, impacting power output, whereas in hydraulic motors, fluid viscosity and lubrication are more directly affected.
Features such as precise vane geometry, thermal expansion-tolerant materials, advanced lubricants, and integrated heating or cooling systems improve efficiency under varying temperatures.
