Hydraulic rotary unions are critical components in many industrial and mechanical systems where hydraulic fluid needs to be transferred between stationary and rotating parts. Understanding how they work, their construction, applications, and maintenance is essential for engineers, technicians, and anyone involved in fluid power systems. This comprehensive article explores the working principles of hydraulic rotary unions, their design, types, applications, and answers frequently asked questions to provide a deep understanding of these indispensable devices.

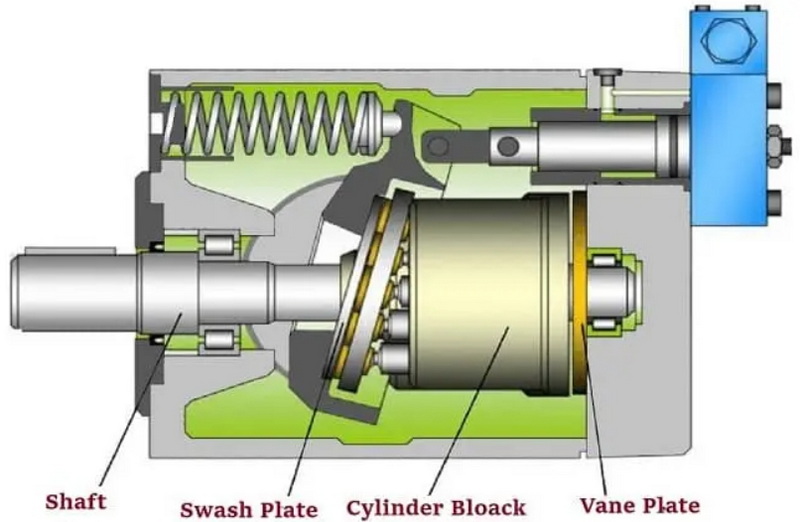

How Hydraulic Rotary Union Works_2

What is a Hydraulic Rotary Union?

A hydraulic rotary union is a mechanical device that enables the transfer of hydraulic fluid from a stationary source to a rotating component, such as a shaft, spindle, or drum, without leakage. It allows continuous rotation while maintaining a sealed fluid connection, which is vital for hydraulic systems in various industries.

Hydraulic rotary unions differ from general rotary unions by being specifically engineered to handle hydraulic fluids under pressure, ensuring leak-free, smooth fluid transfer even under demanding conditions such as high pressure, temperature, and rotational speed.

How Does a Hydraulic Rotary Union Work?

Basic Working Principle

The hydraulic rotary union creates a sealed passage for hydraulic fluid to flow from a stationary inlet to a rotating outlet. This is achieved through a combination of precision-engineered components:

- Fluid Entry: Hydraulic fluid enters the rotary union through a stationary inlet port connected to the fluid supply.

- Sealing Mechanism: Inside the union, seals prevent fluid leakage while allowing the rotating shaft or housing to turn freely.

- Fluid Transfer: The fluid passes through internal channels within the rotating shaft or rotor to the rotating machinery component.

- Fluid Exit: The fluid exits the union into the rotating part where it is needed for hydraulic power or cooling.

The rotary union is designed to maintain a continuous, uninterrupted flow of fluid even while the connected machinery rotates at high speeds.

Key Components in Operation

- Housing: The stationary outer body that holds the internal components and connects to the fluid supply.

- Shaft/Rotor: The rotating part that transfers fluid to the rotating machinery.

- Bearings: Support the shaft, reduce friction, and allow smooth rotation.

- Seals: Prevent fluid leakage between stationary and rotating parts.

- Retaining Rings and Wear Rings: Maintain alignment and protect surfaces from wear.

The seal system is the heart of the hydraulic rotary union, often consisting of mechanical seals that can handle high pressure and temperature, ensuring durability and leak-tight operation.

Detailed Structure and Components

Component Description
Housing Stationary part that contains fluid inlet/outlet and encloses internal components.
Shaft/Rotor Rotates with the machinery, contains fluid channels for transfer.
Bearings Ball or roller bearings that support the shaft and reduce friction.
Seals Mechanical seals, lip seals, or O-rings that prevent fluid leakage under pressure.
Retaining Rings Secure bearings and seals in place, ensuring proper alignment.
Wear/Thrust Rings Protect mating surfaces from wear, prolonging union life.

The materials used for these components are typically stainless steel, brass, or specialized alloys to resist corrosion and wear. Seal materials vary based on fluid compatibility and operating conditions, including Nitrile rubber (NBR), Fluoroelastomers (FKM), and PTFE.

Types of Hydraulic Rotary Unions

Hydraulic rotary unions come in various types depending on the number of fluid passages, pressure ratings, and application requirements:

- Single-Passage Rotary Unions: Transfer hydraulic fluid through one channel; used in simple hydraulic systems and lubrication.

- Multi-Passage Rotary Unions: Have multiple channels to transfer different fluids simultaneously without mixing; common in complex machinery like robotic arms and CNC machines.

- High-Pressure Rotary Unions: Designed for pressures exceeding 10,000 PSI, used in oil and gas drilling, hydraulic presses, and testing equipment.

- Low-Speed and High-Speed Variants: Designed according to rotational speed requirements, with bearings and seals optimized for either slow or very fast rotation.

Applications of Hydraulic Rotary Unions

Hydraulic rotary unions are used in a wide range of industries and applications where hydraulic fluid transfer to rotating parts is necessary:

- Manufacturing: Injection molding machines, hydraulic presses, and machining centers.

- Construction and Agriculture: Excavators, cranes, and other heavy machinery requiring hydraulic power transmission.

- Automotive Industry: Power steering systems, testing rigs, and manufacturing equipment.

- Energy Sector: Wind turbines for pitch control systems and cooling.

- Medical Devices: Equipment requiring precise fluid transfer in rotating components.

- Other Industrial Uses: Steelworks, bottle filling systems, paper mills, and more.

Advantages of Hydraulic Rotary Unions

- Continuous Fluid Transfer: Enables uninterrupted hydraulic fluid flow during rotation.

- Leak Prevention: Advanced sealing technology minimizes fluid loss and contamination.

- Durability: Built to withstand high pressures, temperatures, and harsh environments.

- Customizability: Available in various sizes, materials, and configurations to suit specific applications.

- Reduced Maintenance: Precision engineering and robust materials extend service life and reduce downtime.

Hydraulic Rotary Union Works

How Hydraulic Rotary Unions Handle Pressure and Speed

One of the major challenges in designing hydraulic rotary unions is balancing the ability to withstand high pressure while rotating at high speeds. The fluid pressure inside the union can reach thousands of pounds per square inch, which puts immense stress on the seals and bearings.

Pressure Handling

The seals in hydraulic rotary unions are often mechanical seals, which use a combination of spring pressure and fluid pressure to maintain a tight seal. These seals are designed to:

- Compensate for wear by maintaining contact between sealing surfaces.

- Resist extrusion under high pressure.

- Operate effectively under varying temperatures.

The housing and shaft are machined to tight tolerances to ensure that the sealing surfaces remain perfectly aligned, preventing leaks.

Speed Handling

Rotational speed affects the type of bearings used and the seal design. High-speed unions use precision ball or roller bearings that can handle radial and axial loads while minimizing friction and heat generation.

Seals for high-speed unions are typically made from advanced materials like carbon-ceramic or silicon carbide, which provide low friction and high wear resistance.

The balance between pressure and speed is critical. For example, a union designed for very high pressure may have speed limitations, while high-speed unions might be rated for lower pressures.

Materials Used in Hydraulic Rotary Unions

The choice of materials affects the performance, durability, and cost of hydraulic rotary unions.

Common Materials

- Stainless Steel: Provides excellent corrosion resistance, strength, and durability. Common in food, pharmaceutical, and chemical industries.

- Brass: Offers good machinability and corrosion resistance; often used in lower pressure applications.

- Aluminum: Lightweight and corrosion-resistant but generally limited to low-pressure applications.

- Specialized Alloys: For extreme environments, such as high temperature or corrosive fluids.

Seal Materials

- Nitrile Rubber (NBR): Good for general-purpose hydraulic fluids, oils, and water.

- Fluoroelastomers (FKM/Viton): Resistant to high temperatures and aggressive fluids.

- PTFE (Teflon): Excellent chemical resistance and low friction, used in high-performance seals.

- Polyurethane: High abrasion resistance, often used in dynamic sealing applications.

Selecting the right materials ensures the rotary union can withstand the operating environment and fluid chemistry without premature failure.

Installation and Maintenance Best Practices

Proper installation and maintenance are crucial for ensuring the longevity and reliable operation of hydraulic rotary unions.

Installation Tips

- Correct Alignment: Misalignment can cause excessive wear on bearings and seals. Use precision alignment tools during installation.

- Torque Specifications: Follow manufacturer torque guidelines to avoid damaging components.

- Cleanliness: Ensure all components and hydraulic fluids are clean to prevent contamination and seal damage.

- Proper Lubrication: Some rotary unions require lubrication of bearings or seals; use recommended lubricants.

Maintenance Guidelines

- Regular Inspection: Check for signs of leakage, unusual noises, or vibration.

- Seal Replacement: Replace seals at the first sign of wear or leakage to prevent fluid loss.

- Bearing Checks: Inspect bearings for smooth rotation and replace if roughness or play is detected.

- Fluid Quality: Maintain clean hydraulic fluid to reduce contamination-related wear.

Troubleshooting Common Issues

Despite their robust design, hydraulic rotary unions can experience problems. Understanding common issues helps in quick diagnosis and repair.

- Leakage: Usually caused by worn or damaged seals, improper installation, or contamination.

- Excessive Noise or Vibration: May indicate bearing failure or misalignment.

- Overheating: Caused by friction due to lack of lubrication or seal failure.

- Fluid Contamination: Particles entering the union can damage seals and bearings.

Timely maintenance and using quality parts help minimize these issues.

Conclusion

Hydraulic rotary unions are vital components that enable the seamless transfer of hydraulic fluid between stationary and rotating parts in numerous industrial and mechanical systems. Their sophisticated design, incorporating precision seals, bearings, and robust materials, ensures reliable, leak-free operation even under high pressure and speed. Understanding their working principles, types, applications, and maintenance requirements is crucial for optimizing system performance and longevity. With advances in engineering and materials, hydraulic rotary unions continue to evolve, meeting the demanding needs of modern industry.

Hydraulic Rotary Union Works

Frequently Asked Questions (FAQ)

1. What is the main function of a hydraulic rotary union?

A hydraulic rotary union transfers hydraulic fluid from a stationary source to a rotating component while maintaining a sealed, leak-free connection during rotation.

2. Can hydraulic rotary unions handle multiple fluids simultaneously?

Yes, multi-passage hydraulic rotary unions can transfer different fluids through separate channels without mixing, enabling complex hydraulic systems to operate efficiently.

3. How do seals in hydraulic rotary unions prevent leakage?

Seals, such as mechanical seals and O-rings, create a tight barrier between stationary and rotating parts, preventing fluid from escaping while allowing rotation.

4. What factors should be considered when selecting a hydraulic rotary union?

Key factors include operating pressure, fluid type, rotational speed, temperature, number of fluid passages, and environmental conditions.

5. How often should hydraulic rotary unions be maintained?

Maintenance frequency depends on application, but regular inspections at least annually or when leakage is detected are recommended to ensure optimal performance.
