Planetary gearboxes are intricate mechanical systems that play a crucial role in various industries, including automotive, aerospace, and robotics. These gearboxes are renowned for their ability to provide high torque and speed ratios in a compact design. In this article, we will delve into the manufacturing process of planetary gearboxes, exploring the key components, technological advancements, and assembly procedures.

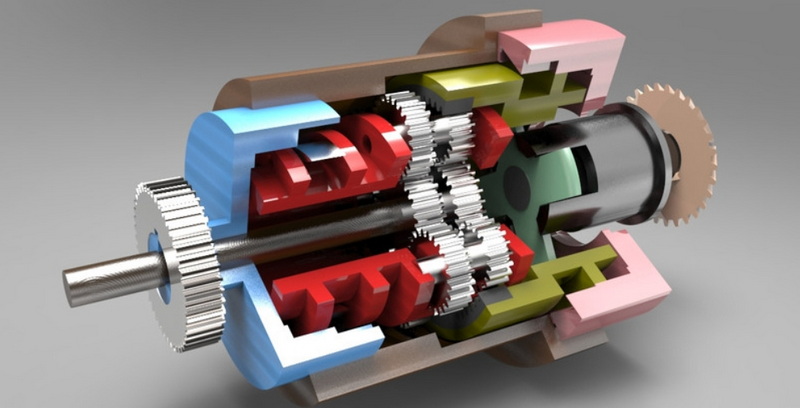

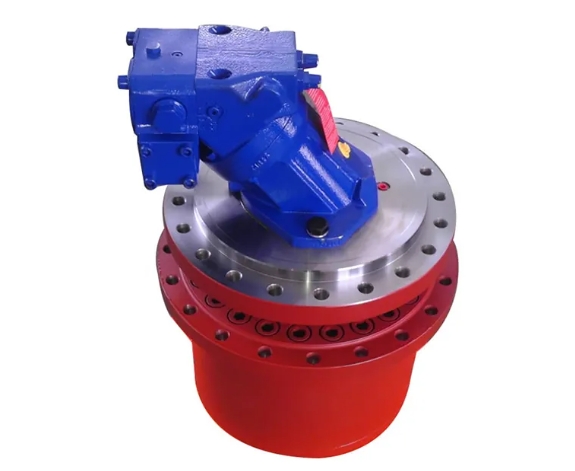

Planetary gearboxes, also known as epicyclic gearboxes, consist of four main components: the sun gear, planet gears, ring gear, and carrier. The sun gear is the central gear that drives the planet gears, which orbit around it and are engaged with the ring gear. This configuration allows for multiple gear ratios and efficient power transmission.
- Sun Gear: The central gear that transfers torque to the planet gears. It is typically made of robust materials to withstand the forces involved in the gearbox operation.
- Planet Gears: These gears distribute and balance the load, orbiting around the sun gear. They are often coated for durability.
- Carrier: Holds the planet gears, enabling a balanced distribution of torque. It is designed for optimal efficiency.
- Ring Gear: Encloses the setup and transfers torque. It can have a customizable internal profile.

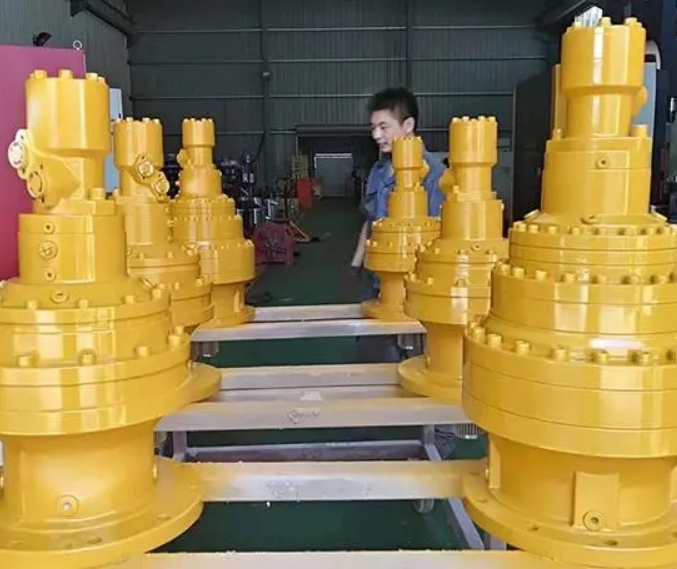

The manufacturing of planetary gearboxes involves several steps, from the production of individual components to the final assembly.
1. Gear Blank Turning: The process begins with turning the raw parts on vertical turning machines to ensure precision and efficiency.
2. Rough-Machining Tooth Profiles: Gear hobbing machines are used for rough-machining the tooth profiles. This step is crucial for the quality of the final gears.
3. Hardening: The gears are case-hardened to increase strength and wear resistance.
4. Hard Finishing: The final hard finishing can be done through skiving or gear generating grinding to achieve high precision.
1. Housing Preparation: The gearbox housing is cleaned and inspected for any defects.
2. Installation of Components: The sun gear is installed in the center, followed by the planet gears and the carrier. The ring gear is then engaged with the planet gears.
3. Shaft and Bearing Installation: Shafts are installed, and bearings are added to support the rotating components.
4. Sealing and Lubrication: Seals are installed, and lubrication is applied to ensure smooth operation.
5. Testing: The gearbox undergoes load and efficiency testing to ensure it meets specifications.
Technological advancements have significantly improved the design and manufacturing of planetary gearboxes. Computer-aided design (CAD) allows for intricate designs that were previously impossible. Robotics and automation have increased efficiency and reliability, making planetary gearboxes more compact and versatile.
Additive manufacturing, such as 3D printing, is being explored for rapid prototyping of planetary gearboxes. Materials like PLA, PET, and TPU are used for different parts, offering flexibility in design and material selection. For instance, polyamide is chosen for gear teeth due to its wear resistance, while PET is used for the gear body because of its mechanical properties.
Watch how a planetary gearbox is designed and 3D printed, including assembly and testing:
While additive manufacturing offers rapid prototyping, it also presents challenges such as dimensional accuracy and material limitations. For example, gears manufactured using FDM may have lower precision compared to traditionally machined gears, affecting the real gear ratio. However, advancements in materials and techniques are continually addressing these challenges.
Planetary gearboxes are used in a wide range of applications due to their compact design and high efficiency:
- Automotive: In automatic transmissions for smooth gear shifting. They provide multiple gear ratios, enhancing vehicle performance and fuel efficiency.
- Aerospace: For precise control in aircraft systems. Their lightweight and compact nature makes them ideal for applications where minimizing weight is critical.
- Robotics: To achieve high torque and speed ratios in robotic arms and mechanisms. This enables precise and controlled movements in industrial automation.
- Wind Turbines: To optimize energy output by adjusting speed ratios. This ensures efficient power generation from wind energy.
- Industrial Machinery: In conveyor systems, mixers, and other machinery where varying speeds and high torque are necessary.
- Medical Devices: In diagnostic equipment and robotic surgical systems, where precise motion control is essential.
The choice of materials for planetary gearboxes is critical for their performance and durability. Advanced materials such as high-strength alloys and composite materials are used to enhance the load-bearing capacity and reduce mechanical losses.
Metal gears are preferred for their ability to transfer larger forces and withstand high temperatures, making them suitable for demanding applications like vacuum environments. However, plastic gears offer advantages such as being lighter and quieter, making them cost-effective solutions for applications where noise reduction is important.
Recent advancements in materials science have introduced new materials like carbon fiber reinforced polymers (CFRP) and advanced ceramics. These materials provide exceptional strength-to-weight ratios and corrosion resistance, further expanding the potential applications of planetary gearboxes.
Regular maintenance is essential to extend the lifespan of planetary gearboxes. This includes checking lubrication levels, inspecting for wear, and replacing worn components promptly. In cases where repair is necessary, advanced techniques such as laser welding can be used to restore damaged parts.
As technology continues to evolve, planetary gearboxes are expected to become even more efficient and versatile. Advances in nanotechnology and smart materials could lead to gearboxes that can adapt to changing conditions, optimizing performance in real-time.
Planetary gearboxes are complex systems that rely on precise manufacturing and assembly processes to deliver high performance. With advancements in technology and materials, these gearboxes continue to play a vital role in various industries. Whether through traditional machining or innovative methods like additive manufacturing, the production of planetary gearboxes remains a fascinating blend of engineering and technology.
The main components of a planetary gearbox include the sun gear, planet gears, ring gear, and carrier.
The process typically involves turning the gear blank, rough-machining the tooth profiles, hardening, and hard finishing.
Additive manufacturing allows for rapid prototyping and flexibility in material selection, using materials like PLA and TPU for different parts. However, it may have limitations in terms of dimensional accuracy.
Planetary gearboxes are used in automotive, aerospace, robotics, wind turbines, and industrial machinery due to their high efficiency and compact design.
Technological advancements, such as CAD and automation, have improved the design precision and manufacturing efficiency of planetary gearboxes. Additionally, advancements in materials science enhance their performance and durability.
