Planetary gearboxes are complex mechanical systems used in various applications, including automotive, aerospace, and industrial machinery. They offer high power density, compact design, and versatility in achieving different speed ratios. This article will delve into the basics of planetary gearboxes, their operational modes, and how they can provide multiple speeds.

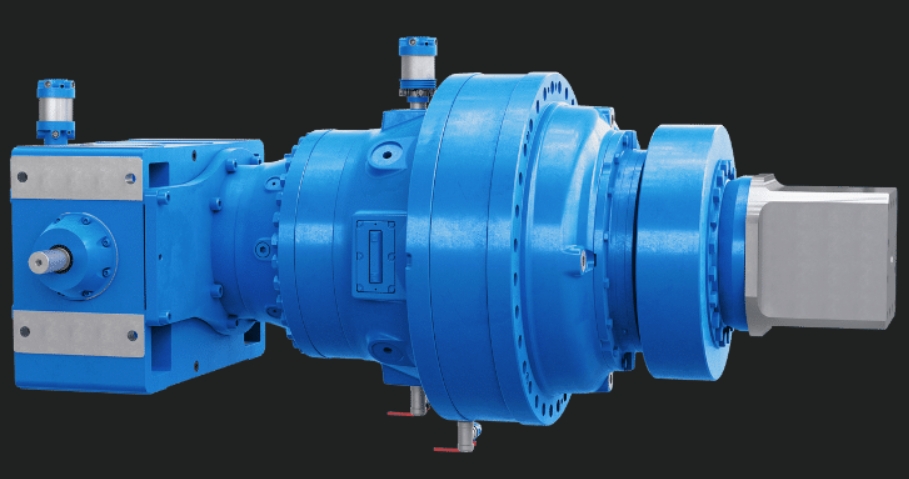

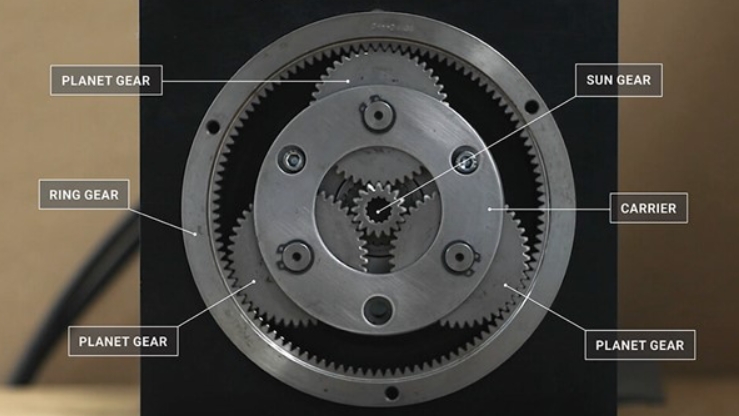

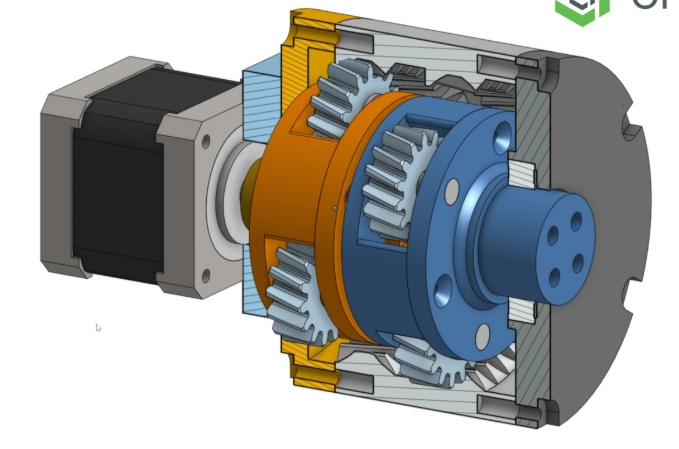

A planetary gearbox consists of four main components: the sun gear, planet gears, carrier, and ring gear. The sun gear is typically the central gear, while the planet gears orbit around it and mesh with both the sun gear and the ring gear. The carrier holds the planet gears in place and rotates with them.
- Sun Gear: The central gear that drives the planetary gears.
- Planet Gears: These are the gears that orbit around the sun gear and mesh with both the sun and ring gears.
- Carrier: Holds the planet gears and rotates with them.
- Ring Gear: The outer gear with inward-facing teeth that mesh with the planet gears.
Planetary gearboxes can operate in several modes depending on which component is fixed and which serves as the input or output. These modes allow for different speed ratios:
1. Fixed Carrier: The carrier is held stationary, and the sun gear serves as the input. This configuration provides a high reduction ratio.
2. Fixed Ring Gear: The ring gear is fixed, and the sun gear is the input. This setup is commonly used in automatic transmissions for vehicles.
3. Fixed Sun Gear: The sun gear is fixed, and the carrier serves as the input. This mode is less common but can be used for specific applications.
Planetary gearboxes can achieve multiple speeds by combining different operational modes and by using multiple stages. Each stage can provide a specific speed reduction ratio, and by connecting these stages in series, the total reduction ratio becomes the product of all stages.
- Single Stage: Provides a fixed reduction ratio, typically up to 10:1.
- Multi-Stage: Offers higher reduction ratios by cascading multiple single-stage gearboxes. For example, two stages can provide a 100:1 reduction.
Planetary gearboxes offer several advantages over traditional gear systems:
- High Power Density: They can handle high torque in a compact design.
- Multiple Speed Ratios: By fixing different components, various speed ratios can be achieved.
- Efficient Energy Transfer: The load is distributed across multiple gear surfaces, reducing wear and increasing efficiency.
Planetary gearboxes are used in a wide range of applications due to their versatility and efficiency:
- Automotive: In automatic transmissions and hybrid vehicles. They provide multiple gear ratios for efficient power transmission, which is crucial in the limited space within a vehicle's transmission system[1].
- Industrial Machinery: In conveyor systems, mixers, and other machinery where precise control of speed and torque is necessary. Their ability to handle heavy loads while maintaining efficiency makes them indispensable in industrial applications[1][5].
- Aerospace and Aviation: In landing gear systems, actuators, and satellite deployment systems. The lightweight and compact nature of these gearboxes make them well-suited for aerospace applications where minimizing weight is critical for fuel efficiency and overall performance[1].
- Renewable Energy: In wind turbines and solar tracking systems. In wind turbines, they help optimize the rotational speed of the generator to produce electricity efficiently. Solar tracking systems use planetary gearboxes to adjust the position of solar panels, maximizing their exposure to sunlight throughout the day[1][5].
- Robotics and Automation: The precision and reliability of planetary gearboxes make them a preferred choice in robotics and automation. Robotic arms, CNC machines, and automated manufacturing systems often incorporate planetary gears to ensure accurate and controlled movements[1][5].
- Medical Devices: Planetary gear systems are also utilized in various medical devices, such as diagnostic equipment, imaging devices, and robotic surgical systems. Their ability to provide precise motion control and their compact design make them suitable for applications where space is limited, and accuracy is paramount[1].
Regular maintenance is crucial for extending the lifespan of planetary gearboxes. This includes:
1. Checking for Loose Parts: Ensure that all components, such as drive shafts and small parts, are securely fastened.
2. Lubricant Monitoring: Regularly check the oil level and ensure the maximum temperature does not exceed 85°C. Abnormal temperature changes or unusual noises require immediate inspection[3][7].
3. Testing New Components: After replacing parts, perform thorough tests before returning the gearbox to service.
Fault diagnosis in planetary gearboxes can be challenging due to the complexity of the system. Recent research has developed simulation-based methods using deep transfer learning to diagnose faults effectively. This approach involves creating a dynamic simulation model of the gearbox to generate fault data, which is then used to train a neural network for real-world fault detection[4][8].
When designing a planetary gearbox, several factors must be considered:
- Planet Carrier Design: The carrier should be designed to minimize weight while maintaining structural integrity. Common designs include star or triangle shapes.
- Bearing Selection: Friction bearings or small ball bearings are typically used for the planet gears. The choice depends on the load and desired efficiency.
Advancements in planetary gearbox technology include the development of advanced materials and designs that improve efficiency and reduce weight. For example, NASA has developed an Advanced In-Line Counter-Rotating Differential Planetary Gearbox for propfan-powered aircraft, which offers significant improvements in fuel efficiency and operating costs.
By 2025, planetary gearboxes will benefit from cutting-edge materials and manufacturing methods. Engineers are exploring lightweight composites and advanced alloys to improve strength without adding bulk. These materials reduce wear and extend the lifespan of the gearbox. Additive manufacturing, like 3D printing, is also revolutionizing production, allowing for precise designs and faster prototyping[2].
Smart technologies are transforming how you interact with machinery. Planetary gearboxes are no exception. By integrating sensors and IoT connectivity, these gearboxes can monitor their own performance in real time. You'll receive alerts for maintenance needs or potential issues before they escalate. This predictive maintenance reduces downtime and improves productivity[2][5].
Sustainability is a priority for industries worldwide. Planetary gearboxes are evolving to meet this challenge. Manufacturers are designing gearboxes that consume less energy while delivering the same performance. Improved lubrication systems and friction-reducing materials contribute to this efficiency[2][5].
Every industry has unique requirements. By 2025, you'll find planetary gearboxes tailored to specific applications. Whether it's a compact design for medical devices or a high-torque model for wind turbines, customization ensures optimal performance. Manufacturers are using modular designs to make this possible[2].
Planetary gearboxes are versatile mechanical systems that can achieve multiple speeds by utilizing different operational modes and multi-stage configurations. Their high power density, efficiency, and compact design make them ideal for various applications. Whether in automotive, aerospace, or industrial settings, planetary gearboxes play a crucial role in providing the necessary speed reductions and torque amplifications.
The main components of a planetary gearbox include the sun gear, planet gears, carrier, and ring gear.
Planetary gearboxes achieve multiple speeds by fixing different components (sun gear, carrier, or ring gear) and using multi-stage configurations.
Advantages include high power density, efficient energy transfer, and the ability to achieve multiple speed ratios.
Common applications include automotive, aerospace, industrial machinery, renewable energy, robotics, and medical devices.
Planetary gearboxes typically have an efficiency of about 97%, with only a 3% loss per stage.
