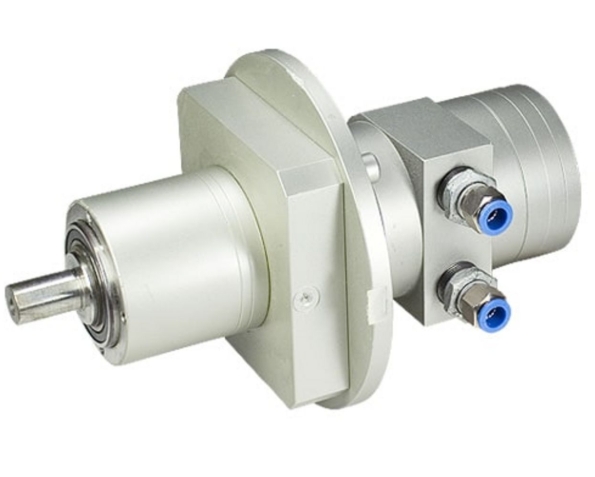

Rotary vane motors are a type of air-powered motor that converts the energy of compressed air into mechanical motion. They are widely used in various industrial and commercial applications due to their reliability, efficiency, and ability to operate in environments where electrical motors may not be suitable. This article will delve into the operational principles, components, and applications of rotary vane motors, providing a comprehensive understanding of how they work.
Rotary vane motors are designed with a cylindrical housing that contains a rotor positioned eccentrically. This rotor has slots or grooves where vanes are placed. These vanes are typically made of metal or composite materials and are free to slide in and out of the rotor slots. The motor operates by utilizing compressed air, which enters through an inlet port and pushes against the vanes, causing the rotor to rotate.
1.Housing (Casing):
- The housing is the outer casing of the motor, serving as a cylindrical chamber where all the components are housed. It provides structural support and protection for the internal mechanisms.
2.Rotor:
- The rotor is the central spindle or driveshaft that rotates due to the force applied by compressed air. It is positioned eccentrically within the housing, meaning it is not centered but slightly offset. This eccentric positioning creates a crescent-shaped chamber that is essential for the motor's operation.
3.Vanes:
- The rotor has slots or grooves where vanes are placed. These vanes are flat or slightly curved blades made of metal or composite materials and are free to slide in and out of the rotor slots. They maintain contact with the inner surface of the housing, creating a seal that is crucial for the motor's efficiency.
4.Inlet and Outlet Ports:
- Compressed air enters the motor through the inlet port and exits through the outlet port. These ports are critical for the continuous operation of the motor, allowing it to cycle and receive fresh compressed air.
5.Stator (Cylinder):
- The stator is the stationary outer cylinder that contains the rotating rotor and vanes. It forms the chamber where the vanes move, creating the pressure differential necessary for rotation.
6.Front and Rear End Plates:
- These plates are part of the housing and help to enclose the rotor and vanes within the cylinder. They provide additional structural support and ensure that the compressed air is directed properly through the motor.

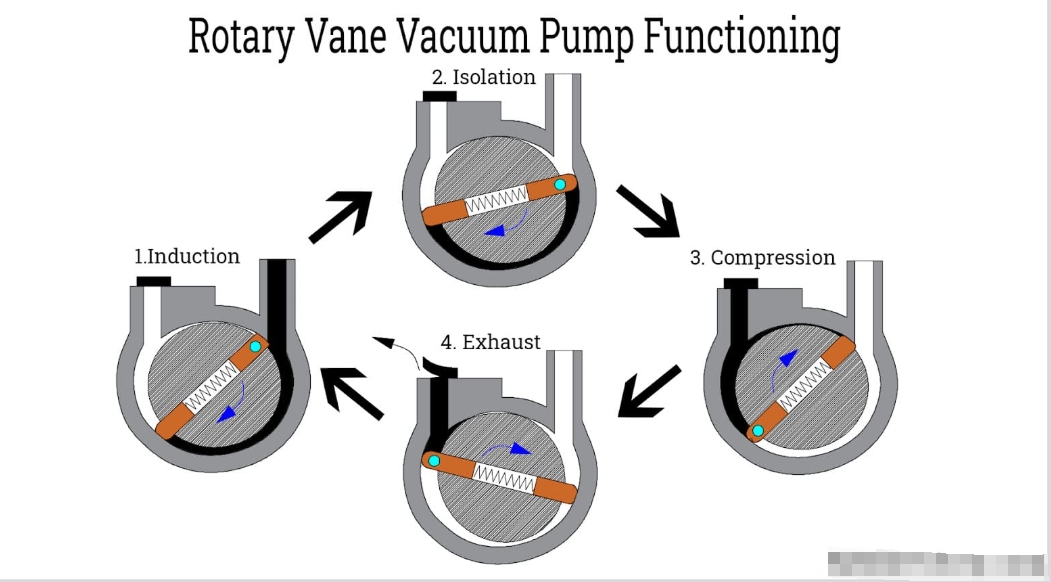

The operational principle of rotary vane motors involves the conversion of compressed air energy into rotational motion. Here's a step-by-step explanation:
1. Air Distribution: Compressed air enters the motor through the inlet port and fills the chambers between the vanes and the housing.
2. Vane Movement: As the air expands, it pushes against the vanes, causing them to move outward due to centrifugal force and the eccentricity of the rotor. This movement maintains contact with the inner surface of the housing, creating a seal.
3. Rotational Force Generation: The expanding air chambers create a pressure differential that drives the rotor to rotate.
4. Output Shaft: The rotational force is transferred to the output shaft, which is connected to the load or mechanical system being driven.
5. Exhaust: After performing work, the compressed air is exhausted through the outlet port, allowing the motor to cycle and receive fresh compressed air.
Rotary vane motors are versatile and used in various applications:
- Industrial Engines: They are used to start large industrial diesel or natural gas engines.
- Handheld Tools: Common in pneumatic tools like drills, sanders, grinders, and cutters.
- Non-Electric Environments: Suitable for environments where electrical power is not available or safe.
- Reliability: They are reliable and require less maintenance compared to other types of motors.
- Efficiency: Efficient in converting compressed air into mechanical energy.
- Safety: Generate less heat, making them safer in volatile environments.
The design of rotary vane motors involves careful consideration of the housing, rotor, vanes, and ports to ensure efficient operation.

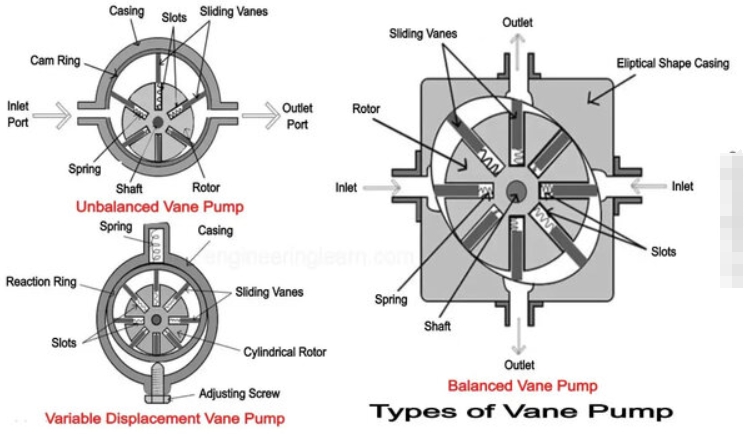

Pneumatic Vane Motor Construction
- Casing: The external housing that contains all components.
- Rotor: Equipped with evenly spaced slots for vanes.
- Vanes: Move freely within the rotor slots, maintaining contact with the housing.
- Stator: The stationary outer cylinder containing the rotor and vanes.
Rotary vane motors offer distinct advantages over other types of motors, particularly in environments where electrical power is not feasible.
| Feature | Rotary Vane Motors | Electric Motors |
|---|---|---|
| Power Source | Compressed Air | Electricity |
| Heat Generation | Low | High |
| Safety | Suitable for volatile environments | Not recommended for volatile environments |
| Maintenance | Low | High |
While rotary vane motors are reliable, occasional issues may arise. Common problems include:
- Air Leaks: Check for leaks in the air supply lines and connections.
- Worn Vanes: Inspect vanes for wear and replace if necessary.
- Clogged Ports: Ensure inlet and outlet ports are clear of debris.
Rotary vane motors are also being integrated into advanced systems, such as:
- Hybrid Systems: Combining pneumatic and electric power for enhanced efficiency.
- Automotive Applications: Used in some vehicles for starting engines or powering accessories.
- Robotics: Employed in pneumatic robots for precise and controlled movements.
Rotary vane motors are generally environmentally friendly due to their low heat generation and lack of electrical components. However, the use of compressed air requires energy for air compression, which can have environmental implications depending on the power source used for the compressor.
To maximize energy efficiency, it is crucial to ensure that the air compressor system is well-maintained and optimized for the specific application. This includes using energy-efficient compressors and minimizing air leaks in the system.
As technology advances, rotary vane motors are expected to see improvements in design and materials, leading to increased efficiency and durability. Additionally, advancements in hybrid systems will continue to enhance their versatility and efficiency in various applications.
Several industries have successfully implemented rotary vane motors to improve efficiency and safety:
- Aerospace: Used in aircraft systems for reliability and safety.
- Manufacturing: Employed in production lines for precise control and efficiency.
- Oil and Gas: Utilized in drilling operations for their ability to operate in hazardous environments.
When considering the use of rotary vane motors, it is important to conduct a cost analysis. This includes the initial cost of the motor, the cost of compressed air production, and maintenance costs over time. While the initial investment may be higher than some alternatives, the long-term reliability and efficiency often justify the expense.
| Feature | Rotary Vane Motors | Electric Motors |
|---|---|---|
| Initial Cost | Higher | Lower |
| Operating Cost | Lower (Efficient Use of Compressed Air) | Higher (Energy Consumption) |
| Maintenance Cost | Lower | Higher |
Rotary vane motors are efficient and reliable devices that convert compressed air into mechanical motion. Their design and operational principles make them suitable for a wide range of applications, from starting large engines to powering handheld tools. Understanding how these motors work can help in optimizing their use and maintenance.
Here are some frequently asked questions about rotary vane motors:
Rotary vane motors operate based on the principle of converting compressed air energy into rotational motion. Compressed air pushes against vanes, causing the rotor to rotate.
The main components include the housing, rotor, vanes, inlet port, and outlet port.
Advantages include reliability, efficiency, low heat generation, and suitability for use in volatile environments.
Rotary vane motors use compressed air, generate less heat, and are safer in volatile environments compared to electric motors.
Common issues include air leaks, worn vanes, and clogged ports. These are addressed by inspecting and replacing parts as needed.
