Accessing and replacing the Whirlpool WP2252130 Ice Auger Drive Motor can be a straightforward DIY task if you have the right tools and follow the correct steps. This article will guide you through the process, providing detailed instructions and visual aids to help you successfully complete the repair.

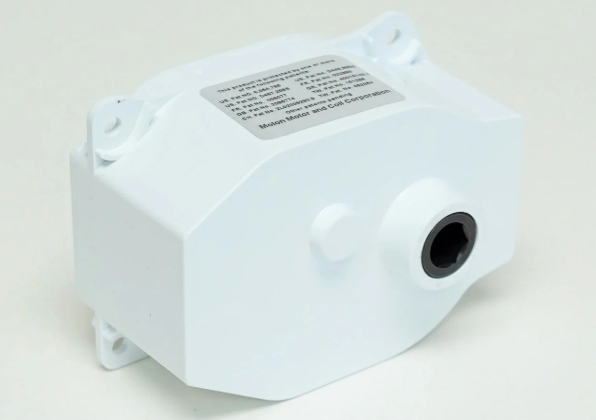

The Whirlpool WP2252130 Ice Auger Drive Motor is a crucial component in many Whirlpool refrigerators, responsible for dispensing ice cubes and crushed ice through the door-mounted dispenser. If this motor fails, you might notice symptoms such as the auger not turning or ice not being dispensed. Replacing the motor can save you money compared to hiring a professional, and with the right guidance, it's a task you can accomplish on your own.
Before starting, ensure you have the following tools:
- 1/4" nut driver
- Phillips screwdriver
- Pliers (for handling wires or other components)
- Multimeter (for testing electrical continuity)
Ensure the refrigerator is unplugged from the power source to avoid any electrical shocks during the repair. Move the refrigerator away from the wall if necessary to access the back panel.
Slide out the ice bucket assembly from the freezer door. This will give you access to the auger motor. Be careful not to spill any ice or water during this process.
Locate the wire harness connected to the auger motor and disconnect it. Take a photo of the wiring for reference when reconnecting later. This step is crucial to ensure you reconnect the wires correctly.
Identify the screws holding the auger motor in place. Use a nut driver or screwdriver to remove these screws. Be sure to keep track of the screws as they may be needed for reassembly.
Carefully lift the auger motor out of its mounting bracket. If it's stuck, gently rock it back and forth until it comes loose. Be cautious not to damage any surrounding components.
If you're unsure whether the motor is faulty, perform a continuity test using a multimeter. Set the multimeter to the ohms or resistance setting and touch the probes to each terminal of the motor. A resistance between 5 and 20 ohms indicates the motor is functioning; otherwise, it may be faulty.
1. Acquire a Replacement Motor: Purchase a new WP2252130 Ice Auger Drive Motor from a reliable supplier like AppliancePartsPros or Repair Clinic. Ensure it's compatible with your refrigerator model.
2. Install the New Motor: Align the new motor with its mounting bracket and secure it with the screws you removed earlier. Make sure it's properly seated to avoid any issues.
3. Reconnect the Wire Harness: Refer to your photo and reconnect the wires to the correct terminals. Ensure they are securely connected to prevent any electrical issues.
4. Reassemble the Ice Bucket: Slide the ice bucket assembly back into place. Ensure it's properly aligned and securely fastened.
For a visual guide, you can watch this video tutorial on replacing the Whirlpool Ice Auger Drive Motor:
- Faulty Micro Switch: If the micro switch is faulty, it won't send power to the motor, preventing the dispenser from working. Check the switch for any signs of damage or wear.
- Control Board Issues: Problems with the control board can also prevent the dispenser from functioning. Check for any error codes or consult your user manual for troubleshooting steps.
- Ice Buildup: Excessive ice buildup can jam the auger, preventing it from turning. Regularly clean the dispenser and ice bucket to prevent this issue.
- No Ice Dispensing: Check if the ice bucket is empty or if there's an ice jam. Ensure the dispenser switch is functioning correctly.
- Unusual Noises: If the motor is making unusual noises, it may be failing or jammed. Check for any blockages or debris.
- Always unplug the refrigerator before starting repairs to avoid electrical shock.
- Use protective gloves and safety glasses when handling tools and components.
- Consult your user manual for specific safety guidelines related to your refrigerator model.
You can purchase replacement parts from online retailers like AppliancePartsPros or Repair Clinic. These sites offer genuine OEM parts with fast shipping and return policies.
- Use OEM Parts: Ensure that any replacement parts are genuine OEM to maintain the manufacturer's warranty and ensure compatibility.
- Follow Instructions: Always follow the instructions provided with the replacement part or consult online resources for specific guidance.
- Test After Installation: After replacing the motor, test the dispenser to ensure it's working correctly.
In addition to the auger motor, other parts that may need replacement include:
- Auger Motor Drive Shaft: This part is crucial for the proper functioning of the auger motor. If damaged, it can prevent ice from being dispensed[3].
- Ice Dispenser Chute Door: This part helps control the flow of ice through the dispenser. If faulty, it may not open or close properly[5].
For those interested in DIY repairs, there are several resources available:
- YouTube Tutorials: Channels like Repair Clinic and AppliancePartsPros offer detailed video tutorials on various appliance repairs, including refrigerator auger motor replacements[1][4].
- Online Forums: Websites like iFixit provide guides and forums where users can share their experiences and tips on DIY repairs[7].
Regular maintenance can extend the life of your refrigerator's components:
- Clean the Dispenser: Regularly clean the ice dispenser and chute to prevent ice buildup.
- Check for Wear: Inspect parts like the auger motor drive shaft for signs of wear or damage[3].
Replacing the Whirlpool WP2252130 Ice Auger Drive Motor is a manageable DIY project that can save you money and get your ice dispenser working again. Ensure you follow safety precautions and consult your refrigerator's manual for specific instructions.
- 1/4" nut driver
- Phillips screwdriver
- Pliers
- Multimeter (for testing)
The replacement process typically takes between 15 to 30 minutes, depending on your familiarity with the task.
Symptoms include the auger not turning or ice not being dispensed from the door-mounted dispenser.
Yes, use a multimeter to perform a continuity test. If there's no continuity or the resistance is significantly off, the motor is likely faulty.
You can purchase a replacement WP2252130 Ice Auger Drive Motor from online retailers like AppliancePartsPros or Repair Clinic.
