Planetary gearboxes are complex mechanisms used in various applications, including automotive transmissions, industrial machinery, and robotics. They offer versatile speed variations and are known for their compact design and high efficiency. Calculating the gear ratio of a planetary gearbox is crucial for understanding the relationship between input and output speeds. In this article, we will delve into the principles of planetary gear systems, explore different scenarios for calculating gear ratios, and provide examples and illustrations to help clarify the process.

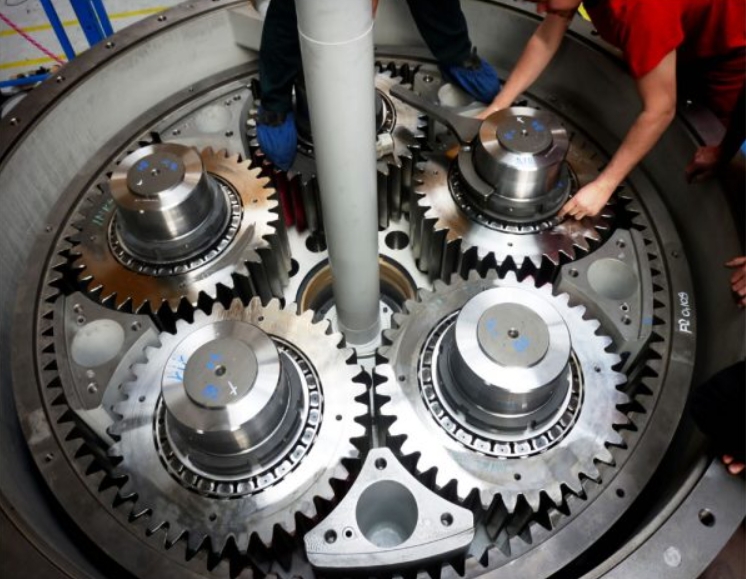

A planetary gear system consists of three main components: the sun gear, planet gears, and ring gear. The planet gears are mounted on a carrier, which rotates around the sun gear. This arrangement allows for multiple configurations, enabling the system to function as a speed reducer or multiplier.
- Sun Gear (S): The central gear that drives the system.
- Planet Gears (P): Gears that rotate around the sun gear and mesh with both the sun and ring gears.
- Ring Gear (R): The outer gear that encloses the planet gears.
- Carrier (C): The component that holds the planet gears and rotates around the sun gear.
For a planetary gear system to function correctly, all gears must have the same pitch (tooth spacing). The primary constraint is given by the equation:
R = 2P + S
where R is the number of teeth on the ring gear, P is the number of teeth on each planet gear, and S is the number of teeth on the sun gear.
To visualize this relationship, consider a system with a ring gear having 42 teeth, a sun gear with 18 teeth, and planet gears with 12 teeth each. Applying the constraint:
42=2×12+18
This equation ensures that the gears mesh properly and maintain the same pitch.
The gear ratio in a planetary gearbox depends on the configuration of the system. Here are three common scenarios:
In this setup, the carrier is the input, and the sun gear is stationary. The gear ratio is calculated as:
Gear Ratio=R/S
However, this formula simplifies to a specific case. Generally, when the carrier is the input, and the sun gear is stationary, the formula considering the turns of each component is more accurate:
(R+S)×Tc=R×Tr+S×Ts
Since Ts = 0 (sun gear is stationary), the equation simplifies, but the actual gear ratio calculation involves understanding the relationship between the components' turns.
When the sun gear drives the system, and the ring gear is stationary, the gear ratio is:
Gear Ratio=R/S
This scenario is commonly used in speed reduction applications. For example, if the sun gear has 20 teeth and the ring gear has 60 teeth, the gear ratio is 60/20 = 3.
In this configuration, the carrier is stationary, and the ring gear drives the system. The gear ratio is calculated as:
Gear Ratio=S/R
This setup is less common but can be used in specific applications where the ring gear's motion is desired.
The Willis equation provides a comprehensive way to calculate transmission ratios in planetary gears:
nr × zr=nc×(zr+zs)−zs×ns
where n denotes rotational speed, and z denotes the number of teeth on each gear.
This equation can be rearranged to solve for different scenarios, depending on which component is fixed or rotating.
Planetary gearboxes are widely used in automotive transmissions, robotics, and industrial machinery due to their compact size and versatility.
Suppose we have a planetary gearbox with the following specifications:
- Sun Gear Teeth: 20
- Planet Gear Teeth: 30
- Ring Gear Teeth: 60
Using the formula for the gear ratio when the sun gear is the input and the ring gear is stationary:
Gear Ratio=(R+S)/S=(60+20)/20=4
This means for every revolution of the sun gear, the output (carrier or ring gear, depending on the configuration) will rotate at a speed reduced by a factor of 4.
To achieve high gear ratios, multiple stages of planetary gears are often used. For instance, using two stages with a 10:1 ratio each can result in a total gear ratio of 100:1. This approach is more practical than trying to achieve high ratios with a single stage, as it avoids the need for excessively large gears.
A drill might use a planetary gearbox with two stages to achieve a high gear ratio. The first stage could have a sun gear with 9 teeth and a ring gear with 45 teeth, resulting in a 6:1 ratio. By connecting the output of the first stage to the input of the second stage, another 6:1 reduction can be achieved, resulting in a total ratio of 36:1.

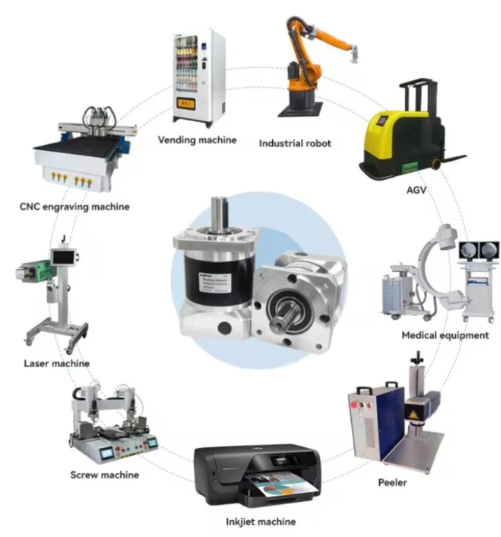

Planetary gearboxes are used in a wide range of applications:
- Automated Guided Vehicles (AGVs): Planetary gearboxes are used in AGVs for wheel hub drives, providing compact designs and high output torque[1][7].
- Mobile Satellite Receivers: Two-stage planetary gearboxes are used to reduce torsional backlash, ensuring precise positioning and signal quality[1][7].
- Industrial Machinery: Planetary gearboxes are used in conveyor systems, mixers, and other machinery where varying speeds and high torque are necessary[1][9].
- Aerospace Applications: Lightweight and compact planetary gearboxes are used in aircraft landing gear systems[1][8].
- Renewable Energy: Planetary gearboxes play a crucial role in wind turbines and solar tracking systems[1][4].
When designing a planetary gearbox, several factors must be considered:
- Efficiency: Planetary gearboxes are highly efficient, with about 97% of the input energy being delivered as output[4].
- Compactness: Their compact design makes them ideal for applications where space is limited[2].
- Torque Capacity: The ability to distribute load across multiple planet gears allows for high torque transmission in a compact package[2].
In recent years, genetic optimization techniques have been applied to design planetary gearboxes. These methods involve using algorithms to select optimal gear ratios and tooth counts based on performance criteria such as efficiency and torque capacity.
The choice of materials for planetary gears is crucial. Common materials include steel alloys for their strength and durability. However, in applications where weight is a concern, such as aerospace, lighter materials like aluminum or titanium may be used[4].
Efficient lubrication and cooling systems are essential for maintaining the longevity and performance of planetary gearboxes. Proper lubrication reduces friction and wear, while cooling systems prevent overheating, which can lead to premature failure[4].
In applications where noise is a concern, such as in consumer electronics or medical devices, planetary gearboxes can be designed with noise reduction features. This might involve using specialized materials or coatings to dampen vibrations[4].
Genetic algorithms are used to optimize planetary gearbox designs by iteratively selecting parameters that meet specific performance criteria, such as maximizing efficiency or minimizing size[4].
FEA is a powerful tool for simulating the stress and strain on gears under various loads. This helps engineers optimize gear shapes and materials to ensure durability and performance[4].
CAD software allows for the rapid prototyping and testing of different gearbox configurations. This streamlines the design process and enables quick iteration based on simulation results[4].
As technology advances, planetary gearboxes are likely to see improvements in materials, design methodologies, and application areas. For instance, advancements in 3D printing could enable the creation of complex gear geometries that enhance performance and efficiency[4].
In electric vehicles, planetary gearboxes are used to optimize the powertrain efficiency. By adjusting gear ratios, manufacturers can ensure that the electric motor operates within its most efficient range, enhancing vehicle performance and range[8].
Planetary gearboxes are also used in wind turbines to step up the rotational speed of the turbine blades to match the generator's optimal speed. This setup maximizes energy production while minimizing mechanical stress[4].
In robotics, planetary gearboxes are used to achieve precise motion control. Their compact size and high torque capacity make them ideal for robotic arms and grippers, allowing for precise manipulation of objects[3][6].

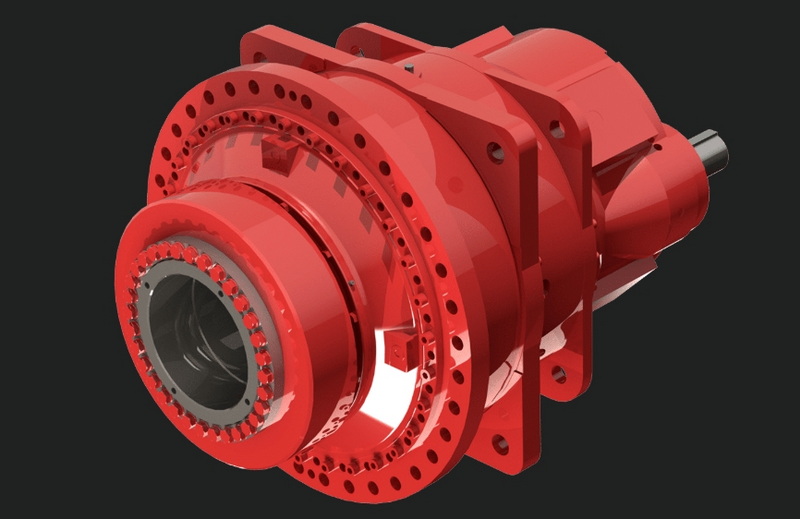

Planetary gearboxes come in various types, each suited to different applications:
- Single-Stage Planetary Gearbox: Ideal for applications requiring moderate torque and speed control, such as conveyors and pumps[5].
- Multi-Stage Planetary Gearbox: Used in demanding industries where high torque output and greater reduction ratios are needed, such as track drives and winch drives[5].
- In-Line Planetary Gearbox: Features a compact design with coaxial input and output shafts, commonly used in wheel drives and hoist drives[5].
- Offset Planetary Gearbox: Offers flexible mounting options, suitable for applications with space constraints or misalignment issues[5].
Calculating the gear ratio of a planetary gearbox involves understanding the system's components and their relationships. By applying the correct formulas based on the configuration, engineers can design efficient and effective gear systems for various applications. Whether used in automotive transmissions, industrial machinery, or robotics, planetary gearboxes offer a versatile solution for speed variation and torque multiplication.
The main components of a planetary gear system are the sun gear, planet gears, and ring gear, with the planet gears mounted on a carrier.
The gear ratio is calculated as R/S , where R is the number of teeth on the ring gear and S is the number of teeth on the sun gear.
The Willis equation is nr × zr=nc×(zr+zs)−zs×ns denotes rotational speed, and z denotes the number of teeth on each gear.
Planetary gearboxes are commonly used in automotive transmissions, industrial machinery, and robotics due to their compact size and versatility[1][8].
The number of teeth on each gear is determined by the system's design requirements and the constraint R = 2P + S , ensuring proper meshing and pitch consistency.
