Planetary gearboxes are complex yet fascinating mechanical systems used in a wide range of applications, from robotics and industrial machinery to automotive transmissions. Their compact design and high efficiency make them ideal for applications requiring high torque and low speed. In this article, we will delve into the principles of planetary gearboxes, explore their components, and guide you through the process of designing one.

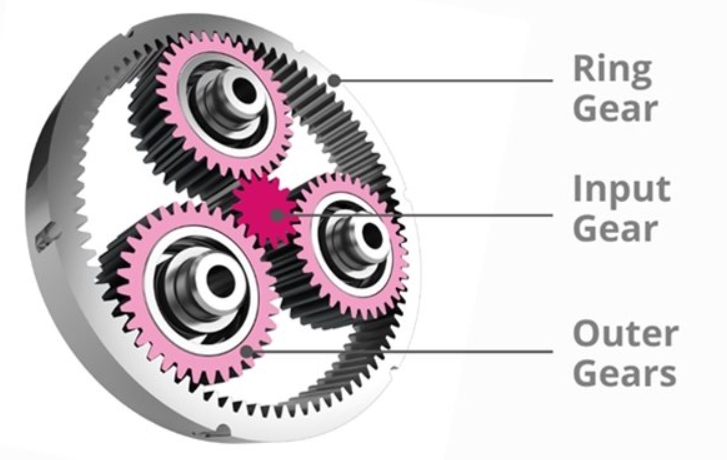

A planetary gearbox consists of four main components:
1. Sun Gear: The central gear that typically serves as the input.
2. Planet Gears: These orbit around the sun gear and are mounted on a carrier.
3. Ring Gear: An internally toothed gear that encloses the planet gears.
4. Carrier: Connects the planet gears and serves as the output in most configurations.
- Sun Gear: Drives the planet gears, which then rotate around it.
- Planet Gears: Distribute the load across multiple gears, enhancing torque output.
- Ring Gear: Provides the outer boundary for the planet gears to rotate within.
- Carrier: Transfers the rotational motion of the planet gears into a single output shaft.

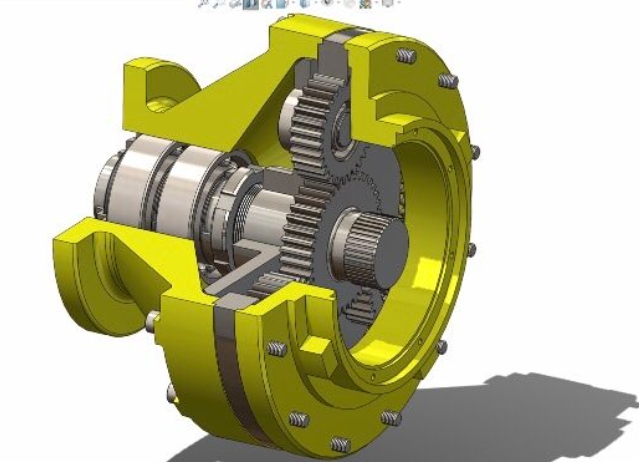

Designing a planetary gearbox involves several steps, including determining the gear ratio, selecting materials, and ensuring proper meshing of gears.
The gear ratio is crucial for achieving the desired output speed and torque. Common ratios range from 3:1 to 10:1 for a single-stage gearbox. For higher ratios, multiple stages can be used.
Example: To achieve a 15:1 ratio, you might use two stages with a 4:1 ratio each.

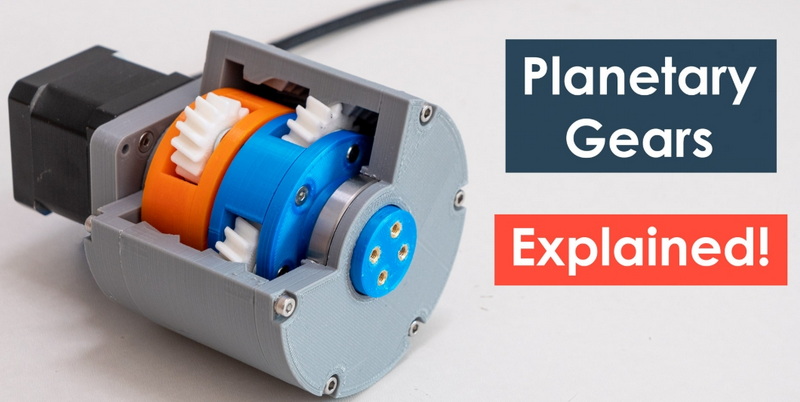

Materials should be durable and suitable for the application. Common materials include steel, aluminum, and sometimes 3D printed plastics for prototypes.
Gears must mesh smoothly to avoid vibration and wear. The number of teeth on the sun and ring gears should be chosen to ensure even spacing of the planet gears.
Rule 1: The ring gear teeth number should equal the sun gear teeth plus twice the planet gear teeth.
Rule 2: The sum of the sun and ring gear teeth divided by the number of planets should be a whole number.
The carrier must support the planet gears securely. It should be designed to minimize weight while maintaining structural integrity.
Once all components are designed, assemble the gearbox and test it for backlash and torque output.
Advanced planetary gearbox designs often incorporate innovative features to enhance efficiency and reliability. For instance, NASA has developed advanced differential planetary gear systems with high contact ratio gear tooth forms and straddle-mounted prop shaft/ring gear support bearings. These designs are superior in reliability, efficiency, maintenance, and acquisition cost[1].
Differential planetary gear systems offer enhanced performance by allowing for more complex gear ratios and improved load distribution. They are particularly useful in applications requiring high torque and precision control, such as in aerospace and automotive industries.
High contact ratio gears improve the efficiency of the gearbox by reducing the impact of tooth wear and misalignment. This design feature is crucial for maintaining smooth operation over extended periods.
Straddle-mounted support bearings provide additional stability to the gearbox by positioning the bearings on either side of the gear set. This arrangement helps in reducing vibration and enhancing the overall durability of the gearbox[1].
- Gear Meshing: Ensuring smooth meshing to avoid vibration and wear.
- Material Selection: Choosing materials that balance durability and cost.
- Assembly Complexity: The intricate design requires precise assembly techniques.
Planetary gearboxes are used in a variety of applications due to their compact design and high efficiency:
- Automotive Transmissions: For smooth gear shifting and high torque.
- Industrial Machinery: Conveyors, pumps, and mixers benefit from their high efficiency.
- Robotics: Compact design and high torque make them suitable for robotic arms.
In aerospace, planetary gearboxes are used in propfan engines to achieve high efficiency and reliability. NASA's advanced gearbox technology includes designs like the in-line counter-rotating differential planetary gearbox, which offers significant improvements in fuel burn and operating costs[1].
- High Efficiency: Planetary gearboxes are highly efficient, with energy losses minimized due to the compact design.
- Compact Design: Ideal for applications where space is limited.
- High Torque Output: The distribution of load across multiple planet gears allows for high torque output.
Progress in materials and manufacturing has significantly advanced gearbox technology. The transition from wood to steel and the advent of precision engineering have enabled the creation of intricate designs that were once impossible. Computer-aided design (CAD) software has been instrumental in this evolution, allowing for complex designs and simulations[2].
Robotics and automation have further pushed the boundaries of planetary gearbox technology. These gearboxes are now more compact, efficient, and reliable, playing a central role in machines that build, move, and shape our world. From assembly lines to space exploration, planetary gearboxes are ubiquitous[2].
The future of planetary gearboxes involves advancements in materials and design. Lightweight materials such as carbon fiber composites are being explored to enhance durability and reduce weight. Additionally, the integration of IoT and smart technologies will improve maintenance and efficiency by enabling real-time monitoring of gearbox performance[4][7].
IoT sensors can monitor parameters like lubrication levels, vibration, and temperature, allowing for predictive maintenance and reduced downtime. This approach is particularly beneficial in industries where continuous operation is critical[7].
The use of lightweight materials is crucial in applications where weight reduction is essential, such as in electric vehicles and aircraft. These materials not only enhance efficiency but also contribute to environmental sustainability by reducing energy consumption[4][7].
Every industry has unique requirements. By 2025, planetary gearboxes will be tailored to specific applications. Whether it's a compact design for medical devices or a high-torque model for wind turbines, customization ensures optimal performance. Manufacturers are using modular designs to make this possible, allowing users to select components that match their exact needs[4].
Designing a planetary gearbox requires careful consideration of gear ratios, materials, and assembly techniques. By understanding the principles and challenges involved, engineers can create efficient and reliable gearboxes for a variety of applications.
A planetary gearbox consists of a sun gear, planet gears, a ring gear, and a carrier.
Different gear ratios are achieved by changing which component is stationary and which serves as the input or output. For example, holding the ring gear stationary while using the sun gear as input gives one ratio, while holding the sun gear stationary and using the ring gear as input gives another.
Planetary gearboxes offer high efficiency, compact design, and high torque output, making them ideal for applications where space is limited and high torque is required.
Common materials include steel, aluminum, and sometimes 3D printed plastics for prototypes.
Proper meshing is ensured by following design rules that ensure even spacing of planet gears and smooth interaction between gears. This includes selecting tooth numbers that allow for balanced load distribution.
