Planetary gearboxes are complex mechanical systems used to achieve high torque and speed reduction in a compact design. They are widely used in various industries, including automotive, aerospace, and industrial machinery. Designing a planetary gearbox requires a deep understanding of its components, working principles, and design constraints. This article will guide you through the process of designing a planetary gearbox, including its components, design rules, and applications.

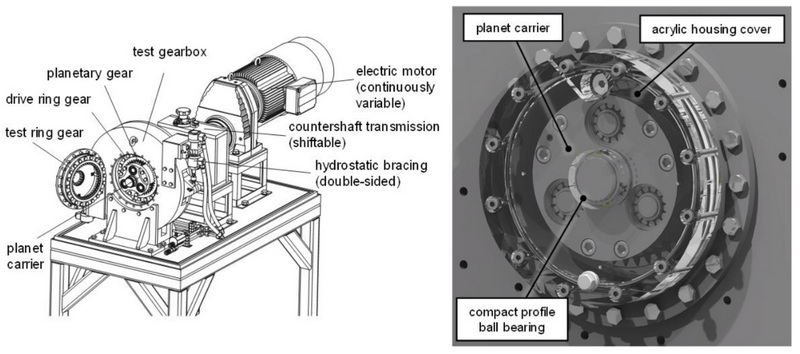

A planetary gearbox consists of four main components: the sun gear, planet gears, ring gear, and carrier. The sun gear is typically the input, driving the planet gears, which are mounted on a carrier. The ring gear encloses the planet gears and determines their orbit. The carrier connects the planet gears and transfers their motion into a single output shaft.
- Sun Gear: The central gear that receives the input power.
- Planet Gears: These gears orbit around the sun gear and mesh with both the sun and ring gears.
- Ring Gear: An internally toothed gear that surrounds the planet gears.
- Carrier: Holds the planet gears and converts their motion into output.
The working principle of a planetary gearbox involves the interaction between its components to achieve different gear ratios. By holding different components stationary and using others as inputs, various output ratios can be obtained.

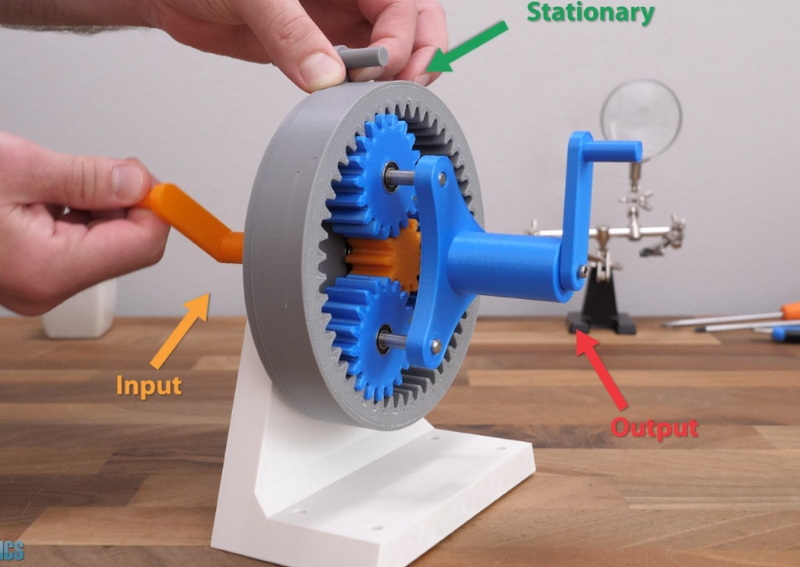

If the sun gear is the input and the ring gear is held stationary, the planet carrier will rotate at a reduced speed. This setup is commonly used for speed reduction and torque multiplication.
Designing a planetary gearbox involves several steps, including determining the gear ratio, selecting materials, and ensuring proper meshing between gears.
The gear ratio is determined by the number of teeth on the sun and ring gears. For a simple planetary gearbox, the ratio can be calculated using the formula:
Gear Ratio=Ring Teeth/Sun Teeth+1
For example, if the ring gear has 45 teeth and the sun gear has 15 teeth, the gear ratio is45/15+1=4:1.
Materials for planetary gearboxes should be chosen based on strength, durability, and weight considerations. Common materials include hardened steel for high strength and aluminum for lightweight designs. Plastic gears are also used in some applications, offering lighter weight and quieter operation.
Proper meshing between gears is crucial for smooth operation. The ring gear teeth number should be equal to the sun gear teeth plus twice the planet gear teeth. Additionally, the sum of the sun and ring gear teeth divided by the number of planet gears should be a whole number to ensure equal spacing.
Design Rule:
- Ring Gear Teeth = Sun Gear Teeth + 2 * Planet Gear Teeth
-(Sun Gear Teeth+Ring Gear Teeth)/Number of Planet Gears=Whole Number

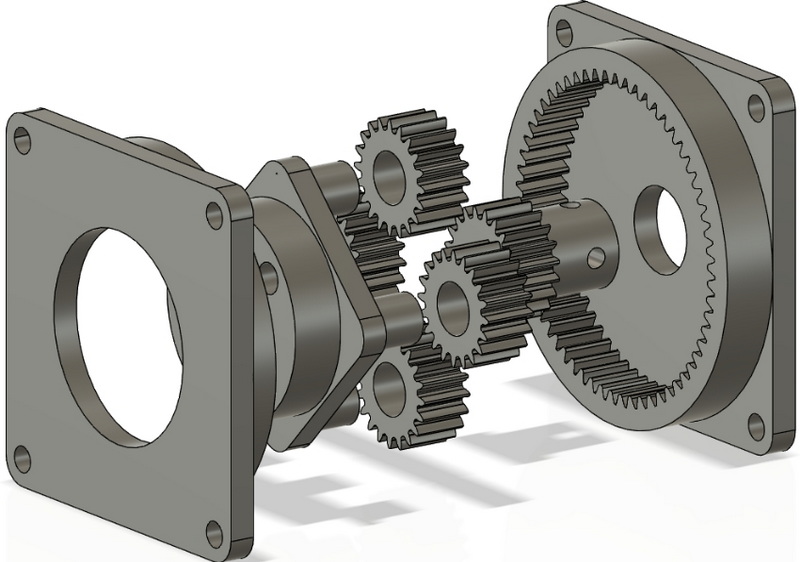

Use CAD software to model your gearbox and simulate its operation. This helps ensure that all components fit together correctly and function as intended.
Software Tools:
- Onshape for 3D modeling
- Autodesk Inventor for detailed design
Planetary gearboxes are used in various applications due to their compact design and high torque capabilities.
- Conveyors: Used in material handling systems for speed reduction and torque multiplication.
- Pumps: Provide high torque for pumping heavy fluids.
- Mixing Machines: Used in food processing and chemical industries.
- Automatic Transmissions: Multiple planetary gear sets are used to achieve different gear ratios.
- Electric Vehicles: Compact design suits electric motor applications.
- Robotics: High precision and compactness make them ideal for robotic systems.
- Satellite Systems: Used for precise positioning and control.
Despite their advantages, designing planetary gearboxes poses several challenges.
Compact designs can lead to overheating, especially during prolonged operation.
Limited space for bearings can restrict the choice of bearing types, affecting axial load capacity.
Complex designs increase manufacturing costs compared to simpler gear systems.
Recent advancements include the use of high contact ratio gear tooth forms, which improve load-carrying ability and efficiency. Additionally, advanced materials such as carbon fiber-reinforced composites are being explored to enhance durability and reduce weight.
The integration of IoT and smart technologies into planetary gearboxes is transforming maintenance practices. Sensors can monitor parameters like lubrication levels, vibration, and temperature, enabling predictive maintenance and reducing downtime.
In aerospace applications, planetary gearboxes are used in propfan-powered aircraft to achieve high efficiency and reliability. NASA has developed advanced in-line counter-rotating differential planetary gearboxes that offer significant improvements in fuel burn and operating costs.
In industrial automation, planetary gearboxes are combined with servo motors to achieve high precision and torque density. This setup is widely used in machine tools and semiconductor manufacturing.
The future of planetary gearboxes is shaped by trends towards miniaturization, customization, and sustainability. The demand for lightweight and compact designs is increasing, particularly in robotics and renewable energy applications.
Innovations in materials, such as advanced polymers and lightweight composites, are enhancing the performance and efficiency of planetary gearboxes. These advancements are crucial for meeting the growing demand for energy-efficient solutions.
Materials for planetary gearboxes are selected based on their strength, durability, and weight. Hardened steel is commonly used for its high strength and long service life, while aluminum is preferred for lightweight designs. Plastic gears are also used, especially in applications where noise reduction is critical.
Lubrication is crucial for the smooth operation of planetary gearboxes. Specific greases are designed for different operating conditions, including extreme temperatures and vacuum environments. The lubrication system should be designed to last the entire service life of the gearbox, eliminating the need for relubrication.
Differential planetary gear systems offer superior reliability and efficiency. They are designed with features like high contact ratio gear tooth forms and advanced bearing configurations, making them suitable for demanding applications such as aerospace.
The trend towards miniaturization and customization is driving innovation in planetary gearbox design. Smaller, more efficient gearboxes are being developed for use in robotics and portable machinery, where space and weight are critical factors.
The integration of IoT sensors and predictive maintenance technologies is transforming the way planetary gearboxes are maintained. Real-time monitoring of parameters like vibration and temperature allows for proactive maintenance, reducing downtime and extending gearbox life.
There is a growing focus on sustainable materials and designs in planetary gearboxes. The use of lightweight composites and advanced polymers not only enhances performance but also contributes to environmental sustainability by reducing energy consumption and material waste.
Understanding the dynamics of planetary gearboxes is essential for optimizing their performance. This involves analyzing factors such as gear mesh stiffness, bearing loads, and vibration modes. Advanced simulation tools like finite element analysis (FEA) are used to model these dynamics and predict potential issues before manufacturing.
Gear mesh stiffness affects the overall efficiency and noise level of the gearbox. Higher stiffness leads to smoother operation but may increase stress on the gears.
Bearing loads are critical in determining the lifespan of the gearbox. Proper bearing selection and design ensure that axial and radial loads are managed effectively.
Vibration analysis helps identify potential resonance frequencies that could lead to gearbox failure. Design modifications can be made to avoid these frequencies and ensure stable operation.
Designing a planetary gearbox requires careful consideration of its components, gear ratios, and operational constraints. By understanding the working principles and design rules, engineers can create efficient and reliable planetary gearboxes for various applications. The compact design and high torque capabilities of planetary gearboxes make them indispensable in modern machinery.
A planetary gearbox consists of a sun gear, planet gears, ring gear, and carrier. Each component plays a crucial role in achieving the desired gear ratio and torque output.
Different gear ratios are achieved by holding different components stationary and using others as inputs. For example, using the sun gear as input with a fixed ring gear gives a different ratio than using the ring gear as input with a fixed sun gear.
Planetary gearboxes offer compact design, high torque density, high efficiency (about 97% efficient), and low noise operation. These advantages make them ideal for applications where space is limited and high torque is required.
Planetary gearboxes are used in industrial machinery (conveyors, pumps), automotive systems (automatic transmissions, electric vehicles), and aerospace (robotics, satellite systems).
Challenges include overheating due to compact design, bearing limitations affecting axial load capacity, and high manufacturing costs due to complex designs.
