Parker vane motors are renowned for their durability, efficiency, and versatility in hydraulic systems. However, like any mechanical component, they require proper maintenance to ensure optimal performance and longevity. This comprehensive guide will walk you through the best practices for maintaining your Parker vane motor and extending its service life.

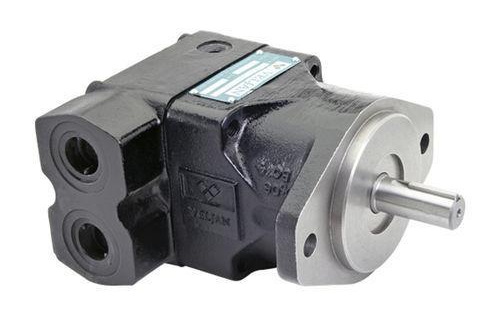

Parker vane motors are hydraulic motors designed for applications requiring high torque at low speeds, quiet operation, and compact design. These motors feature a balanced vane cartridge that ensures smooth operation and minimal noise levels. They are widely used in industries such as construction, agriculture, and manufacturing due to their reliability and efficiency.
Key Features of Parker Vane Motors:
- High starting torque efficiency
- Low noise levels
- Compact design
- Bi-directional rotation capability
- Long working life with proper maintenance
Hydraulic fluid is the lifeblood of your Parker vane motor. Contaminated or degraded fluid can lead to premature wear and reduced efficiency.
- Always use the recommended hydraulic fluid type and viscosity.
- Regularly check the fluid for contamination and replace it as needed.
- Install high-quality filters in your system to prevent dirt and debris from entering the motor.
Operating your vane motor within its specified parameters is crucial for longevity.
- Avoid exceeding the maximum pressure and speed ratings.
- Ensure proper alignment of the motor shaft to prevent undue stress on components.
- Use heat-treated keys for shaft connections to ensure durability.
Frequent inspections can help identify potential issues before they escalate.
- Check for leaks around seals, ports, and fittings.
- Inspect the motor housing for dirt accumulation and clean it regularly.
- Tighten bolts and fittings to the correct torque specifications.
The start-up phase is critical for preventing damage to your Parker vane motor.
- Bleed air from the hydraulic circuit before operation.
- Start the motor at low pressure and speed, gradually increasing as the system stabilizes.
- Ensure all protective plugs are removed before operation.
Over time, certain components may wear out and require replacement.
- Replace seals, vanes, or cartridges showing signs of wear.
- Use genuine Parker replacement parts to maintain performance and warranty compliance.
- Follow manufacturer guidelines for disassembly and reassembly procedures.
Despite regular maintenance, issues may arise. Below are some common problems with Parker vane motors and their solutions:
| Issue | Possible Cause | Solution |
|---|---|---|
| Motor fails to start | Air in the hydraulic circuit | Bleed air from the system |
| Excessive noise | Contaminated fluid or worn vanes | Replace fluid; inspect and replace vanes |
| Leakage around seals | Damaged or worn seals | Replace seals |
| Overheating | High operating pressure or poor cooling | Reduce pressure; improve cooling system |
Ensure your hydraulic system is designed to minimize stress on the motor. For example:
- Use appropriately sized pipes to reduce turbulence.
- Position the reservoir to maintain adequate inlet pressure.
Regularly monitor fluid temperature and viscosity. High temperatures can degrade fluid quality, leading to poor lubrication.
Cavitation occurs when air bubbles form in the hydraulic fluid, causing damage to internal components. To prevent this:
- Maintain proper inlet pressure.
- Avoid sharp bends in piping that could restrict flow.
Rapid pressure cycles can stress the motor. Monitor the gradient of pressure increase and decrease to avoid excessive stress.
Keep essential replacement parts on hand, such as vanes and cam rings, to minimize downtime during repairs.
To better understand these maintenance practices, refer to exploded views of Parker vane motors in service manuals or instructional videos demonstrating start-up procedures. Below is an example of a typical Parker vane motor diagram:
Ensure the hydraulic system is properly primed before operation. This involves cycling the fluid through the system several times to remove air and ensure smooth operation.
Gradually introduce the motor to its operational load, monitoring performance and addressing any anomalies that arise during this process.
Regularly check the motor's operating temperature. If it exceeds the recommended limits, take corrective measures such as improving cooling systems or reducing operating pressure.
Investigate any unusual noise or excessive vibration, which may indicate mechanical issues or misalignment. Address these issues promptly to prevent further damage.
Identify and repair any hydraulic fluid leaks promptly to prevent damage to the motor and surrounding components.
While this guide focuses on vane motors, many principles also apply to hydraulic vane pumps, which are often used in conjunction with these motors. Key maintenance practices for vane pumps include:
- Regular Inspections: Check for wear, damage, or leakage. Daily checks should include fluid level and temperature, while weekly checks involve cleaning filters and ensuring connections are secure.
- Monitoring System Pressure: Ensure pressure remains within recommended ranges to prevent excessive stress on internal components.
- Hydraulic Fluid Change: Follow the manufacturer's schedule for fluid changes to maintain optimal performance and prevent contamination.
In a construction project, regular maintenance of Parker vane motors in hydraulic excavators resulted in a significant reduction in downtime and operational costs. This was achieved through routine fluid checks and timely replacement of worn components.
Agricultural machinery equipped with Parker vane motors experienced extended motor life by adhering to proper start-up procedures and maintaining optimal operating conditions.
In a manufacturing setting, implementing a comprehensive maintenance schedule for Parker vane motors led to improved efficiency and reduced maintenance costs over time.
The field of hydraulic technology is continuously evolving, with advancements in materials and design leading to more efficient and durable components. Future developments may include:
- Advanced Materials: New materials with improved strength-to-weight ratios could enhance motor performance and longevity.
- Smart Systems: Integration of sensors and AI to monitor and optimize hydraulic system performance in real-time.
As environmental regulations become more stringent, hydraulic systems must be designed with sustainability in mind. This includes:
- Eco-Friendly Fluids: Using environmentally friendly hydraulic fluids that are biodegradable and non-toxic.
- Energy Efficiency: Optimizing system design to minimize energy consumption and reduce carbon footprint.
By following these maintenance practices, you can significantly extend the life of your Parker vane motor while ensuring optimal performance. Regular inspections, proper start-up procedures, and adherence to manufacturer guidelines are essential steps in achieving this goal.
Hydraulic fluid should be replaced based on manufacturer recommendations or when contamination is detected during routine checks.
Excessive noise can result from contaminated fluid, worn vanes, or improper installation. Address these issues promptly by replacing fluid or worn components.
It is recommended to use genuine Parker replacement parts to maintain performance and warranty compliance.
Ensure proper inlet pressure, avoid sharp bends in piping, and regularly bleed air from the system.
Check for high operating pressure or inadequate cooling. Reduce pressure if necessary and improve cooling mechanisms.
