Installing a planetary gearbox on a stepper motor is a precise process that requires careful attention to detail. This article will guide you through the steps involved in mounting a planetary gearbox to a stepper motor, highlighting key considerations and providing visual aids where possible.

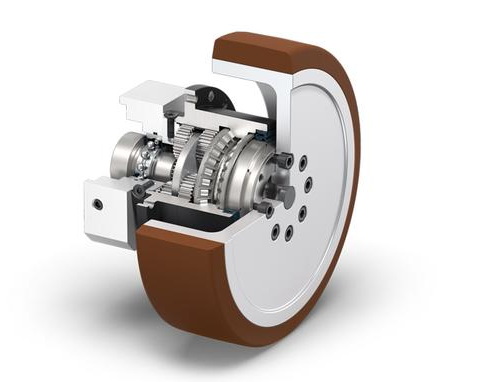

Planetary gearboxes are designed to increase the torque output of a motor while reducing its speed. They consist of a sun gear, planet gears, a ring gear, and a carrier. The unique design allows for multiple configurations, making them versatile for various applications, including robotics and CNC machines.
- Sun Gear: The central gear that drives the planet gears.
- Planet Gears: These orbit around the sun gear and mesh with it and the ring gear.
- Ring Gear: The outer gear that surrounds the planetary gears.
- Carrier: Holds the planetary gears in place and rotates with them.
Before starting the installation, ensure that both the stepper motor and the planetary gearbox are in good condition. Here are some key steps to prepare:
1. Check Compatibility: Ensure the motor's output flange and shaft dimensions match the gearbox's input specifications.
2. Remove Motor Key: If the motor has a key, remove it to facilitate smooth installation.
3. Clean Surfaces: Clean both the motor and gearbox mounting surfaces to prevent any debris from interfering with the installation. Check for any foreign objects in the connection area between the motor and gearbox[1].
Here's a step-by-step guide to installing a planetary gearbox on a stepper motor:
Ensure the motor's output shaft aligns with the gearbox's input shaft. The flanges should be parallel to each other.
Mount the motor to the gearbox using screws. Ensure the screws are tightened evenly to avoid misalignment.
Tighten the screws in a diagonal pattern to ensure even pressure distribution.
Verify that the motor and gearbox remain aligned after tightening.
Apply lubricant to the gears if recommended by the manufacturer.
Planetary gearboxes are used in various applications, including:
- 3D Printing: To increase the torque of extruders.
- CNC Machines: For precise control and increased torque.
- Robotics: To enhance motor performance in robotic arms.
If you're interested in designing a custom planetary gearbox, consider the following:
1. Choose Materials: Select materials that are durable and suitable for your application.
2. Design Software: Use software like Inkscape or CAD tools to design the gearbox components.
3. 3D Printing: Consider using 3D printing for rapid prototyping.
When connecting a planetary gearbox to a motor, several precautions should be taken:
1. Alignment: Ensure the transmission center axis is aligned properly to prevent misalignment and vibration[3].
2. Installation Method: Avoid using rough tools like hammers. Instead, use bolt tightening to secure components[3].
3. Coupling Selection: Avoid using steel fixed couplings as they can be difficult to install and may cause bearing damage[3].
4. Fixation: Ensure the gearbox is securely fixed to prevent vibration and instability[3].
Maintaining a planetary gearbox is crucial for ensuring its longevity and optimal performance:
1. Regular Inspection: Perform routine visual inspections for signs of wear or damage[2][5].
2. Lubrication: Follow the manufacturer's guidelines for lubricant type and intervals[2][5].
3. Oil Analysis: Conduct regular oil sampling and testing to identify potential issues[2].
4. Seal Inspection: Regularly inspect seals to ensure they are intact[2].
Planetary gearboxes can encounter several common problems:
- Noise and Vibration: Often due to misalignment or improper installation.
- Lubrication Issues: Failure to maintain proper lubrication can lead to gear wear.
- Bearing Problems: Overloading or improper installation can damage bearings.
To address these issues, ensure proper installation, maintain regular lubrication, and avoid overloading the gearbox.
If you encounter difficulty starting a planetary gear motor, consider the following causes and solutions:
- Electrical Issues: Ensure proper voltage and current supply. Check for faulty components like windings or connections.
- Mechanical Issues: Inspect for excessive load, damaged gears, or inadequate lubrication.
- Environmental Factors: Avoid extreme temperatures and contaminants.
When designing a custom planetary gearbox, consider the following:
1. Inertia Matching: Ensure the motor and load inertia are matched to optimize performance.
2. Material Selection: Choose materials that are durable and suitable for your application.
3. Backlash and Precision: Select gearboxes with minimal backlash for precise applications.
Planetary gearboxes can be integrated with motors or used separately. Integrated designs offer optimized performance but may limit customization options.
Planetary gearboxes can generate significant heat due to their compact design. Proper cooling measures, such as circulating lubricants through a heat exchanger or using cooling fans, are essential for continuous operation.
When selecting a planetary gearbox, it's crucial to calculate the service factor based on the working duty cycle and load type. This ensures the gearbox operates within its rated capacity and extends its lifespan[6].
Planetary gearboxes are also used in advanced applications such as aerospace and medical devices, where precision and reliability are paramount. In these fields, the gearbox's ability to provide high torque at low speeds is invaluable.
In 3D printing, planetary gearboxes are used to enhance the torque of extruders, allowing for more precise control over the printing process. This results in higher quality prints and faster production times.
In CNC machines, planetary gearboxes provide the necessary torque and precision for milling and cutting operations. Their compact design makes them ideal for applications where space is limited.
In robotics, planetary gearboxes are used in robotic arms to enhance motor performance. They allow for precise movement and control, which is essential for tasks requiring high accuracy.
Planetary gearboxes offer several benefits, including high torque density, high precision, low noise, and high efficiency. They are also versatile and can be customized for various applications, making them suitable for industries ranging from manufacturing to renewable energy.
To ensure long-term performance of planetary gearboxes, follow these maintenance tips:
1. Regular Cleaning: Keep the gearbox and surrounding environment clean to prevent debris from entering the gearbox.
2. Avoid Overloading: Operate the gearbox within its recommended load capacity to prevent premature wear.
3. Proper Lubrication: Regularly check and maintain the lubricant level according to the manufacturer's guidelines.
Installing a planetary gearbox on a stepper motor is a straightforward process when done correctly. It's crucial to ensure compatibility, clean surfaces, and secure the components properly. With the right tools and knowledge, you can enhance your motor's performance significantly.
The main components include the sun gear, planet gears, ring gear, and carrier.
Ensure the motor's output shaft aligns with the gearbox's input shaft, and the flanges are parallel. Use proper couplings to maintain alignment.
Common applications include 3D printing, CNC machines, and robotics.
Yes, you can design your own using CAD software and materials like 3D printed plastics or metals.
Benefits include increased torque, reduced speed, and high efficiency.
