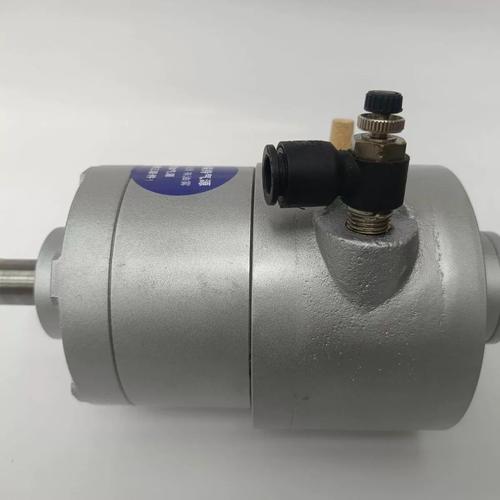

Hydraulic vane motors are a crucial component in hydraulic systems, converting hydraulic energy into mechanical rotational energy. They are widely used in various industries due to their efficiency, reliability, and versatility. This article will delve into the working principle of hydraulic vane motors, their components, applications, and advantages, along with visual aids to enhance understanding.
Hydraulic vane motors are designed to operate based on Pascal's law, where the pressure of the hydraulic fluid is utilized to generate torque. The motor consists of a rotor with vanes (blades) inserted into slots, placed inside a cylindrical housing. When pressurized hydraulic fluid enters the housing, it pushes the vanes outward, causing them to contact the housing's inner surface. This interaction results in the rotation of the rotor, converting hydraulic energy into mechanical motion.
The main components of a hydraulic vane motor include:
- Housing: The housing is the outer casing that contains the hydraulic fluid and protects the internal components.
- Rotor: The rotor is the central component where the vanes are mounted. It is typically a hollow shaft with spiral grooves to guide the hydraulic oil.
- Blades (Vanes): The blades are key components that cooperate with the rotor to achieve energy conversion. Their design and material significantly affect the motor's performance.
- End Cover: The end cover fixes the blades and rotor in place, preventing fluid leakage. It includes oil holes and passages to ensure smooth fluid flow.
- Seals: Seals, such as O-rings and packings, prevent hydraulic oil leakage and ensure the motor operates normally.
The working principle of hydraulic vane motors involves the following steps:
1. Hydraulic Fluid Entry: Pressurized hydraulic fluid enters the motor housing through the inlet port.
2. Vane Extension: The fluid pressure pushes the vanes outward, causing them to extend and contact the housing's inner surface.
3. Rotor Rotation: As the rotor rotates, the vanes move in and out of their slots due to centrifugal force and the housing's shape, creating chambers of varying sizes.
4. Fluid Flow: The expanding chambers draw in hydraulic fluid, while the contracting chambers expel it, creating continuous rotary motion.
5. Torque Generation: The force exerted by the fluid on the vanes generates torque, which is transmitted to the output shaft.
Hydraulic vane motors offer several advantages:
- High Efficiency: They convert hydraulic energy into mechanical energy with minimal loss. For instance, vane motors typically have an efficiency range of 80% to 95%, which is higher than gear motors.
- Wide Speed Regulation Range: Suitable for various working conditions due to their adjustable speed.
- High Torque at Low Speeds: Ideal for heavy-load starting and low-speed operations.
- Good Reversal Performance: Can switch between forward and reverse rotation easily.
- High Reliability: Simple structure ensures reliable operation over long periods.
Hydraulic vane motors are used in diverse industries:
- Industrial Applications: Injection molding, screw drives, and machinery.
- Agricultural Machinery: Tractors and harvesters.
- Construction Equipment: Cranes and excavators.
- Aerospace: Used in aircraft machinery for cargo handling and landing gear deployment.
- Marine Industry: Essential for anchor winches, steering systems, and fishing machinery.
- Renewable Energy: Utilized in solar tracking devices and wind turbines.
- Mining: Power drilling rigs, conveyor systems, and underground machinery.
Hydraulic vane motors are often compared to gear motors and piston motors:
- Gear Motors: Lightweight, low-cost, and suitable for high-speed applications but can be noisy.
- Piston Motors: High-pressure capability, complex design, and typically more expensive.
Comparison of Hydraulic Motors:
| Motor Type | Pressure Rating | Noise Level | Cost |
|---|---|---|---|
| Vane Motor | Up to 230 bar | Low | Moderate |
| Gear Motor | Up to 250 bar | High | Low |
| Piston Motor | High | Low | High |
Proper installation and maintenance are crucial for the longevity and efficiency of hydraulic vane motors:
- System Priming: Purge air from the hydraulic system and motor by cycling the fluid through the system several times.
- Load Testing: Gradually introduce the motor to the operational load, monitoring performance and addressing any anomalies.
- Routine Maintenance: Conduct regular visual inspections, check for leaks, and ensure proper lubrication.
- Filter Maintenance: Clean or replace hydraulic filters as recommended to prevent clogging and maintain optimal fluid quality.
- Temperature Monitoring: Monitor the motor's operating temperature and take necessary measures if it exceeds the specified limits.
Common issues include:
- Low Fluid Pressure: Check inlet valves and fluid levels.
- Vane Wear: Inspect vanes for signs of wear or damage.
- Leakage: Ensure seals are intact and not damaged.
Troubleshooting Guide:
| Issue | Solution |
|---|---|
| Pump Dry Running | Check fluid level, suction line, and valves |
| Vane Wear | Replace worn vanes |
| Low Fluid Pressure | Check inlet valves and fluid levels |
Hydraulic vane motors are known for their high efficiency, often surpassing that of gear motors. For example, a Vickers Model 25M vane motor maintains a consistent torque efficiency across a wide pressure range, making it more efficient than comparable gear motors.
As industries continue to seek energy-efficient and environmentally friendly solutions, hydraulic vane motors are poised to play a vital role in the future. Their efficiency and precise control make them a valuable asset in achieving sustainability goals. Additionally, ongoing advancements in materials and design are expected to enhance their performance and reliability[1][3].
Research into advanced materials for vanes and seals can improve durability and reduce maintenance needs. New designs focusing on compactness and efficiency will further expand their application range, making them suitable for more complex hydraulic systems.
Hydraulic vane motors play a crucial role in renewable energy systems, particularly in solar tracking devices and wind turbines. Their ability to provide consistent torque and speed makes them ideal for maintaining precise alignment and movement in these systems[3].
Regular maintenance is essential for extending the lifespan of hydraulic vane motors. Techniques such as predictive maintenance using sensors to monitor temperature and pressure can help identify potential issues before they become critical. Additionally, using advanced materials for seals and vanes can improve durability and reduce maintenance needs[2][5].
In a solar farm, hydraulic vane motors were used to adjust the angle of solar panels to maximize energy capture. The motors provided precise control over the panel's movement, ensuring optimal alignment with the sun throughout the day. This resulted in a significant increase in energy output compared to fixed panels.
In a mining operation, hydraulic vane motors powered drilling rigs and conveyor systems. Their high torque at low speeds allowed for efficient operation in challenging environments, improving overall productivity and reducing downtime.
Hydraulic vane motors are versatile and reliable components in hydraulic systems, offering high efficiency and torque at low speeds. Their simple design and low noise operation make them suitable for a wide range of applications. Understanding their working principle and components is essential for effective maintenance and troubleshooting.
Hydraulic vane motors work by using pressurized hydraulic fluid to push vanes outward against the housing, causing the rotor to rotate and generate torque.
The main components include the housing, rotor, blades (vanes), end cover, and seals.
Advantages include high efficiency, wide speed regulation range, high torque at low speeds, good reversal performance, and high reliability.
They are used in industrial machinery, agricultural equipment, construction machinery, aerospace, marine industry, renewable energy sectors, and mining.
Hydraulic vane motors offer lower noise levels and less internal leakage compared to gear motors, making them suitable for applications requiring lower speeds.
