Planetary gearboxes are the backbone of modern machinery, offering precision, power, and adaptability. But when selecting between a single-stage and 2-stage planetary gearbox, engineers and designers face critical trade-offs. This comprehensive guide explores their differences, applications, and performance metrics to help you make an informed decision.

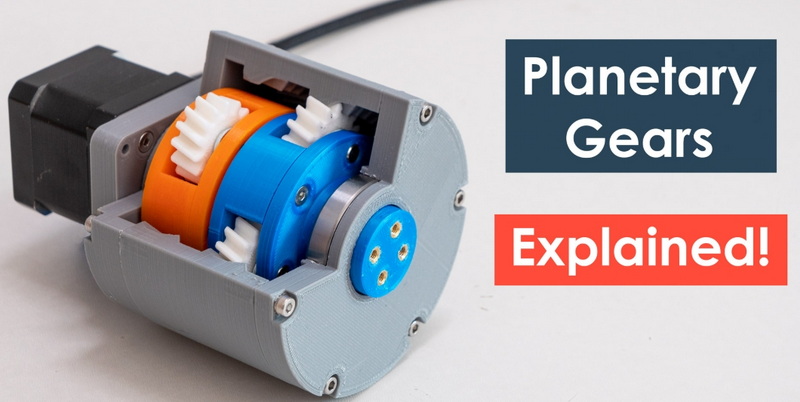

Planetary gearboxes, also called epicyclic gear systems, are renowned for their compact design, high torque density, and exceptional load distribution. Their unique arrangement of gears—central sun gear, orbiting planet gears, and an outer ring gear—enables efficient power transmission in confined spaces. These systems are ubiquitous in industries ranging from robotics to renewable energy.
A single-stage planetary gearbox employs one set of planet gears meshing with a sun gear and ring gear. The input shaft drives the sun gear, while the planet carrier transmits output rotation. This configuration achieves reduction ratios typically between 3:1 and 10:1.
- Compactness: Ideal for space-constrained applications like servo motors.
- High Efficiency (95–98%): Minimal power loss due to fewer contact points.
- Cost-Effective: Lower manufacturing complexity reduces upfront costs.
- Limited Ratio Range: Unsuitable for applications requiring ratios above 10:1.
- Torque Constraints: Maximum torque capacity rarely exceeds 250 Nm.

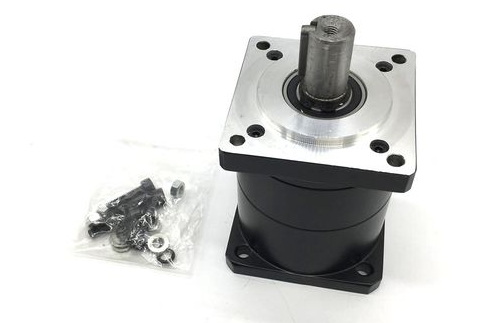

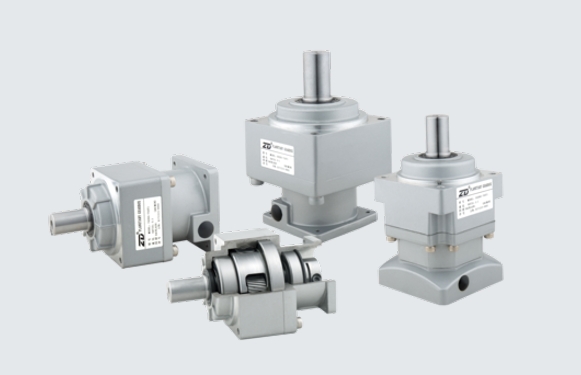

A 2-stage planetary gearbox connects two planetary gear sets in series. The output shaft of the first stage becomes the input for the second, enabling compounded reduction ratios. This design achieves ratios up to 100:1 while maintaining a compact footprint.
1. Higher Torque Capacity (500–5,000 Nm):
Dual stages distribute load across more gear teeth, reducing stress on individual components.
2. Extended Ratio Range (10:1 to 100:1):
Critical for heavy machinery like cranes and mining equipment.
3. Improved Load Distribution:
Multiple stages minimize radial forces, enhancing bearing life.
- Efficiency Loss (85–92%): Additional gear meshing increases friction.
- Complex Assembly: More components elevate manufacturing and maintenance costs.
- Medical Devices: MRI machines and surgical robots benefit from compact, high-efficiency designs.
- Consumer Electronics: Camera lens autofocus systems and drone gimbals.
- Conveyor Systems: Low-torque material handling in packaging lines.
1. Wind Turbines:
Handles extreme torque from rotor blades while stepping down RPM for generators.
2. Mining Equipment:
Crushers and ball mills rely on 2-stage systems to process hard minerals.
3. Aerospace Actuators:
Landing gear systems use 2-stage gearboxes for precise, high-force adjustments.
| Parameter | Single-Stage | 2-Stage |
|---|---|---|
| Reduction Ratio | 3:1 – 10:1 | 10:1 – 100:1 |
| Efficiency | 95–98% | 85–92% |
| Torque Capacity | 50–250 Nm | 500–5,000 Nm |
| Weight | 2–10 kg | 15–150 kg |
| Cost | $500–$2,000 | $3,000–$20,000 |
| Lifespan | 10,000–20,000 hours | 15,000–30,000 hours |
| Noise Level | 60–70 dB | 70–85 dB |
- Space and weight are critical (e.g., portable devices).
- Operating conditions demand peak efficiency.
- Budget constraints limit upfront investment.
- Applications require ratios >10:1.
- Shock loads or variable torque are present (e.g., construction equipment).
- Long-term durability outweighs initial cost.
- Lubrication Intervals: 2,000–5,000 hours.
- Common Failures: Sun gear pitting due to concentrated stress.
- Tools Required: Standard torque wrenches and alignment gauges.
- Lubrication Intervals: 1,000–3,000 hours (more frequent due to heat buildup).
- Critical Components: Second-stage planet carrier bearings.
- Predictive Maintenance: Vibration sensors and thermal cameras to detect early wear.
Combining 2-stage planetary gears with harmonic drives achieves ultra-high ratios (200:1+) for robotics and aerospace.
3D-printed titanium carriers reduce weight by 40% while maintaining strength, revolutionizing aerospace and automotive sectors.
IoT-enabled gearboxes use real-time data analytics to predict failures, optimize lubrication schedules, and reduce downtime.
A North Sea wind farm required gearboxes capable of withstanding saltwater corrosion and 15 MW turbine loads.
Custom 2-stage planetary gearboxes with:
- Stainless Steel Housing: Corrosion-resistant.
- Advanced Sealing: Prevented seawater ingress.
- Modular Design: Simplified offshore maintenance.
30% longer service life compared to traditional designs, reducing operational costs by $1.2 million annually.
Higher noise levels in 2-stage systems (70–85 dB) can impact worker safety and equipment longevity.
1. Helical Gearing: Angled teeth reduce vibration and acoustic emissions.
2. Isolation Mounts: Absorb vibrations between gearbox and machinery.
3. Sound Damping Materials: Coatings or enclosures minimize noise propagation.
While 2-stage gearboxes have lower efficiency, their ability to handle renewable energy applications (e.g., wind turbines) offsets carbon footprints.
- Steel Gears: 90% recyclable, reducing mining demand.
- Synthetic Lubricants: Biodegradable options minimize soil and water contamination.
A study by the International Journal of Mechanical Sciences found that 2-stage gearboxes in wind turbines reduce CO2 emissions by 12% over 20 years compared to single-stage alternatives.
Generative algorithms create lightweight, high-strength gearbox components, reducing material waste by 25%.
Machine learning models analyze historical failure data to:
- Predict bearing wear with 95% accuracy.
- Optimize lubrication schedules based on real-time load conditions.
The choice between single-stage and 2-stage planetary gearboxes hinges on application-specific needs. Single-stage systems excel in lightweight, efficiency-focused scenarios, while 2-stage gearboxes unlock unparalleled torque and ratio capabilities for heavy industry. As technologies like precision manufacturing and advanced materials evolve, multi-stage systems are becoming leaner and more adaptable, reshaping possibilities in automation and energy systems.
Choosing between a single-stage and a 2-stage planetary gearbox depends on the specific requirements of your application. Single-stage gearboxes are ideal for compact, low-torque applications, while 2-stage gearboxes offer higher reduction ratios and torque capacity, making them suitable for heavy-duty applications.
Yes, models with heat-resistant alloys and synthetic lubricants function reliably at up to 150°C.
2-stage gearboxes typically have marginally higher backlash (±5 arc-min vs. ±3 arc-min) due to cumulative tolerances.
Absolutely. Their high torque capacity efficiently handles energy recovery during deceleration.
Synthetic PAO oils with extreme pressure (EP) additives are recommended for heavy loads.
Possible, but requires motor recalibration and structural modifications to handle increased weight.
