The rise of robotics across industries has created a demand for compact, high-performance components, and small planetary gearboxes have emerged as a critical enabler of this revolution. These gearboxes combine precision, durability, and efficiency in a minimal footprint, making them indispensable for modern robotic systems. This article explores their design, applications, innovations, and future potential, supported by real-world examples and technical analysis.

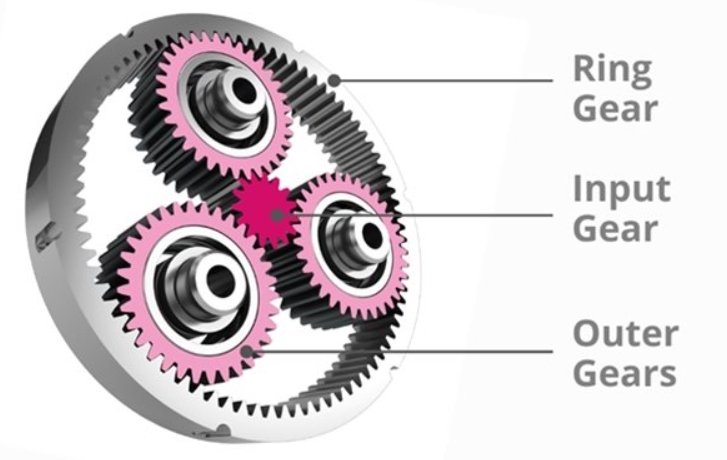

A small planetary gearbox operates on an epicyclic design, where gears rotate around a central axis like planets orbiting the sun. This structure includes three key components:
- Sun Gear: Receives input from the motor.
- Planet Gears: 3-7 gears mounted on a carrier, meshing with the sun and ring gears.
- Ring Gear: A stationary or rotating outer gear with internal teeth.
This configuration achieves torque multiplication through gear reduction ratios (typically 3:1 to 100:1), allowing robots to lift heavy payloads without increasing motor size. For example, a 10:1 ratio gearbox can convert a motor's 0.1 Nm torque into 1 Nm output—critical for robotic arms handling precision tasks.
Small planetary gearboxes offer up to 50% smaller volume compared to equivalent spur gear systems. The ESA's ExoMars rover uses micro planetary gearboxes (15mm diameter) in its drill mechanism, saving space for scientific instruments while delivering 30 Nm torque in Martian soil.
Planetary systems achieve torque densities of 50-100 Nm/kg, outperforming harmonic drives (30-60 Nm/kg). ABB's YuMi cobot leverages this to handle 0.5 kg payloads with sub-0.1mm repeatability in electronics assembly.
Precision-ground gears reduce backlash to ≤1 arcminute, enabling surgical robots like Medtronic's Hugo RAS System to suture blood vessels with 0.1mm accuracy. Anti-backlash designs using spring-loaded planets further enhance positioning repeatability.
With 92-97% efficiency, planetary gearboxes minimize energy loss. Amazon's Proteus warehouse robots use them to achieve 10-hour battery life while transporting 500 kg loads.
Tesla's Giga Press robots employ small planetary gearboxes to achieve 8,000-ton clamping force in aluminum die-casting. The gearboxes withstand 200°C temperatures and cyclic loads exceeding 10 million rotations/year without failure.
Zimmer Biomet's ROSA Knee System uses sterilizable planetary gearboxes in its cutting guides, ensuring 0.5° angular precision during orthopedic surgeries. The gearboxes' sealed design prevents contamination by biological fluids.
John Deere's See & Spray robots utilize planetary gearboxes in their nozzle actuators, enabling micron-level herbicide targeting. The gearboxes' IP69K rating resists dust, mud, and high-pressure water jets.
NASA's Valkyrie humanoid robot features radiation-hardened planetary gearboxes in its joints, allowing operation in lunar environments where temperatures swing from -173°C to 127°C.
German manufacturer Wittenstein has developed nanoe planetary gearboxes with surface coatings reduced to 50nm thickness. This lowers friction by 20% and extends service intervals to 20,000 hours in high-speed packaging robots.
Japanese firm Harmonic Drive LLC produces hybrid gearboxes with silicon nitride planet gears and steel carriers. These withstand 1,500°C in aerospace forging robots while reducing weight by 35%.
Machine learning algorithms now design asymmetric gear teeth that reduce stress concentrations by 40%. Festo's BionicSoftArm uses such gears to achieve human-like fluid movements in collaborative assembly tasks.
At speeds exceeding 20,000 RPM, gearboxes require advanced cooling. Solutions include:
- Phase-Change Materials: Embedded paraffin wax absorbs heat during peak loads.
- Microchannel Cooling: 3D-printed titanium housings with 0.2mm coolant channels.
Swiss researchers recently demonstrated a 3mm-diameter planetary gearbox using femtosecond laser machining. This enables micro-robots for pipeline inspection and minimally invasive diagnostics.
- Biodegradable Lubricants: Shell's Naturelle TF 600 series reduces environmental impact in food-handling robots.
- Remanufacturing Programs: KUKA's Gearbox Renew initiative cuts waste by 70% through refurbishment.
Consider these factors for optimal performance:
1. Torque Requirements: Calculate peak and continuous torque using:
T=(9550×P)/n
Where T = Torque (Nm), P = Power (kW), n = Speed (RPM).
2. Environmental Conditions:
- Temperature range (e.g., -40°C to 120°C for arctic robots).
- Ingress protection (IP65 for washdown environments).
3. Backlash Tolerance:
- ≤1 arcminute for surgical robots.
- ≤5 arcminutes for material handling.
4. Certifications: ISO 6336 for load capacity, AGMA 2001-D04 for quality.
Small planetary gearboxes are the unsung heroes of modern robotics, enabling breakthroughs from factory floors to outer space. Their unique combination of compactness, efficiency, and durability makes them irreplaceable in applications demanding precision under constrained conditions. As additive manufacturing, AI-driven design, and advanced materials mature, these gearboxes will continue to push the boundaries of robotic capabilities.
They use torsional dampers and case-hardened gears (60-62 HRC) to absorb impacts. For example, Brokk's demolition robots withstand 50g shock loads during concrete breaking.
Yes. Festo's BionicSwarm uses 10mm gearboxes with magnetic coupling, allowing 50+ robots to collaborate on object transport tasks.
Dry lubricants like molybdenum disulfide (MoS2) or diamond-like carbon (DLC) coatings prevent outgassing in orbital environments.
They enable Kiva robots to achieve 1.5m/s speeds with 1,000 kg payloads while maintaining 0.5° steering accuracy.
Yes. Non-magnetic versions using aluminum or titanium are used in MRI-guided neurosurgery robots.
