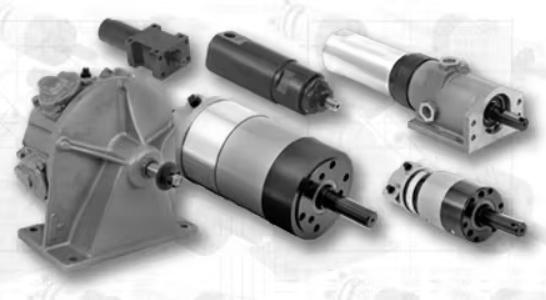

Air vane motors are widely used in industrial applications due to their simplicity, reliability, and efficiency in converting compressed air energy into rotary mechanical motion. Their design, which typically includes a rotor with sliding vanes inside a cylindrical housing, allows for smooth operation and variable speed control. However, like all mechanical devices, air vane motors are subject to common failures that can affect their performance and lifespan. This comprehensive article explores the common failures in air vane motors, their causes, and practical solutions to fix them. We will also delve into the air vane motor design principles to better understand how these failures occur and how to prevent them.

Understanding Air Vane Motor Design

Before discussing failures, it is essential to understand the basic design and working principle of air vane motors.

Basic Components of an Air Vane Motor

- Housing (Cylinder): The outer cylindrical chamber that contains all internal components.

- Rotor: Positioned eccentrically inside the housing, the rotor has slots that hold the vanes.

- Vaness: Flat or slightly curved blades that slide radially in and out of the rotor slots.

- Inlet and Outlet Ports: Allow compressed air to enter and exhaust air to exit.

- End Plates: Seal the rotor chamber and support bearings.

- Output Shaft: Transfers the rotary motion to the external load.

Working Principle

Compressed air enters the motor through the inlet port and pushes against the vanes, which are forced outward by centrifugal force and air pressure to maintain contact with the housing wall. This creates sealed chambers between the vanes and the housing. As the air expands in these chambers, it generates torque that rotates the rotor and output shaft. The air is then exhausted through the outlet port, completing the cycle. The rotor's eccentric position creates a crescent-shaped chamber, enabling continuous rotation as the vanes slide in and out of their slots[4][5][7][9].

Common Failures in Air Vane Motors and Their Causes

1. Inadequate Output Speed and Torque

Cause:

- Excessive clearance between the rotor and oil distribution disk or housing.

- Dirt, burrs, or damage in the rotor grooves or vanes.

- Worn or stuck vanes preventing smooth movement.

Symptoms:

- Motor runs slower than expected or lacks torque under load.

Fix:

- Inspect and clean the rotor, stator, and vanes thoroughly.

- Replace worn or damaged vanes and components.

- Adjust clearances by grinding or polishing rotor and stator surfaces if necessary[1].

2. Reduced Speed Under Load

Cause:

- Excessive back pressure in the exhaust line.

- Low inlet air pressure or insufficient air flow from the compressor.

- Malfunctioning control valves or flow restrictions.

Symptoms:

- Motor speed drops significantly when a load is applied.

Fix:

- Check and reduce back pressure by clearing exhaust lines or installing mufflers with proper flow capacity.

- Ensure the air supply pressure and flow meet motor specifications.

- Repair or replace faulty valves and regulators[1].

3. Noise and Vibration

Cause:

- Bearing wear or damage.

- Stator or rotor wear causing imbalance.

- Broken or weak torsion springs in the vanes.

Symptoms:

- Excessive noise during operation.

- Vibrations felt in the motor housing or output shaft.

Fix:

- Inspect and replace worn bearings.

- Check rotor and stator for wear and replace if necessary.

- Replace torsion springs to restore proper vane pressure against the housing[1].

4. Internal and External Leaks

Cause:

- Worn or damaged oil seals and O-rings.

- Poor fitting or damage to the oil distribution disk or end plates.

- High oil temperature or low oil viscosity causing seal failure.

Symptoms:

- Visible oil leaks around the motor.

- Loss of pressure and reduced motor efficiency.

Fix:

- Replace all worn seals, O-rings, and gaskets.

- Tighten fasteners and inspect housing for cracks.

- Maintain oil temperature and viscosity within recommended ranges[1].

5. Motor Fails to Start

Cause:

- Insufficient system pressure.

- Relief valve stuck open or malfunctioning.

- Pump failure or air supply interruption.

Symptoms:

- Motor shaft does not rotate when air is applied.

Fix:

- Verify system pressure and adjust as needed.

- Inspect and repair or replace relief valves.

- Check air compressor and supply lines for proper operation[1].

6. Difficulty in Speed Control

Cause:

- Failure of flow control valves or variable pump controls.

- Air leaks or blockages in control lines.

Symptoms:

- Motor speed cannot be adjusted smoothly or consistently.

Fix:

- Inspect and repair or replace control valves and variable pumps.

- Check for leaks and blockages in pneumatic lines[1].

7. Low-Speed Fluttering or Crawling

Cause:

- Air trapped in the hydraulic or pneumatic system.

- Insufficient back pressure.

- Excessive internal leakage.

Symptoms:

- Motor speed fluctuates or “crawls” at low speeds.

Fix:

- Purge air from the system.

- Ensure proper back pressure is maintained.

- Reduce internal leakage by replacing worn components or installing accumulators[1].

8. Seized Motor Due to Rust or Moisture

Cause:

- Moisture in the compressed air supply causing rust and corrosion inside the motor.

Symptoms:

- Motor shaft is locked and cannot rotate.

Fix:

- Remove fittings and pour penetrating oil into air inlet and outlet ports.

- Let soak for 6-12 hours.

- Gently turn the shaft back and forth to free it.

- Run the motor with lubricated air and repeat oiling until smooth operation is restored.

- Use proper air line lubricators with SAE #10 oil for ongoing lubrication[2].

Maintenance Tips to Prevent Failures

- Regular Inspections: Check rotor, stator, vanes, seals, and bearings for wear or damage.

- Keep Air and Oil Clean: Use high-quality compressed air and lubricants; replace filters regularly.

- Proper Lubrication: Ensure the motor is lubricated according to manufacturer recommendations to reduce friction and wear.

- Control Air Quality: Use air dryers and filters to remove moisture and contaminants from the air supply.

- Monitor Operating Conditions: Avoid excessive back pressure, maintain correct air pressure, and prevent overheating[1][3].

Visual Aids and Videos

Video: Air Motors Preventive Maintenance

A detailed video guide on disassembling, inspecting, and maintaining air vane motors to prevent common failures.

Conclusion

Air vane motors are robust and efficient devices widely used in industrial applications. However, their performance can be compromised by common failures such as inadequate speed and torque, noise, leaks, and starting issues. Understanding the air vane motor design and the causes of these failures is crucial for effective troubleshooting and maintenance. Regular inspection, proper lubrication, and maintaining clean, dry air supply are key to extending the life of these motors. By addressing issues promptly and following recommended maintenance practices, operators can ensure reliable and efficient motor operation.

FAQ

1. What causes vane air motors to lose torque and how can it be fixed?

Loss of torque is often caused by worn vanes, dirt in the rotor grooves, or excessive clearance between rotor and housing. Cleaning, replacing worn parts, and adjusting clearances can restore torque[1].

2. How do I free a seized air vane motor?

Seizure is usually due to rust from moisture. Apply penetrating oil to the inlet and outlet ports, let it soak, then gently turn the shaft back and forth. Repeat lubrication and run the motor until smooth[2].

3. Why does my air vane motor make excessive noise?

Noise can result from worn bearings, rotor or stator wear, or broken torsion springs. Inspect and replace damaged components to reduce noise[1].

4. How important is lubrication in air vane motors?

Lubrication reduces friction and wear on vanes and bearings. Using proper lubricants and maintaining an air line lubricator is essential for motor longevity[1][2].

5. Can air vane motors operate without lubrication?

Some lubrication-free designs exist with special vanes and bearings, but traditional vane motors require lubrication for optimal performance and longer vane life[6].
