Hydraulic systems are essential in countless industrial, automotive, agricultural, and construction applications, where fluid power is harnessed to perform heavy-duty tasks efficiently. At the heart of these systems lie various components that ensure smooth fluid flow, reliable connections, and system integrity. Among these components, hydraulic reducer adapter fittings play a crucial role. This article explores what hydraulic reducer adapter fittings are, their types, applications, installation best practices, maintenance, and troubleshooting, providing a comprehensive understanding of their importance in hydraulic systems.
Hydraulic reducer adapter fittings are specialized connectors designed to join hydraulic hoses, tubes, or pipes of different diameters or thread types within a hydraulic system. Their primary function is to enable a smooth transition between components of varying sizes, ensuring efficient fluid flow, minimizing pressure loss, and maintaining system integrity. These fittings are indispensable in systems where components of different sizes or thread standards must be connected securely and leak-free.
Unlike standard fittings that connect components of the same size or thread, hydraulic reducer adapter fittings accommodate size mismatches, allowing for flexibility in system design and facilitating repairs or upgrades without replacing entire assemblies. They can also convert between different thread types, such as from NPT to SAE or BSPP, enhancing compatibility across components from different manufacturers.

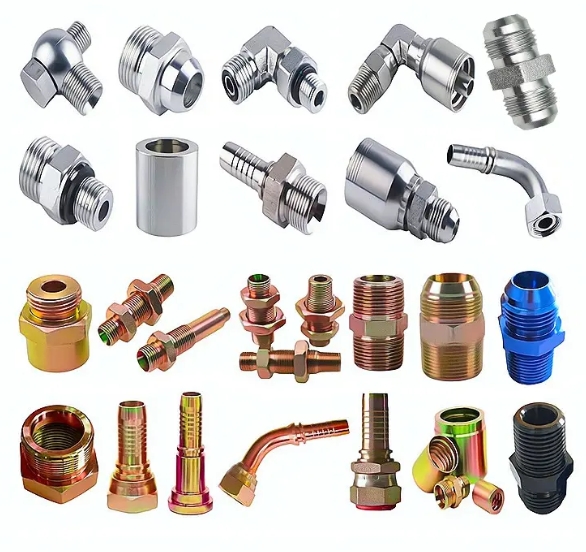

Hydraulic reducer adapter fittings come in various forms, each suited to specific applications and system configurations. The most common types include:
Concentric reducers maintain a central axis alignment between the larger and smaller ends, providing a smooth, symmetrical transition between pipes or hoses of different diameters. This design minimizes turbulence and pressure loss, making them ideal for vertical piping systems where consistent flow is critical. Typically made from durable materials like steel or stainless steel, concentric reducers withstand high pressures and temperature variations.
Eccentric reducers feature an offset centerline, which keeps the bottom of the pipe level while transitioning between sizes. This design prevents air pockets from forming in horizontal piping systems, which can cause cavitation and reduce pump efficiency. Eccentric reducers are commonly used in industries such as oil and gas, chemical processing, and water treatment, where maintaining consistent flow and preventing air entrapment are essential.
Reducing tees allow branching off a main hydraulic line into a smaller diameter line, providing connection points for additional components or subsystems. They are versatile and used in irrigation, automotive, and heavy machinery hydraulic systems to distribute fluid efficiently to multiple destinations.
Reducer elbow fittings combine the functions of a reducer and an elbow, allowing for both size transition and directional change in fluid flow, typically at 45 or 90 degrees. These fittings are valuable in complex hydraulic layouts where space constraints require fluid to be routed around obstacles while changing pipe sizes.
Hydraulic reducer adapter fittings also come in configurations such as male-to-female or male-to-male, enabling connections between different thread types or sizes. They are essential when adapting components with incompatible threads, such as connecting a female BSPP port to a male NPT hose end.
Hydraulic reducer adapter fittings are used extensively across various industries due to their versatility and critical role in maintaining system performance.
In automotive manufacturing and repair, hydraulic reducer adapter fittings connect components in power steering systems, braking systems, and hydraulic lifts. They ensure leak-free connections between hoses and pipes of different sizes, contributing to vehicle safety and performance.

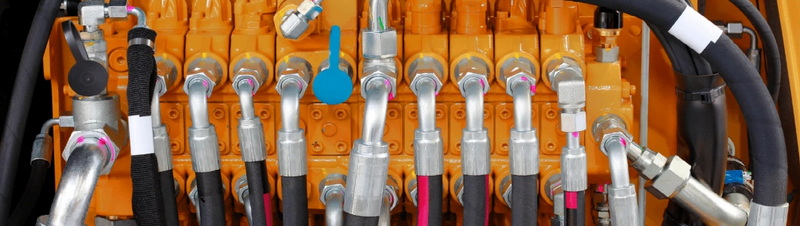

Heavy machinery such as excavators, cranes, presses, and manufacturing equipment rely on hydraulic systems for precise control and power transmission. Reducer adapter fittings enable the integration of components with varying sizes and thread standards, ensuring efficient fluid flow and system reliability.
Farm machinery uses hydraulic systems for steering, lifting, and operating attachments. Hydraulic reducer adapter fittings facilitate the connection of hoses and pipes of different sizes, allowing for flexible equipment design and easy maintenance.
Construction equipment like loaders, concrete pumps, and earth movers utilize hydraulic systems that require reducer adapter fittings to connect diverse components securely. These fittings help maintain pressure and flow while accommodating the complex routing of hydraulic lines.
In chemical processing and water treatment, maintaining smooth fluid flow and preventing air pockets is critical. Eccentric and concentric reducer fittings are used to connect pipes of different sizes while ensuring system efficiency and safety.
Hydraulic reducer adapter fittings function by providing a secure, leak-free connection between two hydraulic components with different sizes or thread types. When installed correctly, they maintain the continuity of the hydraulic fluid path, minimizing pressure drops and turbulence.
The design of these fittings typically includes threaded ends-male or female-that screw into the corresponding ports or hoses. The fitting's body transitions from the larger diameter to the smaller diameter, either concentrically or eccentrically, depending on the fitting type. Seals such as O-rings or tapered threads ensure a tight seal to prevent fluid leakage under high pressure.
Proper installation of hydraulic reducer adapter fittings is essential to ensure system reliability, prevent leaks, and extend component lifespan. Key best practices include:
- Selecting the Correct Size and Type: Always refer to manufacturer specifications and system requirements to choose fittings that match the thread types, sizes, and pressure ratings of your hydraulic components.
- Cleaning Components: Before installation, thoroughly clean the mating surfaces of the fittings and connected components to remove dirt, debris, or contaminants that could compromise the seal.
- Using Appropriate Sealants: Apply compatible thread sealants or Teflon tape as recommended to enhance sealing performance without contaminating the hydraulic fluid.
- Avoiding Over-Tightening: Use a calibrated torque wrench to tighten fittings to manufacturer-specified torque values. Over-tightening can damage threads or seals, leading to leaks or premature failure.
- Ensuring Proper Alignment: Align fittings correctly to avoid undue stress or misalignment, which can cause leaks or damage during system operation.
- Inspecting for Damage: Check fittings for any signs of damage, such as cracks, dents, or thread deformities, before installation.
Maintaining hydraulic reducer adapter fittings involves regular inspection and care to prevent leaks and failures:
- Regular Inspections: Check fittings for signs of leaks, corrosion, or wear. Early detection allows for timely repairs.
- Seal and O-Ring Replacement: Replace seals and O-rings periodically or when signs of brittleness, cracking, or leakage appear.
- Cleaning: Keep fittings clean from dirt and debris to prevent contamination of the hydraulic fluid.
- Avoiding Cross-Threading: During installation or maintenance, ensure threads are properly aligned to prevent damage.
- Addressing Fatigue: Monitor fittings for signs of material fatigue such as hairline fractures or distortions, which can lead to catastrophic failure if ignored.
- Versatility: They allow connection between components of different sizes and thread types, facilitating system flexibility.
- Improved System Efficiency: By ensuring smooth transitions, they reduce turbulence and pressure losses.
- Leak Prevention: Properly selected and installed reducer adapter fittings provide secure, leak-free connections.
- Cost-Effectiveness: They enable system modifications and repairs without replacing entire components.
- Enhanced Safety: Reliable connections prevent hydraulic fluid leaks, reducing hazards.
Hydraulic reducer adapter fittings are vital components in hydraulic systems, enabling the connection of hoses, tubes, and pipes of different sizes and thread types. Their role in maintaining fluid flow efficiency, preventing leaks, and ensuring system flexibility cannot be overstated. By understanding the types, applications, installation procedures, and maintenance practices associated with hydraulic reducer adapter fittings, operators and engineers can optimize system performance and longevity. Whether in automotive, industrial, agricultural, or construction applications, these fittings provide the adaptability and reliability required for modern hydraulic systems.
Hydraulic fittings primarily connect hoses or tubes to major components like pumps and valves, often with the same thread sizes. Hydraulic adapters, however, connect components with different thread sizes or types, enabling compatibility between otherwise incompatible parts.
Selection depends on the thread types, sizes, pressure ratings, and the specific application requirements. Always consult manufacturer specifications and consider factors such as fluid type, temperature, and system pressure to choose the appropriate fitting.
Some hydraulic reducer adapter fittings, especially reusable types, can be disassembled and reused if they are in good condition without damage to threads or seals. However, it is important to inspect them carefully for wear or damage before reuse.
Leaks can result from improper installation, such as over-tightening or cross-threading, worn or damaged seals, corrosion, or contamination. Regular inspection and proper installation techniques help prevent leaks.
Eccentric reducers prevent air pockets by keeping the bottom of the pipe level during size transitions, which is crucial in horizontal systems to avoid cavitation and maintain pump efficiency.
