Sliding vane motors and piston motors are two of the most widely used positive displacement motor technologies in industrial applications. While both have their place in mechanical engineering, sliding vane motors offer a unique set of advantages that make them highly desirable for many operations. In this comprehensive article, we'll explore the design, working principles, and key benefits of sliding vane motors compared to piston motors. We'll also include diagrams, videos, and an FAQ section to provide a complete understanding of the topic.
In the world of industrial automation, fluid transfer, and pneumatic systems, the choice between sliding vane motors and piston motors can significantly impact performance, reliability, and cost. Sliding vane motors, also known as rotary vane motors, have gained popularity due to their robust design, operational flexibility, and ease of maintenance. In contrast, piston motors (including both pneumatic and hydraulic types) are known for their high torque and pressure capabilities but come with increased complexity and maintenance requirements.

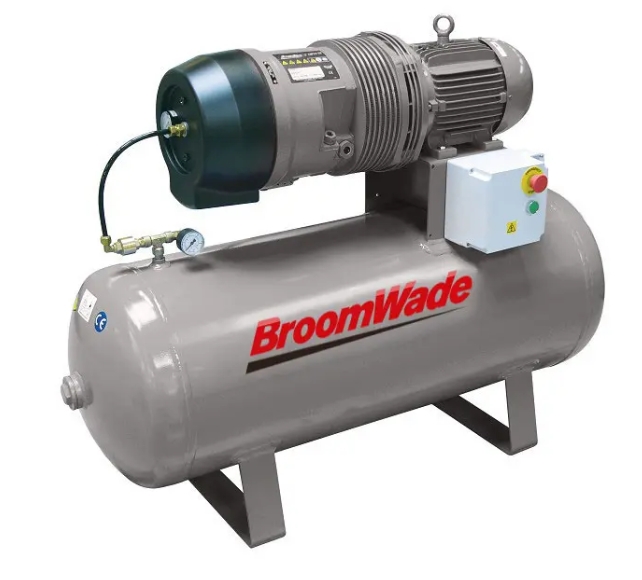

A sliding vane motor consists of a rotor mounted eccentrically within a cylindrical housing (stator). The rotor has slots that house spring-loaded vanes. As the rotor spins, centrifugal force and/or springs push the vanes outward to maintain contact with the chamber wall, creating sealed chambers between the vanes. Compressed air or hydraulic fluid enters the inlet, causing the rotor to turn. As the rotor rotates, the volume between the vanes changes, generating torque and rotary motion[4][6][13].
Piston motors use one or more pistons moving back and forth within cylinders. The linear motion of the pistons is converted into rotary motion via a crankshaft or swashplate mechanism. In pneumatic or hydraulic piston motors, pressurized fluid enters the cylinder, pushing the piston and generating force. Piston motors are known for their ability to deliver high torque at low speeds and handle higher pressures[3][7][15][16].
- Sliding vane motors have a straightforward design with fewer moving parts compared to piston motors. The vanes are the primary wear components and are easy and inexpensive to replace, resulting in lower maintenance costs and less downtime[3][12][13].
- Piston motors are more complex, with multiple pistons, connecting rods, and crank mechanisms, which increases maintenance requirements and potential points of failure[15][16].
- Sliding vane motors deliver higher rotational speeds and more power per unit weight than piston motors. They can operate at speeds from 100 up to 25,000 rpm, making them suitable for high-speed applications where compactness is essential[3][16].
- Piston motors typically operate at lower speeds but can provide higher starting torque, making them ideal for heavy-load, low-speed applications[3][16].
- The vanes in a sliding vane motor are self-adjusting. As they wear down, they extend further out to maintain a tight seal against the chamber wall, ensuring consistent performance and prolonging the life of the motor[1][2][13].
- Piston motors do not have self-adjusting components; wear leads to increased clearances, reduced efficiency, and the need for more frequent overhauls.
- Sliding vane motors can handle a wide range of fluids, including those with low or high viscosity, non-lubricating liquids, and even fluids with suspended solids. They are also capable of running dry for short periods without damage[1][2][12].
- Piston motors are generally more sensitive to the type of fluid and may require lubrication or specific fluid properties to operate reliably[15].
- Sliding vane motors require less horsepower to operate, leading to energy savings and reduced operational costs[2][10]. They are also more efficient at converting input energy into rotary motion, especially in continuous-duty applications.
- Piston motors, while efficient at high torque, may consume more energy due to friction losses and the inertia of reciprocating components[15][16].
- The rotary action of sliding vane motors results in smooth, pulse-free flow and quiet operation. This makes them ideal for applications where vibration and noise must be minimized[1][11][17].
- Piston motors, due to their reciprocating motion, tend to generate more vibration and noise.
- Sliding vane motors can run dry for short periods and are self-priming, which eliminates the need for additional priming systems and makes them suitable for variable or intermittent flow conditions[2][12].
- Piston motors generally require priming and are not designed to run dry.
- Sliding vane motors are typically less expensive to purchase and maintain than piston motors. Their simple construction and ease of servicing translate to lower total cost of ownership[3][12].
- Piston motors are more costly due to their complexity and the need for more frequent maintenance.
Sliding vane motors are used in a wide range of industries and applications, including:
- Food and beverage processing
- Chemical and petrochemical industries
- Automotive (fuel transfer, engine cooling)
- Oil and gas (handling crude oil, condensate)
- Wastewater treatment
- Industrial automation and robotics[1][2][12][17]
Their ability to handle diverse fluids, self-prime, and operate reliably under varying conditions makes them a preferred choice for many challenging applications.
While sliding vane motors offer many advantages, there are some limitations to consider:
- They may not provide as high starting torque as piston motors, making them less suitable for applications requiring very high initial force[3][16].
- At extremely high pressures, piston motors may outperform sliding vane motors in terms of efficiency and durability[15][16].
- Sliding vane motors are best for low to moderately viscous fluids; extremely thick or abrasive fluids may reduce vane life[12].
Sliding vane motors distinguish themselves from piston motors through their simple design, ease of maintenance, high power-to-weight ratio, and versatility in handling a wide range of fluids. Their self-adjusting vanes, energy efficiency, and ability to run dry or self-prime make them ideal for many industrial applications. While piston motors still have their place in high-torque, high-pressure environments, the sliding vane motor remains a robust, cost-effective, and reliable solution for most rotary drive needs.
Sliding vane motors use a rotor with sliding vanes that create expanding and contracting chambers to produce rotary motion. Piston motors use reciprocating pistons to generate linear motion, which is then converted to rotary motion via a crankshaft or similar mechanism[3][4][16].
Yes, sliding vane motors are generally more energy efficient, especially in continuous-duty applications, due to their lower friction losses and direct rotary motion[2][10].
Sliding vane motors are well-suited for a variety of fluids, including non-lubricating and some abrasive fluids, due to their self-adjusting vanes and robust design. However, extremely abrasive fluids may reduce vane life[1][2][12].
Sliding vane motors are easier and less costly to maintain. The vanes are the primary wear component and can be replaced quickly with minimal downtime. Piston motors require more complex maintenance due to their multiple moving parts[3][12][13].
Piston motors are preferred in applications requiring very high starting torque, high pressure, or precise speed control at low speeds—such as heavy construction equipment, hydraulic presses, and some specialty industrial machinery[15][16].
