In the rapidly evolving field of robotics, precision, efficiency, and compact design are paramount. As robots become more sophisticated and are deployed in increasingly complex environments, the demand for advanced mechanical components grows. Among these, the right angle planetary gearbox stands out as a critical solution for achieving high torque, efficient power transmission, and space-saving configurations. This article delves deeply into the benefits of right angle planetary gearboxes in robotics, exploring their design, operational principles, advantages, and real-world applications.

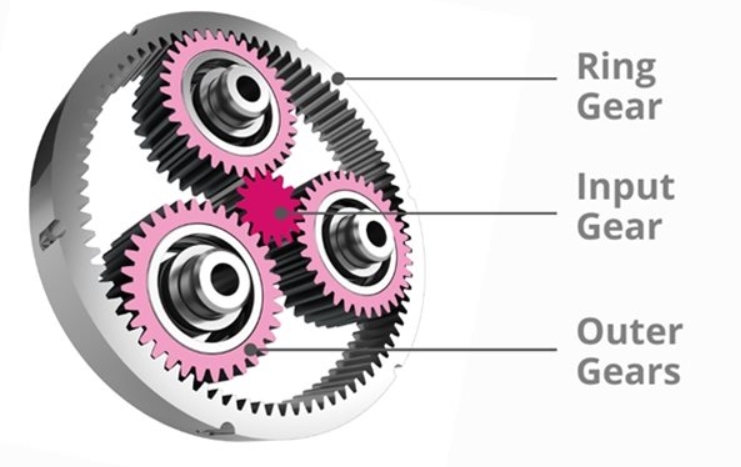

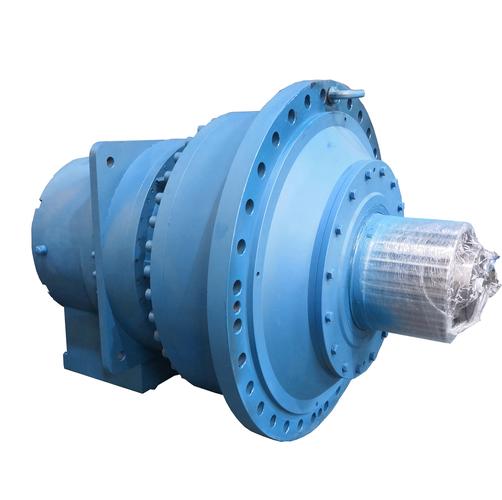

A right angle planetary gearbox is a specialized type of planetary gearbox that redirects the input power by 90 degrees, allowing for a more compact and flexible mechanical layout in constrained spaces[1][6][14]. The core components include:
- Sun Gear: The central gear driven by the motor.
- Planet Gears: Multiple gears orbiting the sun gear, distributing the load.
- Ring Gear: The outer gear encasing the planet gears.
- Carrier: Holds the planet gears and provides the output.
What distinguishes the right angle variant is the integration of a bevel gear or similar mechanism to change the direction of power transmission by 90 degrees, making it ideal for applications where linear alignment is not possible[1][14].
A standard planetary gearbox transmits power in-line. In a right angle planetary gearbox, a bevel or spiral bevel gear set is used at the input or output stage to redirect the rotation by 90 degrees. This allows the input and output shafts to be perpendicular, enabling more versatile mechanical layouts in robotics and automation systems[1][6][14].
- Space Optimization: The 90-degree power transmission allows for more compact robot architectures, crucial in applications with strict space constraints, such as robotic arms, AGVs, and mobile robots[1][6][14].
- Flexible Mounting: Right angle planetary gearboxes can be installed in various orientations, providing flexibility in robot design and assembly[13].
- Efficient Load Distribution: The planetary gear arrangement distributes torque across multiple gears, enabling the gearbox to handle higher loads relative to its size[11][14].
- Enhanced Torque Output: Right angle planetary gearboxes can deliver large output torque, making them suitable for heavy-duty robotic applications such as lifting, manipulation, and mobility[6][7][14].
- Transmission Efficiency: Single-stage right angle planetary gearboxes can achieve efficiencies above 95%, minimizing energy losses and heat generation[6][11].
- Precision Motion Control: Low backlash (as low as 1–3 arc-minutes) ensures precise positioning and repeatability, essential for tasks like pick-and-place, CNC machining, and surgical robotics[2][7][12].
- Durable Construction: Advanced materials, precision machining, and robust sealing (IP65 or higher) make these gearboxes reliable in harsh industrial environments[12].
- Long Service Life: Features like continuous backlash compensation, high-quality lubrication, and optimized gear profiles contribute to extended operational life and reduced maintenance[7][12].
- Wide Range of Ratios: Available in various gear ratios (e.g., 3:1 to 512:1), allowing for customized speed and torque outputs for different robotic applications[2][13].
- Compatibility: Can be paired with servo, stepper, AC, or DC motors, making them suitable for diverse robotic platforms[13].
- Joint Actuation: Right angle planetary gearboxes are frequently used in the joints of robotic arms, enabling compact, high-torque movement in limited spaces[1][6][7].
- Precision End Effectors: Low backlash and high accuracy are critical for tasks such as assembly, welding, and painting.
- Drive Systems: The compact design allows for efficient integration into wheel hubs or drive modules, maximizing payload area and maneuverability[11][13].
- Steering Mechanisms: Right angle gearboxes facilitate complex steering arrangements in omnidirectional or mecanum wheel robots.
- Machine Tools: Used in CNC milling machines, lathes, and drilling machines where precise, high-torque motion is required in tight spaces[6][11].
- Packaging and Material Handling: Reliable, efficient power transmission for conveyors, pick-and-place systems, and automated storage solutions.
- Surgical Robots: Compactness and precision are vital for minimally invasive surgical tools and robotic arms.
- Laboratory Automation: Enables precise sample handling and manipulation in compact benchtop devices.
| Feature | Right Angle Planetary Gearbox | Conventional Gearbox |
|---|---|---|
| Torque Density | High | Moderate |
| Transmission Efficiency | >95% | 80–90% |
| Backlash | <3 arc-min | 5–20 arc-min |
| Space Requirement | Minimal (90° layout) | Larger footprint |
| Mounting Flexibility | Any orientation | Often limited |
| Maintenance | Low (sealed, lubricated) | Moderate |
| Noise Level | Low (<56 dB) | Higher |
- Maximizes usable space within the robot chassis.
- Delivers superior torque and efficiency for its size.
- Ensures precision and repeatability in motion control.
- Reduces design complexity and weight.
- Adapts to a wide range of robotic and automation applications.
The right angle planetary gearbox is an indispensable component in modern robotics, offering unmatched benefits in terms of compactness, torque density, efficiency, and precision. Its ability to redirect power by 90 degrees makes it ideal for space-constrained robotic systems, while its robust construction ensures reliability in demanding applications. Whether in industrial automation, mobile robotics, or medical devices, right angle planetary gearboxes empower engineers to design smarter, more capable robots.
It enables higher torque output in a smaller space, reduces backlash for precise motion, and allows for flexible mounting orientations. These features collectively enhance the robot's efficiency, accuracy, and versatility in complex tasks[6][11].
Yes, most right angle planetary gearboxes are compatible with servo, stepper, AC, and DC motors. This makes them suitable for a wide range of robotic applications and simplifies integration into existing systems[13].
These gearboxes are typically sealed and lubricated for life, requiring minimal maintenance. Regular inspection for leaks or unusual noise is recommended, but overall, they are designed for long, reliable service[13][12].
Yes, many models are designed for high-speed operation while maintaining high efficiency and low backlash. Always check the manufacturer's specifications for maximum input speed and torque ratings to ensure suitability for your specific application[7].
A standard planetary gearbox transmits power in-line, while a right angle planetary gearbox incorporates a bevel or spiral bevel gear to redirect the output by 90 degrees. This allows for more compact layouts and flexible integration in robotic systems where space is limited[1][14].
