Hydraulic rotary actuators are pivotal components in modern industrial automation, construction, marine, and aerospace applications. Their unique design and robust performance characteristics make them indispensable for tasks requiring high torque, precise control, and efficient use of space. This comprehensive guide explores the many benefits of using a hydraulic rotary actuator, delving into their working principles, application scenarios, maintenance needs, and selection criteria. The article also features illustrative diagrams and videos to enhance understanding.

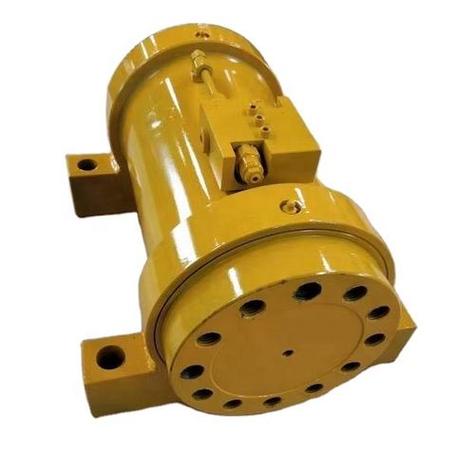

Hydraulic rotary actuators convert hydraulic energy into rotational motion, making them essential for applications where powerful, controlled rotation is needed within a limited space. Unlike linear actuators, which provide straight-line motion, hydraulic rotary actuators excel in scenarios demanding angular movement, such as valve actuation, robotic arms, heavy machinery, and marine steering systems[1][5][14].
A hydraulic rotary actuator typically consists of a piston, cylinder, and a mechanism—such as a helical gear, vane, or rack-and-pinion—that transforms the piston's linear motion into rotary motion. When pressurized hydraulic fluid enters the actuator, it pushes the piston, and the internal mechanism converts this motion into rotation of the output shaft[5][9][10][14].
The above video demonstrates the working principle of a hydraulic rotary actuator, detailing the energy conversion and control mechanisms involved[10].
Hydraulic rotary actuators are renowned for their ability to deliver exceptionally high torque from a compact unit. This is due to the high pressures achievable in hydraulic systems, which allow actuators to generate powerful rotational forces—often exceeding those possible with pneumatic or electric actuators[1][9][14].
- Industry Example: Helical spline actuators can achieve torque outputs up to 2,200,000 lbs-in (250,000 Nm) and even higher with rack-and-pinion designs[9][14].
- Application: Suitable for heavy-duty tasks such as lifting, drilling, and material handling in construction, mining, and oil & gas industries[2][14].

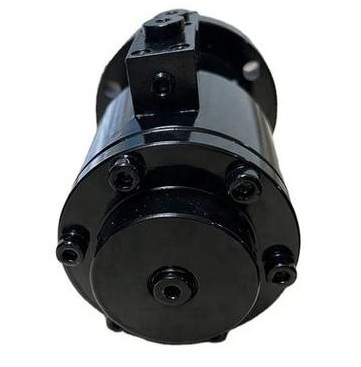

One of the standout advantages of hydraulic rotary actuators is their compactness. Their design enables high power density, meaning they can deliver significant torque and rotational movement in a small footprint—ideal for installations where space is at a premium[1][2][9].
- Benefit: Facilitates integration into tight spaces without sacrificing performance.
- Industry Use: Aerospace, automotive, and portable equipment benefit from reduced weight and volume[2][9].
Hydraulic rotary actuators offer precise control over rotation angle and speed, thanks to their finely engineered internal mechanisms and the incompressibility of hydraulic fluid. This precision is crucial for applications requiring accurate positioning, such as robotics, valve control, and automated manufacturing[1][2][5][9].
- Feature: Adjustable rotation angles—from as little as 45° up to 360° or even more in special designs[1][14].
- Reliability: Hydraulic fluid locks the shaft in place when the control valve is closed, preventing unwanted movement[14].
Hydraulic rotary actuators are used in a vast array of sectors, including:
- Construction and Engineering: Crane rotation, boom articulation, and excavator attachments[5][9][14].
- Marine: Propeller steering and hatch actuation[14].
- Aerospace: Flap and rudder control[9].
- Manufacturing: Robotic arms, conveyor systems, and tool changers[9].
- Municipal and Utility Vehicles: Waste bin tippers, snowplow angle adjustment[1][9].
Hydraulic rotary actuators are built for longevity, with robust seals, wear-resistant surfaces, and protective housings that allow them to operate reliably in harsh environments[1][7][14].
- Low Maintenance: Fewer moving parts than other actuator types, leading to reduced wear and lower maintenance requirements[2][7].
- Environmental Resistance: Dust-proof, dirt-proof, and moisture-proof designs make them suitable for outdoor and hazardous environments[1][7].
Hydraulic rotary actuators come in several configurations, each suited to specific applications:
| Type | Description | Typical Rotation Range | Torque Capability |
|---|---|---|---|
| Helical Spline | Uses helical gears to convert linear piston motion to rotation | Up to 360°+ | Very high |
| Vane Type | Uses one or more vanes inside a chamber; fluid pressure rotates the vanes | 100°–280° | Moderate to high |
| Rack-and-Pinion | Linear motion of pistons drives a pinion gear for rotary output | Up to 5 rotations | Extremely high |
| Spiral Shaft | Spiral grooves on shaft and piston create rotary motion | Variable | High |
| Chain-and-Sprocket | Chain attached to piston drives sprocket for rotation | Variable | High |
This video explains the differences between single and double vane rotary actuators, highlighting how double vane designs balance pressure and double the torque output at the expense of rotation range[3][4].
Hydraulic rotary actuators are found in a wide range of demanding applications:
- Valve Automation: Precise opening and closing of large-diameter butterfly and ball valves in water treatment, oil & gas, and chemical processing[1][12].
- Robotics: Articulation of robotic joints requiring high torque and accurate positioning[2][9].
- Material Handling: Bin tippers, pallet changers, and conveyor diverters[9].
- Construction Equipment: Rotation and articulation of booms, buckets, and attachments[5][14].
- Aerospace: Control surfaces and landing gear actuation[9].
- Marine: Steering and hatch operation[14].
While hydraulic rotary actuators are robust and low-maintenance, regular care ensures optimal performance and longevity:
- Regular Inspection: Check for signs of wear, leaks, or misalignment[7].
- Lubrication: Use manufacturer-recommended lubricants for bearings and gears[7].
- Cleanliness: Keep the actuator and surrounding area free from dust and debris to avoid contamination[7].
- Seal Integrity: Inspect and replace seals to prevent leaks and contamination[6][7].
- Hydraulic Fluid Quality: Maintain proper fluid levels and replace contaminated fluid promptly[6].
- Temperature Monitoring: Prevent overheating by ensuring adequate cooling and avoiding excessive loads[6].
- Control System Checks: Test electrical and hydraulic controls for responsiveness[6][7].
- Tip: Proactive maintenance minimizes downtime and extends actuator life, leading to increased productivity and reduced costs[7].
Choosing the best hydraulic rotary actuator for your application requires careful consideration of several factors:
- Torque Requirements: Determine the maximum torque needed for your load[8][13][14].
- Rotation Angle: Choose an actuator capable of the required angular movement[11][14].
- Load Capacity: Ensure the actuator can handle the axial and radial loads imposed by your application[13][14].
- Operating Pressure: Match actuator specifications with your hydraulic system's pressure capabilities[13][14].
- Environmental Conditions: Consider temperature, humidity, and exposure to contaminants[8].
- Space Constraints: Select a compact design if installation space is limited[2][9].
- Control Precision: Opt for actuators with advanced feedback and control options if precise positioning is essential[1][5][11].
- Expert Tip: Always consult with manufacturers or application engineers to ensure compatibility and optimal performance for your specific requirements[8][13].
Hydraulic rotary actuators are a cornerstone of modern automation and heavy machinery, offering unmatched torque, compactness, precision, and reliability. Their ability to perform in harsh environments, combined with low maintenance needs and versatile application potential, makes them the actuator of choice for industries ranging from construction and manufacturing to marine and aerospace.
By understanding the benefits, operation, and selection criteria outlined in this guide, engineers and decision-makers can harness the full potential of hydraulic rotary actuators for their projects—maximizing productivity, efficiency, and safety.
Hydraulic rotary actuators can deliver extremely high torque, with some helical spline models reaching up to 250,000 Nm and rack-and-pinion designs capable of even higher outputs, depending on size and system pressure[9][11][14].
High-quality hydraulic rotary actuators offer excellent positioning accuracy, with minimal internal leakage and angular play as low as 10–20 minutes of arc. Many models also support intermediate angles and feedback mechanisms for precise control[1][11].
Common issues include fluid leaks, slow or erratic movement, loss of torque, overheating, and noise or vibration. Regular inspection, proper lubrication, and seal maintenance can prevent most problems[6][7].
Yes, hydraulic rotary actuators are designed with robust housings, dust-proof and moisture-proof seals, and wear-resistant surfaces, making them suitable for outdoor, marine, and hazardous industrial environments[1][7][14].
Consider your torque and rotation requirements, load capacity, operating pressure, environmental conditions, available space, and desired control precision. Consulting with manufacturers and reviewing detailed specifications ensures the best fit for your needs[8][13][14].
