Views: 222 Author: Ella Publish Time: 2025-04-21 Origin: Site
Content Menu
● Introduction to Planetary Gearboxes
● How Planetary Gearboxes Work
● Common Causes of Planetary Gearbox Failure
● Key Warning Signs Your Planetary Gearbox Needs Repair
>> 4. Oil Leaks and Contamination
>> 7. Electrical and Control Issues
● Step-by-Step: Inspecting and Troubleshooting a Planetary Gearbox
>> 1. Initial Visual Inspection
>> 4. Internal Inspection (if safe and possible)
● When to Seek Professional Planetary Gearbox Repair
● FAQ: Planetary Gearbox Repair
>> 1. How often should I inspect my planetary gearbox?
>> 2. Can I use any lubricant for my planetary gearbox?
>> 3. What are the signs of gearbox failure?
>> 4. When should I replace gearbox components?
>> 5. How can I improve the efficiency of my planetary gearbox?
Planetary gearboxes are vital components in many industrial machines, vehicles, and automation systems, prized for their compact design, high torque output, and efficiency. However, like any mechanical system, planetary gearboxes are subject to wear, damage, and eventual failure if not properly maintained. Early detection of issues is crucial to avoid catastrophic breakdowns, costly downtime, and expensive planetary gearbox repair. This comprehensive guide will help you recognize the warning signs that your planetary gearbox needs repair, understand the underlying causes, and learn best practices for maintenance and troubleshooting.

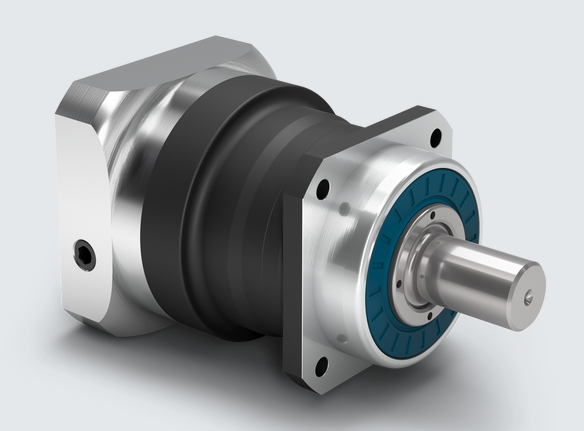

Planetary gearboxes, also known as epicyclic gearboxes, are used in a wide range of applications—from automotive transmissions and heavy machinery to robotics and wind turbines. Their unique design allows for high torque density and multiple gear ratios in a compact footprint.
Key Features:
- High torque output
- Compact and efficient design
- Multiple gear ratios
- Widely used in industrial and automotive applications

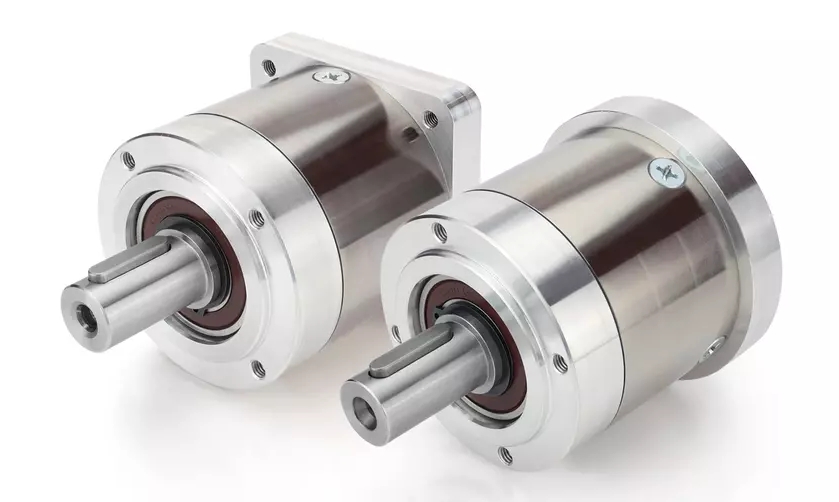

A planetary gearbox consists of three main components:
- Sun Gear: The central gear around which the planet gears revolve.
- Planet Gears: Multiple gears that orbit the sun gear, mounted on a carrier.
- Ring Gear: An outer gear with internal teeth that mesh with the planet gears.
The input power is transmitted through the sun gear, which drives the planet gears. These, in turn, rotate inside the ring gear, distributing torque and speed efficiently.
Understanding why planetary gearboxes fail is essential for both prevention and effective planetary gearbox repair. The most common causes include:
- Insufficient Lubrication: Leads to increased friction, heat, and wear on gears and bearings[2][6].
- Contamination: Dirt, dust, or metal particles cause abrasive wear and pitting[2].
- Overloading: Operating beyond design limits results in gear tooth breakage and fatigue[2].
- Misalignment: Improper assembly or mounting causes uneven loading and accelerated wear[2][16].
- Fatigue Failure: Repeated cyclic loading leads to cracks and eventual breakage[2].
- Impact Loading: Sudden shocks from operational errors or malfunctions deform or break gears[2].
- Temperature Extremes: High or low temperatures can alter material properties, reducing strength[2].
- Poor Maintenance: Irregular inspections, missed lubricant changes, and ignoring early warning signs accelerate failure[2][14].
- Manufacturing Defects: Rare, but possible if materials or machining are substandard[2].
Timely detection of gearbox issues can save you from expensive planetary gearbox repair or replacement. Here are the most common signs to watch for:
- Grinding, Clunking, or Banging: May indicate worn, broken, or misaligned gears[7].
- Hissing or Whining: Could signal air/fluid leaks or bearing issues[7].
- Clicking or Ticking: Often points to damaged gear teeth or loose components[7][6].
- "Problems with planetary gear sets will usually present like typical transmission problems, including vibrations while driving, strange noises while shifting gears, slipping gears, or even total transmission failure."[1]
Video: Planetary Gear Set Operation and Troubleshooting
- Sudden or Unusual Vibrations: Suggests imbalance, misalignment, or bearing failure[13][18].
- Increased Vibration Over Time: Indicates progressive wear or damage to internal components[16][18].
- "Unusual vibrations or increased noise levels can indicate underlying issues within the planetary gearbox. Periodic vibration analysis and noise monitoring can help in detecting problems early on."[18]
- Elevated Operating Temperatures: Overheating is often caused by excessive friction, overloading, or inadequate lubrication[8].
- Burnt Odors or Discoloration: Indicates severe overheating or lubricant breakdown[8].
- Visible Oil Leaks: Damaged seals or gaskets allow lubricant to escape, reducing protection for gears and bearings[7][14].
- Contaminated Oil: Metal shavings, dirt, or water in the oil accelerate wear and signal internal damage[13][2].
- "The gear hub shown above is in bad shape: not only has all the gear oil leaked out, but there is so much abrasive contamination in there that it is just a nightmare."[13]
- Reduced Torque or Power Output: Worn gears, bearings, or misalignment can cause a loss of efficiency and output[7][6].
- Slipping or Difficulty Shifting: Indicates internal wear or failure of critical gearbox components[1][7].
If you can inspect the gearbox internally, look for:
- Worn Gear Teeth: Teeth appear more pointed than squared, or show pitting, scuffing, or cracks[13][16].
- Bent or Broken Teeth: Excessive forces or impact damage[16].
- Surface Damage: Polished or damaged areas on gear teeth or bearings[13].
- Erratic Operation: Problems with sensors, wiring, or control units can cause unpredictable gearbox performance[6].
- Faulty Connections: Electrical shorts or loose wires may trigger alarms or stop the gearbox[6].
- Check for external leaks, cracks, or obvious damage[12][14].
- Inspect mounting bolts and connections for tightness.
- Run the gearbox and listen for abnormal noises.
- Feel for excessive vibration or heat.
- Inspect oil level and condition.
- Look for signs of contamination (metal particles, discoloration).
- Open the gearbox to examine gear teeth, bearings, and seals.
- Look for wear, cracks, or missing material[13][16].
- Measure output torque and speed.
- Compare with manufacturer specifications.
- Use vibration analysis, thermography, or acoustic emission testing for deeper insights[14][18].
- Regular Inspections: Schedule routine checks for noise, vibration, and oil condition[14][18].
- Lubrication: Use the correct lubricant and change it at recommended intervals[14][15].
- Cleanliness: Keep the gearbox and surrounding area free of dirt and debris[14][15].
- Alignment: Ensure proper alignment during installation and after maintenance[2][18].
- Load Monitoring: Avoid overloading and sudden shock loads[2][18].
- Prompt Repairs: Address minor issues before they escalate[2][14].
If you notice any of the warning signs above, it's important to act quickly. Many issues can be resolved with timely planetary gearbox repair, avoiding the need for costly replacements. Qualified technicians can:
- Disassemble and inspect the gearbox
- Measure and assess gears, shafts, and bearings
- Repair or replace damaged components
- Reassemble and test the gearbox to ensure proper function[17]
-"Expert repair services can restore your gearbox's performance at a cost that is far less than replacement."[17]
Video: Repairing WORN OUT Planetary Carrier
Recognizing the early warning signs of planetary gearbox failure is essential for preventing catastrophic breakdowns and minimizing downtime. Abnormal noises, excessive vibration, overheating, oil leaks, decreased performance, and visible wear are all indicators that your gearbox may need repair. Regular maintenance, proper lubrication, and prompt attention to issues will extend the life of your planetary gearbox and ensure reliable operation. When in doubt, consult a professional for thorough inspection and planetary gearbox repair.
Regular inspections should be performed according to the manufacturer's guidelines, but as a rule of thumb, inspect your gearbox at least every six months or after any unusual operation. More frequent checks may be necessary in harsh environments or high-duty cycles[14][18].
No, always use the lubricant type and grade specified by the gearbox manufacturer. Using the wrong lubricant can cause excessive wear, overheating, and premature failure[14][15].
Common signs include abnormal noises (grinding, clunking), excessive vibration, oil leaks, overheating, reduced performance, and visible wear or damage to gears and bearings[1][7][13].
Replace components when you observe significant wear, cracks, bent or broken gear teeth, or if performance drops despite proper maintenance. Always follow manufacturer recommendations for component lifespan[14][16].
Maintain proper lubrication, avoid overloading, ensure correct alignment, perform regular inspections, and replace worn parts promptly. Upgrading to higher-quality components can also enhance efficiency and longevity[14][18].
