Vane type hydraulic motors are essential components in modern hydraulic systems, known for their efficiency, compact design, and precise control. These motors convert hydraulic energy into mechanical rotary motion, making them indispensable in various industrial, agricultural, and mobile applications. This comprehensive article explores the main applications of vane type hydraulic motors, highlighting their versatility and integration with gear reducers to optimize performance.

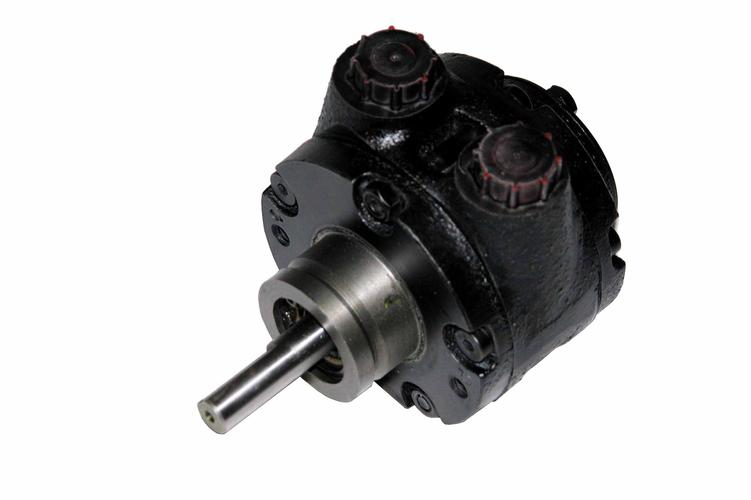

Understanding Vane Type Hydraulic Motors

A vane type hydraulic motor operates by using a rotor with multiple sliding vanes inside a cam-shaped housing. Hydraulic fluid pressure pushes the vanes outward against the housing, causing the rotor to turn and generate mechanical power. This design allows for smooth, continuous rotary motion with high efficiency and controllability.

Key Features of Vane Type Hydraulic Motors

- High starting torque and smooth operation under load

- Compact and lightweight design for easy integration

- Precise speed and torque control through hydraulic flow and pressure adjustments

- Low noise levels due to patented vane and cartridge designs

- Compatibility with gear reducers to tailor output speed and torque for specific applications

Main Applications of Vane Type Hydraulic Motors

Vane type hydraulic motors are widely used across multiple industries due to their reliability and adaptability. Below are the primary sectors and applications where these motors excel.

Industrial Machinery

In industrial settings, vane hydraulic motors power a variety of machines requiring precise rotary motion and torque control.

- Conveyor systems: For moving materials efficiently in manufacturing plants

- Mixers and agitators: To ensure uniform mixing in chemical and food processing industries

- Injection molding machines: Providing controlled rotary motion for screwdrivers and molds

- Roll mills and shredders: For processing raw materials with consistent torque

The integration of a hydraulic motor with gear reducer in these machines allows for optimized speed and torque, enhancing productivity and reducing wear.

Agricultural Machinery

Agriculture benefits significantly from vane type hydraulic motors, which power equipment that demands reliable and adjustable torque.

- Harvesters and sprayers: For cutting crops and spraying pesticides with precision

- Irrigation systems: Controlling valves and pumps for efficient water distribution

- Self-driven cranes and augers: Facilitating material handling and soil processing

The compact size and efficiency of vane motors, combined with gear reducers, make them ideal for mobile agricultural machinery where space and power management are critical.

Construction Equipment

Construction machinery relies on hydraulic vane motors for their robustness and control capabilities.

- Skid steer loaders and excavators: For precise movement and attachment control

- Road pavers and compactors: Ensuring smooth operation and consistent force application

- Hydraulic lifts and winch systems: Providing reliable lifting and pulling power

Using a hydraulic motor with gear reducer in construction equipment allows for better torque multiplication and speed regulation, essential for heavy-duty tasks.

Aerospace Industry

In aerospace, vane type hydraulic motors are used in systems requiring high reliability and precise control.

- Landing gear deployment: Smooth and controlled extension and retraction

- Cargo handling systems: Efficient movement of cargo doors and loading equipment

- Flight control actuators: Assisting in the operation of control surfaces

The motors' compact design and ability to operate under varying pressures make them suitable for aerospace hydraulic systems.

Automotive Applications

Automotive uses of vane hydraulic motors include:

- Winch systems: For vehicle recovery and towing

- Hydraulic lifts: In service and repair equipment

- Power steering systems: Enhancing maneuverability and control

The combination of vane motors with gear reducers ensures the right balance of speed and torque for automotive hydraulic functions.

Maritime Industry

Maritime applications demand durable and efficient hydraulic motors.

- Steering systems: Providing responsive and reliable control of rudders

- Anchor winches: For smooth anchoring operations

- Fishing equipment: Powering reels and other machinery

Vane motors' ability to handle continuous operation and harsh environments makes them ideal for marine use.

Mining Industry

Mining operations require powerful and reliable hydraulic motors.

- Drilling rigs: Delivering consistent torque for drilling through tough materials

- Conveyor systems: Moving extracted minerals efficiently

- Underground machinery: Operating in confined spaces with high power demands

The use of hydraulic motor with gear reducer in mining equipment helps achieve the necessary torque and speed for demanding tasks.

Renewable Energy

In renewable energy systems, vane hydraulic motors contribute to efficiency and control.

- Wind turbines: Adjusting blade pitch for optimal wind capture

- Solar tracking systems: Moving solar panels to follow the sun's path

Their precise control and reliability support sustainable energy generation.

Additional Applications of Vane Type Hydraulic Motors

Beyond the traditional sectors, vane type hydraulic motors are increasingly finding new applications due to their precision and adaptability.

Robotics

Vane type hydraulic motors are increasingly used in robotics for precise control of robotic arms and automated systems. Their ability to provide smooth and accurate rotary motion makes them ideal for tasks such as assembly, welding, and material handling in manufacturing environments. The motors' responsiveness and controllability enable robots to perform delicate and complex operations with high repeatability.

Material Handling

In material handling, vane type hydraulic motors power equipment like forklifts, pallet jacks, and conveyor systems, enabling efficient movement and control of goods in warehouses and distribution centers. Their compact size and torque control capabilities allow for smooth acceleration and deceleration, reducing wear on mechanical components and improving safety.

HVAC Systems

Heating, ventilation, and air conditioning (HVAC) systems utilize vane type hydraulic motors for controlling dampers and valves, ensuring optimal airflow and temperature regulation in commercial and industrial buildings. The motors' quiet operation and precise control help maintain comfortable environments while improving energy efficiency.

Automotive Manufacturing

In automotive manufacturing, these motors are used in assembly lines for tasks such as lifting, rotating, and positioning components with high precision and reliability. The integration of hydraulic motor with gear reducer systems allows for customized speed and torque profiles, essential for handling diverse parts and assembly processes.

Advantages of Using Hydraulic Motors with Gear Reducers

Pairing vane type hydraulic motors with gear reducers enhances their functionality by:

- Increasing torque output for heavy-load applications

- Reducing output speed to match specific operational requirements

- Improving energy efficiency by optimizing motor load conditions

- Extending motor life through reduced mechanical stress

This combination is prevalent in many applications, from industrial machinery to mobile equipment, where tailored power delivery is crucial.

Conclusion

Vane type hydraulic motors are versatile, efficient, and reliable components that serve a broad spectrum of industries. Their ability to convert hydraulic energy into controlled mechanical motion makes them indispensable in industrial machinery, agriculture, construction, aerospace, automotive, maritime, mining, renewable energy, robotics, material handling, HVAC, and automotive manufacturing sectors. When combined with gear reducers, these motors deliver optimized torque and speed, enhancing performance and extending equipment life. As technology advances, vane type hydraulic motors will continue to play a pivotal role in powering the machinery and systems that drive modern industry.

FAQ

1. What is a vane type hydraulic motor?

A vane type hydraulic motor is a rotary actuator that converts hydraulic fluid pressure into mechanical rotational motion using a rotor with sliding vanes inside a cam-shaped housing.

2. Why are vane hydraulic motors often paired with gear reducers?

Gear reducers adjust the output speed and increase torque, allowing the hydraulic motor to operate efficiently under various load conditions and applications.

3. What industries commonly use vane type hydraulic motors?

They are widely used in industrial machinery, agriculture, construction, aerospace, automotive, maritime, mining, renewable energy, robotics, material handling, HVAC, and automotive manufacturing industries.

4. How do vane hydraulic motors benefit agricultural machinery?

They provide reliable power for tasks like crop harvesting, spraying, and irrigation with precise control and compact design suitable for mobile equipment.

5. Can vane type hydraulic motors operate at high speeds?

Yes, vane hydraulic motors are capable of operating at high speeds and can control oscillating motion, making them suitable for applications requiring fast and precise rotary motion.
