Vane motors are a critical component in many Heating, Ventilation, and Air Conditioning (HVAC) systems. Their unique design and operational advantages make them ideal for various applications where precise control, efficiency, and reliability are essential. This comprehensive article explores the top vane motor applications in HVAC systems, explaining their working principles, benefits, and real-world uses. Visual aids such as diagrams, images, and videos are embedded throughout to enhance understanding.

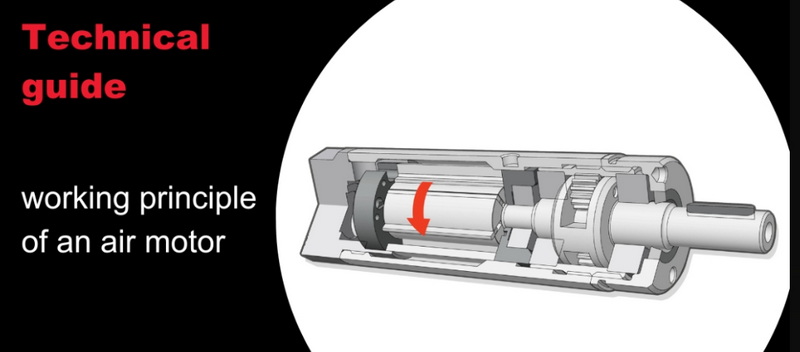

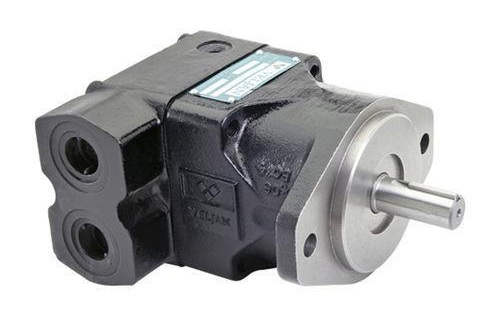

A vane motor is a type of rotary motor that converts compressed air or hydraulic fluid pressure into mechanical rotational energy. It consists of a rotor with several sliding vanes that maintain contact with the motor housing, creating chambers that expand and contract to produce torque and rotation.
Compressed air or hydraulic fluid enters the motor chamber, pushing the vanes outward against the housing wall. The pressure difference across the vanes causes the rotor to spin, converting fluid energy into mechanical motion. The vanes slide in and out of the rotor slots as it turns, maintaining a seal and continuous rotation.
This simple yet effective mechanism allows vane motors to provide smooth, continuous rotary motion with high starting torque and stepless speed regulation, making them highly suitable for HVAC applications.
- Explosion-proof operation: Since vane motors use compressed air or hydraulic fluid, they do not generate sparks, making them safe for hazardous or explosive environments.
- High starting torque: Vane motors can start under load without stalling.
- Compact and lightweight: Their small size allows installation in confined spaces.
- Smooth and quiet operation: Low noise levels are ideal for indoor HVAC environments.
- Precise speed and torque control: Enables efficient airflow and fluid movement management.
- Durability in harsh conditions: Resistant to dust, humidity, and temperature fluctuations.
Vane motors are commonly used to drive fans in air handling units. Their ability to provide smooth, variable speed control helps optimize airflow and maintain indoor air quality.
- Application details: Vane motors adjust fan speed to match ventilation needs, improving energy efficiency and comfort.
- Benefit: Reduced energy consumption by modulating airflow rather than running fans at full speed constantly.
Guide vanes regulate airflow direction and pressure in HVAC fans and compressors. Vane motors adjust these guide vanes to optimize system performance.
- Application details: In large commercial HVAC systems, vane motors control guide vane assemblies to balance airflow and pressure.
- Benefit: Enhanced system efficiency and reduced energy waste.
Rotary vane pumps powered by vane motors are used to circulate refrigerants in HVAC chillers.
- Application details: They provide consistent, smooth flow of refrigerants, essential for maintaining desired cooling temperatures.
- Benefit: Improved chiller efficiency and reliability.
Vane motors enable precise control of airflow in VAV boxes, which adjust the volume of conditioned air delivered to different zones.
- Application details: Vane motors modulate damper positions in VAV boxes to maintain set temperatures efficiently.
- Benefit: Enhanced occupant comfort and energy savings.
Vane motors drive fans in cooling towers, adjusting airflow to optimize heat rejection.
- Application details: Variable speed control via vane motors allows fans to run only as fast as needed.
- Benefit: Significant reduction in energy consumption and noise.
Vane motors can be integrated with modern Building Management Systems to provide automated and optimized control of HVAC components. Through pneumatic or hydraulic control signals, vane motors adjust fan speeds, damper positions, and pump flows in real-time based on environmental sensors and occupancy data.
- Benefit: This integration leads to smarter energy management, reducing waste and improving occupant comfort.
Advanced vane motor systems incorporate position sensors and feedback loops to precisely control the angle of vanes or damper positions. This allows for fine-tuned airflow regulation and rapid response to changing conditions.
- Example: In variable air volume (VAV) systems, feedback-controlled vane motors maintain exact airflow rates to different zones, enhancing HVAC efficiency.
- Wear and tear of vanes leading to reduced efficiency.
- Contamination of compressed air or hydraulic fluid causing motor malfunction.
- Seal degradation resulting in leaks and loss of pressure.
- Regular inspection and replacement of vanes.
- Ensuring clean and dry compressed air supply.
- Periodic lubrication and seal checks.
- Monitoring motor speed and torque for irregularities.
- Checking for unusual noises indicating mechanical wear.
- Verifying control signal integrity in automated systems.
A large office building retrofitted its air handling units with vane motor-driven fans. By implementing variable speed control, the building achieved a 20% reduction in HVAC energy consumption, significantly lowering operational costs.
In a hospital setting, vane motors were used to precisely control airflow in critical zones such as operating rooms and isolation wards. The precise control helped maintain strict air quality standards and patient comfort.
- Development of smart vane motors with IoT connectivity for predictive maintenance.
- Use of advanced materials to increase durability and reduce weight.
- Integration with renewable energy systems for sustainable HVAC solutions.
Vane motors play an indispensable role in modern HVAC systems by providing efficient, reliable, and precise control of airflow and fluid movement. From driving air handling fans and actuating guide vanes to circulating refrigerants and managing variable air volume systems, vane motor applications enhance energy efficiency, system performance, and occupant comfort. Their explosion-proof design, smooth operation, and compact size make them an optimal choice for diverse HVAC environments, including commercial, industrial, and specialized settings.
Vane motors offer high starting torque, smooth speed control, explosion-proof operation, compact size, and durability in harsh environments, making them ideal for HVAC systems requiring reliable and efficient airflow and fluid control.
By enabling variable speed control of fans, pumps, and dampers, vane motors allow HVAC components to operate only as fast as needed, reducing unnecessary energy consumption and lowering operational costs.
Yes, vane motors are explosion-proof because they do not generate sparks during operation, making them safe for use in environments with flammable gases or dust.
Vane motors generally require minimal maintenance, mainly periodic inspection for wear on vanes and seals, lubrication if applicable, and ensuring clean compressed air or hydraulic fluid supply to prevent contamination.
Vane motors typically operate on compressed air or hydraulic fluid and are not electric motors; thus, they do not use VFDs. However, electric motors in HVAC systems often use VFDs for speed control, while vane motors provide mechanical speed variation through fluid pressure control.
