Hydraulic planetary gear reducers are compact, high-torque transmission systems widely used in heavy machinery, wind turbines, and mobile equipment. By combining hydraulic power with precision gearing, these devices achieve exceptional torque multiplication while maintaining efficiency. This article explores their design, integration with advanced components like Rineer hydraulic vane motors, and industrial applications.

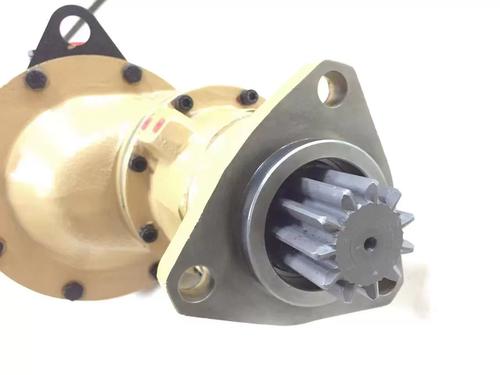

Structure of Planetary Gear Reducers

A hydraulic planetary gear reducer consists of three primary components:

1. Sun Gear: The central input gear connected to the power source, typically made of carburized alloy steel (e.g., AISI 8620) for wear resistance.

2. Planet Gears: Three to seven gears orbiting the sun gear, mounted on a rotating carrier. These gears often use case-hardened steel to handle cyclic loads.

3. Ring Gear: A stationary or rotating outer gear with internal teeth, usually constructed from nitrided steel for durability.

The compact arrangement allows torque distribution across multiple contact points, reducing wear and enabling load capacities exceeding 50,000 Nm. Modern designs incorporate modular bearing systems to accommodate axial and radial forces, while advanced lubrication channels ensure even oil distribution.

Working Principle

Planetary gear reducers operate through coordinated motion, driven by hydraulic pressure ranging from 1,500 to 5,000 PSI:

1. Input Rotation: The sun gear rotates via hydraulic power from a Rineer hydraulic vane motor, which converts fluid energy into mechanical motion.

2. Planetary Motion: Planet gears spin on their axes while orbiting the sun gear at a speed ratio determined by:

Gear Ratio=1+Number of Ring Gear Teeth/Number of Sun Gear Teeth

3. Torque Multiplication: The carrier outputs reduced speed but amplified torque. For example, a 10:1 ratio with a 200 Nm input yields 2,000 Nm output.

Efficiency typically exceeds 95% in multi-stage systems, with losses attributed to gear meshing friction and hydraulic fluid churning.

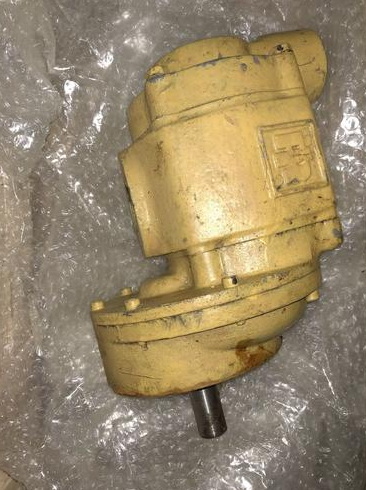

Integration with Hydraulic Systems

Hydraulic planetary gear reducers pair with Rineer hydraulic vane motors to achieve unmatched power density. Unlike piston motors, Rineer's vane technology minimizes pulsation, reducing vibration by up to 40%.

How Rineer Motors Enhance Performance

- High Starting Torque: Rineer's patented vane-crossing-vane design delivers 90–94% of theoretical torque at stall, ideal for heavy loads like crane winches.

- Compact Design: A 15 cubic inch motor weighs only 43 lbs, enabling space-efficient integration in mobile machinery.

- Variable Speed Control: Four-port configurations allow dual-speed operation (e.g., 0–300 RPM and 300–1,000 RPM) without gear changes.

Maintenance Best Practices

1. Gear Oil Checks: Inspect ISO VG 220 synthetic oil levels every 100 hours. Contamination above 15 μm particles requires immediate filtration.

2. Seal Integrity: Replace radial lip seals if leakage exceeds 5 drops/minute. Use fluorocarbon seals in high-temperature environments (>250°F).

3. Load Monitoring: Install torque sensors to prevent exceeding rated limits. Sudden load spikes above 120% capacity can fracture planet gears.

Industrial Applications

1. Construction Equipment

Excavators like the Caterpillar 320 use 3-stage planetary reducers with Rineer 3200-series motors for track drives. The setup delivers 12,000 lb-ft torque for climbing 45° slopes.

2. Wind Turbines

Multi-stage reducers handle 3–8 MW loads. Helical planetary gears reduce noise by 20 dB, while Rineer's corrosion-resistant motors endure offshore salt spray.

3. Marine Winches

Tugboats deploy 50:1 reducers paired with Rineer marine-grade motors featuring nickel-plated housings. Systems achieve 98% uptime in tidal energy projects.

Case Study: Rineer-Powered Conveyor System

A Chilean copper mine upgraded its 2 km conveyor with a Rineer 57-series motor and 20:1 planetary reducer:

- Challenge: Frequent breakdowns due to dust ingress and 24/7 operation.

- Solution: Sealed reducer housing + Rineer's contamination-tolerant motor.

Results:

- 35% higher torque (4,500 → 6,075 Nm)

- 50% smaller footprint

- Zero downtime over 12 months.

Future Innovations

1. Smart Reducers: IoT-enabled sensors monitor oil viscosity and gear tooth stress in real time.

2. Additive Manufacturing: 3D-printed titanium carriers reduce weight by 30% without compromising strength.

3. Hybrid Drives: Integrating Rineer motors with electric actuators for precision control in robotic arms.

Conclusion

Hydraulic planetary gear reducers are indispensable for high-torque applications, offering compactness and reliability. When combined with Rineer hydraulic vane motors, they enable breakthroughs in power density and operational flexibility. Regular maintenance ensures longevity, while advancements in modular gear design continue to expand their use across industries. For engineers seeking peak performance, pairing planetary reducers with Rineer's innovation remains a gold standard.

FAQ

1. How do planetary gears achieve torque multiplication?

By distributing load across multiple planet gears, the system amplifies input torque proportionally to the gear ratio.

2. Why choose Rineer motors for hydraulic systems?

Rineer motors provide flat torque curves, high power-to-weight ratios, and tolerance to oil contamination.

3. What causes planetary gear failure?

Common causes include contaminated oil, seal leaks, and overloading beyond rated torque.

4. Can planetary reducers operate in reverse?

Yes—locking the carrier and driving the ring gear reverses output direction.

5. How to calculate gear ratio in multi-stage reducers?

Multiply individual stage ratios. For example, 3:1 and 4:1 stages yield a 12:1 total ratio.
