Hydraulic rotary actuators are essential components in many industrial, construction, aerospace, and agricultural applications where precise rotary motion and high torque are required. This comprehensive article will explore what hydraulic rotary actuators are, how they work, their types, applications, advantages, and considerations for selection and use. Additionally, we will include visual aids such as diagrams and videos to enhance understanding. Finally, the article concludes with a FAQ section addressing common questions about hydraulic rotary actuators.
A hydraulic rotary actuator is a device that converts hydraulic fluid pressure and flow into controlled rotary motion or torque. Unlike linear actuators that produce straight-line motion, rotary actuators generate rotational movement, which is critical for operating valves, positioning machinery, rotating components, and more.
Hydraulic rotary actuators are compact, powerful, and capable of delivering high torque in a small footprint. They are commonly used in applications requiring precise angular displacement, typically ranging from 90° to 360°, and sometimes up to 720° or more depending on the design.
The core working principle of hydraulic rotary actuators involves converting the linear motion of a piston driven by hydraulic fluid pressure into rotary motion. This conversion is typically achieved through mechanical components such as helical gears, vanes, or rack-and-pinion mechanisms inside the actuator housing.
- Helical Gear System: The piston moves linearly under hydraulic pressure. Helical gears connected to the piston convert this linear movement into rotational motion of the output shaft. The rotation angle depends on the length of the piston's stroke and the gear design.
- Vane Type: A vane attached to a rotating shaft is pushed by hydraulic fluid, causing the shaft to turn. This design usually limits rotation to less than 280° per vane.
- Rack-and-Pinion: Hydraulic pressure moves a piston with a rack gear that engages a pinion gear on the output shaft, producing rotation. This design can achieve multiple rotations depending on piston and gear size.
By regulating the hydraulic fluid's flow and pressure, the actuator's rotational speed, direction, and angle can be precisely controlled. Feedback sensors can be integrated for position control and to ensure accurate and repeatable movements.
| Type | Description | Typical Rotation Range | Advantages | Applications |
|---|---|---|---|---|
| Helical Gear | Uses helical gears to convert piston linear motion to rotary motion. | 90°-720°+ | Compact, high torque, precise control | Construction, agriculture, aerospace |
| Vane Type | Uses vanes attached to a shaft pushed by hydraulic fluid. | Up to ~280° | Simple design, reliable | Valves, dampers |
| Rack-and-Pinion | Uses piston with rack gear engaging pinion gear on output shaft. | Multiple rotations | High torque, suitable for continuous rotation | Industrial machinery, robotics |
| Spiral Shaft | Uses spiral grooves on shaft interacting with piston to produce rotation. | Varies | Smooth motion, compact | Specialized industrial uses |
Hydraulic rotary actuators are versatile and find applications in many fields:

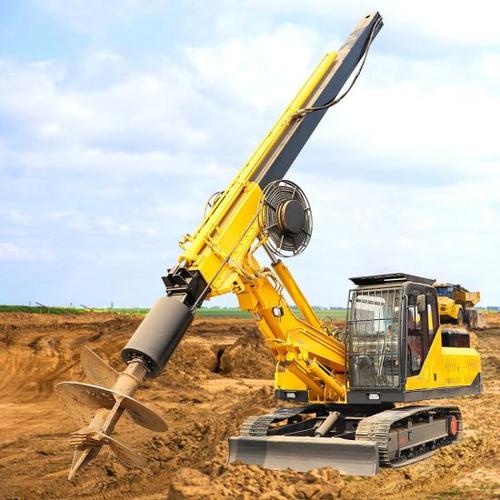

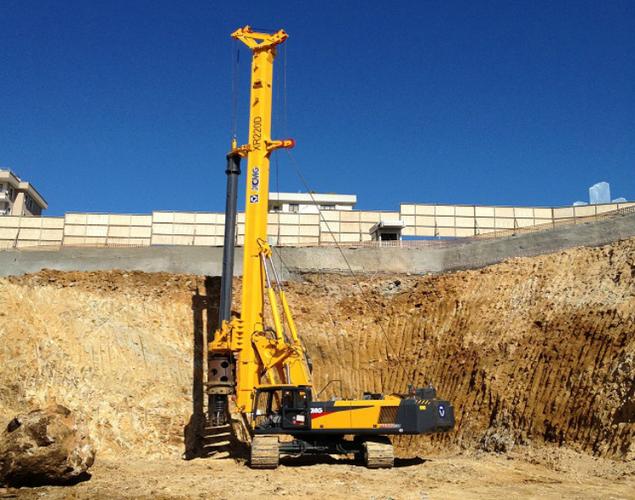

- Construction Machinery: Excavators, loaders, and cranes use them for boom positioning, steering, and tool rotation.
- Agricultural Equipment: Used for steering, conveyor swing, and implement positioning.
- Aerospace: Control of landing gear, flaps, and steering mechanisms for aircraft.
- Industrial Automation: Valve control, machine positioning, robotic arms, and material handling systems.
- Marine and Defense: Actuation of hatches, weapon systems, and steering gear.
- Waste Management: Bin tippers and pallet changers leverage their high torque in compact designs.
- Process Control: Regulating fluid flow in chemical, pharmaceutical, and HVAC systems.
- High Torque Output: Capable of producing very high torque in a compact size, suitable for heavy-duty applications.
- Precise Control: Hydraulic fluid flow and pressure can be finely controlled for accurate positioning and speed.
- Compact Design: Helical gear designs enable a small footprint while maintaining performance.
- Durability: Designed to withstand harsh environments, contamination, and heavy loads.
- Versatility: Can be used in various industries and customized for different rotation angles and torque requirements.
To better understand hydraulic rotary actuators, it is important to delve into the mechanical details of their operation.
In a helical gear hydraulic rotary actuator, the piston is connected to a helical gear set. When hydraulic fluid enters the actuator chamber, it pushes the piston linearly. The helical gears convert this linear motion into rotary motion by meshing the angled teeth of the gears. The angle of the helical teeth allows smooth engagement and efficient torque transfer, minimizing backlash and wear.
The rotation angle (θ) produced by the actuator depends on the piston stroke length (L) and the gear pitch (p). The relationship can be expressed as:
θ = (L / p) × 360°
This means that by adjusting the piston stroke and gear design, manufacturers can tailor the actuator's rotation range to specific needs.
Vane type actuators consist of a rotor with one or more vanes mounted inside a cylindrical housing. Hydraulic fluid pressure is applied to one side of the vane, causing it to rotate. The torque generated is proportional to the fluid pressure and the vane surface area.
Because the vanes are physically limited by the housing, the rotation angle is typically less than 280°. This makes vane actuators ideal for applications requiring limited angular displacement but high torque.
The rack-and-pinion actuator uses a piston with a rack gear that moves linearly under hydraulic pressure. The rack engages a pinion gear attached to the output shaft, converting the linear motion into rotary motion. This design allows for multiple rotations, depending on the rack length and gear ratio.
Rack-and-pinion actuators are favored in applications requiring continuous or multiple rotations, such as in robotic arms or rotary indexing tables.
Proper installation and maintenance are crucial for the reliable operation of hydraulic rotary actuators.
- Mounting: Ensure the actuator is mounted securely with proper alignment to avoid undue stress on the shaft and seals.
- Hydraulic Fluid: Use clean, compatible hydraulic fluid to prevent contamination and wear.
- Seals and Bearings: Regularly inspect seals and bearings for wear or leakage. Replace as necessary to maintain performance.
- Lubrication: Some actuators require periodic lubrication of internal gears or vanes.
- Temperature Monitoring: Avoid operating the actuator outside its specified temperature range to prevent damage.
- Pressure Checks: Monitor system pressure to ensure it remains within actuator specifications.
Despite their robustness, hydraulic rotary actuators can experience issues. Here are common problems and solutions:
- Leakage: Hydraulic fluid leaking from seals indicates worn or damaged seals. Replace seals promptly.
- Reduced Torque: May be caused by internal wear, contamination, or insufficient hydraulic pressure. Check fluid quality and pressure.
- Irregular Movement: Could be due to air in the hydraulic system or damaged internal components. Bleed the system and inspect internals.
- Overheating: Excessive heat can degrade seals and fluid. Ensure proper cooling and avoid overload conditions.
- Noise: Unusual noise may indicate gear wear or cavitation. Inspect gears and maintain fluid quality.
When selecting a hydraulic rotary actuator, consider:
- Torque Requirements: Match actuator torque to application needs.
- Rotation Angle: Choose actuator capable of required angular displacement.
- Operating Pressure: Ensure compatibility with hydraulic system pressure.
- Size and Weight: Compactness may be critical for space-limited applications.
- Control Needs: Determine if position feedback or adjustable stops are required.
- Environmental Conditions: Consider temperature, contamination, and durability requirements.
- Duty Cycle: Assess how frequently the actuator will operate and select one rated for the expected workload.
- Mounting Options: Verify that the actuator's mounting configuration fits the application.
Hydraulic rotary actuators are indispensable devices that convert hydraulic energy into precise rotary motion with high torque output. Their compact design, durability, and versatility make them ideal for a wide range of industrial, agricultural, aerospace, and construction applications. Understanding their working principles, types, and applications helps in selecting the right actuator for specific needs, ensuring efficient and reliable operation.
With proper installation, maintenance, and selection, hydraulic rotary actuators can provide years of dependable service in demanding environments, making them a cornerstone of modern hydraulic systems.
The main types include helical gear, vane type, rack-and-pinion, and spiral shaft actuators. Each type converts hydraulic linear motion into rotary motion differently and suits different applications.
Typical rotation ranges are 90°, 180°, 270°, and 360°, but some designs can achieve 720° or more by extending the spline gears or using multiple rotations.
Hydraulic actuators provide higher torque in a smaller package, better durability in harsh environments, and more precise control of force and speed compared to electric actuators.
Yes, rack-and-pinion and some helical gear actuators can be designed for continuous or multiple rotations, depending on the application requirements.
They are widely used in construction, agriculture, aerospace, marine, industrial automation, waste management, and process control industries.
